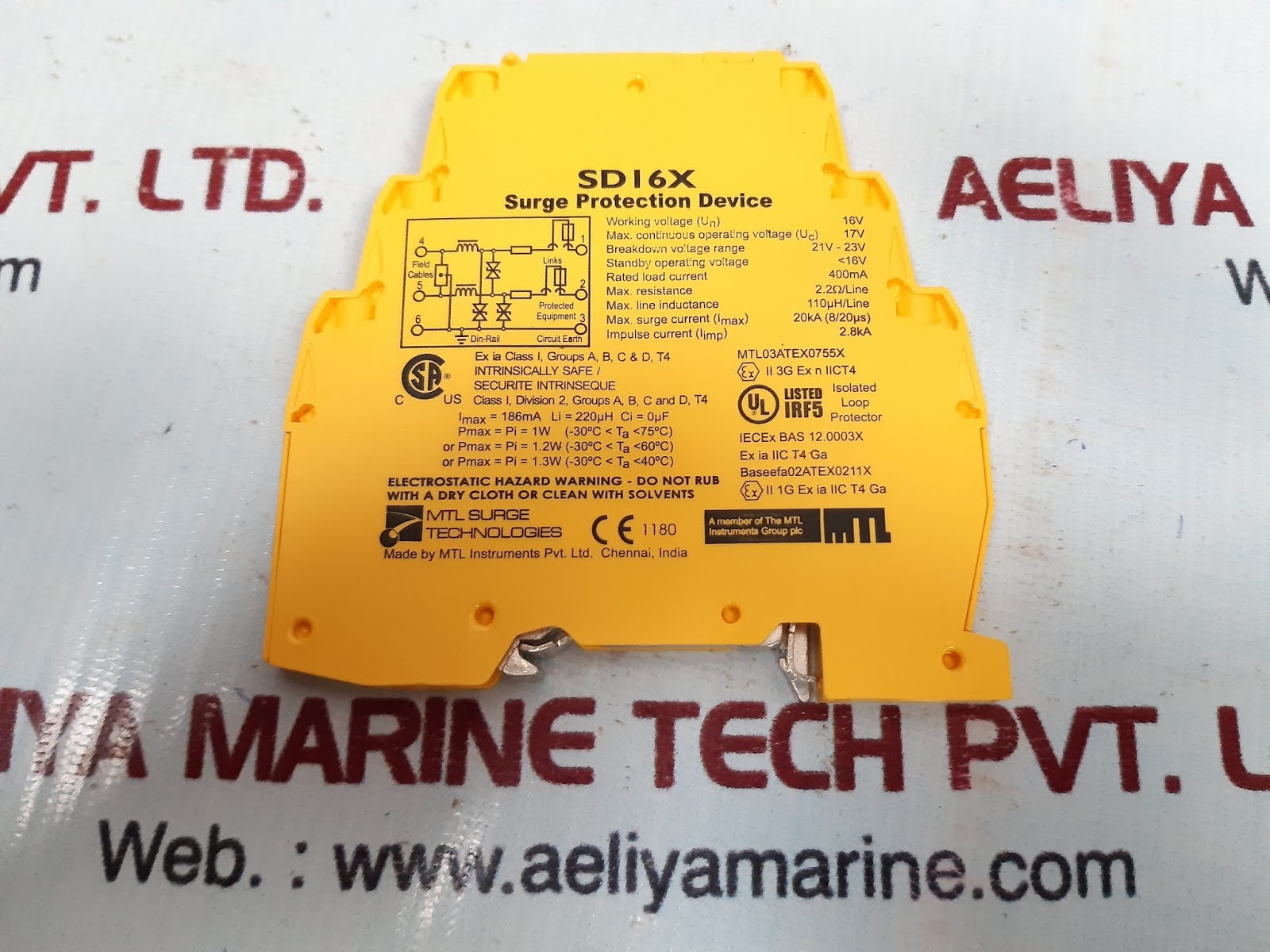

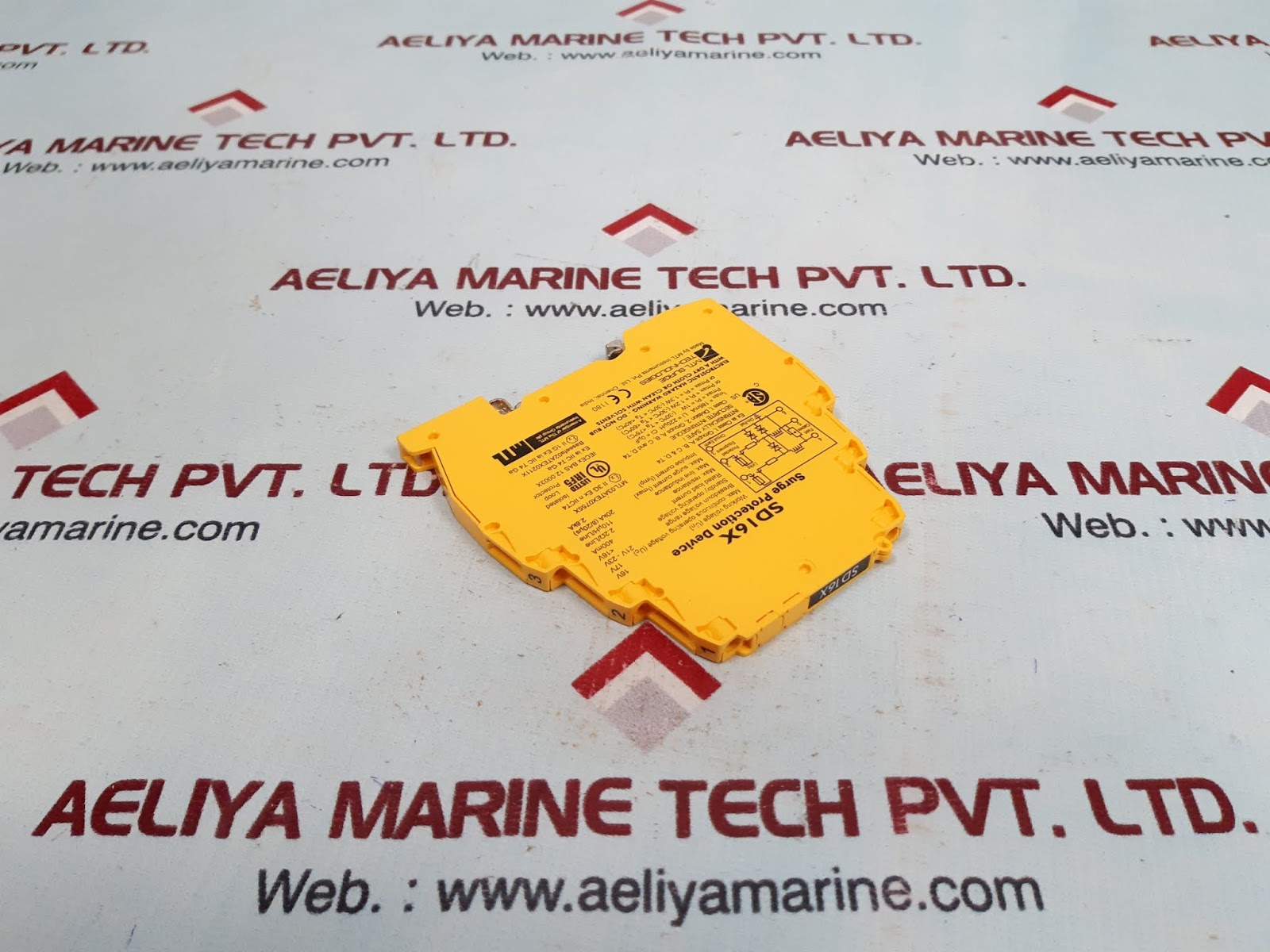

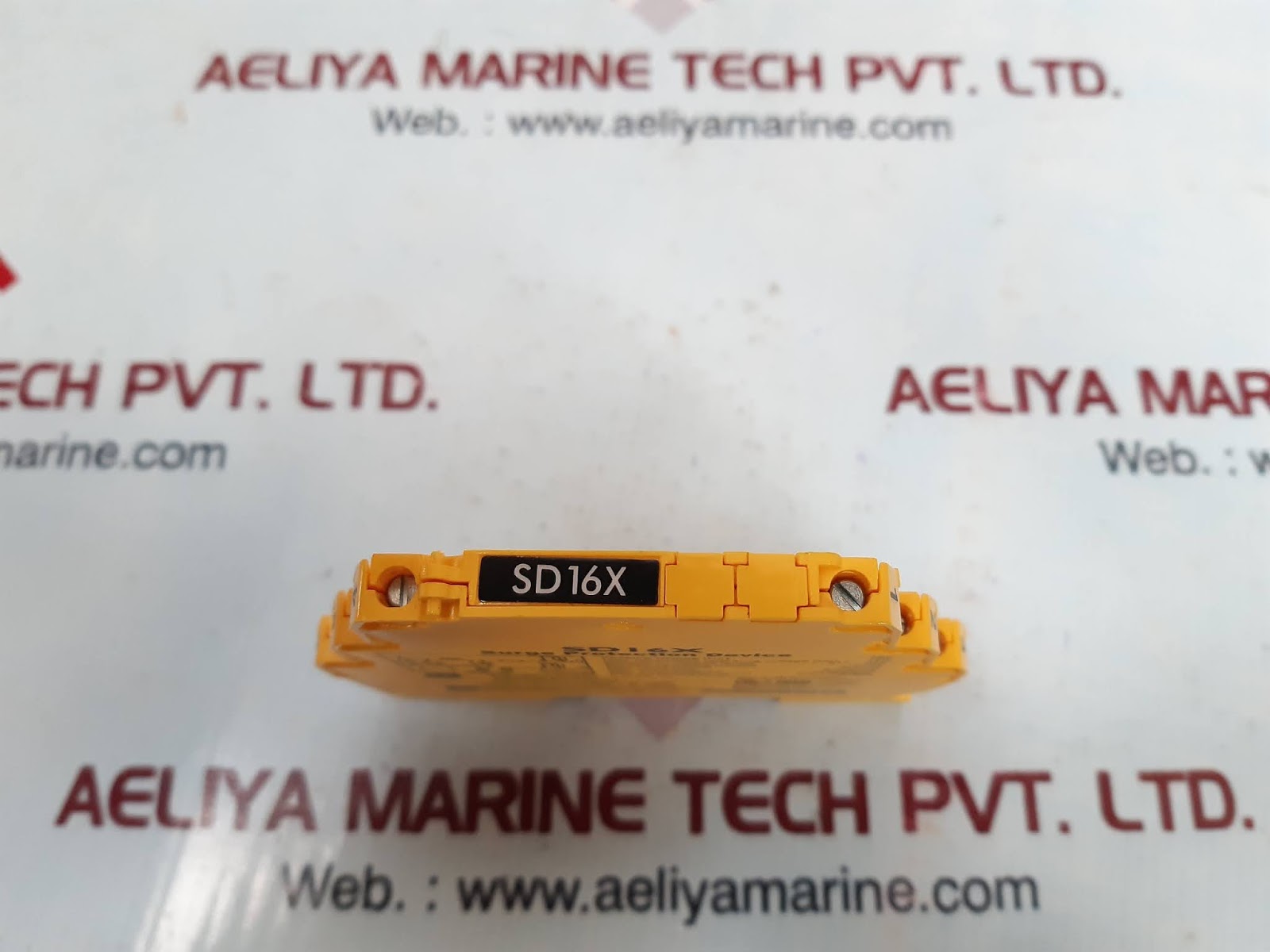

Mtl sd16x surge protection device
mtl
mtl surge technologies
sd16x
surge protection device
working voltage(un): 16v
max.continuous operating voltage(uc): 17v
breakdown voltage range: 21v-23v
standby operating voltage: 16v
rated load current: 400ma
max.resistance: 2.2ω/line
max.line inductance: 110µh/line
max.surge current(imax): 20ka(8/20µs)
impulse current(iimp): 2.8ka
ex ia class i,groups a,b,c & d,t4
intrinsically safe/securite intrinseque
class i, division 2, groups a,b,c and t4
imax= 186ma li=220µh c=0µhf
mtl03atex0755x
ii 3g ex n iict4
isolated loop protector
ex ia iic t4 ga
baseefa02atex0211x
ii 1g ex ia iic t4 ga
made by mtl instruments pvt.ltd.
india
weight: 70 gm
- Free Shipping on Order above $100
- 30 Days Warranty
- Fast Shipping via DHL
| Brand | |
|---|---|
| Condition | New |
