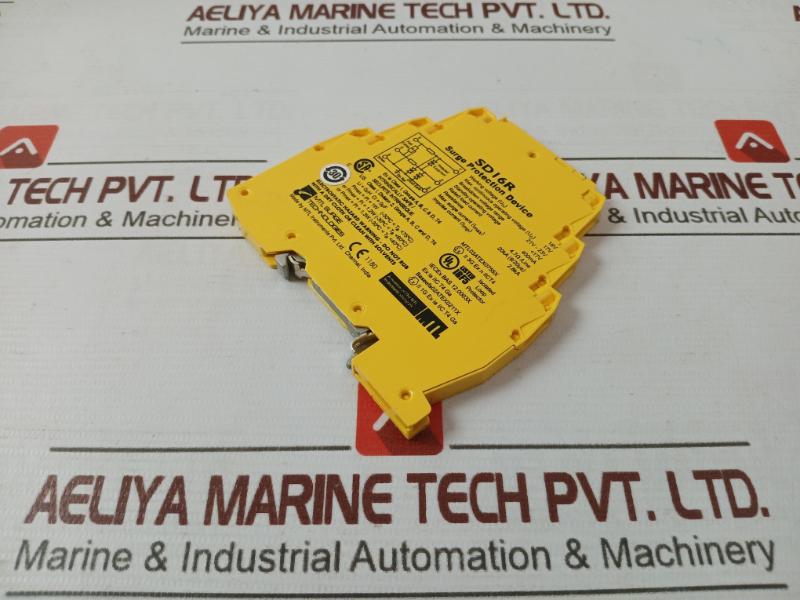

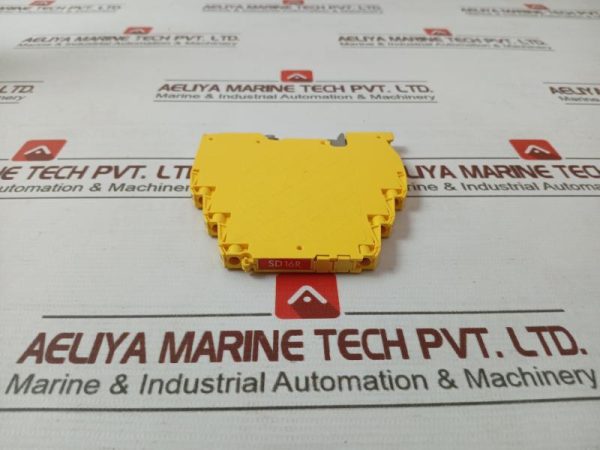

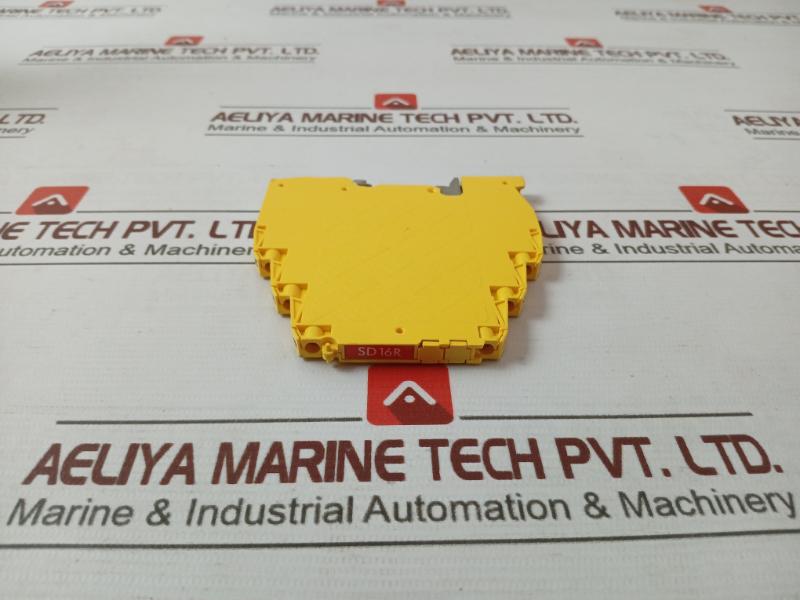

Mtl Sd16r Surge Protection Device

Mtl Sd16r Surge Protection Device
Mtl Surge Technologies
Made By Mtl Instruments Pvt. Ltd.
Mtl Instruments Group Plc Surge Protection Device 23v

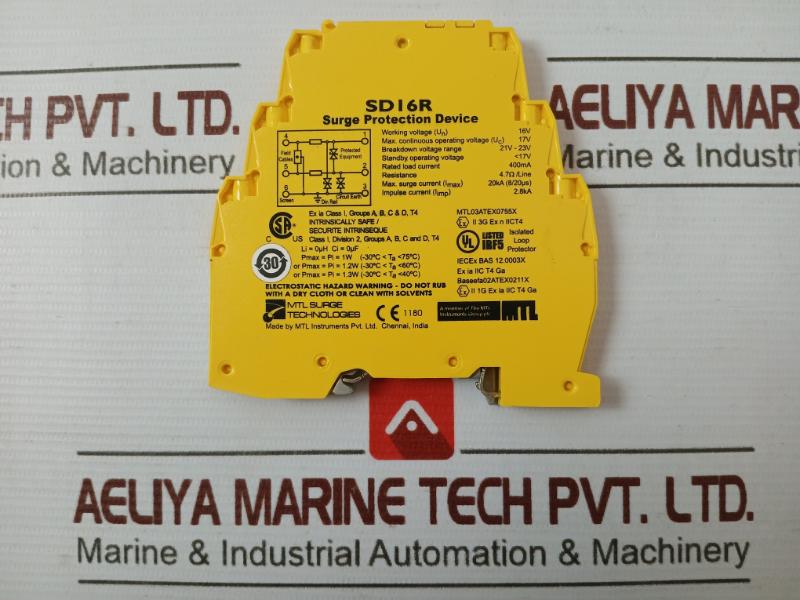

Surge Protection Device
Sd16r
Working Voltage (Un): 16v
Max. Continuous Operating Voltage (Uc): 17v
Breakdown Voltage Range: 21v-23v
Standby Operating Voltage: Less Than 17v
Rated Load Current: 400ma
Resistance: 4.7Ω/Line
Max. Surge Current (Imax): 20ka (8/20µS)
Impulse Current (Iimp): 2.8ka
Ex Ia Class I, Division 2, Groups A, B, C And D, T4
Li= 0µH
Ci= 0µF
Pmax=Pi=1w (-30°C Less Than Ta Less Than 75°C)
Or Pmax=Pi=1.2w (-30°C Less Than Ta Less Than 60°C)
Or Pmax=Pi=1.3w (-30°C Less Than Ta Less Than 40°C)
Mtl03atex0755x
Ii 3g Ex N Iic T4
Iecex Bas 12.0003x
Ex Ia Iic T4 Ga
Baseefa02atex0211x
Ii 1g Ex Ia Iic T4 Ga
3316412143
India
Weight : 70 Gm
Ref No : 165226
