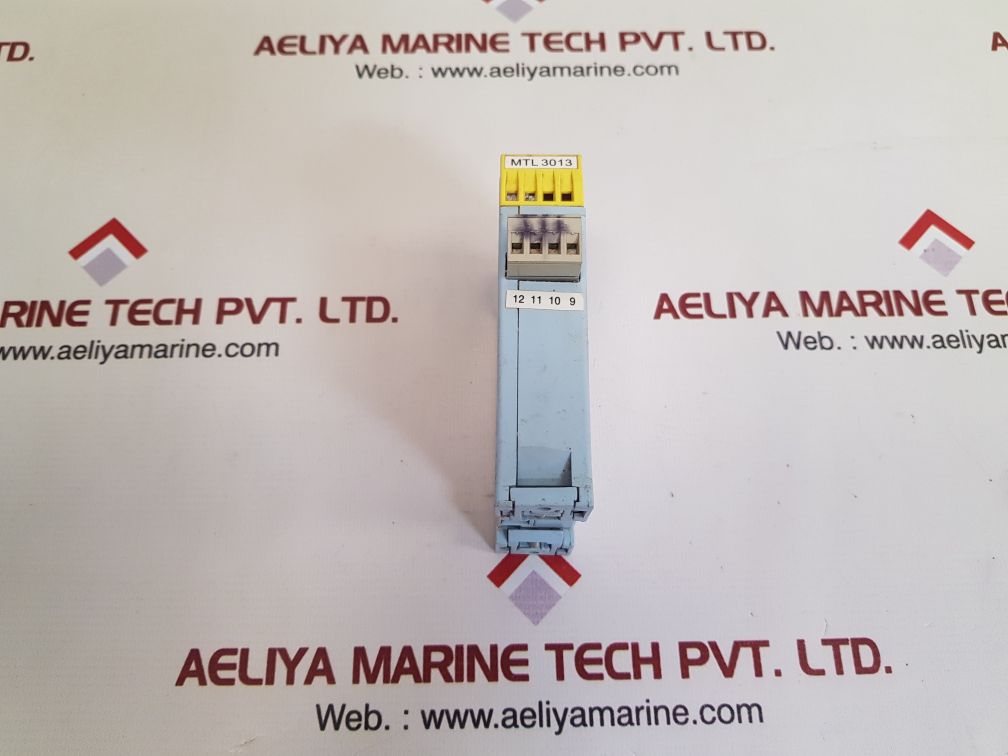

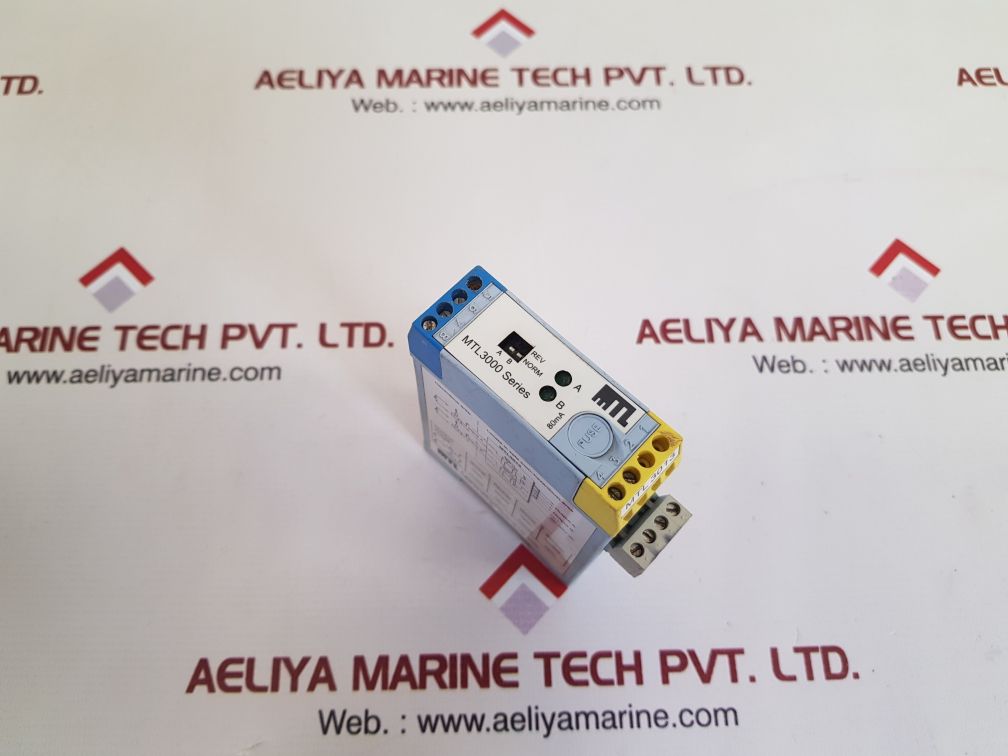

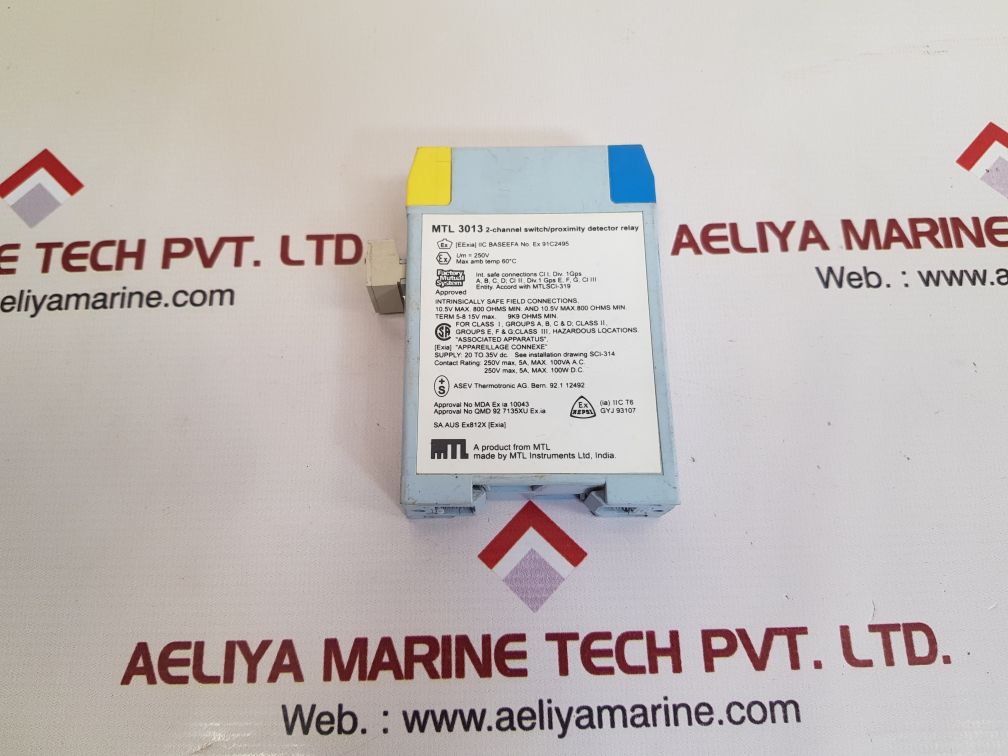

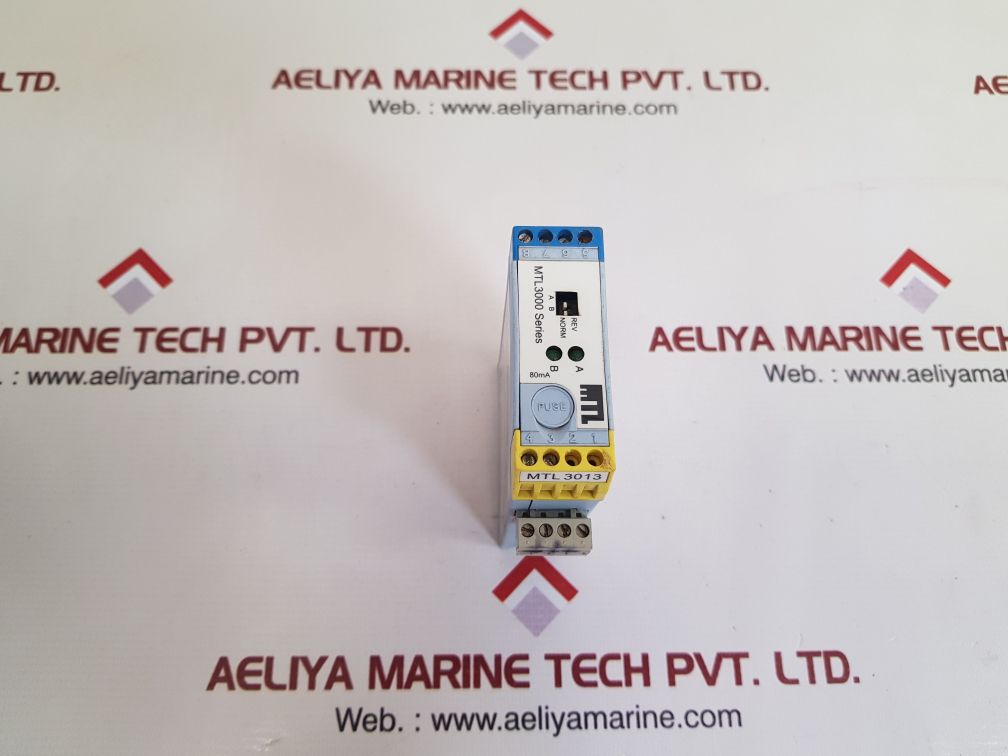

Mtl Instruments Mtl3013 Proximity Detector Relay

Mtl Instruments Mtl3013 Proximity Detector Relay
a product from mtl
made by mtl instruments ltd, india
mtl3000 series

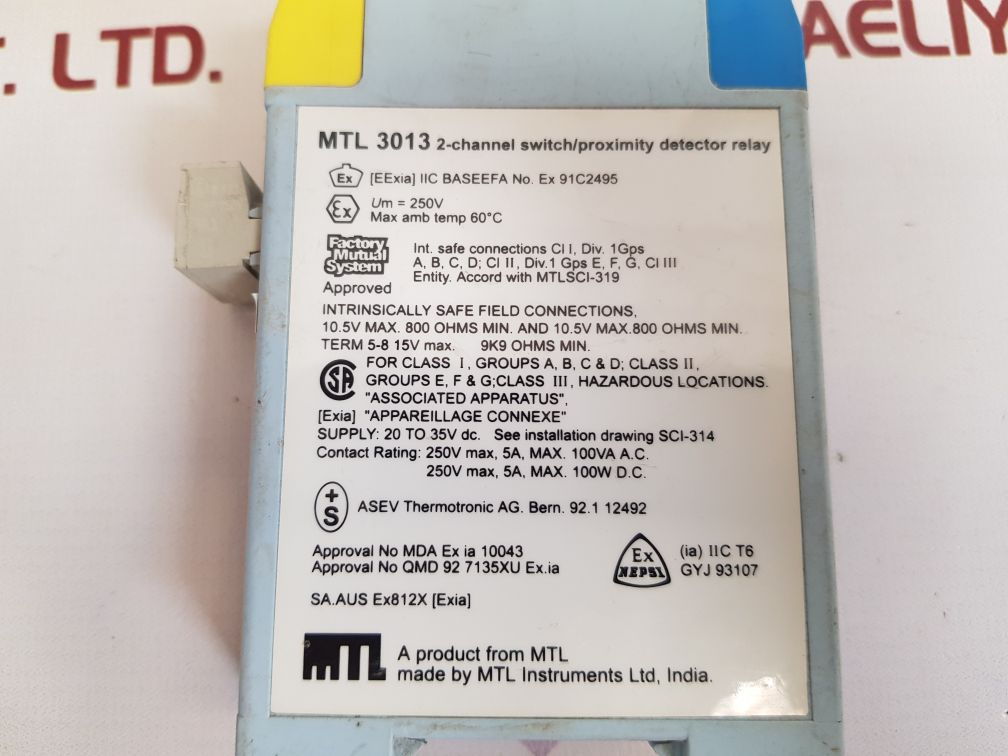

mtl3013
2-channel switch/proximity detector relay
[eexia]iic baseefa no. ex 91c2495
um= 250v
max amb temp 60°c
cl i, div. 1 gps a,b,c,d;
cl ii, div. 1 gps e,f,g,
cl. iii
intrinsically safe field connections,
10.5v max. 800 ohms min.
term 5-8 15v max. 9k9 ohms min.
supply: 20 to 35v dc.
contact rating: 250v max, 5a, max. 100va a.c.
250v max, 5a, max. 100w d.c.
weight: 185 gm
