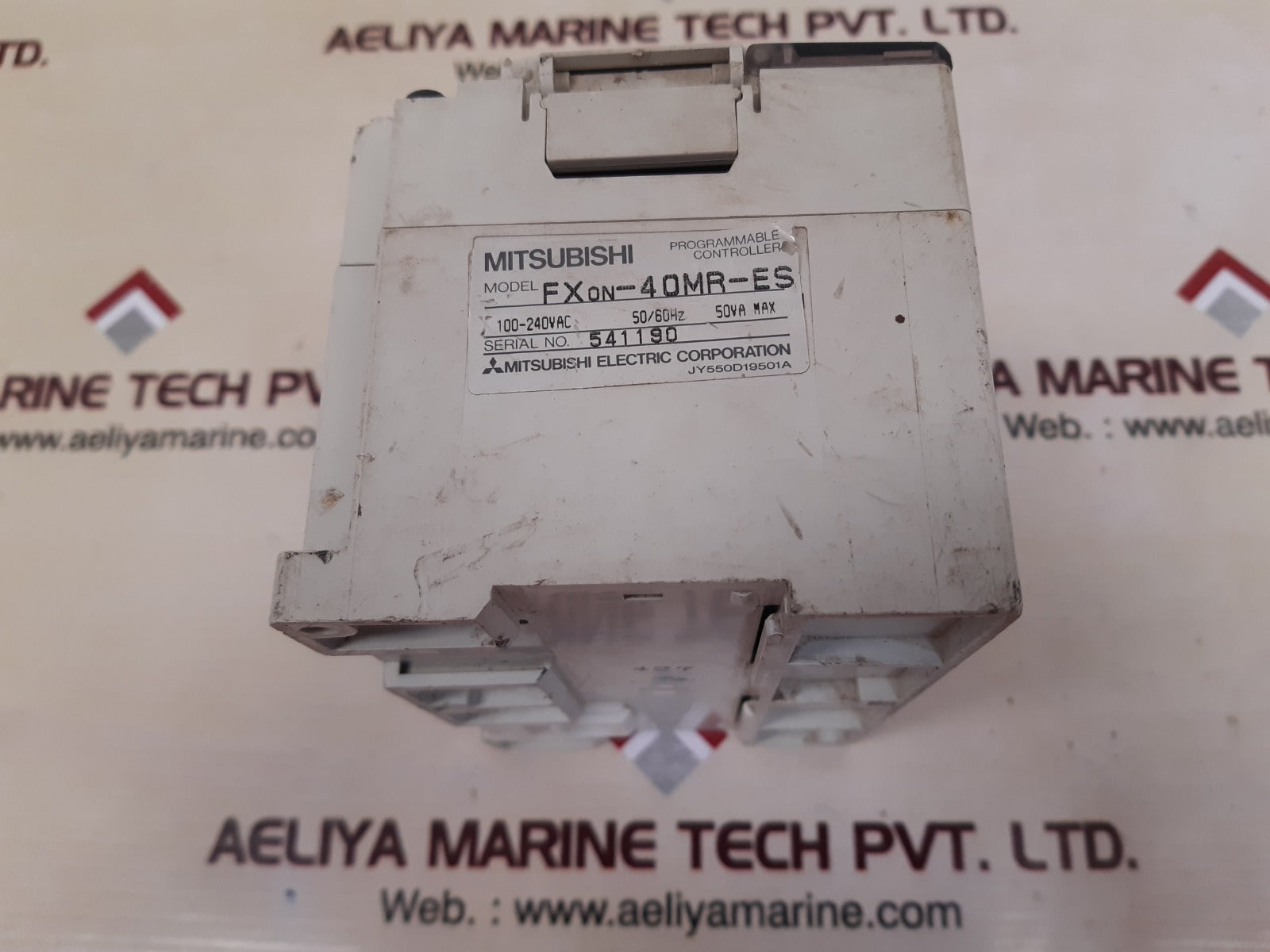

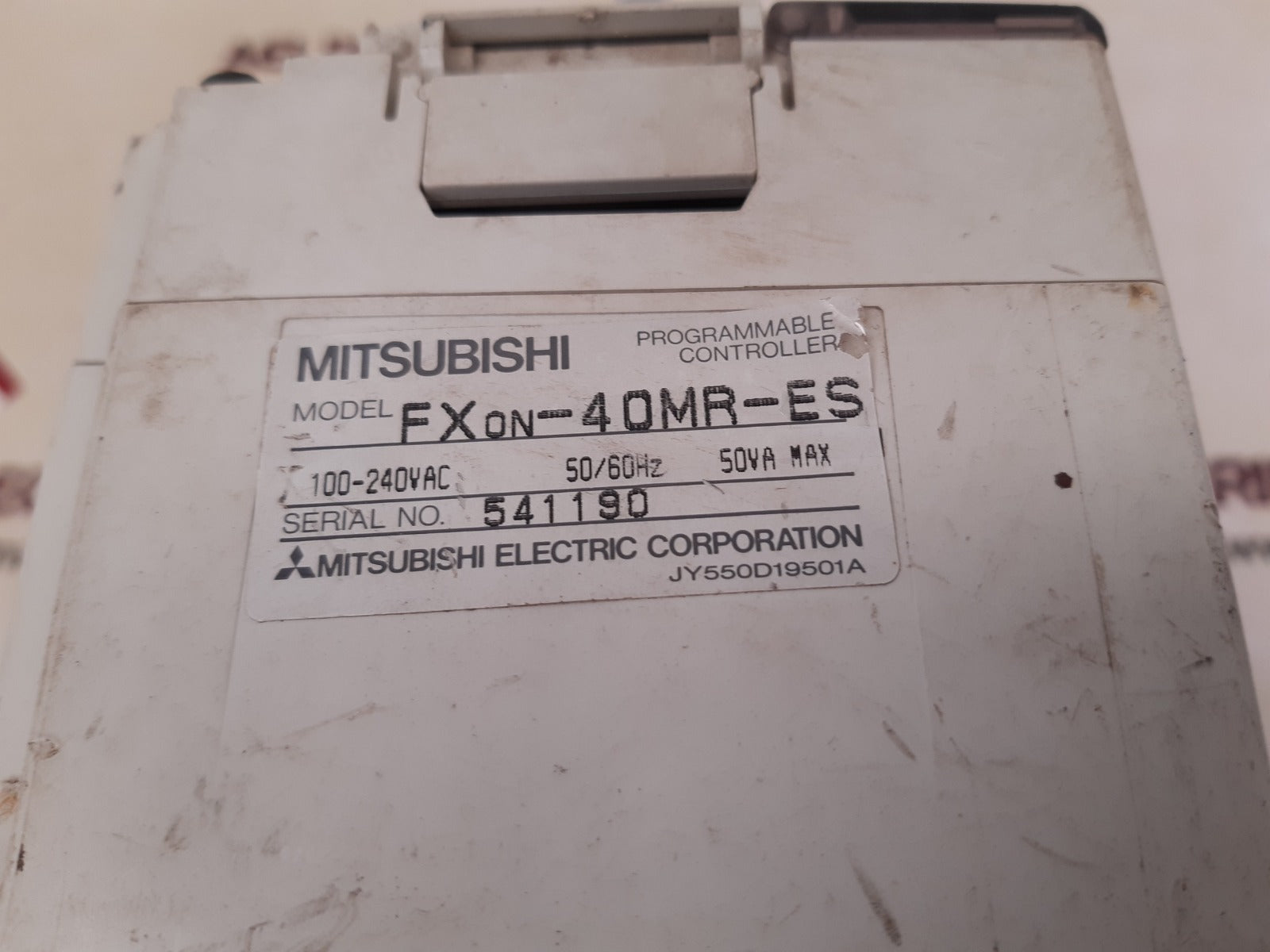

| Attribute | Value |
|---|---|
| Brand | Mitsubishi Electric Corporation |
| Type | Programmable Controller |
| Series | Melsec |
| Unit | U1 |
| Model | FX0N-40MR-ES |
| Input Voltage | 100-240VAC 50/60Hz |
| Power Consumption | 50VA Max |
| Part Number | JY550D19501A |
| Output Voltage | 24V |
| Weight | 690 gm |

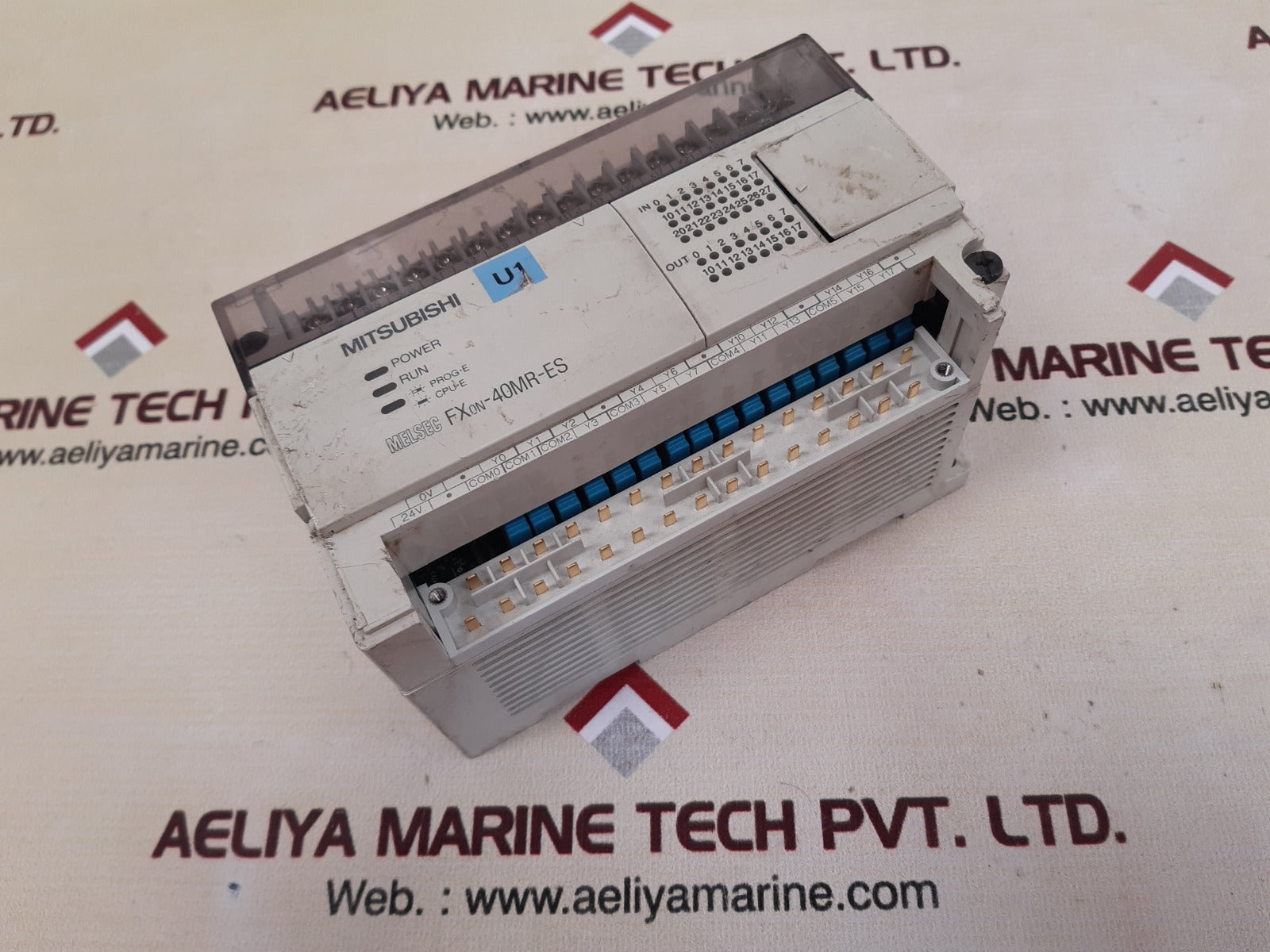

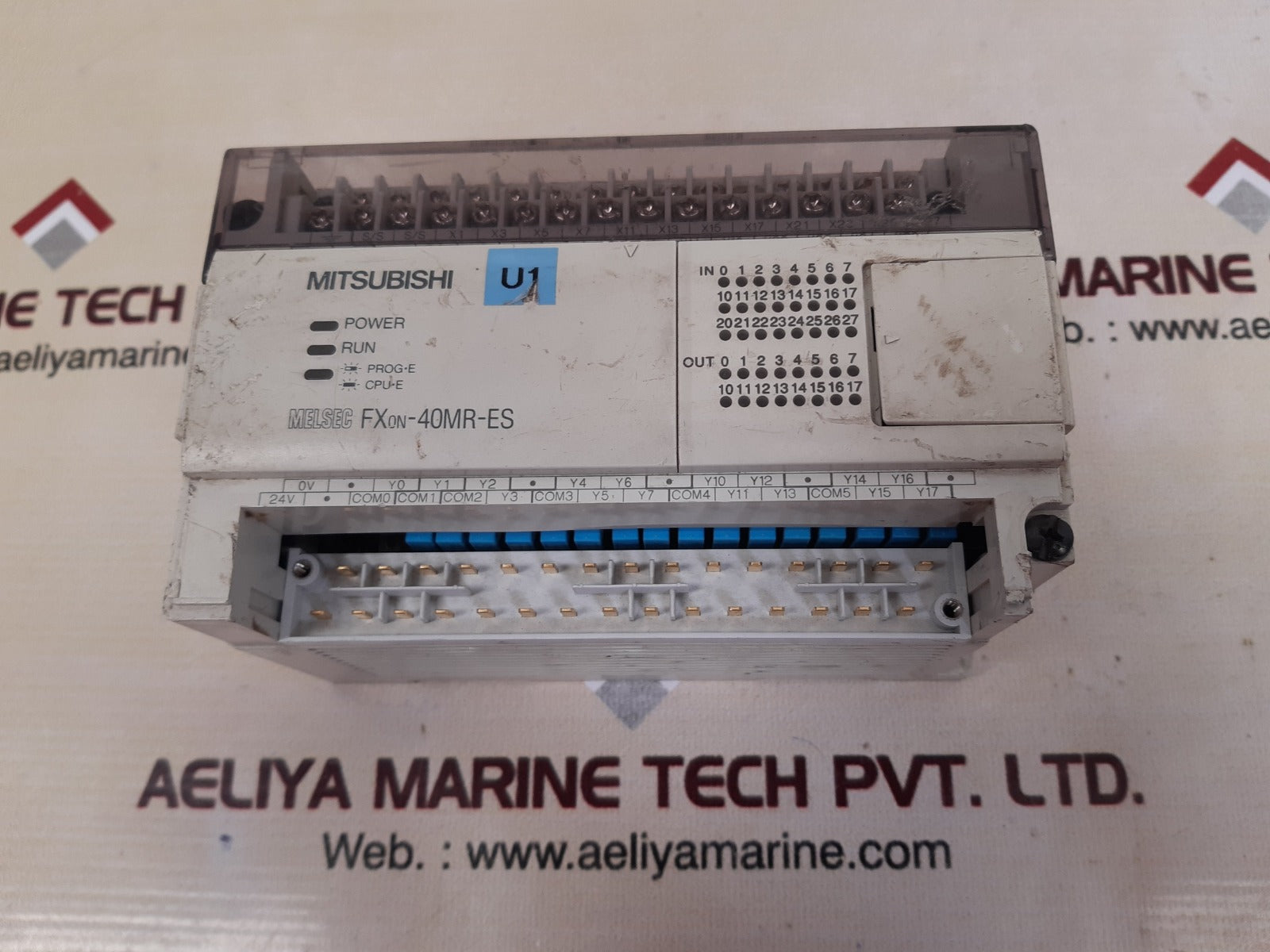

What is the Mitsubishi Melsec FX0N-40MR-ES?
The FX0N-40MR-ES is a part of Mitsubishi’s renowned FX family of PLCs. Specifically designed for small to medium-sized automation tasks, it offers great flexibility and ease of use. This model features:
Power Supply: 100–240VAC
Frequency: 50/60Hz
Power Consumption: 50VA
I/O Configuration: 24 inputs and 16 relay outputs
Built-in RS-232 communication port
It’s built to withstand the tough environments of industrial settings while maintaining consistent performance.
Key Features
1. Wide Voltage Range (100–240VAC)
The biggest benefit of FX0N-40MR-ES is the fact that it can work under a wide input voltage range. Whether your configuration runs on 110V or 220V, this product adjusts perfectly without the need for external power transformers.
2. Small and Heavy-Duty Design
Even with its small dimensions, FX0N-40MR-ES does not neglect durability. It’s designed to withstand tough environments, such as electrical noise and temperature variations usually present in manufacturing settings.
3. Reliable I/O Capabilities
With 40 total I/O points, the controller supports 24 digital inputs and 16 relay outputs. This configuration is ideal for controlling machines, conveyor belts, sensors, alarms, and other factory equipment.
4. User-Friendly Programming Environment
Mitsubishi’s GX Developer or GX Works software allows for intuitive programming. Even entry-level engineers can set up and run automation processes quickly.
5. Low Power Consumption
The unit operates at only 50VA, and it provides efficiency in energy while not sacrificing output. It’s an economical solution for companies trying to maximize the use of power in their automated systems.
Applications
The FX0N-40MR-ES is applied to various industries thanks to its flexible application. Its common applications include:
Manufacturing Lines: Use in controlling actuators, motors, and sensors in automated assemblies.
Packaging Systems: Integration of packaging devices and conveyors.
HVAC Systems: Automating heating, ventilation, and air conditioning in factory buildings.
Food & Beverage Processing: Ensuring hygienic and accurate control of automated processes.
Water Treatment Plants: Pump, valve, and chemical dosing system monitoring.
Its tried-and-tested reliability provides an excellent solution for repetitive, high-frequency applications.
Advantages of Using the FX0N-40MR-ES
Low Downtime: Stable and has a long life of operation.
Easy Integration: Can easily be integrated into existing automation systems.
Cost-Effective: Low power requirements and minimal maintenance make it a great return on investment.
Support & Documentation: Backed by Mitsubishi’s extensive support network and detailed manuals.
