| Attribute | Value |
|---|---|

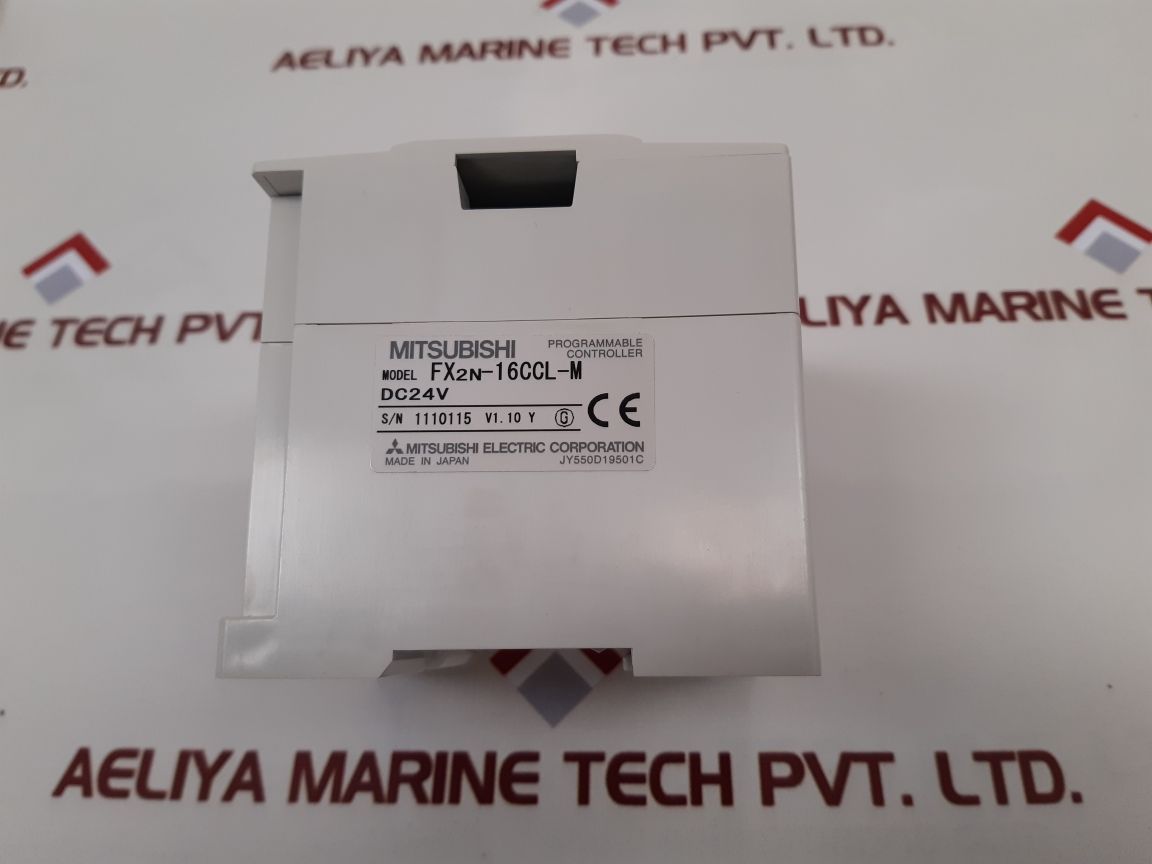

| Manufacturer | Mitsubishi Electric Corporation |
| Series | Melsec-f Fx2N |
| Model/Gname | Fx2N-16Ccl-m |
| Voltage | DC 24V |
| Version | V1.10 Y |

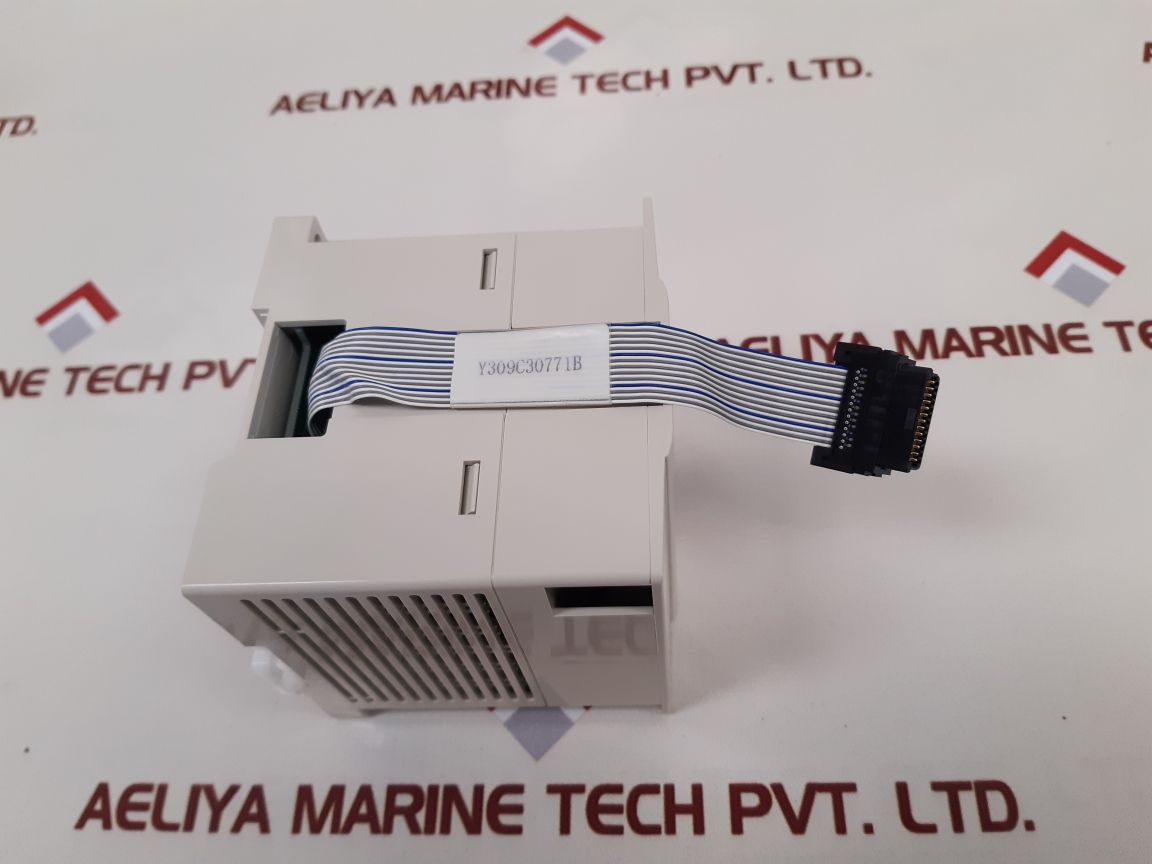

| Part Numbers | Jy550D19501C, Y309C30771B |

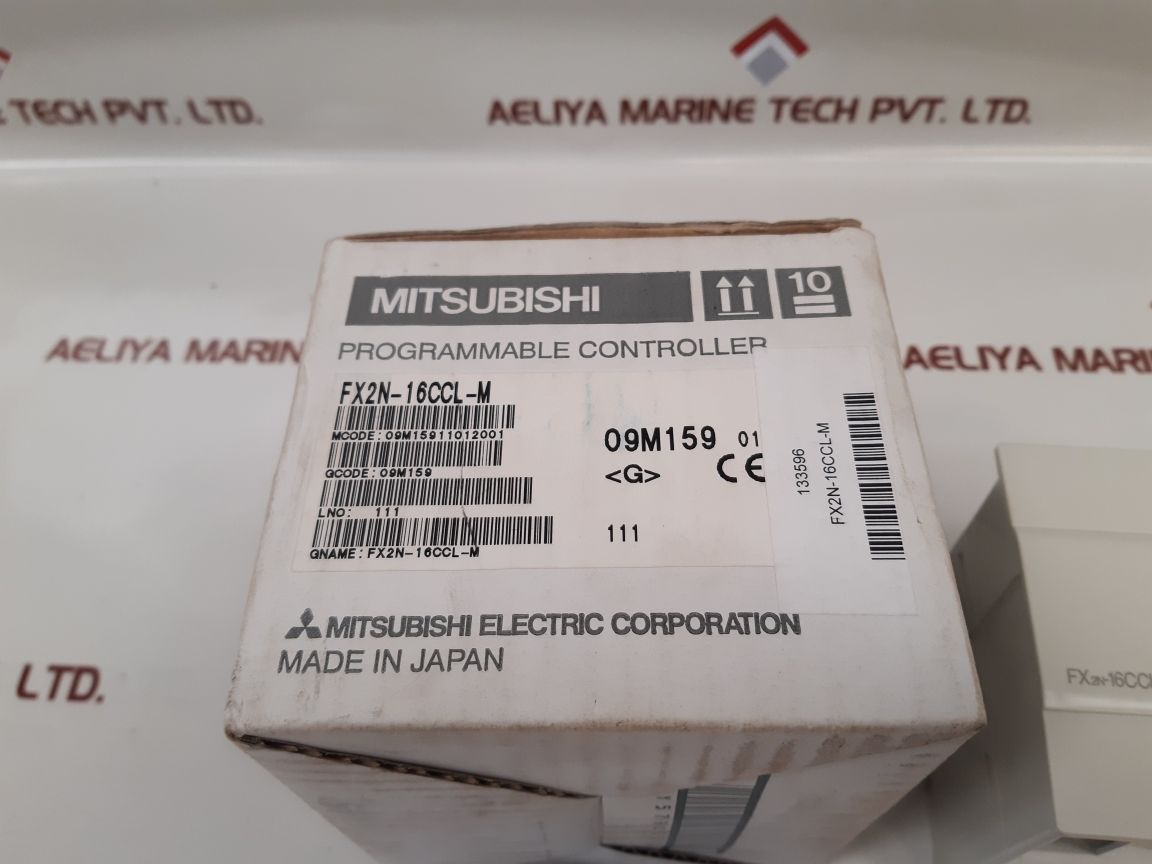

| Mcode | 09M15911012001 |
| Gcode | 09M159 |
| Lno | 111 |
| Serial Number | 133596 |
| Additional Part Numbers | Jy992D87801E / Jy992D93201D |
| Other Code | Y579C53101 |
| Country of Origin | Made in Japan |
| Weight | 480 gm |
Key Features
CC-Link Compatibility – Enables communication with CC-Link-compatible devices for efficient data transfer.
High-Speed Communication – Ensures fast and reliable communication to reduce downtime.
Modular Expansion – Allows easy integration into existing FX2N PLCs without requiring complex modifications.
Multiple Device Connections – Supports sensors, actuators, and industrial machines.
Reliable Network Monitoring – Ensures consistent monitoring and troubleshooting of communication links.
Compact and Lightweight – Designed for easy installation in compact control panels.
Low Power Consumption – Assists in maximizing energy efficiency in the automation system.
Benefits of Using FX2N-16CCL-M in Industrial Automation
Improved Connectivity – Smooth integration into various automation devices is allowed.
Improved Efficiency – Manual input is reduced, making systems more responsive.
Cost-effective Expansion – More than one PLC is not required, which reduces hardware cost.
Real-time Data Exchange – Instant communication among components enhances the system performance and response.
Scalability – Allows easy upgrading and expansion without doing major overhauls.
User-Friendly Interface – Easy configuration, hence simplifies setup and troubleshooting.
Minimal Downtime – Reliable communication prevents costly production delays.
Applications of FX2N-16CCL-M
The Mitsubishi FX2N-16CCL-M is widely used in different industrial automation environments, including:
Manufacturing Plants – Efficient control of production lines.
Automotive Industry – Seamless automation of assembly processes.
Food & Beverage Processing – Hygiene compliance and process control.
Textile Industry – Complex weaving and dyeing machines.
Pharmaceuticals – Accurate monitoring and control of production.
Packaging Industry – Automation of packing and labeling.
Technical Specifications
Model: FX2N-16CCL-M
Communication Type – CC-Link Master
Power Supply : 24V DC
Data Transfer Rate 156 kbps – 10 Mbps
Module Size: Compact, fits standard size FX2N PLC slots
Number of I/O Points: Multiple number of CC-Link slave devices
