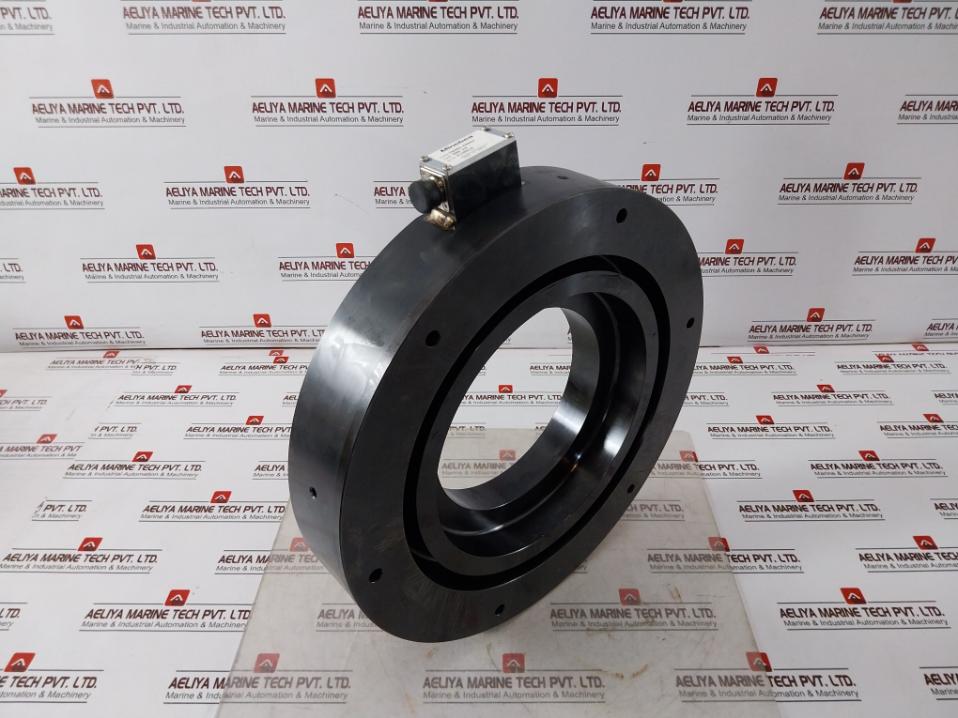

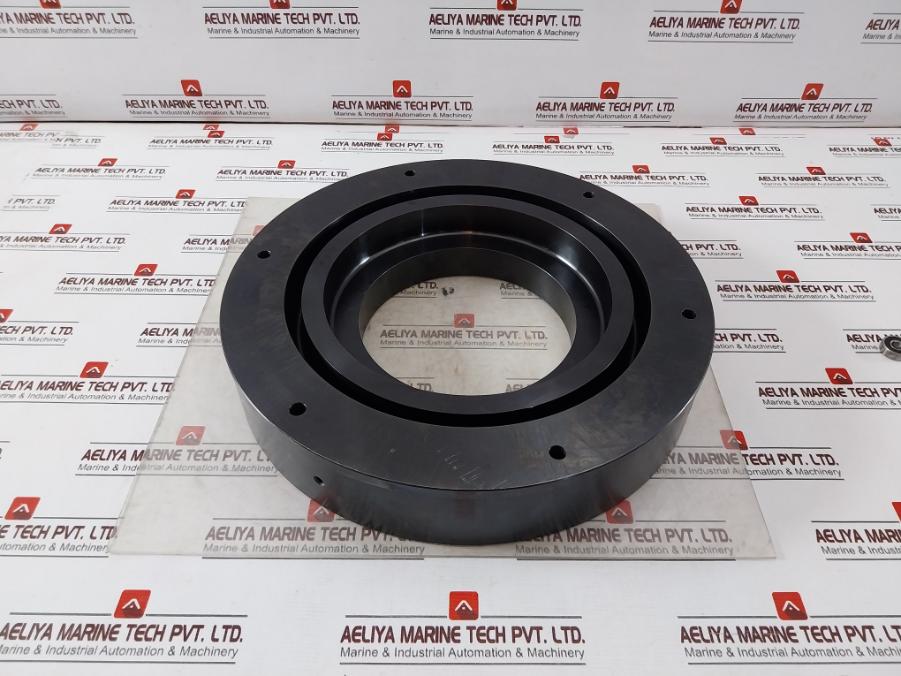

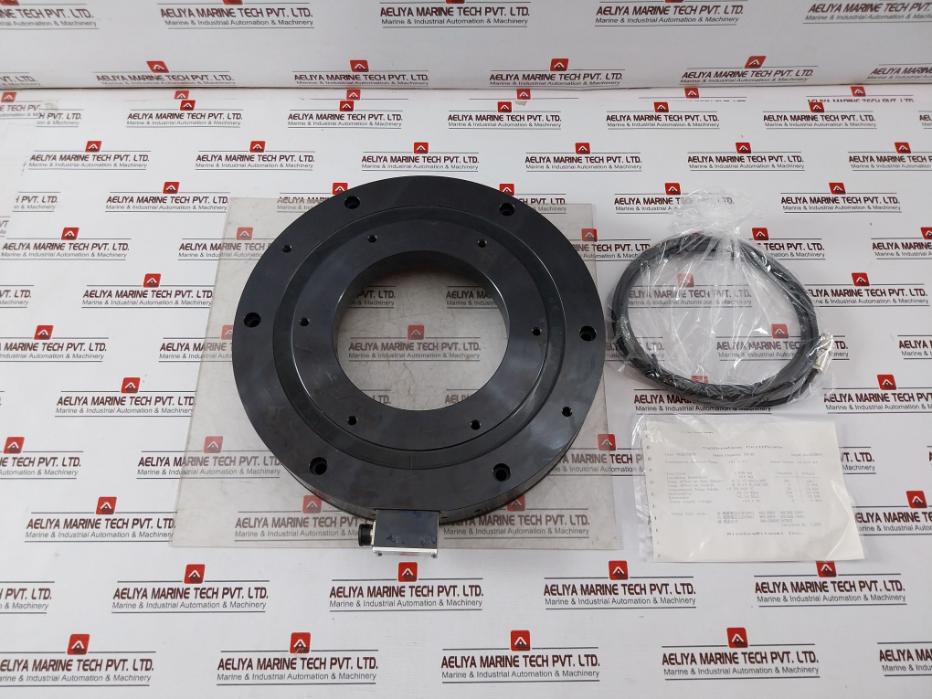

Minebeamitsumi Cw292-500kn Load Cell

Minebeamitsumi Cw292-500kn Load Cell
Minebeamitsumi Inc.
Minebea
Type / P/N: Cw292-500kn
Rated Capacity: 500 Kn
Performance: (Ambient Temp. +21.0 °C)
Rated Output: 16.010 Ma
Zero Point: 3.998 Ma
Insulation Resistance: 500 μω
Temp. Effect On Zero Balance: ± 0.15 %R.O./10°C
Temp. Effect On Output: ± 0.15 %Load/10°C
Compensated Temp. Range: +0 To +60 °C
Nonlinearity: +0.14 %R.O
Hysteresis: +0.34 %R.O
Power Supply Voltage: +24 V Dc
5 Meter
Made In Japan
Weight : 58 Kg
Ref No : 172441
