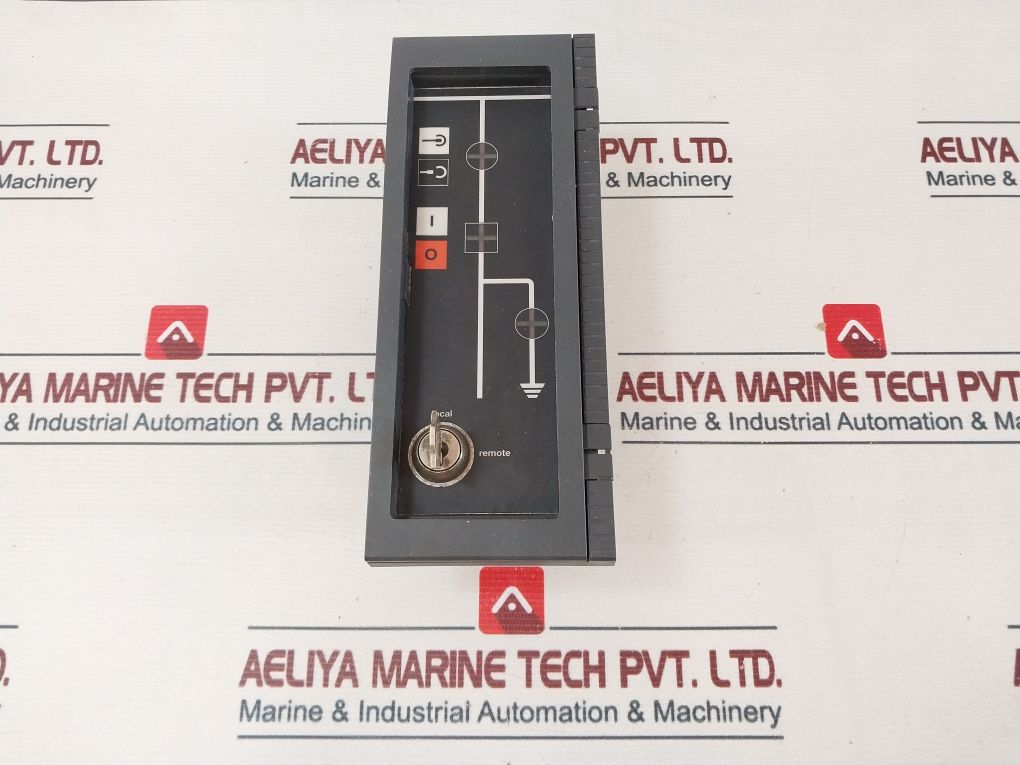

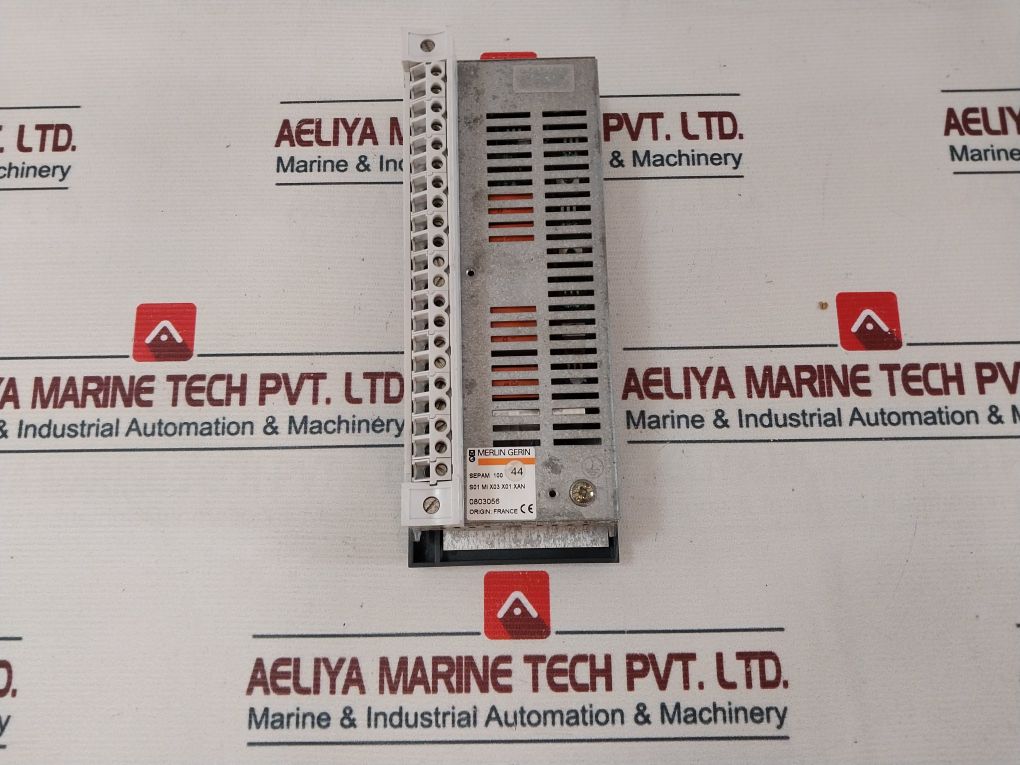

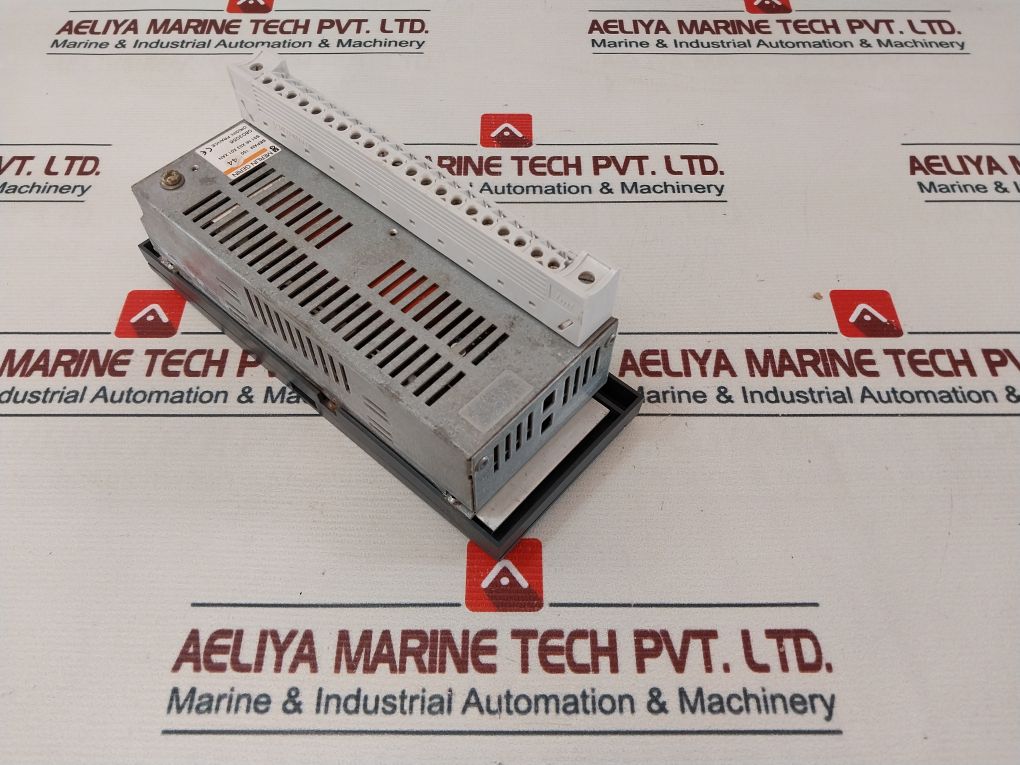

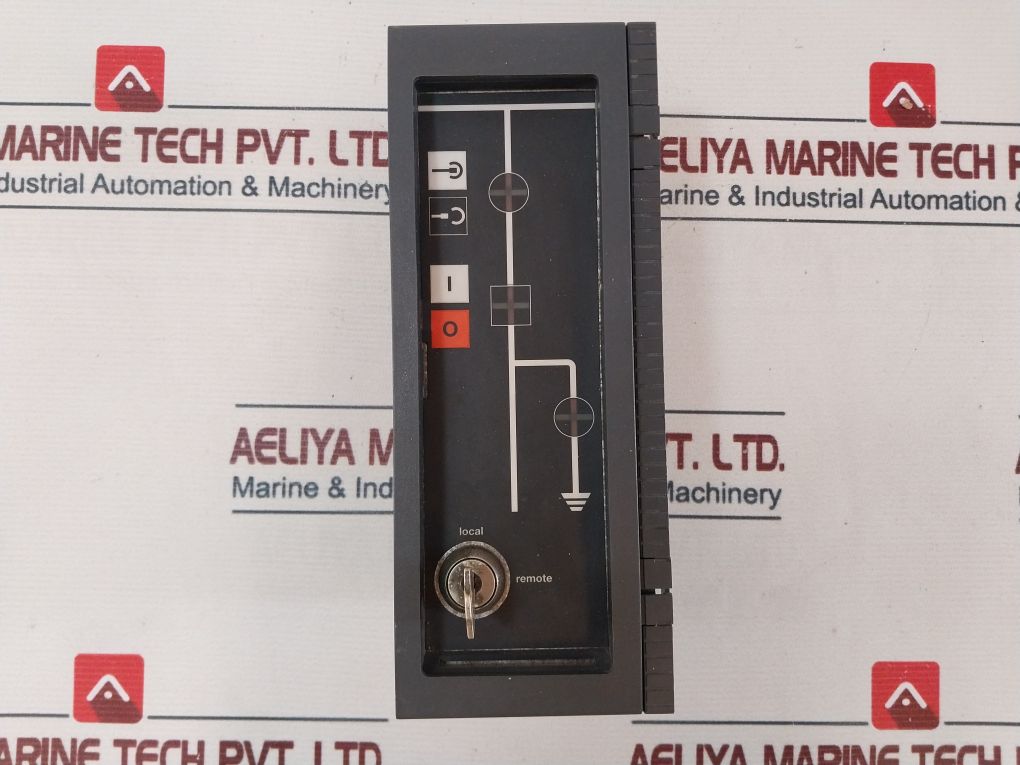

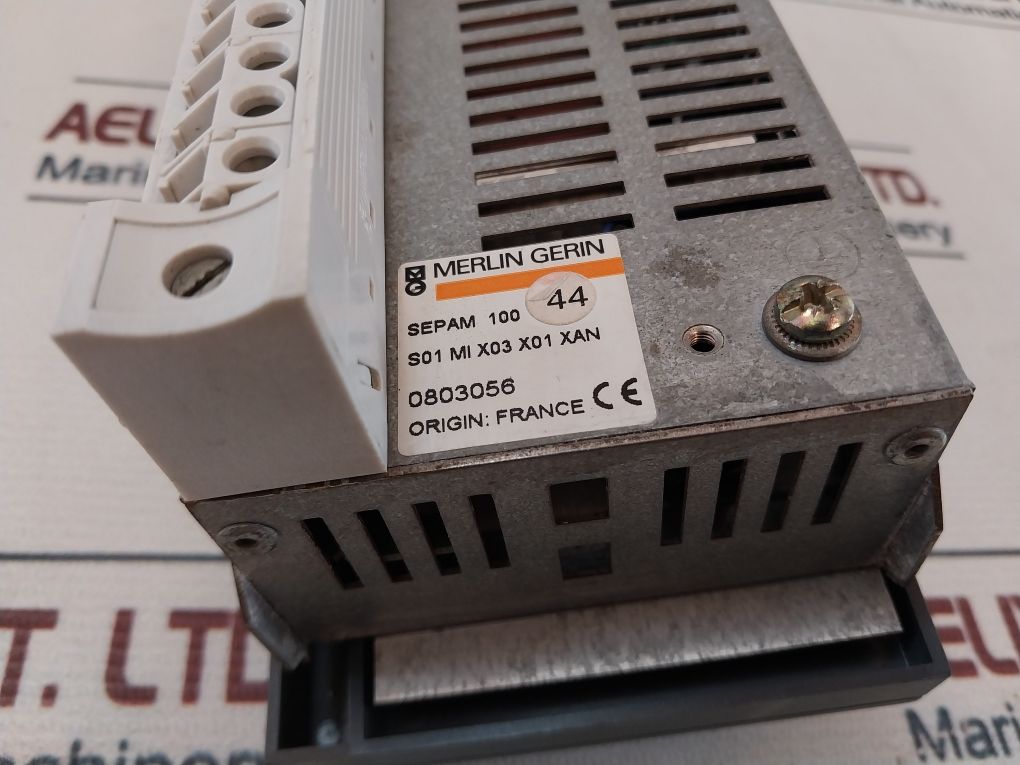

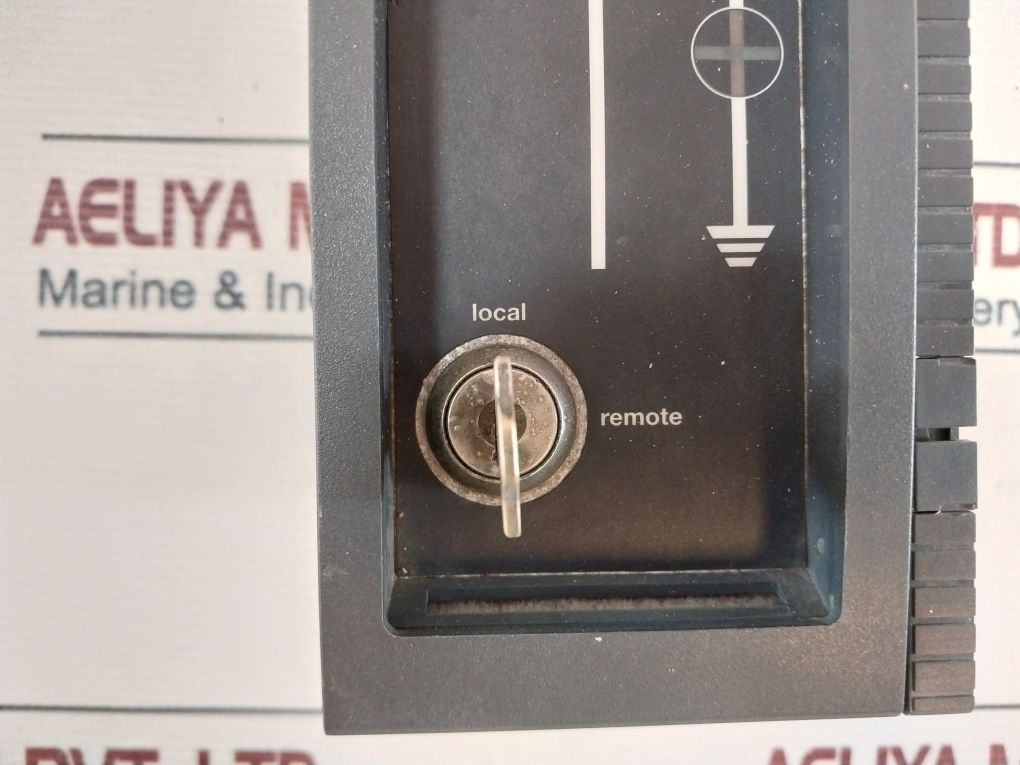

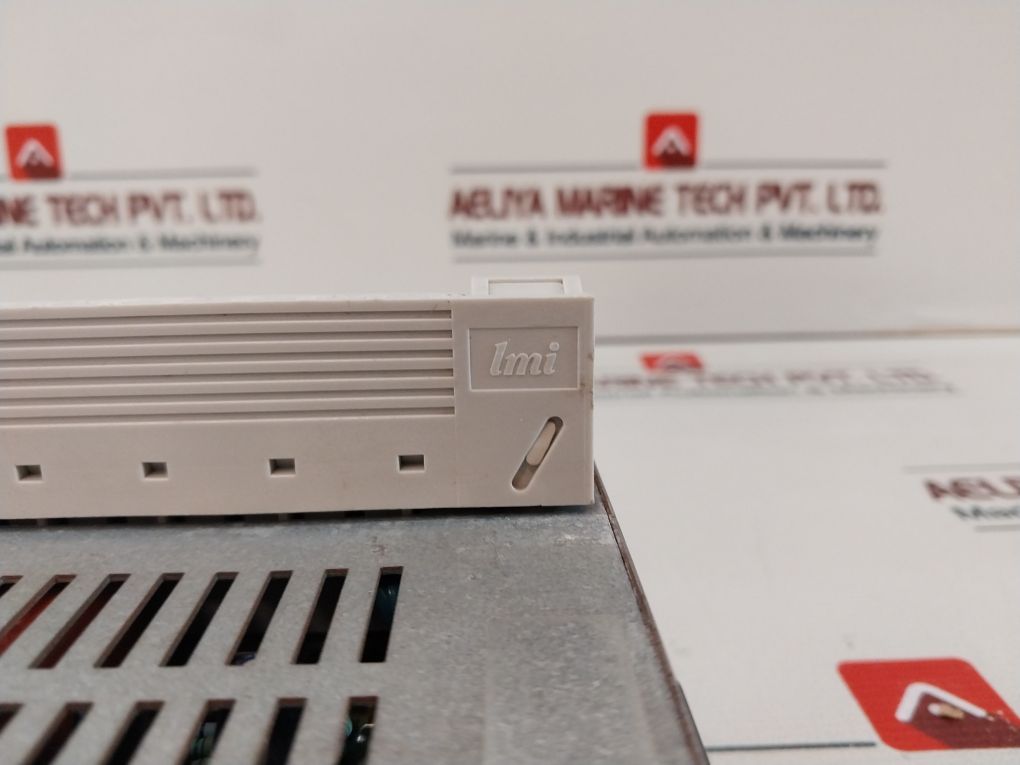

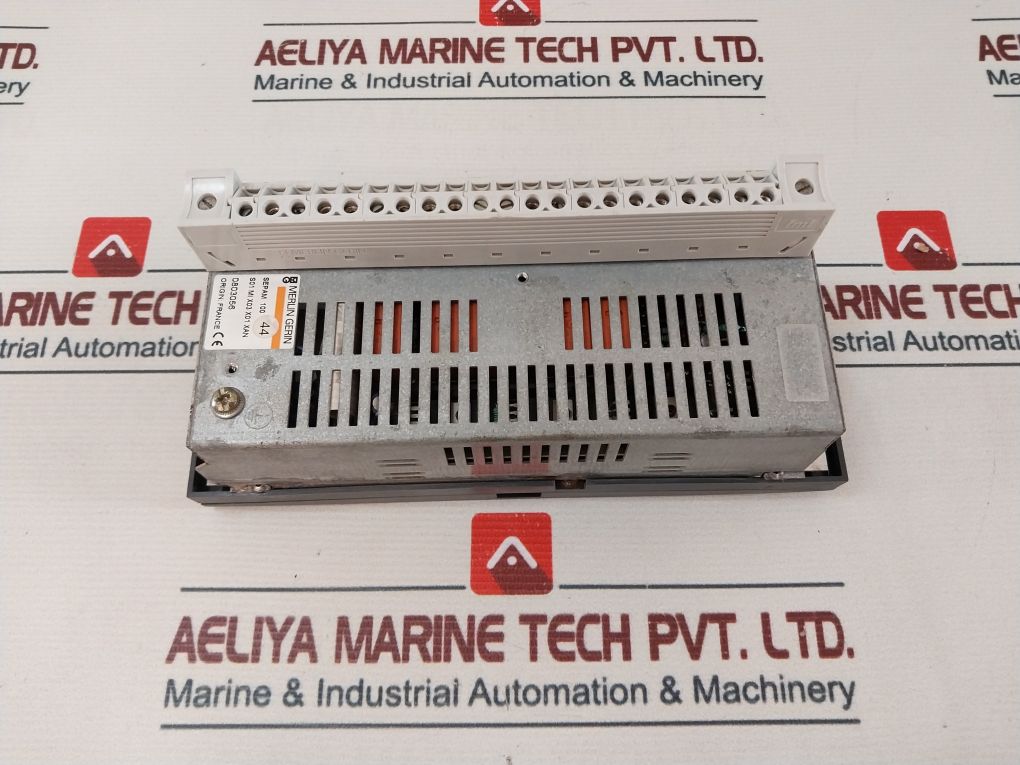

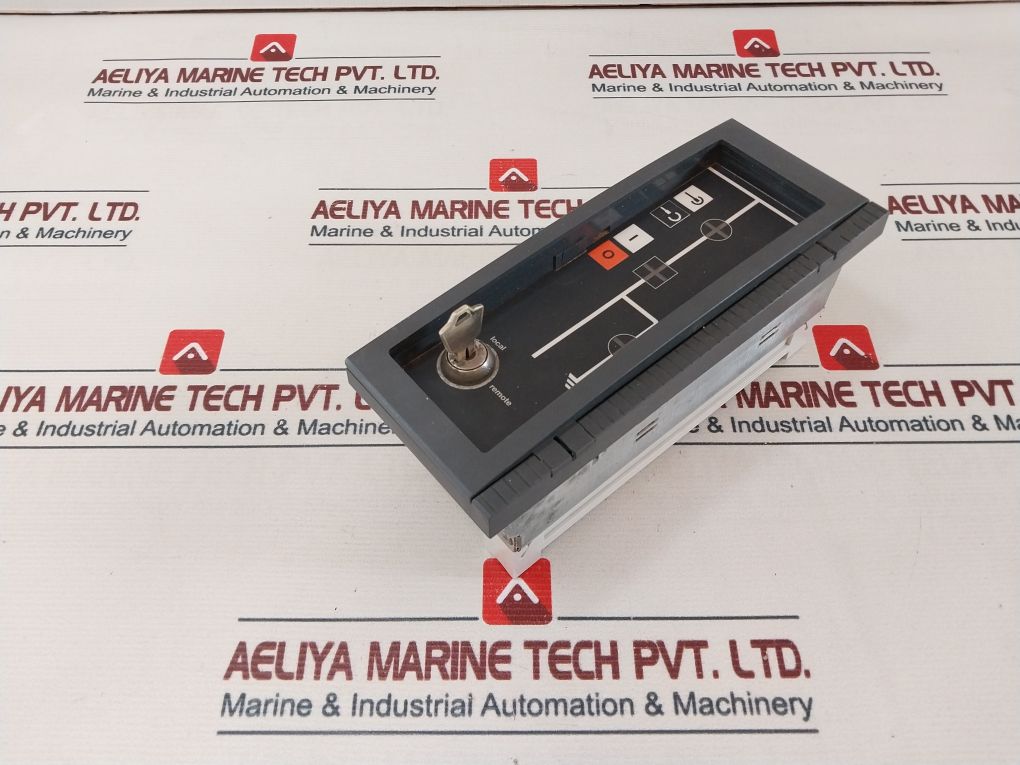

Merlin Gerin Sepam 100 Control Panel

What is the Merlin Gerin Sepam 100 Control Panel?

The Merlin Gerin Sepam 100 is a sophisticated protection relay system specifically intended to monitor, control, and protect low-voltage and medium-voltage electrical installations.

Sepam 100 relays are made by Schneider Electric (formerly known as Merlin Gerin) and are highly known for their precision, versatility, and simplicity of use. They are often mounted inside control panels to control critical functions such as:

• Protection of circuits
• Fault detection
• Motor and generator protection
• Transformer monitoring
• Load management
• System diagnostics

With a Sepam 100, you enjoy real-time visibility and automatic protection—preventing equipment damage, electrical faults, and expensive downtime.

Features

Detailed Protection Functions
Sepam 100 is provided with a broad range of integrated protection schemes:

• Overcurrent protection (instantaneous and time-delayed)
• Ground fault protection
• Short-circuit protection
• Voltage and frequency monitoring
• Motor protection
• Transformer protection

No matter if you’re safeguarding feeders, motors, transformers, or generators, Sepam 100 can be configured to fit your needs.

Smart Monitoring & Diagnostics
One of the biggest benefits of Sepam 100 is its smart monitoring:

• Real-time current and voltage readings
• Event logging and fault recording
• Alarm notifications
• Trend analysis for predictive maintenance

Through ongoing monitoring of your system, the Sepam 100 enables you to identify issues ahead of time and act preventatively.

Easy-to-Use Interface

No tricky programming involved—Sepam 100 is built for easy configuration and use:

• Easy-to-use menu navigation
• LCD display of real-time status and data
• Preformatted protection templates
• PC-based configuration software

Making it perfect for experienced engineers as well as facility managers.

Flexible Communication Options
Easily integrate Sepam 100 with your plant or building automation systems:

• Modbus RTU serial communication
• Works with SCADA, DCS, and BMS systems
• Remote monitoring and control support

By integrating Sepam 100 with your network, you have visibility and control anywhere—ideal for today’s intelligent facilities.

Space-Saving and Durable Construction

Sepam 100 relays are designed for rugged industrial applications:

• Space-saving footprint for simple panel mounting
• Robust enclosure for vibration and temperature resistance
• Low maintenance with high service life

This provides stable operation even in challenging environments.

Applications of Merlin Gerin Sepam 100 Control Panel

The adaptability of Sepam 100 allows it to be applied in numerous industries and applications:

Industrial Plants
guard motors, transformers, and switchgear in manufacturing and process plants.

Marine & Offshore
monitor and guard electrical equipment on ships, offshore platforms, and port installations.

Commercial Buildings
provide safe, reliable power distribution to data centers, hospitals, shopping malls, and office towers.

Power Utilities
facilitate smart grid functionality with enhanced protection and remote control features.

Why Choose Merlin Gerin Sepam 100?

When selecting a protection relay system, trust, performance, and flexibility are key. The Sepam 100 delivers on all fronts:

• Proven reliability with years of field experience
• Comprehensive protection functions
• Easy integration with automation networks
• Simple operation and maintenance
• Cost-effective investment for enhanced system safety

Whether you’re upgrading an existing panel or designing a new installation, Sepam 100 offers the right balance of features and value.
