Specification | Details |
---|---|
Product Name | Merlin Gerin Masterpact Mp20 H2 Circuit Breaker 2000A 600V 3-pole |
Brand | Merlin Gerin |
Series | Masterpact |
Model | MP20 H2 |
Type | Circuit Breaker |
Number of Poles | 3-pole |
Voltage Rating | 600V 50/60Hz |
Frame Size | 2000A |

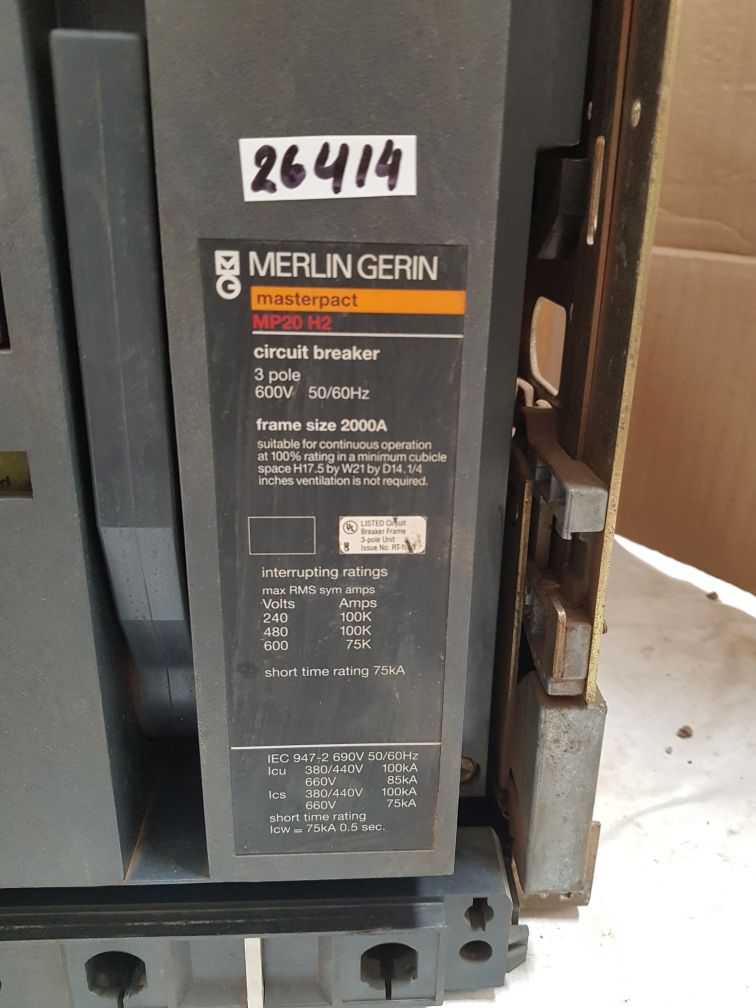

Interrupting Ratings | Max RMS sym Amps: 240V 100k 480V 100k 600V 75k |
Short Time Rating | 75kA |
IEC 947-2 Ratings | 690V 50/60Hz: ICU 380/440V 100kA 660V 85kA ICS 380/440V 100kA 660V 75kA |
Short Time Rating (ICW) | 75kA 0.5 sec. |

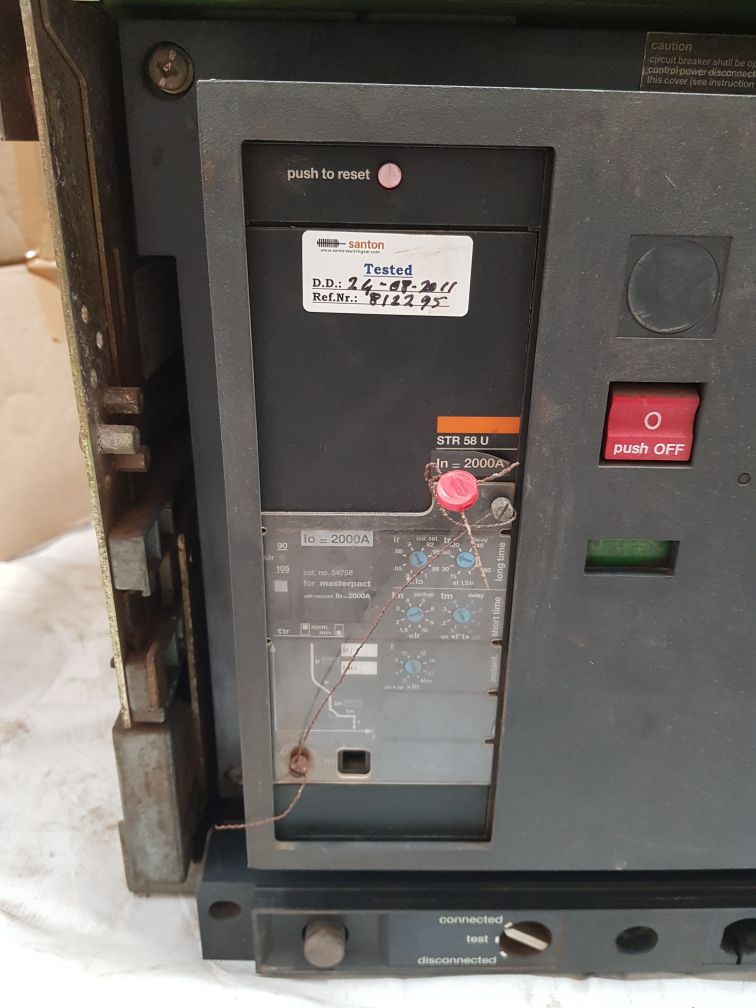

STR | 58 U |
In (Rated Current) | 2000A |
IO (Rated Operational Current) | 2000A |
Catalog Number | 54758 |
Weight | 91 Kg |

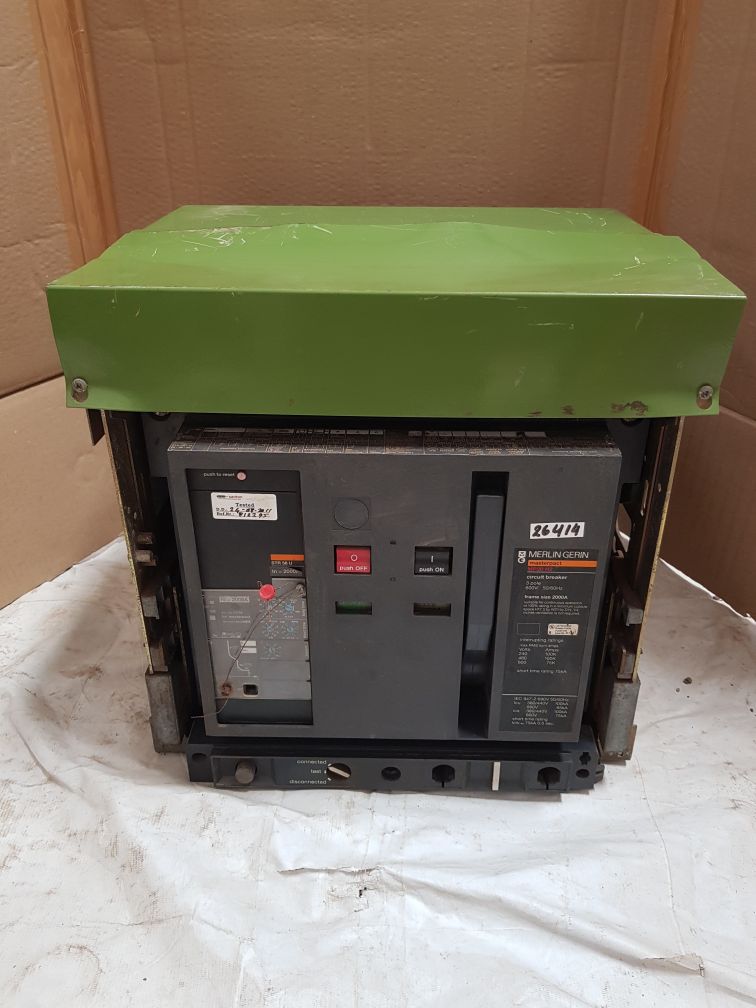

MP20 H2 Circuit Breaker 2000A 600V 3-Pole
The Mp20 H2 Circuit Breaker is a high-quality, reliable solution designed for industrial and commercial electrical systems. With a robust frame size of 2000A and a maximum voltage capacity of 600V, this 3-pole circuit breaker is manufactured to provide better protection and operational efficiency. It is suitable for both 50Hz and 60Hz power systems, making it versatile for various applications.
Key Features
1.High Interrupting Capacity: The Masterpact Mp20 H2 circuit breaker boasts impressive interrupting ratings. It is designed to handle maximum RMS symmetrical amperes, ensuring that it can manage high fault currents without compromising safety.
2.Frame Size of 2000A: This frame size offers significant current handling capabilities, making it ideal for heavy-duty applications. It ensures the circuit breaker can support large-scale electrical systems efficiently.
3.600V Voltage Capacity:With a voltage rating of 600V, the Mp20 H2 is suitable for a wide range of industrial and commercial applications. It provides reliable protection for high voltage systems.
4.3-Pole Design: The 3-pole configuration of this circuit breaker allows for effective isolation and protection of electrical circuits. This design is particularly useful in three-phase power systems.
5.Versatile Frequency Compatibility: The circuit breaker supports both 50Hz and 60Hz power frequencies, making it adaptable for use in different regions and applications.
6.Durability and Reliability: Manufactured by Merlin Gerin, a trusted name in electrical components, the Masterpact Mp20 H2 circuit breaker is built to last. It offers robust performance and longevity, ensuring minimal maintenance and operational disruptions.
7.Safety Features: Enhanced safety mechanisms are incorporated to prevent electrical hazards, including overcurrent and short-circuit protection. This ensures the safety of both equipment and personnel.
Applications
The Merlin Gerin Masterpact Mp20 H2 Circuit Breaker is designed for a variety of applications, including but not limited to:
1.Industrial Facilities: Ideal for protecting electrical systems in manufacturing plants, refineries, and processing units. Its high current and voltage capacity make it suitable for heavy machinery and equipment.
2.Commercial Buildings: Provides reliable electrical protection for large commercial complexes, shopping malls, and office buildings. Ensures uninterrupted power supply and safeguards against electrical faults.
3.Data Centers: Essential for data centers where continuous power supply and protection against electrical failures are critical. Helps in maintaining the integrity of data and minimizing downtime.
4.Power Plants: Suitable for use in power generation plants, including renewable energy installations. Ensures stable and safe operation of electrical networks.
5.Transportation Infrastructure: Useful in transportation hubs such as airports, train stations, and ports. Protects complex electrical systems that are crucial for operations.
6.Healthcare Facilities: Important for hospitals and healthcare centers where reliable power supply is a matter of life and death. Prevents electrical disruptions that could impact critical medical equipment.
The Merlin Gerin Masterpact Mp20 H2 Circuit Breaker is a premium electrical component designed to meet the highest standards of performance and safety. With its high interrupting capacity, 2000A frame size, and 600V voltage capacity, it is well-suited for demanding industrial and commercial applications. The 3-pole design and compatibility with both 50Hz and 60Hz frequencies further enhance its versatility. Whether you are looking to upgrade your existing electrical infrastructure or setting up a new system, the Masterpact Mp20 H2 offers the reliability and durability that Merlin Gerin products are known for. Ensure the safety and efficiency of your electrical systems with this high-quality circuit breaker. The Merlin Gerin Masterpact Mp20 H2 means choosing a product that delivers exceptional protection, operational efficiency, and composure. It is a smart choice for anyone needing a robust, reliable circuit breaker for high-demand electrical applications.
