| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Masterpact M25 Ni Circuit Breaker 1000V Ac 50/60 Hz 2500Amp |
| Brand | Merlin Gerin |
| Model | Masterpact M25 Ni |

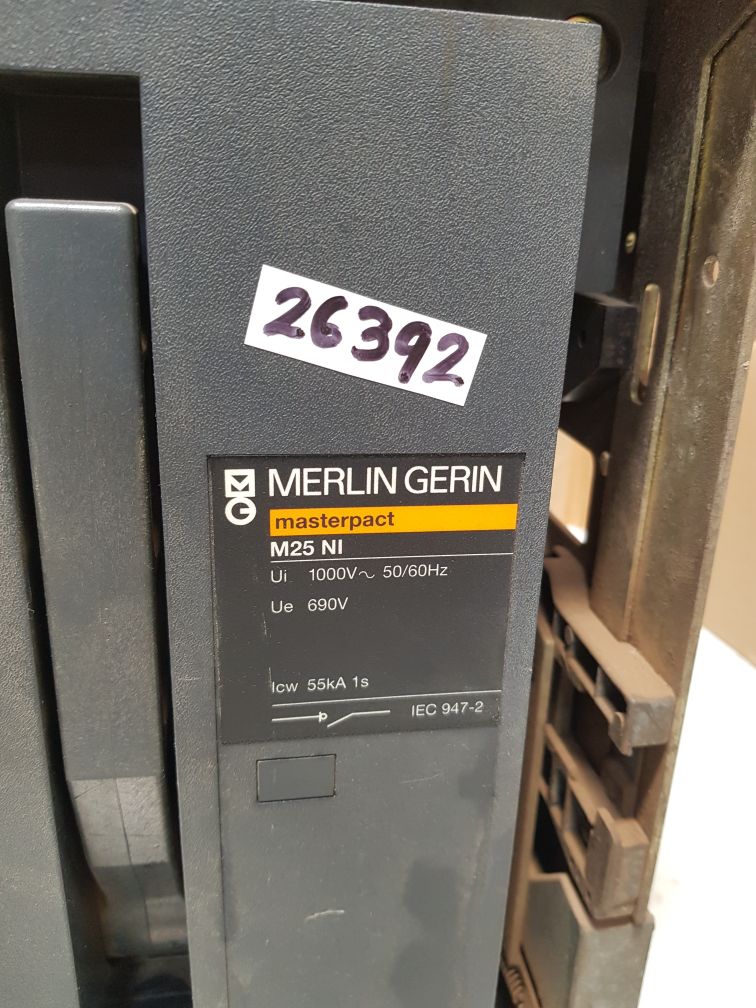

| Rated Operational Voltage (Ue) | 690V |
| Rated Insulation Voltage (Ui) | 1000V~ 50/60Hz |
| Rated Ultimate Short Circuit Breaking Capacity (Icu) | 55kA 1S |
| Standards | IEC 947-2 |

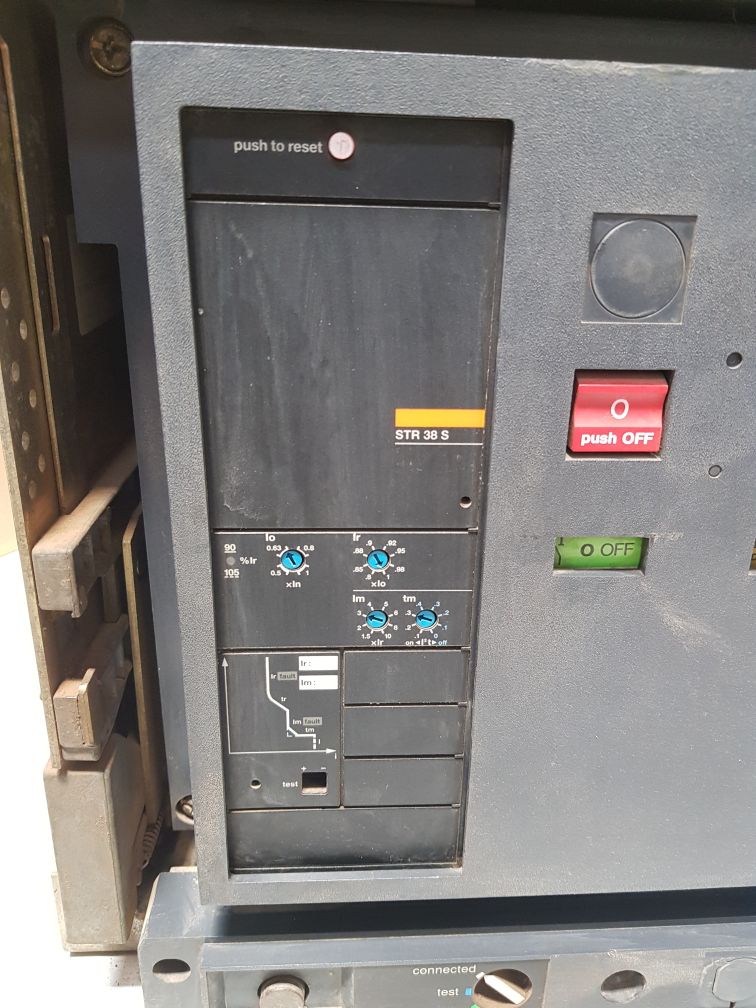

| Trip Unit | STR 38 S |
| Rated Current (In) | 2500A |
| Weight | 86 Kg |

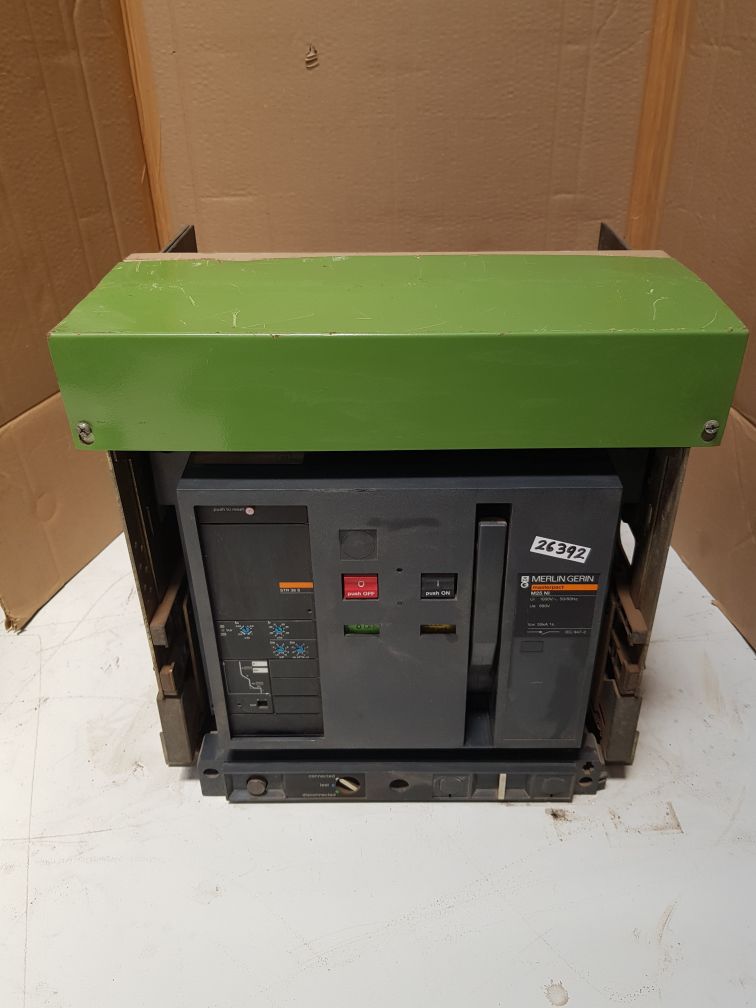

Masterpact M25 Ni Circuit Breaker
The Merlin Gerin Masterpact M25 Ni Circuit Breaker stands as a top of reliability and performance in industrial electrical protection systems. Designed to handle the rigors of demanding conditions, this circuit breaker combines robust manufacture with advanced features to ensure safety and efficiency in power distribution.
Key Features:
1. High Voltage Capability: The Masterpact M25 Ni operates effectively at voltages up to 1000V AC, suitable for a wide range of industrial applications where high voltage levels are required.
2. Current Ratings: With a maximum current rating of 2500A, this circuit breaker provides ample capacity to manage heavy electrical loads without compromising on safety or operational integrity.
3. Short-Circuit Strength: It boasts an Icw rating of 55kA for 1 second, ensuring reliable performance under short-circuit conditions, essential for protecting electrical systems from sudden overloads.
4. Operational Durability: Built to withstand the toughest conditions, the circuit breaker offers a STR endurance rating of 38s, showcasing its flexibility and reliability in continuous operation.
5. Voltage Ratings: It operates at a nominal voltage of 690V AC, making it versatile for various industrial power distribution setups where medium to high voltage configurations are prevalent.
6. Advanced Protection Features: Equipped with state-of-the-art protective mechanisms, including thermal and magnetic trip units, the Masterpact M25 Ni ensures precise and swift response to fault conditions, minimizing downtime and maximizing operational uptime.
7. Modular Design: The circuit breakers modular design facilitates easy installation, maintenance, and expansion, allowing for seamless integration into both new and existing electrical systems.
8. User-Friendly Interface: Designed with user convenience in mind, the Masterpact M25 Ni features an insightful interface for straightforward operation and monitoring, enhancing overall system management efficiency.
Applications
The Merlin Gerin Masterpact M25 Ni Circuit Breaker finds application across a spectrum of industrial sectors, including:
1.Manufacturing Facilities: Ensuring reliable power distribution and protection in heavy machinery and production lines.
2.Power Plants: Safeguarding critical equipment and electrical systems against overcurrents and short circuits.
3.Commercial Buildings:Providing robust electrical protection for HVAC systems, elevators, and lighting circuits.
4.Data Centers: Maintaining uninterrupted power supply and protecting sensitive electronic equipment from electrical faults.
5.Renewable Energy Installations: Managing high-current outputs from solar and wind power systems effectively and safely.
The Merlin Gerin Masterpact M25 Ni Circuit Breaker stands as a demonstration to innovation and reliability in industrial circuit protection. With its high voltage capacity, robust construction, and advanced protective features, it ensures optimal performance and safety in diverse industrial applications. Whether in manufacturing plants, power generation facilities, or commercial complexes, this circuit breaker delivers better efficiency and peace of mind to operators and facility managers alike, making it an important component in industrial infrastructure.
For a comparable alternative to the Merlin Gerin Masterpact M25 Ni Circuit Breaker 1000V Ac 50/60 Hz 2500Amp, consider exploring the Merlin Gerin M25 H1 Circuit Breaker 2500Amp 1000V 50/60Hz. . Offering a robust rated current of 2500A and operational voltages up to 1000V at 50/60Hz, the M25 H1 ensures reliable and efficient electrical distribution in demanding industrial contexts. With its high breaking capacity and advanced protective features, including precise over-current trip mechanisms, the M25 H1 is designed to safeguard electrical systems effectively against short circuits and overloads.
