| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Masterpact M25 H1 Circuit Breaker 1000V 50/60Hz 2500Amp |
| Manufacturer | Merlin Gerin |
| Series | Masterpact |
| Model | M25 H1 |

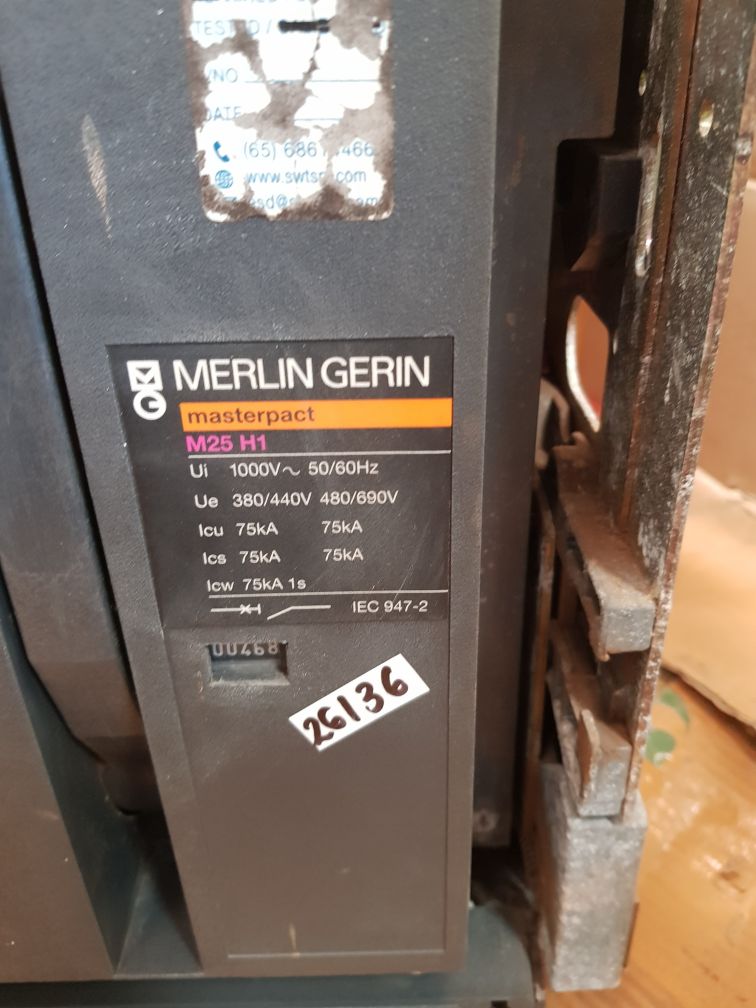

| Rated Voltage (Ui) | 1000V~ 50/60Hz |
| Operational Voltage (Ue) | 380/440V, 480/690V |
| Breaking Capacity (Icu) | 75kA |
| Service Breaking Capacity (Ics) | 75kA |
| Short-time Withstand (Icw) | 75kA 1s |
| Standard | IEC947-2 |
| Product Code | 00468 |
| Trip Unit | STR 28 D |
| Serial Number | TF6896 100 03/05 |
| Additional Info | *TF68961000305* |
| Rated Current | 2500 A |
| Weight | 91 KG |

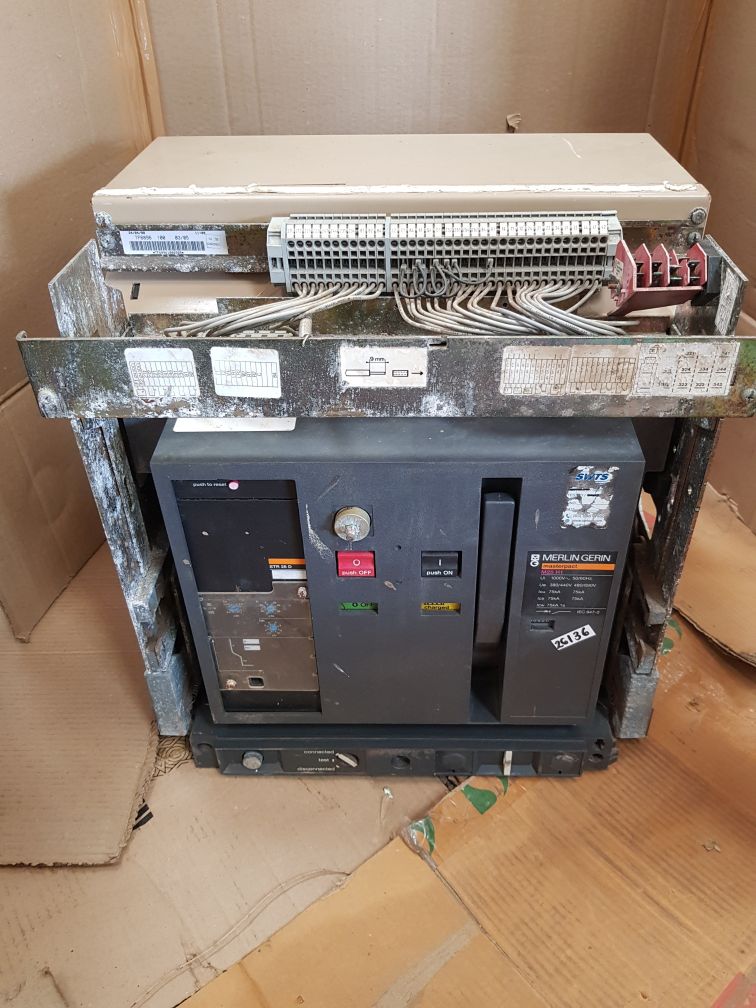

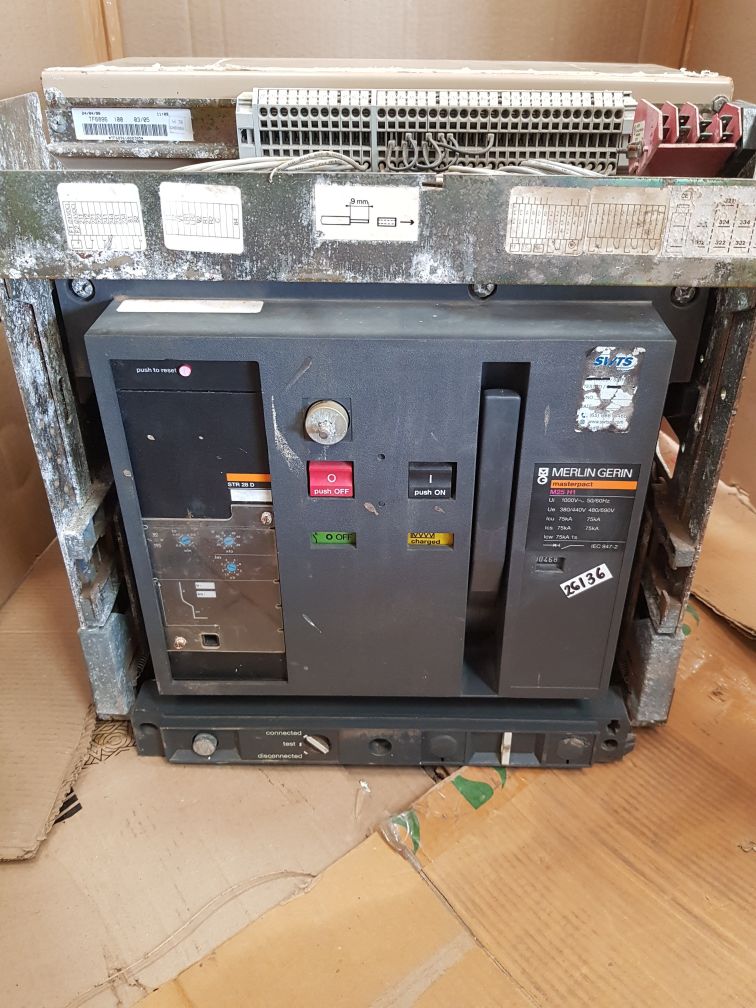

Masterpact M25 H1 Circuit Breaker 1000V 2500Amp
The Masterpact M25 H1 Circuit Breaker, a product of Schneider Electric esteemed Merlin Gerin, is a powerhouse in electrical circuit protection. Designed to handle up to 2500A, this circuit breaker is manufactured for high-performance applications that demand reliability and safety. With a voltage rating of 1000V and operational frequencies of 50/60Hz, it is perfectly suited for a wide range of industrial conditions.
The M25 H1 excels in providing robust protection against electrical faults, ensuring the safety and continuity of your operations. It boasts an interrupting capacity (Icu) of 75ka at both 380/440V and 480/690V, making it highly effective in mitigating the effects of short circuits and overloads. The short time withstand current (Icw) of 75ka for 1 second further emphasizes its capability to handle extreme fault conditions without compromising the integrity of the electrical system.

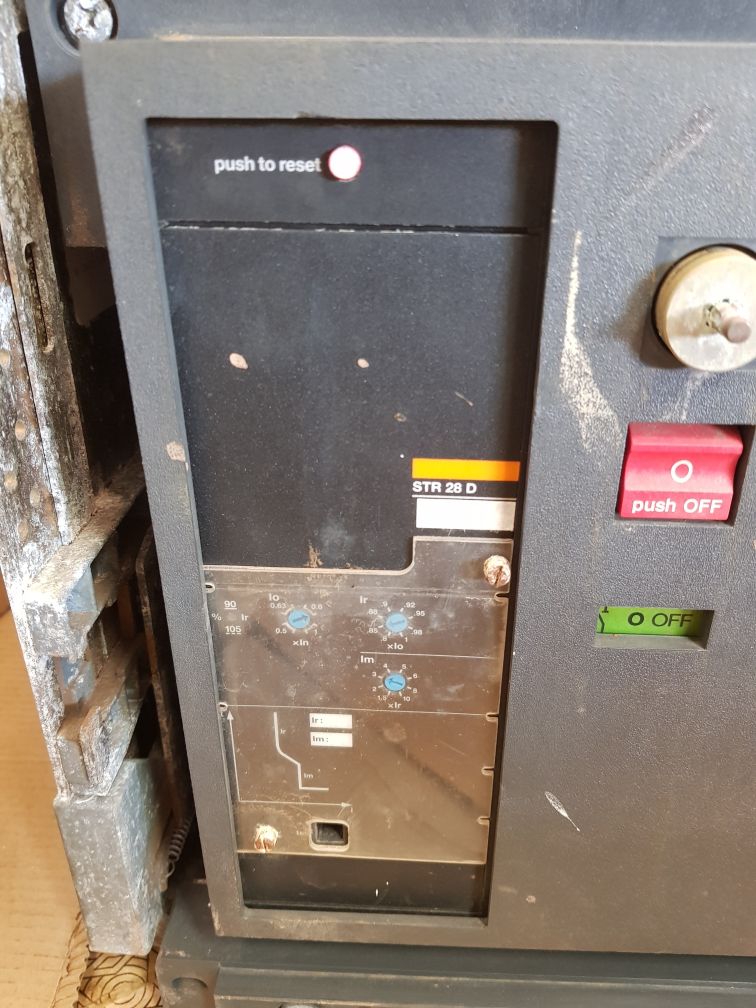

Advanced STR 28 D Technology
At the Compassion of the Masterpact M25 H1 lies the advanced STR 28 D technology, which enhances the breaker’s precision and reliability. This intelligent system allows for accurate monitoring and protection, ensuring that any electrical anomalies are swiftly detected and addressed. The integration of STR 28 D not only improves the safety of the electrical system but also optimizes the breaker’s performance, resulting in reduced downtime and maintenance costs. The M25 H1 is designed to meet the rigorous standards of IEC 947-2, ensuring compliance with international safety and performance regulations. This adherence to global standards makes the breaker a reliable choice for international projects and applications. Whether used in power distribution networks, industrial facilities, or commercial buildings, the M25 H1 delivers exceptional protection and performance.
Advantages
One of the key advantages of the Masterpact M25 H1 is its versatility. With voltage ratings of 380/440V and 480/690V, it can be seamlessly integrated into various electrical systems. This adaptability makes it a valuable asset for industries that operate across different regions and voltage standards. The breakers’ ability to maintain its interrupting capacity (Icu) and service breaking capacity (Ics) at 75ka underlines its robust design and reliable operation. The M25 H1 is not just about performance; it is also about durability and longevity. Constructed with high-quality materials and designed for easy maintenance, this circuit breaker ensures long-term reliability. Its compact and sturdy design allows for easy installation and integration into existing systems, making it an ideal choice for both new installations and retrofits.
For a comprehensive solution to your circuit protection needs, consider exploring this product Merlin Gerin M25 H1 Circuit Breaker 2500Amp 1000V 50/60Hz . This advanced circuit breaker offers robust performance with its high current rating and versatile frequency support, making it an ideal choice for demanding industrial applications. Whether you need reliable protection against overloads and short circuits or superior operational stability, the M25 H1 delivers exceptional reliability and efficiency.
