| Specification | Details |
|---|---|

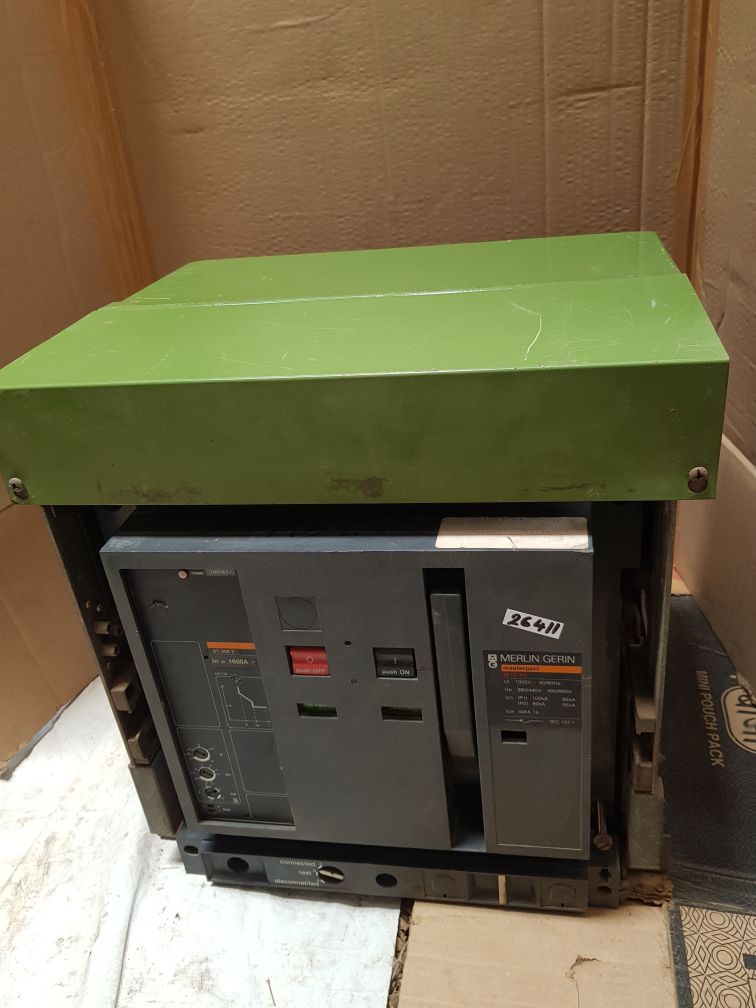

| Product Name | Merlin Gerin Masterpact M16 H2 Circuit Breaker St 308 S 1600A 1000V 50/60Hz |
| Brand | Merlin Gerin |
| Series | Masterpact |
| Model | M16 H2 |

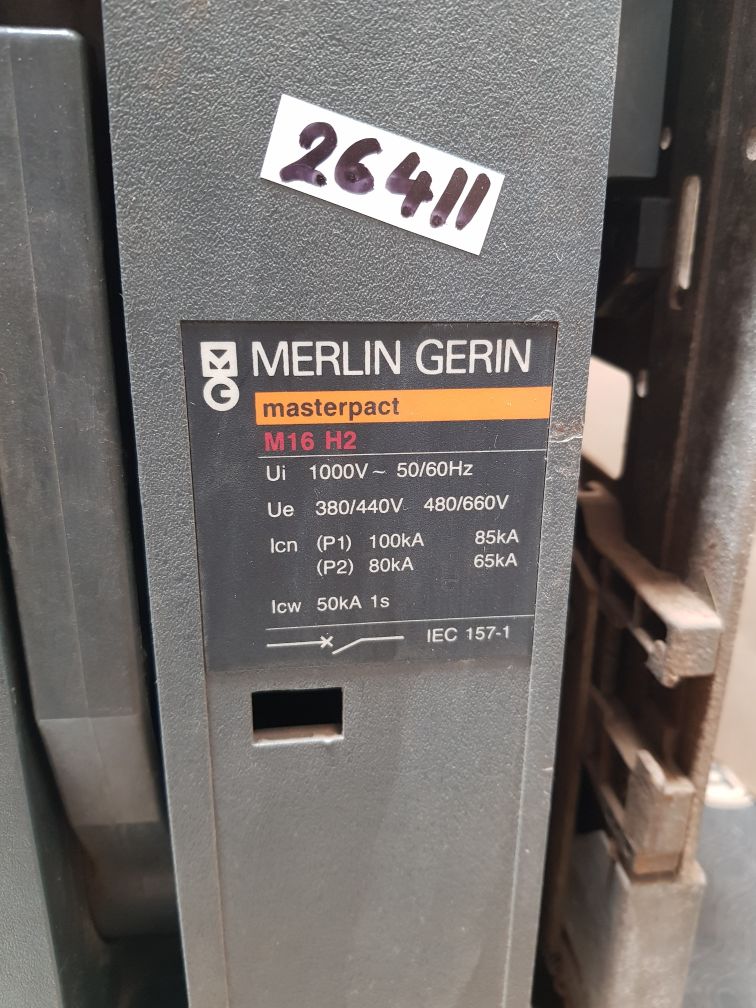

| Ui | 1000V AC, 50/60Hz |
| Ui | 380/440V, 480/660V |
| Icn | P1: 100kA, P2: 80kA |
| Ics | P1: 85kA, P2: 65kA |
| Icw | 50kA for 1 second |
| Standards | IEC 157-1 |

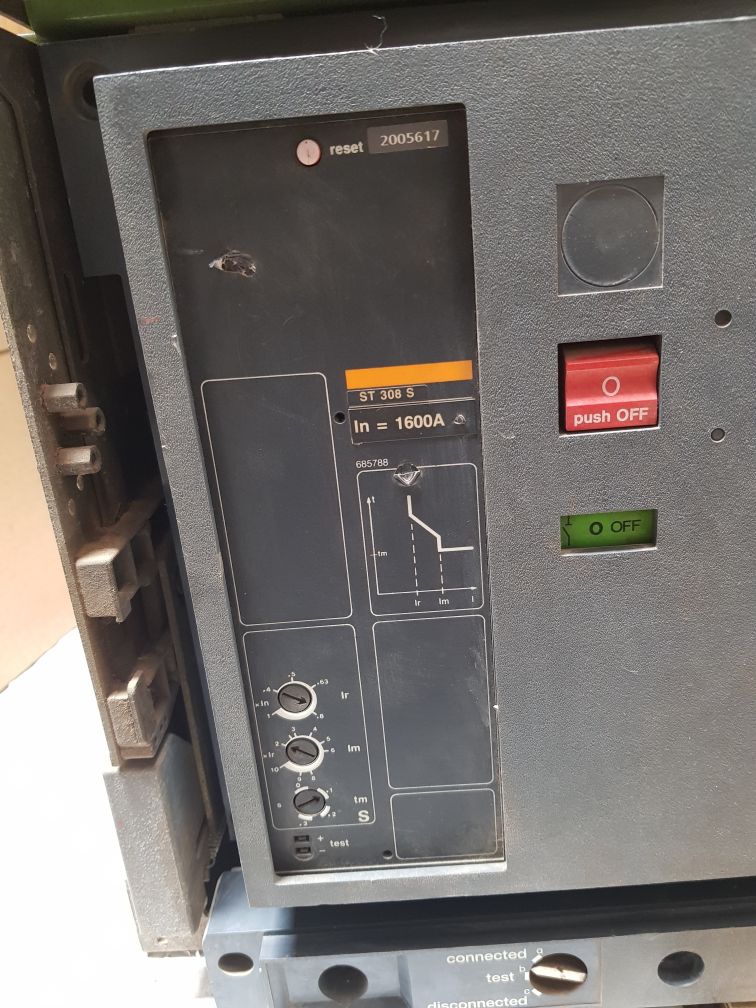

| Trip Unit | ST 308 S |
| Rated Current (In) | 1600A |
| Part Number | 685788 |
| Weight | 75 Kg |
The Merlin Gerin Masterpact M16 H2 1600A Circuit Breaker ST 308 S. Manufactured to assemble the highest standards of industrial power management, this circuit breaker is designed for exceptional performance in demanding conditions. With a rated operational voltage (Ui) of 1000V and frequency compatibility of 50/60Hz, it ensures robust operation across varied electrical systems. Whether in industrial facilities or critical infrastructure, the Masterpact M16 H2 excels in protecting circuits from overcurrents and electrical faults with its breaking capacity.
M16 H2 1600A Circuit Breaker St 308 S
At the compassion of its design lie superior protection capabilities. The Masterpact M16 H2 boasts and short-circuit breaking capacity (Icn) of 100kA at 380/440V and 85kA at 480/660V (P1 rating). This ensures swift and reliable interruption of faults, safeguarding equipment and ensuring operational continuity. For sustained reliability, its sustained short time withstand current (Icw) of 50kA for 1 second adheres to IEC 157-1 standards, making it a robust choice for critical applications where downtime is not an option. Versatility is another characteristic of the Masterpact M16 H2. Its compact design and modular construction facilitate easy integration into both new and existing electrical installations, offering flexibility in configuration and maintenance.
The ST 308 S model specifically provides to installations requiring a high level of performance and durability, making it ideal for industries ranging from manufacturing to infrastructure. Whether used standalone or in combination with other protective devices, this circuit breaker ensures optimized electrical distribution and enhanced operational safety. The Merlin Gerin Masterpact M16 H2 1600A Circuit Breaker ST 308 S stands as a testament to innovation and reliability in electrical protection technology. With its advanced features, including high breaking capacity, robust construction, and adherence to international standards, it surpasses expectations in safeguarding critical electrical systems. Whether deployed in industrial plants, commercial complexes, or infrastructure projects, the Masterpact M16 H2 excels in delivering uninterrupted power supply.
Explore the advanced capabilities of the Merlin Gerin Masterpact 1600Amp M16 H2 Circuit Breaker ST 308 S , renowned for its robust design and high-performance features. Designed to handle demanding electrical conditions with ease, this circuit breaker offers exceptional short-circuit breaking capacity and adherence to international standards, ensuring reliable protection for critical installations.
