| Specification | Details |
|---|---|
| Product Name | Merlin Gerin Masterpact M16 H1 Circuit Breaker 1000V Ac 50/60Hz 1000A |
| Model | Masterpact M16 H1 |
| Ui | 1000V AC, 50/60Hz |
| Ui | 380/440V, 480/690V |
| Icu | 65kA |
| Ics | 65kA |
| Icw | 65kA for 0.5 seconds |
| Compliance | IEC 947-2 |

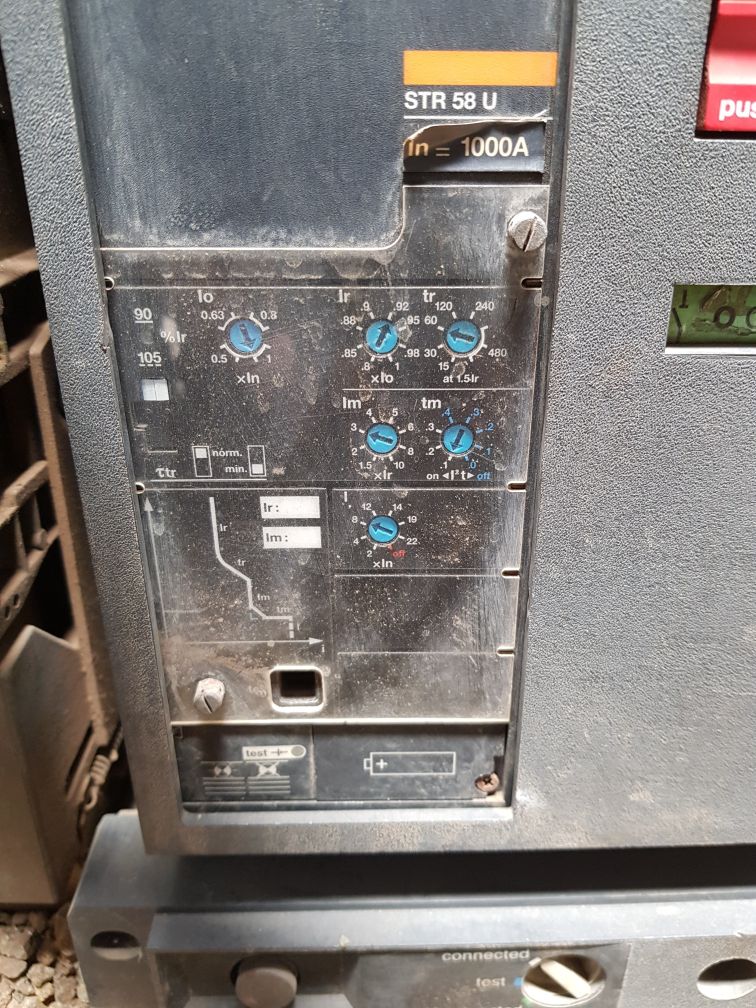

| Frame Size | STR 58 U |
| Rated Current (In) | 1000A |
| Weight | 78 Kg |

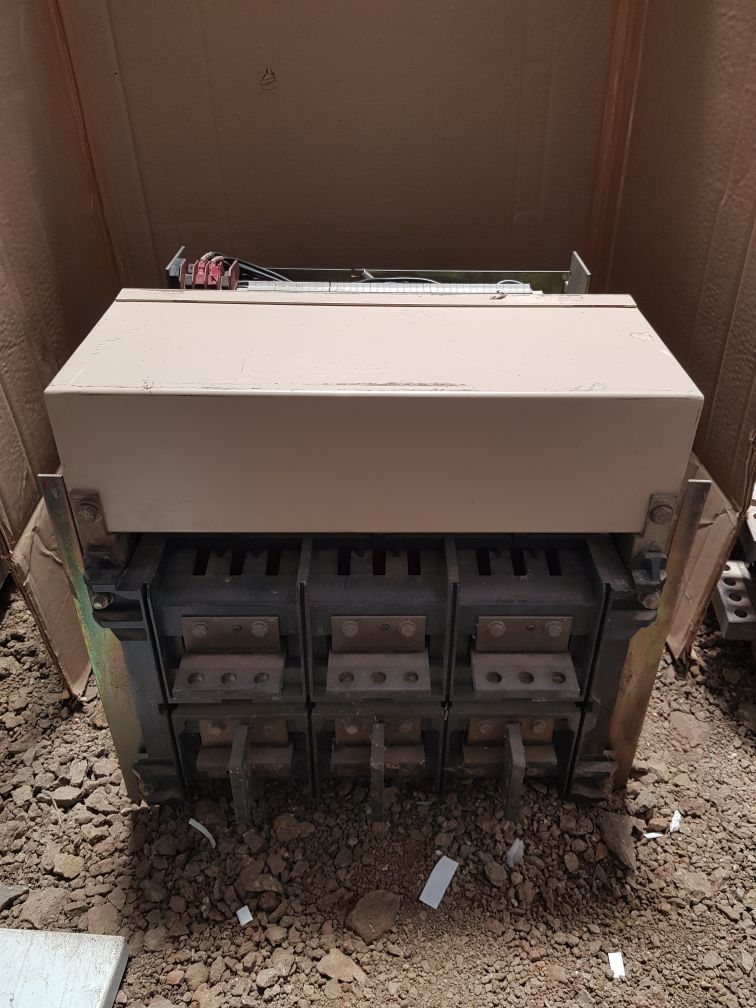

Masterpact M16 H1 1000A Circuit Breaker 1000V AC
The Merlin Gerin Masterpact M16 H1 1000A Circuit Breaker, Manufactured to meet the highest industrial standards. Designed for robustness and efficiency, this circuit breaker excels in protecting electrical systems with a maximum operational voltage of 1000V AC, ensuring safe and reliable operation in diverse conditions. Whether you’re safeguarding critical machinery or managing power distribution networks, the Masterpact M16 H1 offers a comprehensive solution with its impressive interrupting capacity of 65kA, suitable for handling substantial electrical loads.
Built for versatility, the Masterpact M16 H1 supports a wide range of applications, from industrial plants to commercial buildings, thanks to its adaptable design and high fault current ratings. It operates seamlessly at frequencies of 50Hz and 60Hz, accommodating various power grid configurations with ease. With an insulation coordination level up to 380/440V for operational voltage and 480/690V for ultimate voltage, this circuit breaker ensures consistent performance under demanding conditions, meeting IEC 947-2 standards for safety and reliability in electrical installations.
Manufactured with precision and durability in mind, the Masterpact M16 H1 circuit breaker offers a rapid response to electrical faults, safeguarding equipment and minimizing downtime. It short-circuits withstand capacity of 65kA at 0.5 seconds (ICW 65kA 0.5s) underscores its ability to handle sudden electrical surges effectively. Ideal for mission-critical applications where reliability is non-negotiable, this circuit breaker integrates seamlessly into existing electrical systems, providing operational continuity.
For electrical protection in demanding conditions, consider the Merlin Gerin Masterpact 1600Amp M16 H1 Circuit Breaker 1000V 50/60Hz . With its high interrupting capacity of 65kA and reliable operation at both 50Hz and 60Hz frequencies, this circuit breaker ensures uninterrupted performance even under heavy electrical loads. Manufactured to meet safety standards and designed for versatility, the Masterpact 1600Amp M16 H1 is ideal for applications requiring dependable power distribution and equipment protection. Whether you’re managing industrial facilities or commercial installations, this circuit breaker offers a superior solution for safeguarding your electrical infrastructure.
