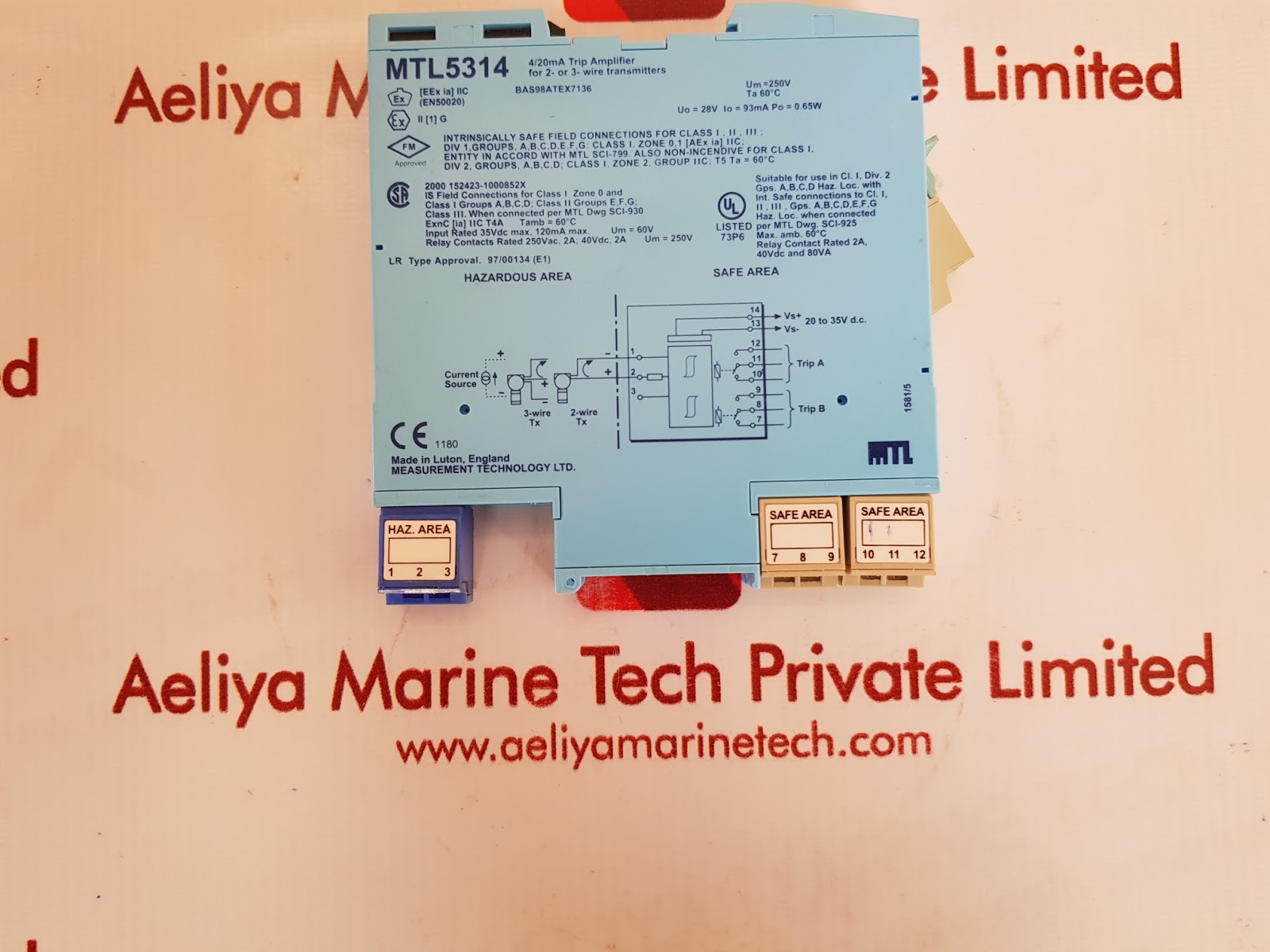

MEASUREMENT TECHNOLOGY MTL5314 TRIP AMPLIFIER

Measurement technology mtl5314 trip amplifier
measurement technology ltd.
mtl 5314
4/20ma trip amplifier
for 2- or 3- wire transmitters
ex [eex ia] iic
(en50020)
bas98atex7136
ex ii [1] g
um=250v
ta 60°c
uo=28v io=93ma po=0.65w
intrinsically safe field connections for class i, ii, iii ;
div 1 , groups, a,b,c,d,e,f,g: class i, zone 0, 1 [aex ia] iic;
entity in accord with mtl sci-799. also non – incendive for class i,
div 2, groups, a,b,c,d; class i, zone 2,group ii:, t5 ta=60°c
2000 152423-1000852x
mtl dwg sci-930
tamb =60°c
input rated 35vdc max, 120ma max.
um=60v
relay contacts rated 250vac, 2a; 40vdc, 2a
mtl dwg. sci-925
max. amb. 60°c
relay contact rated 2a,
40vdc and 80va
1581/5
made in luton ,england
weight: 140 gm
