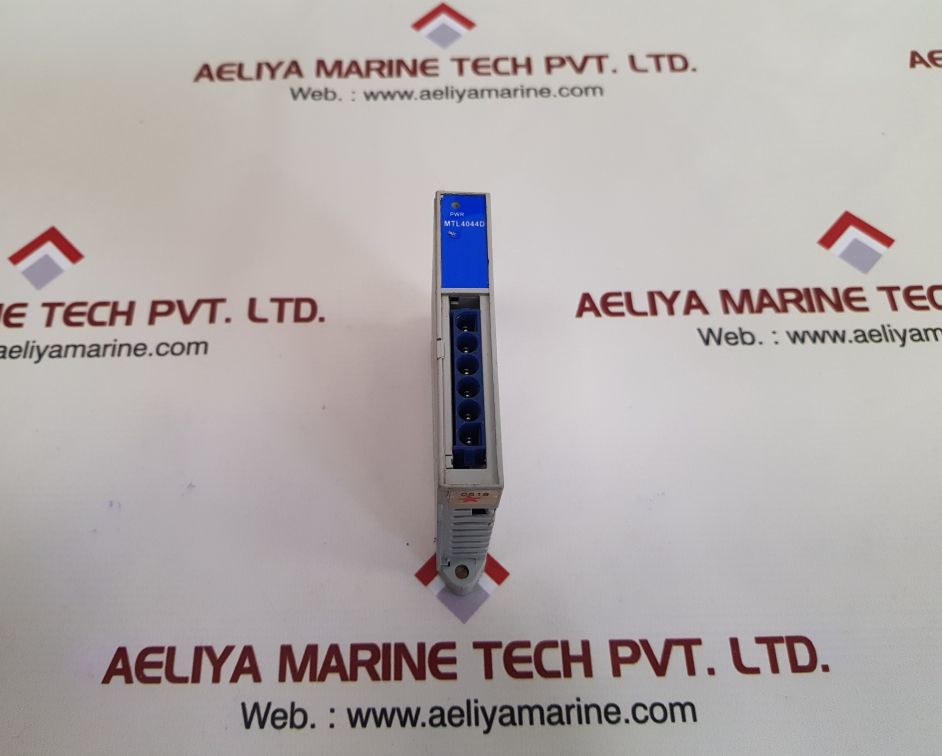

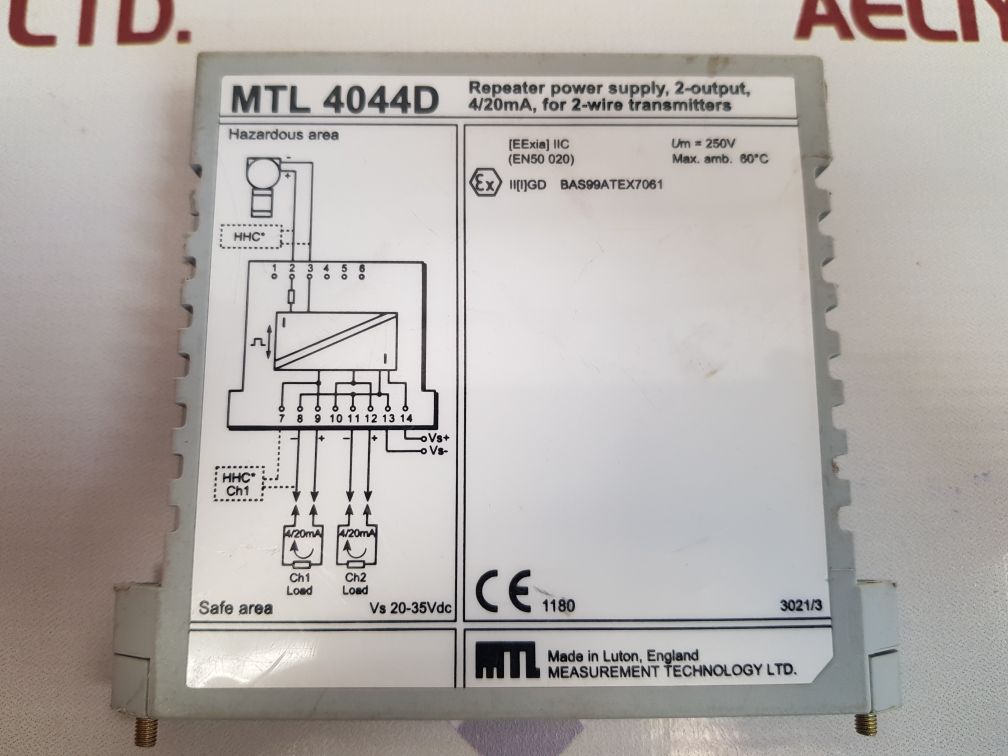

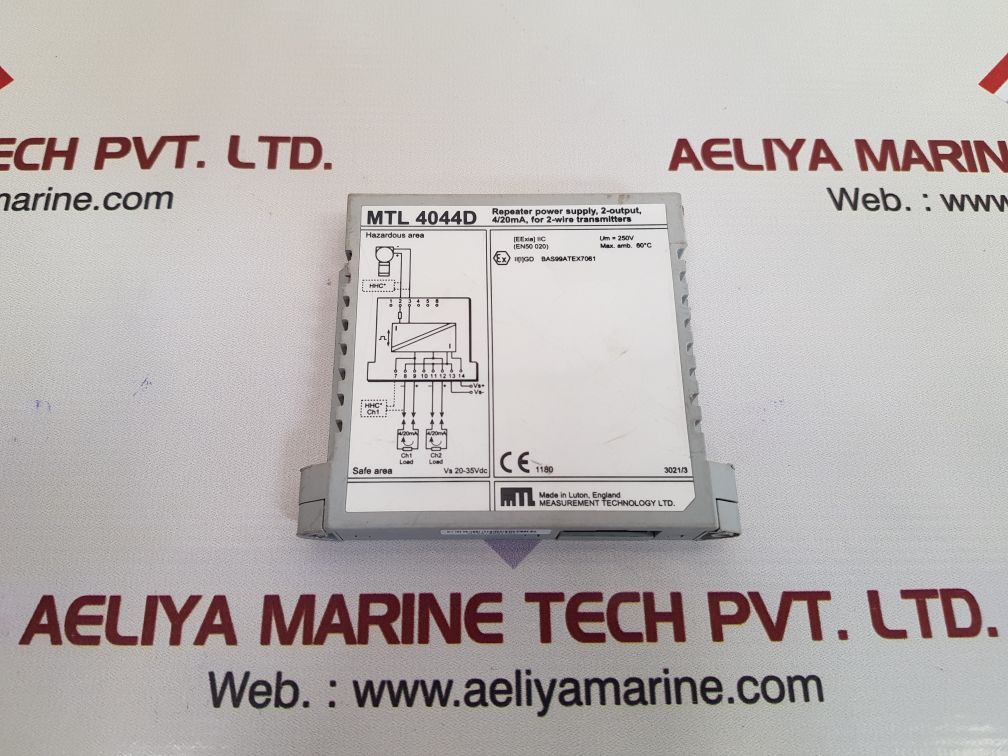

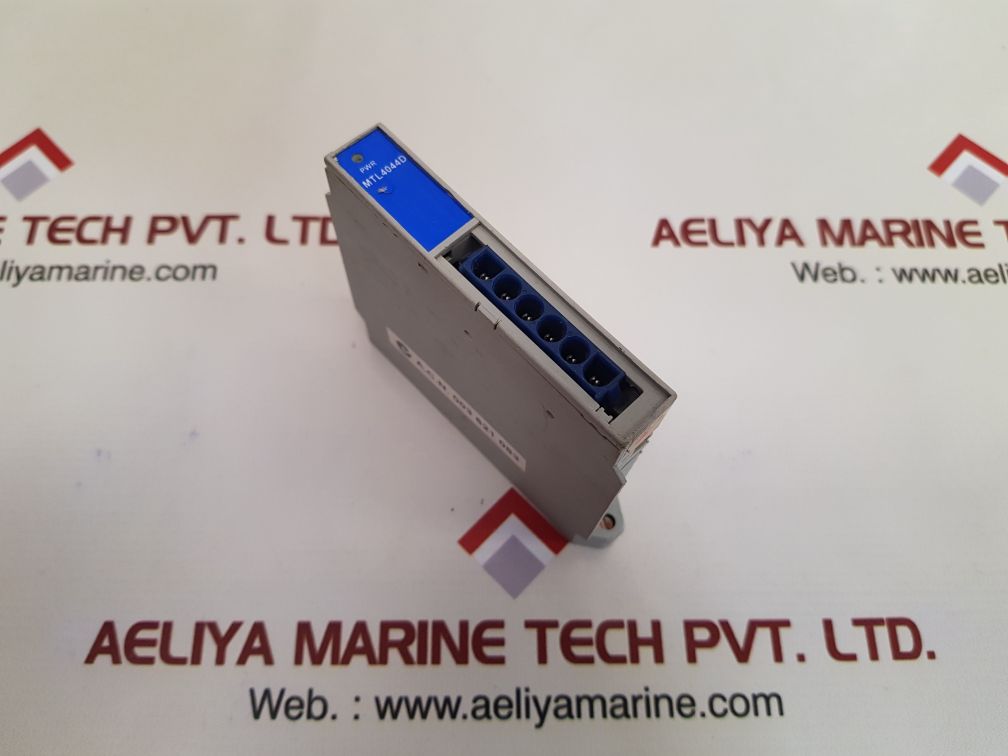

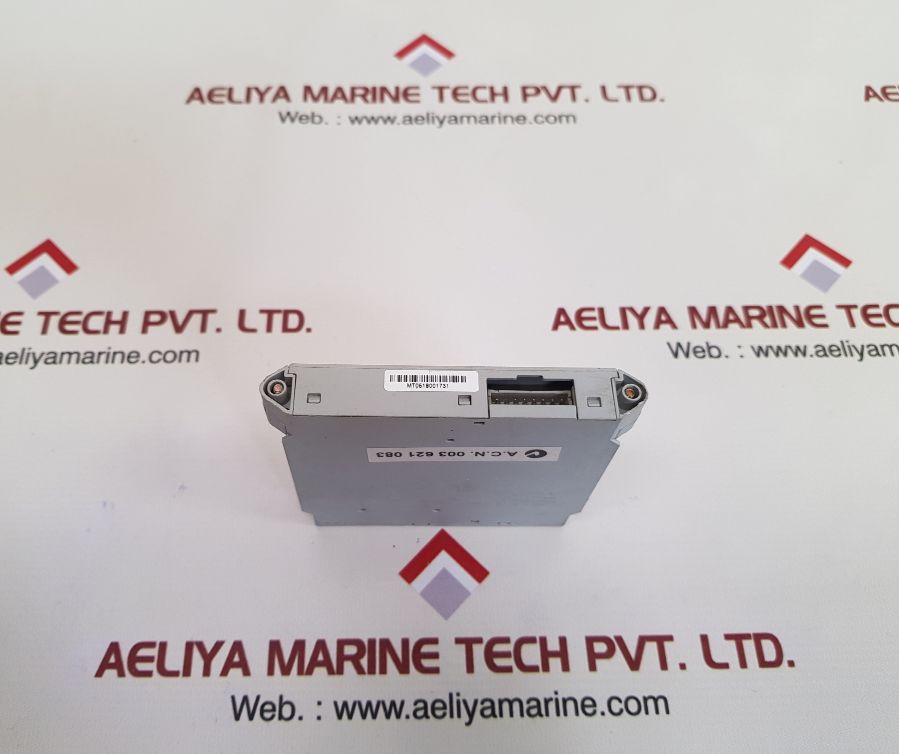

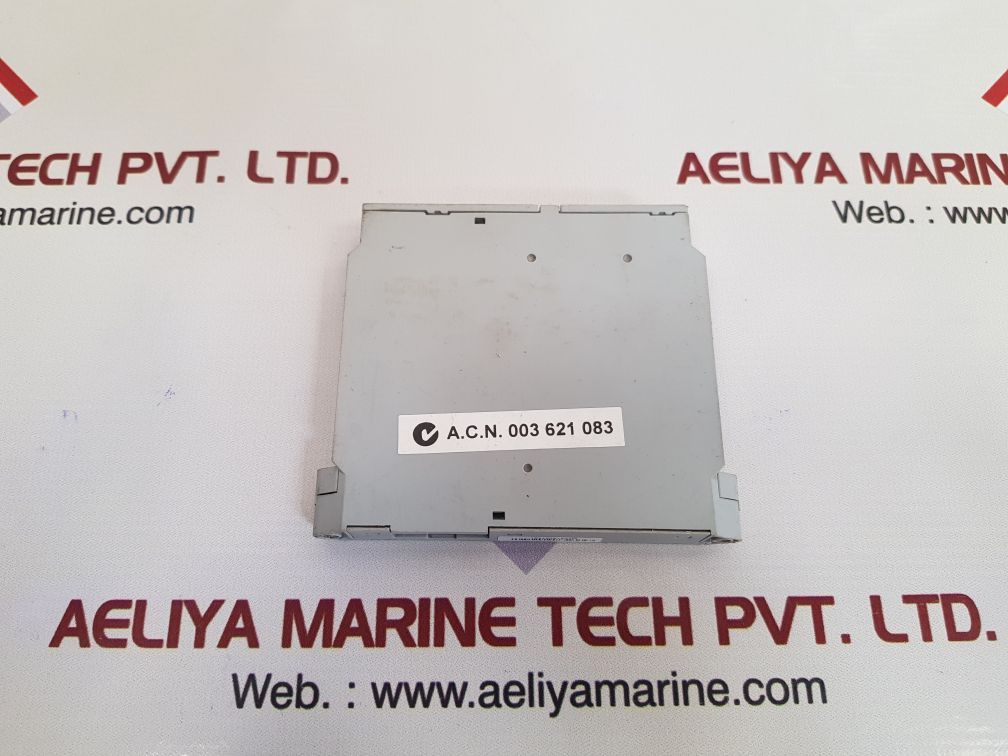

Measurement Technology Mtl4044D Repeater Power Supply 20-35Vdc

What is the MTL4044D Repeater Power Supply?

The MTL4044D is a galvanically isolated repeater power supply used in industrial process control systems. It supplies a regulated 4-20mA current signal with electrical isolation between input and output. This device is especially useful in intrinsically safe (IS) areas, where electrical devices need to be properly controlled to avoid possible dangers in explosive atmospheres.

Engineered for efficiency and reliability, the MTL4044D works within an input voltage range of 20-35VDC, making it a versatile solution for diverse industrial applications.

Important Features of MTL4044D

The MTL4044D comes with a host of advanced features, making it a choice of preference in industrial automation:

Powerful Power Supply (20-35VDC) – Works within a versatile DC voltage range, ensuring compatibility with diverse power sources.

Galvanic Isolation – Eliminates ground loops and improves signal integrity by isolating power supply, input, and output.

High Accuracy Signal Transmission – Preserves signal accuracy for maximum control and monitoring in process industries.

Intrinsic Safety Compatibility – Built for hazardous locations, guaranteeing IS standards compliance.

Compact and Durable Design – Sits comfortably in control panels and resists tough industrial environments.

Low Power Consumption – Increases efficiency while lowering operational expenses.

Wide Temperature Range – Ideal for harsh environmental conditions in industrial applications.

Why is Galvanic Isolation Significant?

Galvanic isolation is one of the MTL4044D’s best features. In industrial environments, ground loops and electrical noise can corrupt signals, causing erroneous readings and system failure. Galvanic isolation prevents direct electrical paths while passing signals through, providing clean and stable data transfer.

This renders the MTL4044D suitable for applications where signal integrity is paramount, including:

Oil & Gas Industry – Avoidance of interference in hazardous environments.
Pharmaceutical Manufacturing – Prevention of accurate monitoring of critical parameters.
Chemical Processing Plants – Safeguarding control systems from signal degradation.

Applications of MTL4044D

MTL4044D finds extensive application in industrial process control and automation. Some of its main applications are:

1. Hazardous Area Instrumentation
Applications involving flammable gases, vapors, or dust need intrinsically safe barriers to avoid electrical sparks or heat accumulation. The MTL4044D provides signal transmission while being compliant with intrinsic safety.

2. Remote Monitoring and Control
For applications involving remote monitoring of actuators and sensors, the MTL4044D repeater power supply provides more accurate and reliable data transmission.

3. PLC and DCS Integration
The MTL4044D perfectly interfaces with Programmable Logic Controllers (PLCs) and Distributed Control Systems (DCS), providing accurate data transfer from field instruments to control units.

4. Water Treatment Plants
The monitoring of pressure and flow must be accurately achieved in water treatment plants. The MTL4044D provides stable signal processing, promoting regulatory compliance and optimal operation.

Advantages of Employing MTL4044D

Installing the MTL4044D repeater power supply in your industrial system presents several advantages:

Improved Signal Integrity – Removes electrical interference and noise.
Improved Safety – Meets intrinsic safety standards for hazardous locations.
Energy Efficiency – Power consumption reduced, lowering operational expense.
Universal Compatibility – Compatible with different industrial power supplies (20-35VDC).
Long-Term Performance – Tough construction for rugged environments.
Simple Installation – Space-saving design and DIN rail mounting for quick setup.
