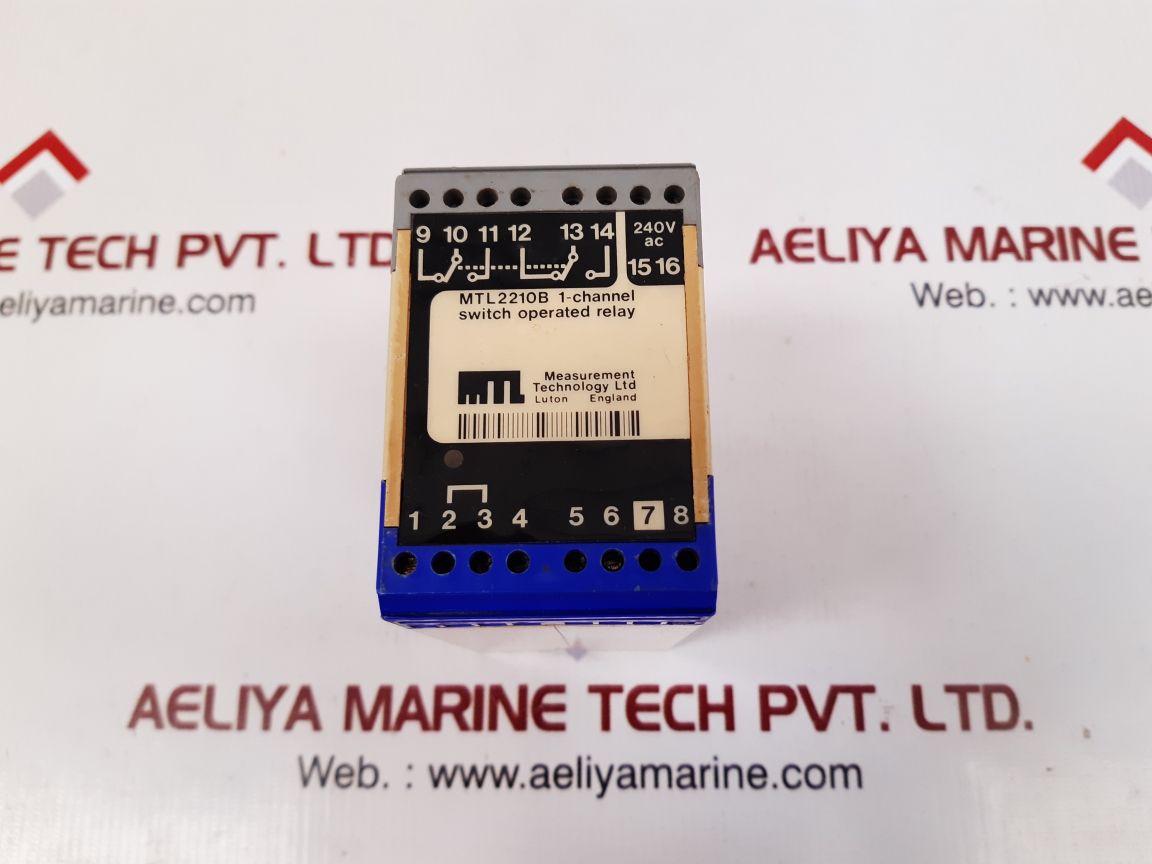

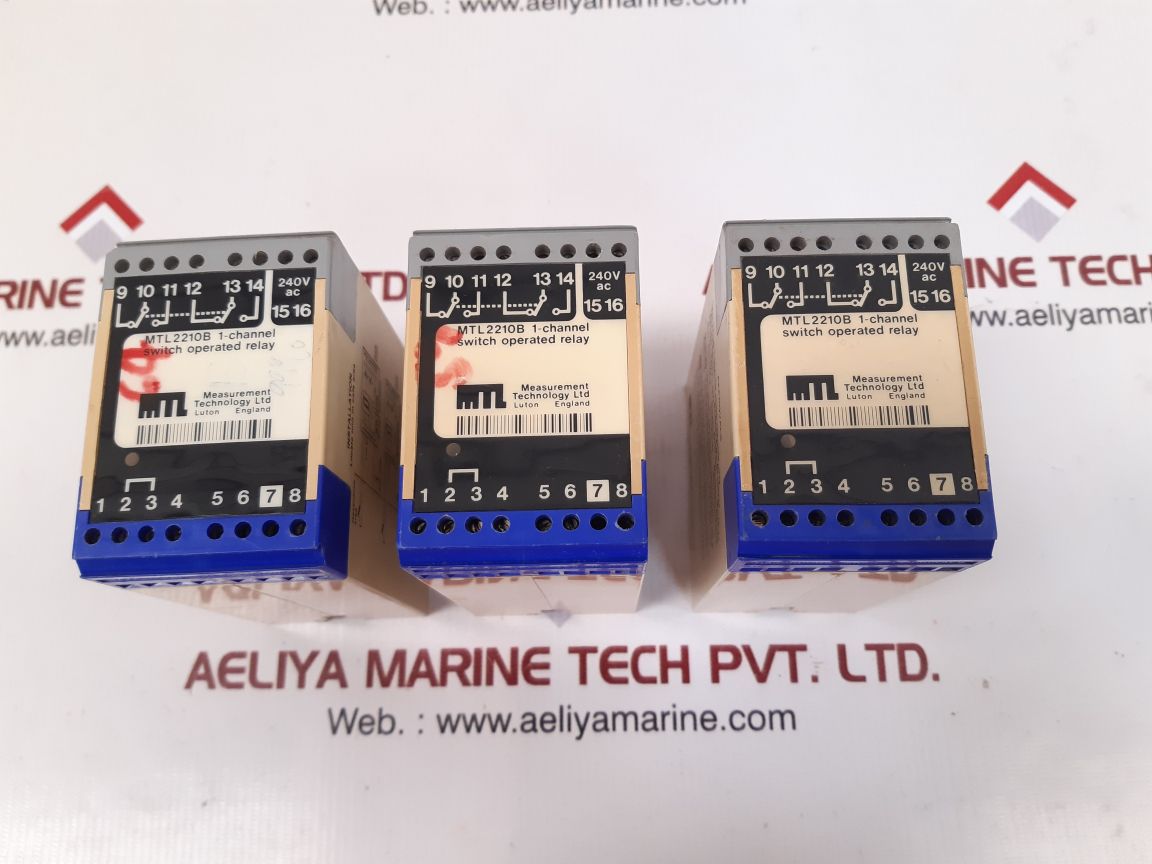

Measurement technology mtl2210b 1-channel switch operated relay

Measurement technology mtl2210b 1-channel switch operated relay
measurement technology ltd(mtl)
mtl2210b
1-channel switch operated relay

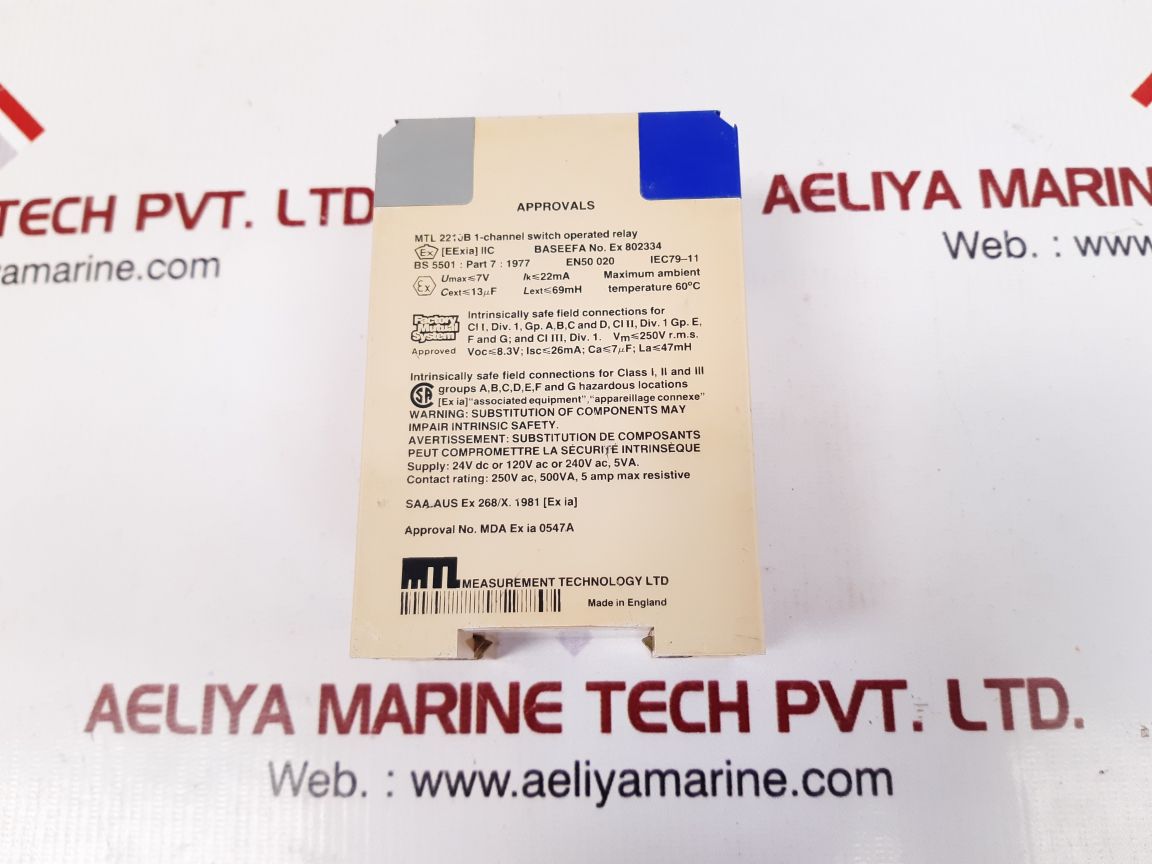

[eexia]iic baseefa no.ex802334
bs 5501: part 7: 1977 en50 020 iec79-11
umax 7v ik 22ma
cext 13uf lext 69mh
maximum ambient temperature 60’c
cl i,div.1,gp.a,b,c and d,cl ii,div.1 gp.e,
f ang g; and cl iii,div.1. vm 250v r.m.s.
voc 8.3v; isc 26ma; ca 7uf; la 47mh
supply: 24v dc or 120v ac or 240v ac, 5va
contact rating: 250v ac, 500va, 5 amp max resistive
saa aus ex 268/x. 1981[ex ia]
mtl 9126
made in england
weight : 440 gm
