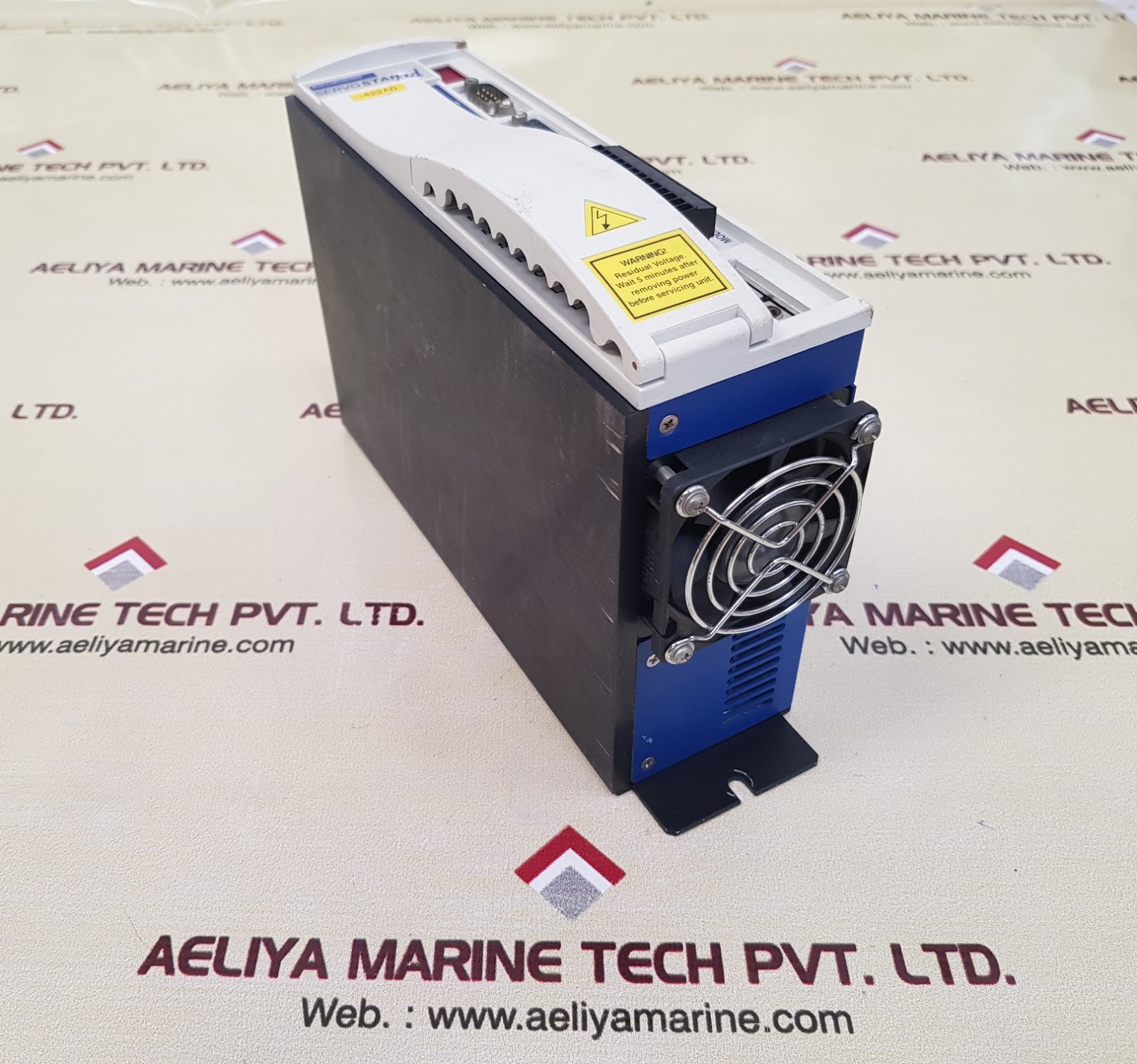

KOLLMORGEN PRD-B040ASIB-32 SERVO CONTROLLER CR03561

Understanding the Kollmorgen CR03561 Servo Motor

The Kollmorgen CR03561 PRD-B040ASIB-32 is a performance servo motor with precision motion control requirements. The motors are constructed with long-lasting components, sophisticated feedback systems, and effective power consumption. Even if the motors are well constructed, the factors can cause problems resulting from electrical, mechanical, or operational issues.

Common Reasons Why Your Servo Motor May Not Work

There are various reasons why your Kollmorgen CR03561 servo motor may not work. Below are some of the most prevalent reasons:

1. Power Supply Problems

Insufficient voltage or current may cause the motor to fail to work properly. Check for:

• Loose or broken power cables
• Faulty voltage settings
• Blown fuses or tripped circuit breakers

2. Wiring Errors

Servo motors need a number of electrical connections to work. Check:

• The wiring harness for frays or breaks
• The motor terminals for corrosion
• Secure connection of all connectors

3. Encoder or Feedback System Failure

The Kollmorgen CR03561 motor features a feedback system to provide accurate movement. If the encoder is malfunctioning or misplaced, the motor might:

• Move irregularly or randomly
• Not respond to instructions
• Show error codes on the controller

4. Overheating Problems

Overheating can destroy motor windings and other parts. Overheating causes:

• Incorrect ventilation around the motor
• High-duty cycle or heavy load
• Internal faults resulting in high current consumption

5. Mechanical Resistance

If the motor is not turning or producing unusual sounds, then mechanical resistance can be the culprit. Look for:

• Resistance in the motor shaft
• Worn-out bearings which require lubrication or replacement
• High load or misalignment within the driven system
