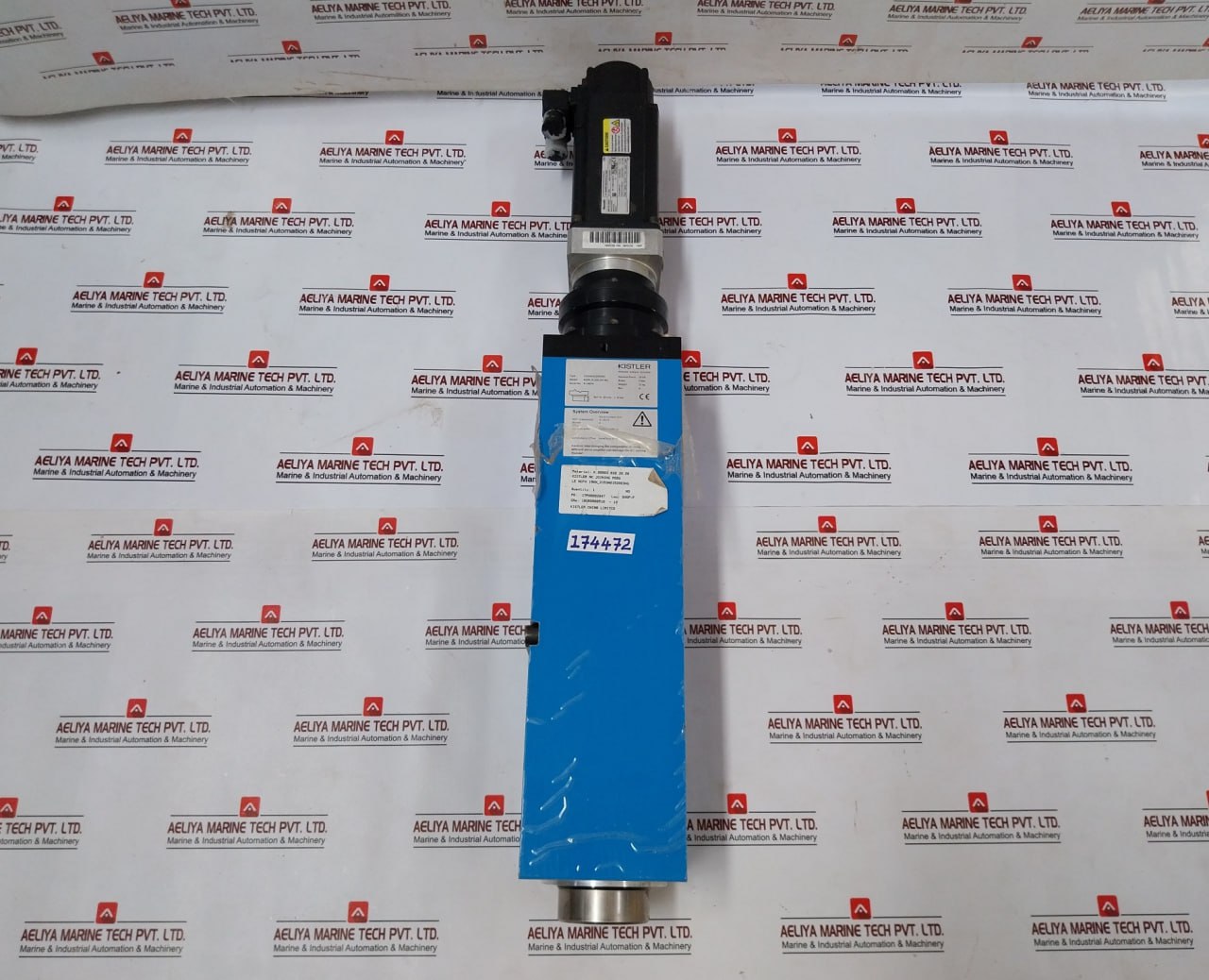

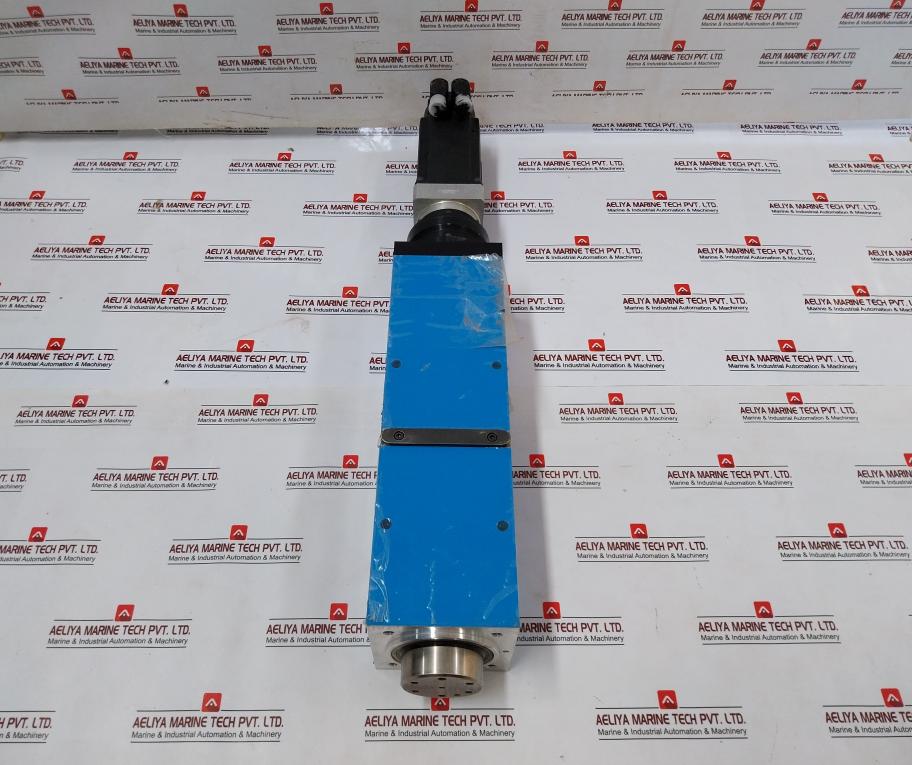

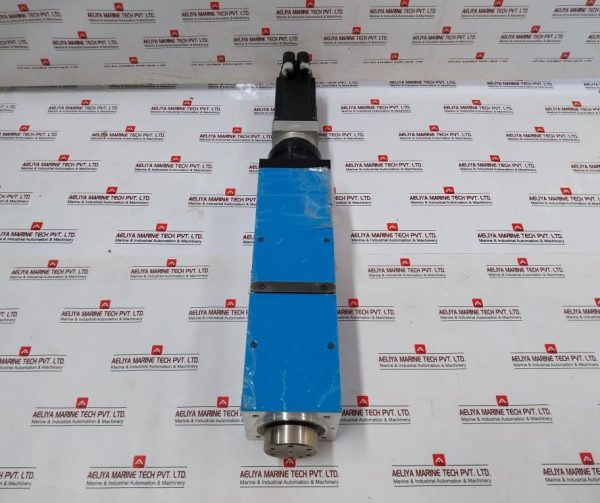

Kistler 2153a0152003hg Electromechanical Nc Joining Module 24v

Kistler 2153a0152003hg Electromechanical Nc Joining Module 24v
Kistler China Limited
Measure. Analyze. Innovate
Rexroth
Bosch Rexroth Ag,
Wittenstein Alpha Gmbh
Nc Joining Modu
Type: 2153a0152003hg
Model: Ncfn 15 200 250 Hg
Nominal Force: 15 Kn
Brake: 5 Nm
Rev. A
Ref: X = 30 Mm ≙ 0 Mm
System Overview:
Monitor: 0
Servo Amplifier: 7260411076714
Commutation Offset: Indra Drive (512)
Am48-80
80 90 7/10

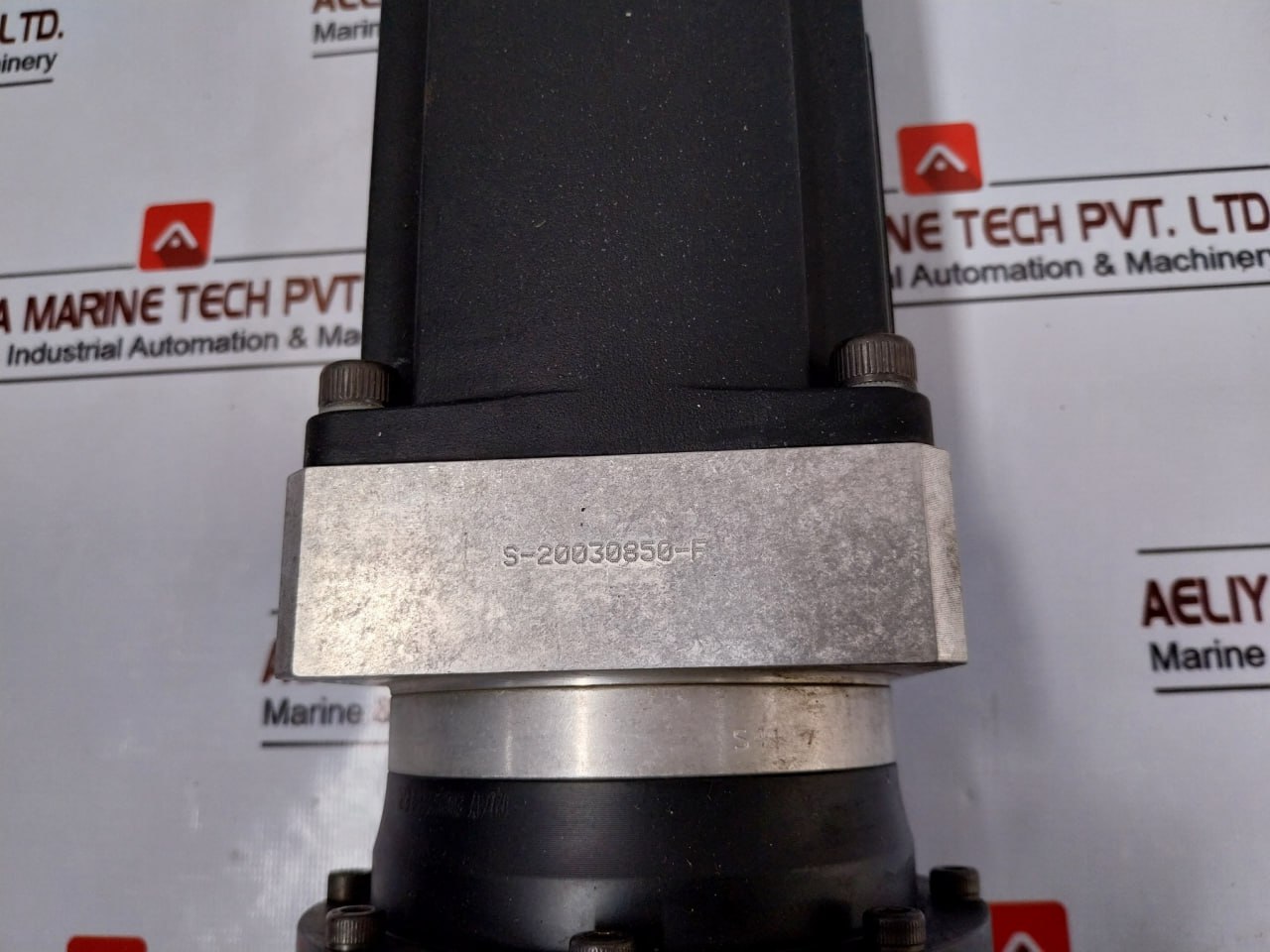

S-20030850-F

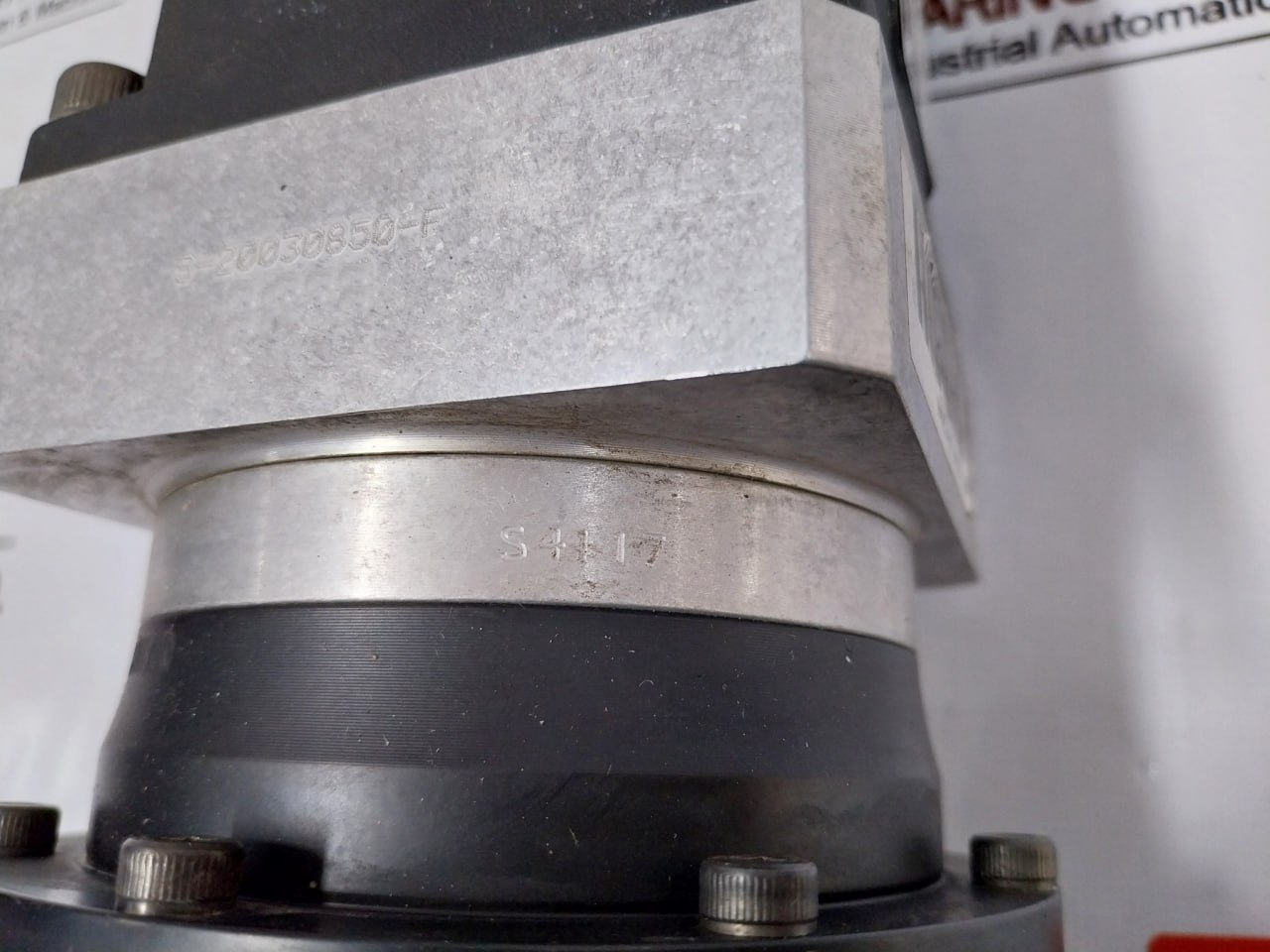

S4117

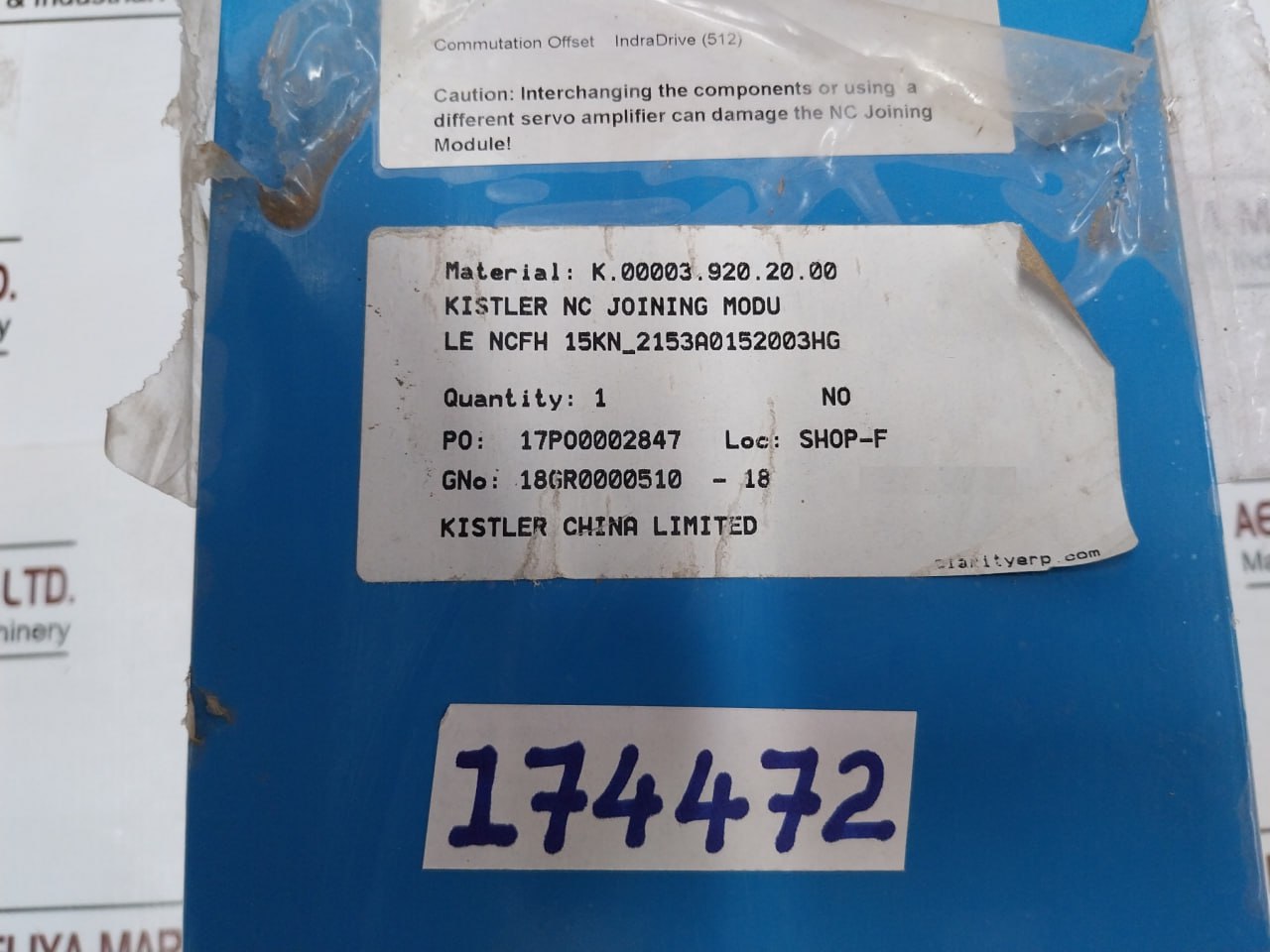

Material: K.00003.920.20.00
Le Ncfh 15kn_2153a0152003hg
Gno: 18gr0000510-18
3-Phase Synchronous Pm-Motor
Typ/Type: Msk050c-0600-Nn-M1-Ug1-Nnnn
Mnr: R911298355
Fd: 18w05
Natural Convection
M (0) 5,0 Nm
I (0) 6,2 A
N (Max) 6000 Min-1
Ke(Eff) 55,0v/1000 Min-1
Km 0,89 Nm/A
U(Max) Ac 600 V
T.Cl. 155
I.Sy. Ecm1
Brake 6,00 Nm
Dc 24v
+-10%
0,65a
Ip 65
7260

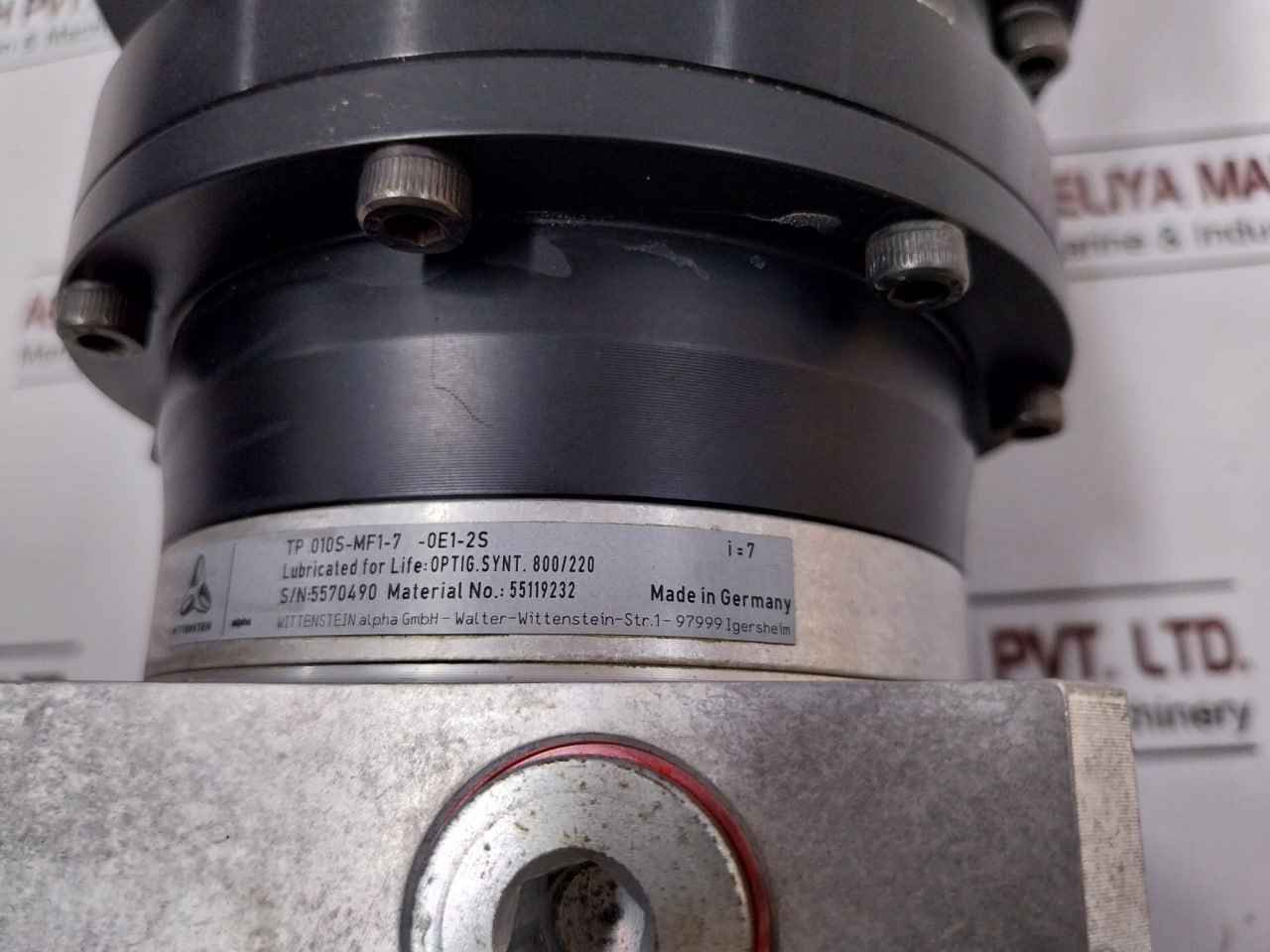

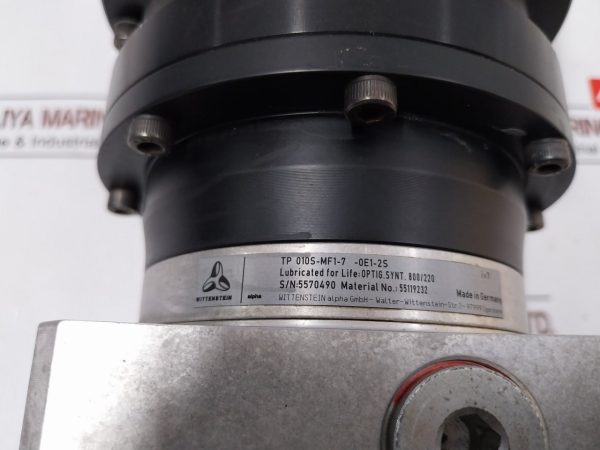

Tp 010s-Mf1-7-0e1-2s
Lubricated For Life: Optig.Synt. 800/220
Material No: 55119232
I=7
Made In Germany
Weight : 51 Kg
Ref No : 174472
