| Attribute | Value |
|---|---|
| Brand | JRC |
| Model | CAE-263 IF AMP |

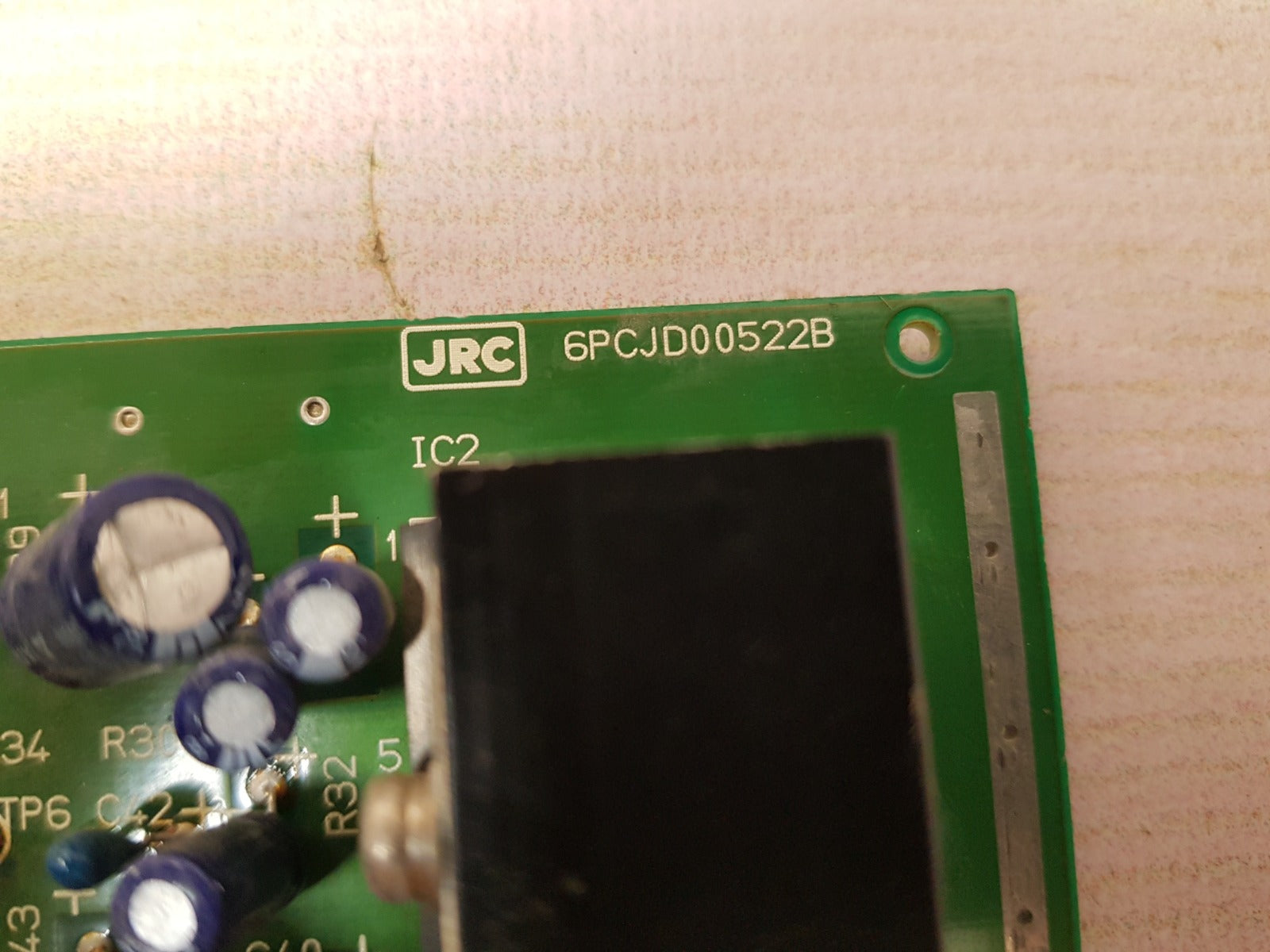

| Part Number | 6PCJD00522B |
| Origin | Made in Japan |
| Weight | 155 gm |

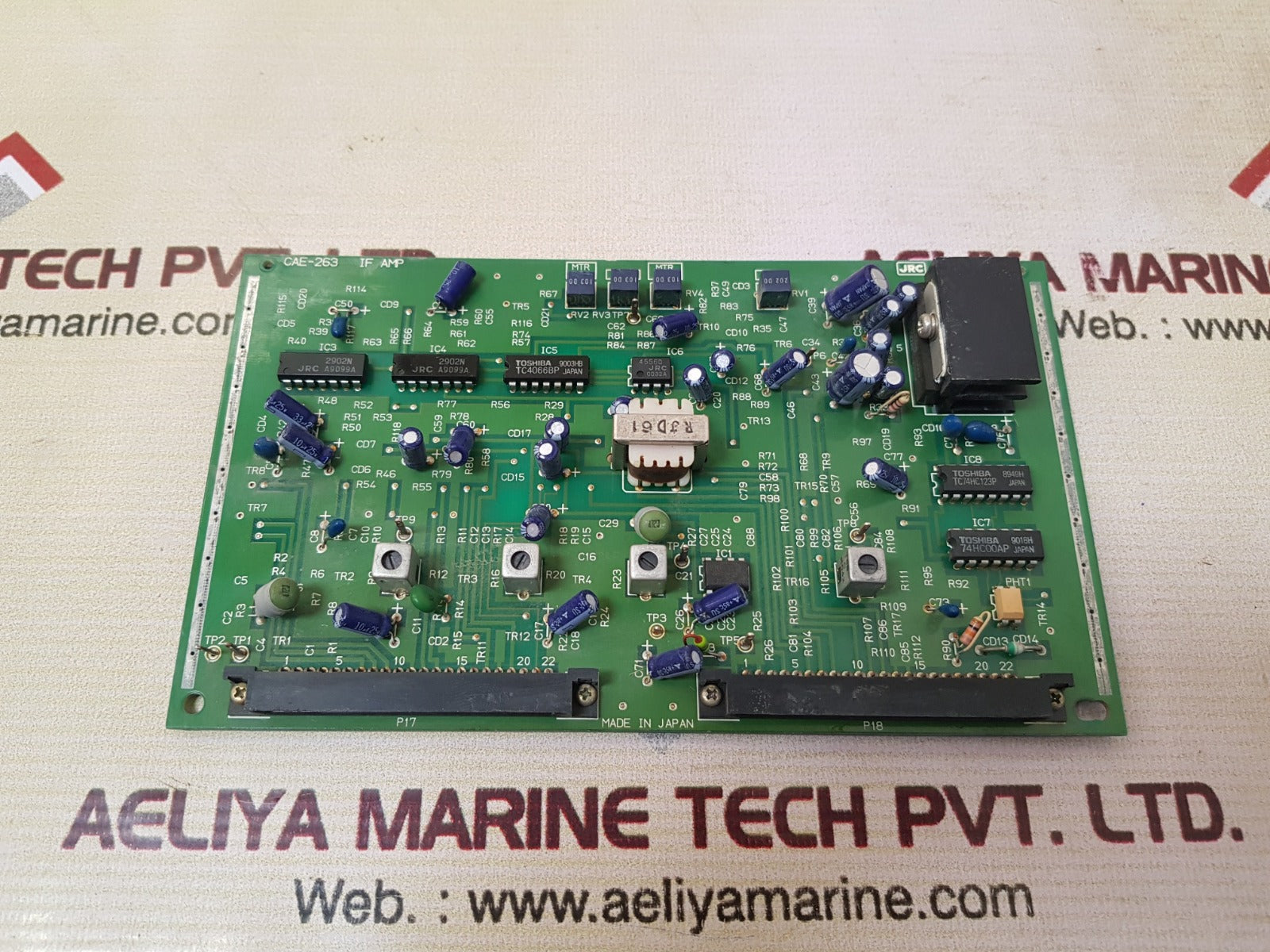

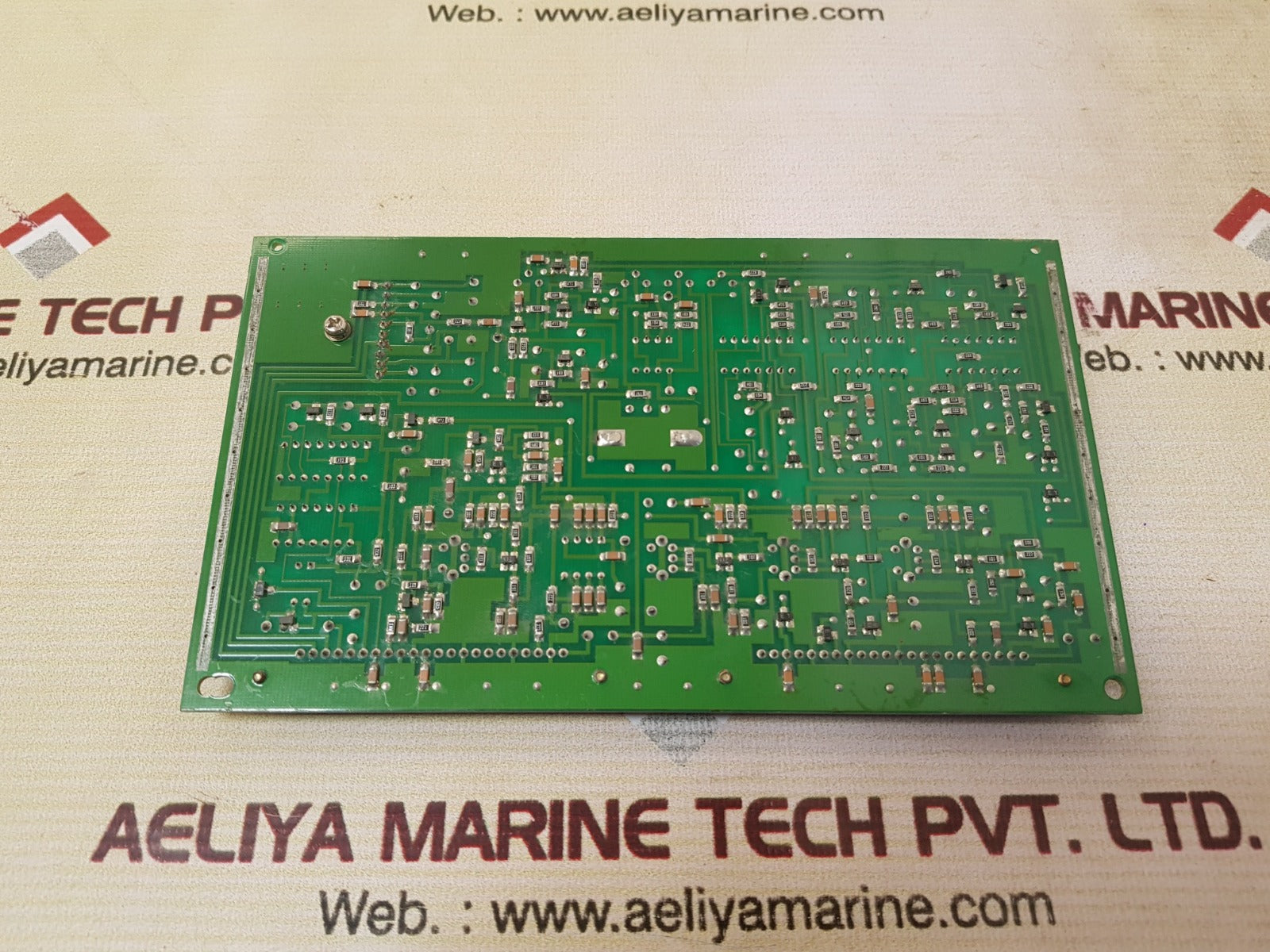

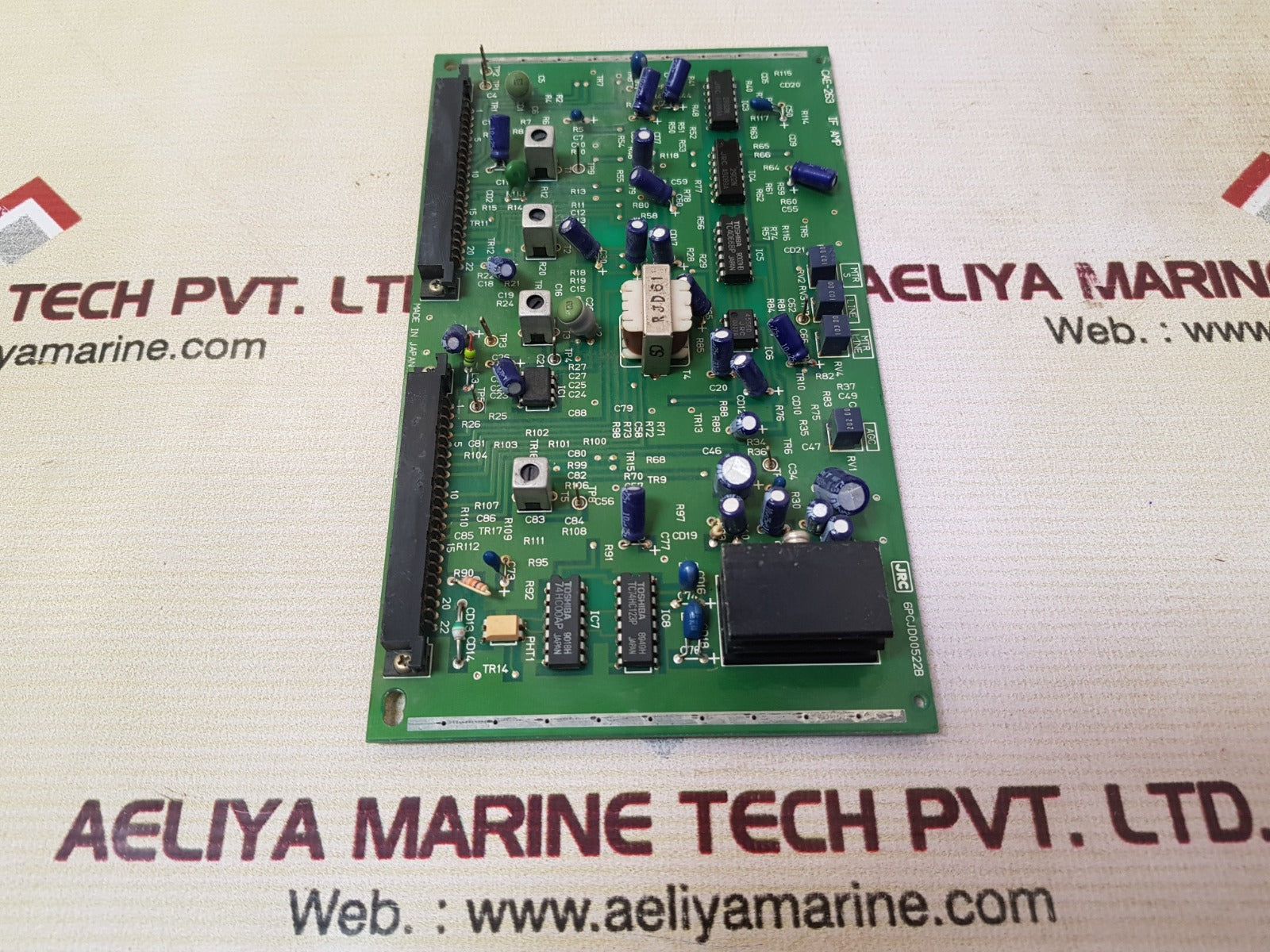

What is the JRC CAE-263 IF Amp PCB (6PCJD00522B)?
The JRC CAE-263 is an IF amplifier module that boosts the strength of a signal in radio communication circuits. It is intended to handle IF signals, which are normally between 455 kHz and several MHz, depending on usage. The printed circuit board (PCB) consists of components like transistors, capacitors, and resistors, all combined to intensify feeble signals prior to reaching the end detection or demodulation point.
Key Specifications:
Model: JRC CAE-263 IF Amp PCB
Part Number: 6PCJD00522B
Type: Intermediate Frequency (IF) Amplifier
Function: Signal amplification for radio and communication circuits
Usage: Strengthens weak signals in RF circuits for enhanced clarity
This IF amplifier module is mainly employed in equipment which demands good signal sensitivity and low noise operation, thus it plays a crucial role in communication receivers and signal processing systems.
Applications of the JRC CAE-263 IF Amp PCB
This IF amplifier PCB is employed in a wide range of communication and electronic devices, such as:
1. Radio Communication Systems
The JRC CAE-263 IF amplifier is important in radio receivers since it amplifies intermediate frequency signals. This allows weak radio signals to be effectively processed, enhancing reception and signal quality.
2. Television and Satellite Receivers
In satellite and television systems, this IF amp PCB facilitates broadcast signal processing so that content being transmitted is clear and devoid of unnecessary noise.
3. Signal Processing Equipment
Numerous electronic signal processing equipment employ IF amplification to boost signals prior to additional filtering and modulation. The JRC CAE-263 offers stable and consistent performance in such applications.
4. Wireless Communication Systems
Contemporary wireless communication networks are dependent on intermediate frequency stages to filter and amplify. This PCB provides improved signal-to-noise ratio (SNR) for communication circuits.
5. Ham Radio & Shortwave Receivers
For amateur radio enthusiasts and professionals dealing with ham radio or shortwave receivers, the JRC CAE-263 IF amp PCB provides stronger signal reception, making it an essential component in amateur radio projects.
Advantages of Utilizing the JRC CAE-263 IF Amp PCB
Improved Signal Strength
Among its top benefits when utilized is amplification of very weak signals with little distortion, a key property in RF and communications circuits.
Low Noise Performance
With specifications geared towards premium signal amplification, this PCB eliminates noise, allowing for noise-free output through clear and clean output signals.
Reliable and Durable
Its construction from the finest materials for durability and resilience makes the JRC CAE-263 endure even the longest application use for a long lifespan of reliable operations.
Space-Saving and Efficient Design
This PCB features a space-saving design, which is convenient to fit into different circuits without occupying too much space.
