| Attribute | Value |
|---|---|

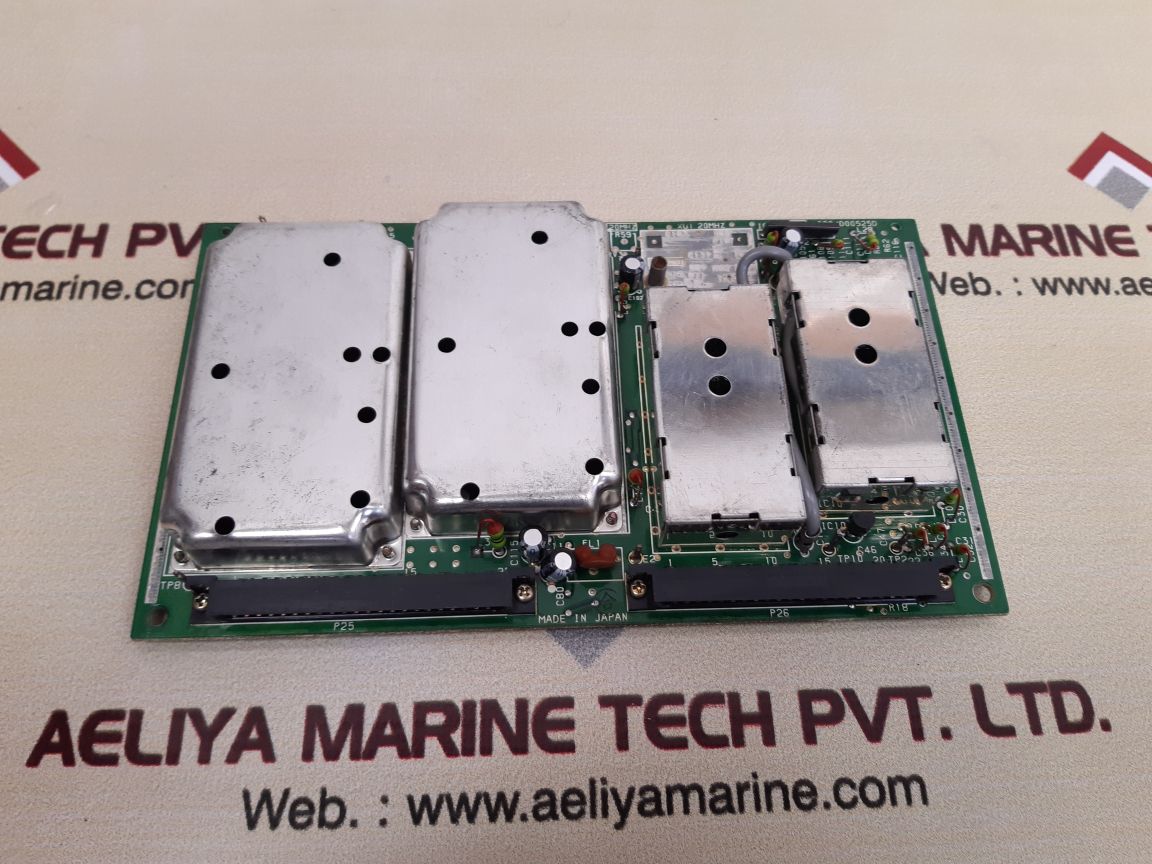

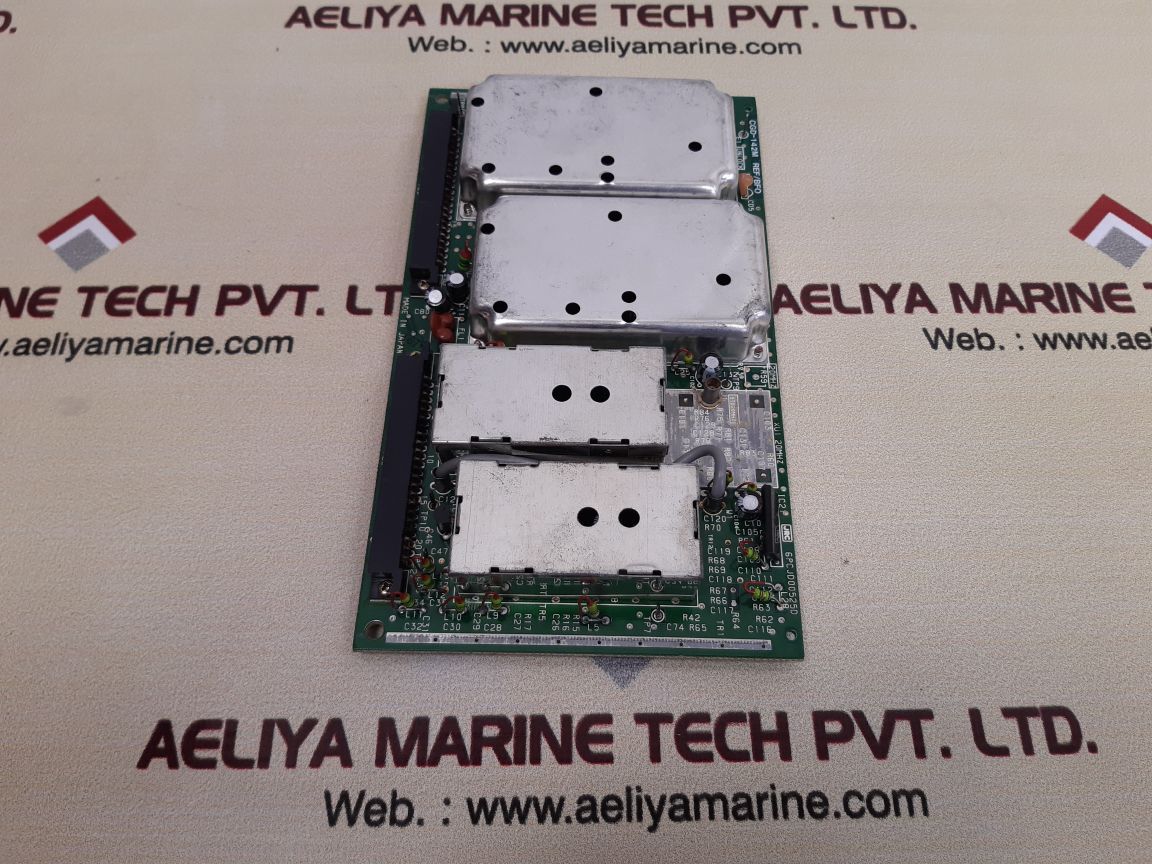

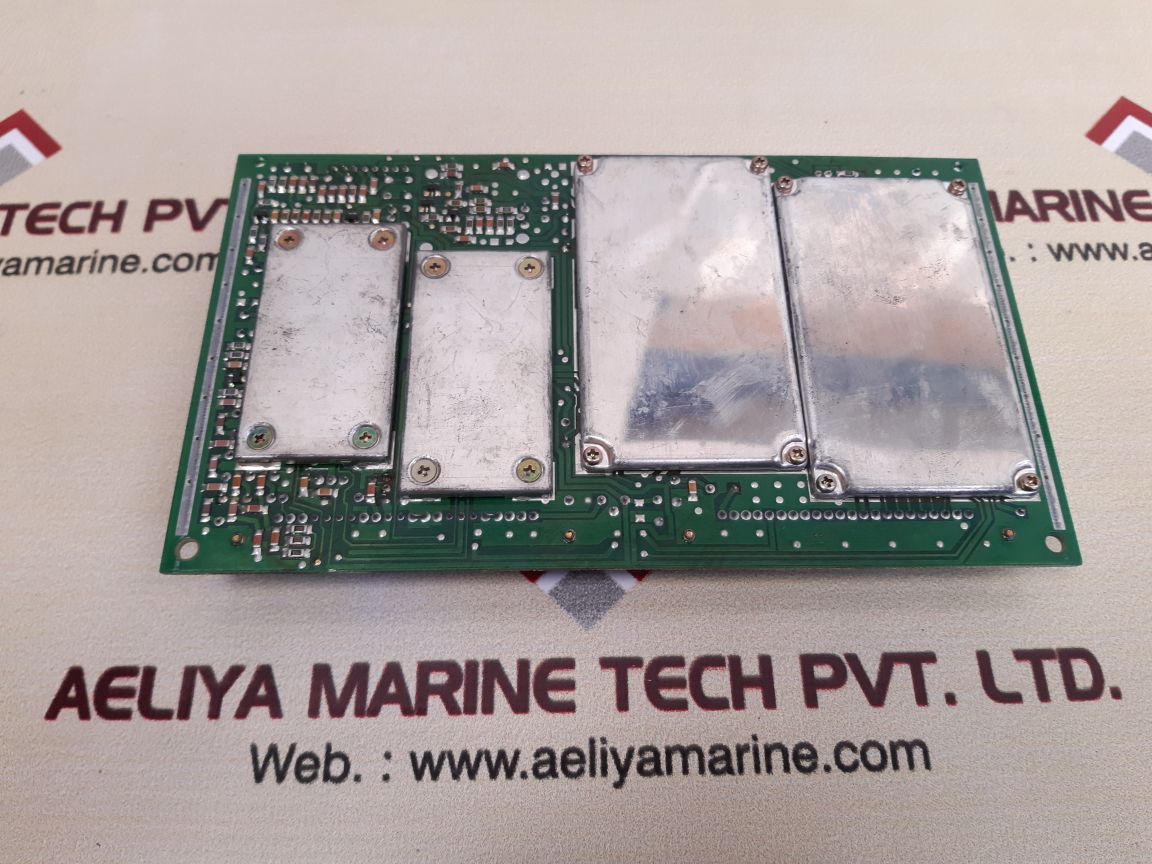

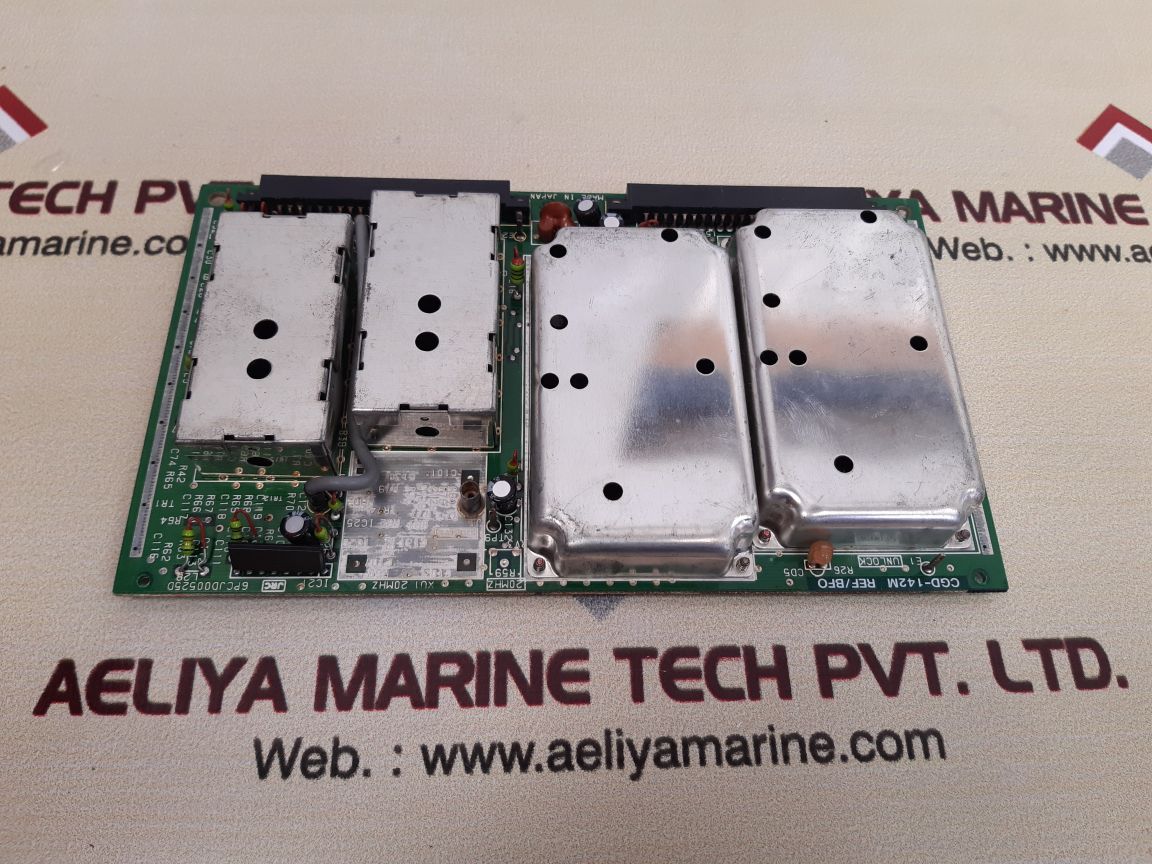

| Product | JRC 6PCJD00525D PCB Card |
| Manufacturer | JRC |
| Model | 6PCJD00525D |
| Reference Number | CGD-142M REF/BFO |
| Frequency | 20 MHz |
| Country of Origin | Made in Japan |
| Weight | 295 gm |
What is the JRC 6PCJD00525D PCB Card?
The JRC 6PCJD00525D PCB Card is a very advanced printed circuit board (PCB) designed by Japan Radio Co., Ltd. (JRC), a renowned brand in maritime electronics. It is of critical importance in signal processing, communication, and navigation operations in maritime equipment.
This 6PCJD00525D PCB card is designed to be used in radar systems, communications modules, and control units that are typically installed in vessels and offshore platforms. Built to manage real-time data processing and feedback loops, the 6PCJD00525D model allows for the seamless operation of intricate marine systems.
As an integrated bridge system component or independent navigation instrument, this PCB provides maximum electrical performance and system reliability even under severe marine conditions.
Most Important Features
High-Frequency Signal Processing: Supports real-time data communication for marine radars and navigation equipment.
Small yet Robust Construction: Constructed with marine-grade materials to resist humidity, temperature fluctuations, and vibration.
Accurate Circuit Design: Designed to preserve signal integrity and minimize electromagnetic interference.
Original OEM Design: Specially designed for JRC marine systems, providing compatibility and easy integration.
Low Power Consumption: Low-power consumption best suited for power-conscious maritime environments.
Easy to Maintain: Made with easy-to-access components for easier diagnostics and repairs.
Applications
The PCB card is widely applied in:
Marine Radar Systems – Enables proper processing and presentation of radar data.
Communication Systems – Provides digital and analog signal routing for maritime communications.
Control Consoles – Provides navigation, autopilot, and monitoring consoles for commercial ships and naval ships.
Integrated Bridge Systems (IBS) – Works within greater systems that integrate radar, GPS, sonar, and ECDIS systems.
Offshore Equipment – Utilized in oil rigs and offshore research ships demanding high-reliability electronics.
Its multipurpose use makes it a necessary element in modern and older JRC equipment configurations.
Why the JRC 6PCJD00525D PCB Card?
Selecting the JRC 6PCJD00525D provides peace of mind for marine technicians, fleet operators, and OEM system integrators for the following reasons:
Brand Trust: JRC is a world leader in marine electronics for quality and reliability.
Compatibility: The card is easily compatible with other JRC modules and systems.
Harsh Conditions Performance: Designed to be used under the severe environmental extremes of marine use.
Cost-Effective Repair: Choosing a replacement PCB such as this one prolongs the lifespan of costly equipment.
