| Attribute | Value |
|---|---|

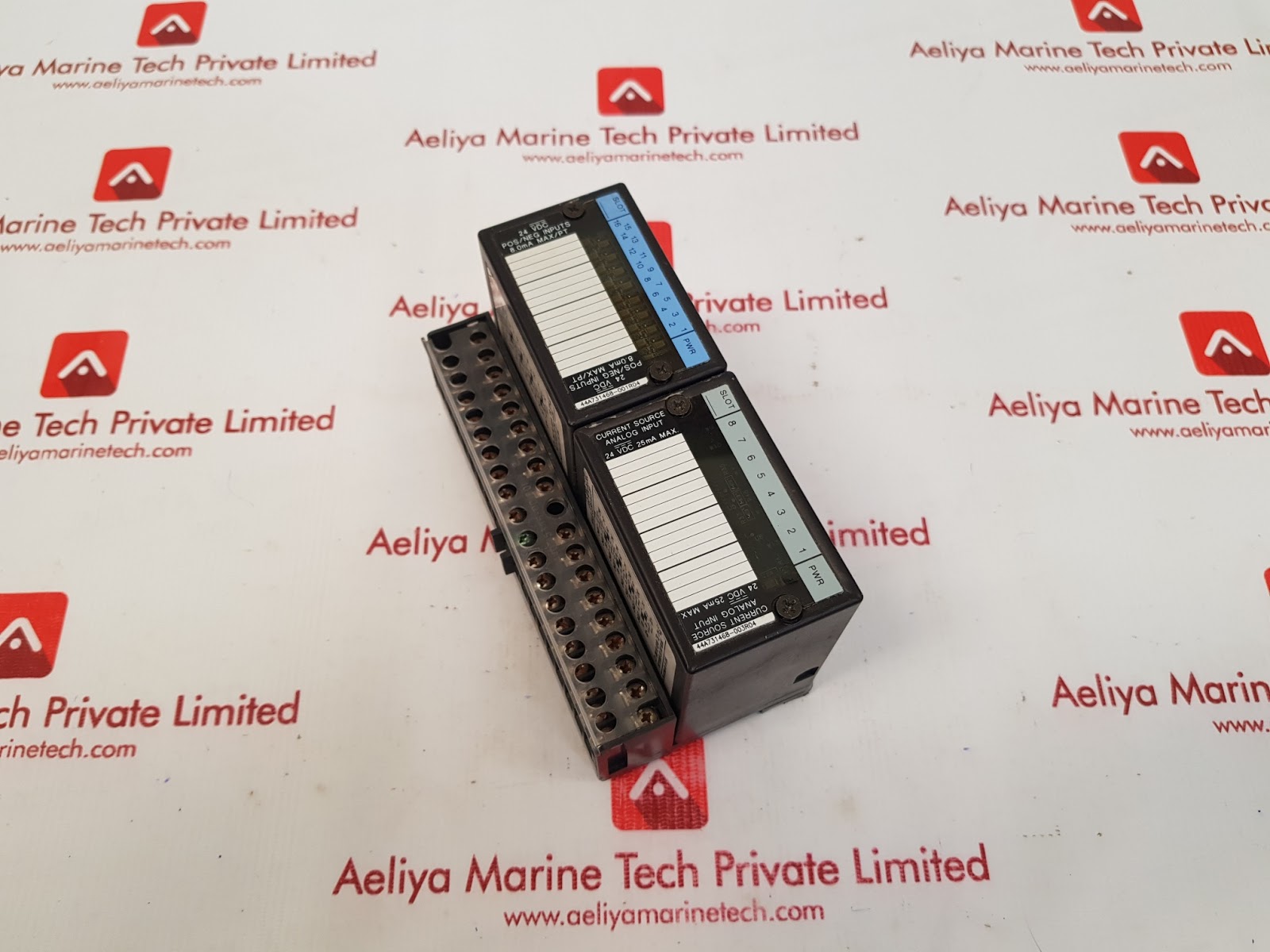

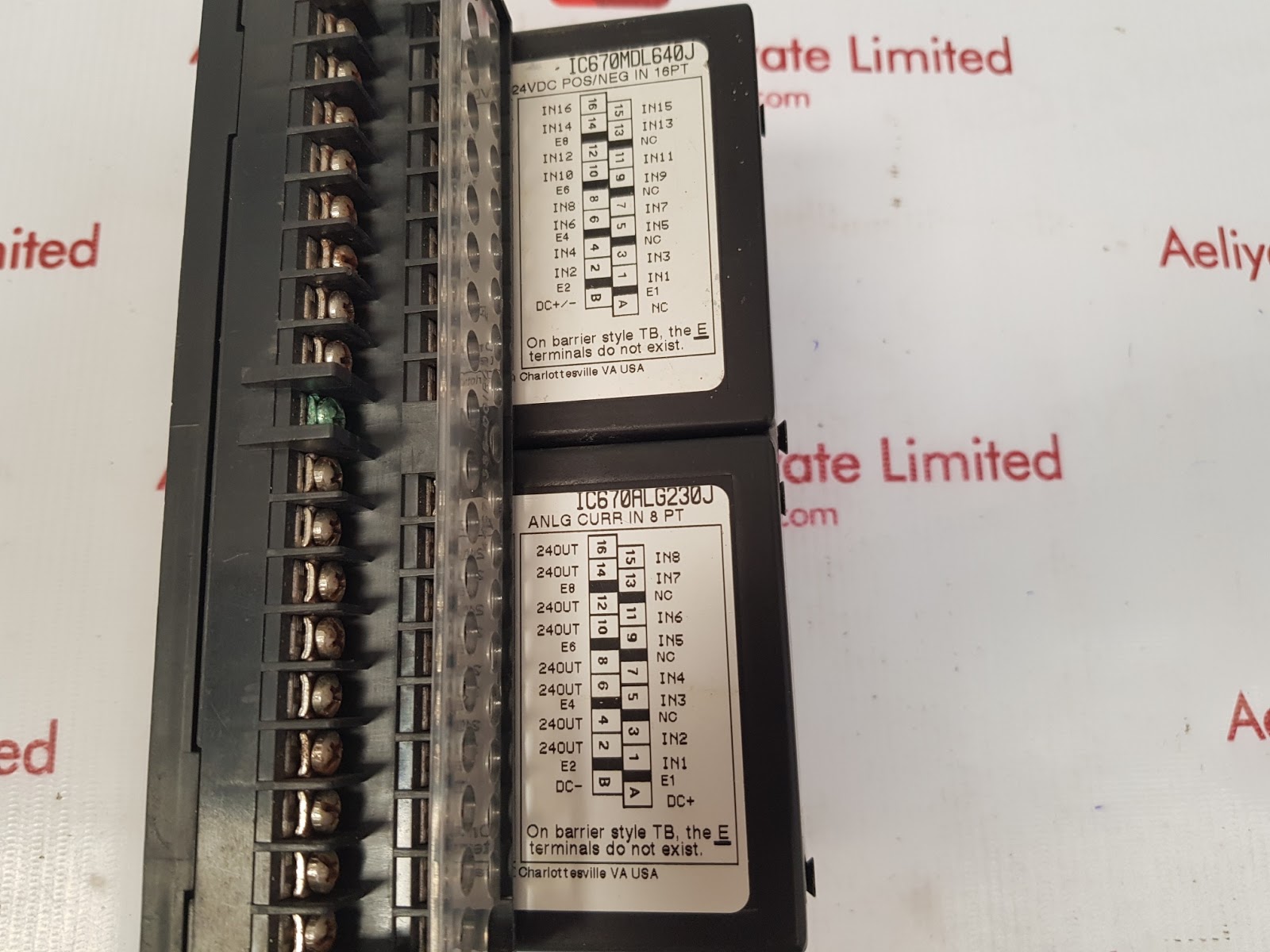

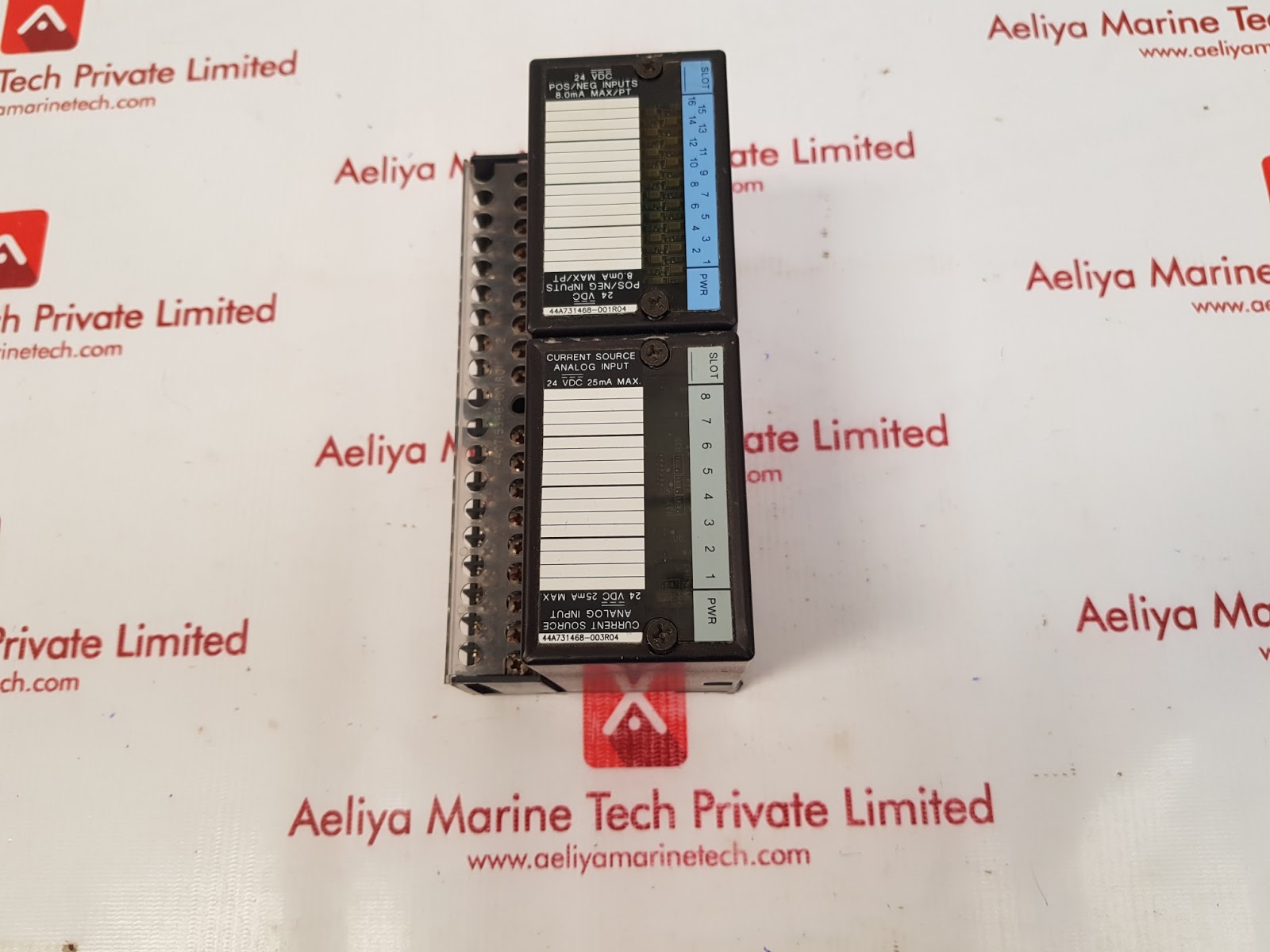

| IC670MDL640J / IC670ALG230J | Input Module with IC670CHS001E I/O Base |
| Voltage | 24VDC POS/NEG |
| Input Points | 16 Points |
| Max Current per Point | 8.0mA |
| Part Number | 44A731468-001R04 |
| Analog Model | IC670ALG230J |
| Analog Current Input | 8 Points |
| Analog Voltage | 24VDC 25mA Max |
| Part Number | 44A731468-003R04 |
| Other Markings | 3005043 9725 |
| Classification | Class I Groups ABCD Div. 2 |
| I/O Base Model | IC670CHS001E |
| Base Type | I/O Base – Barrier Style Terminal |
| Manufacturing Location | Charlottesville, VA, USA |
| Weight | 785 gm |
Understanding the IC670CHS001E Terminal Block
The IC670CHS001E is a premium barrier-style terminal block engineered to offer a solid interface between I/O modules and field wiring. It is widely applied in GE Fanuc Genius I/O systems, ensuring uninterrupted communication and stable electrical connections in industrial applications.
Key Features
Barrier Style Design – The terminal block is of barrier-style design, providing enhanced wiring security and minimizing the risk of unintended disconnections.
High-Durability Construction – Made with industrial-grade materials, the IC670CHS001E is resistant to harsh conditions such as extreme temperatures, vibrations, and moisture.
Secure Connections – The terminal block offers secure and strong connections with minimal electrical noise and signal interferences.
Easy Installation – Engineered for ease of use, it facilitates rapid and trouble-free installation, which saves precious time in industrial usage.
Compatibility – Seamless compatibility with GE Fanuc Genius I/O systems ensures efficiency and reliability across multiple automation projects.
Applications of IC670CHS001E
This terminal block is extensively applied in various industrial applications, such as:
Factory Automation – It facilitates seamless integration of automated machines, minimizing downtime and maximizing productivity.
Process Control Systems – Facilitates the creation of stable electrical connections for monitoring and controlling industrial processes.
Power Distribution Systems – Facilitates structured wiring in electrical distribution systems, providing safe and efficient operations.
PLC and DCS Systems – Is vital to programmable logic controllers (PLC) and distributed control systems (DCS), maximizing system efficiency.
Advantages of Utilizing IC670CHS001E
Better System Efficiency – The barrier-style terminal block offers a secure connection, lessening signal loss and maximizing system performance.
Increased Safety – Its structure reduces short circuits and unintentional disconnections, providing safety in operation.
Cost-Effective – Being built to last, it cuts down on maintenance expenses and lengthens the automation system’s lifespan.
Versatile Compatibility – Compatible with a vast majority of industrial automation configurations, making it an engineer’s go-to option.
