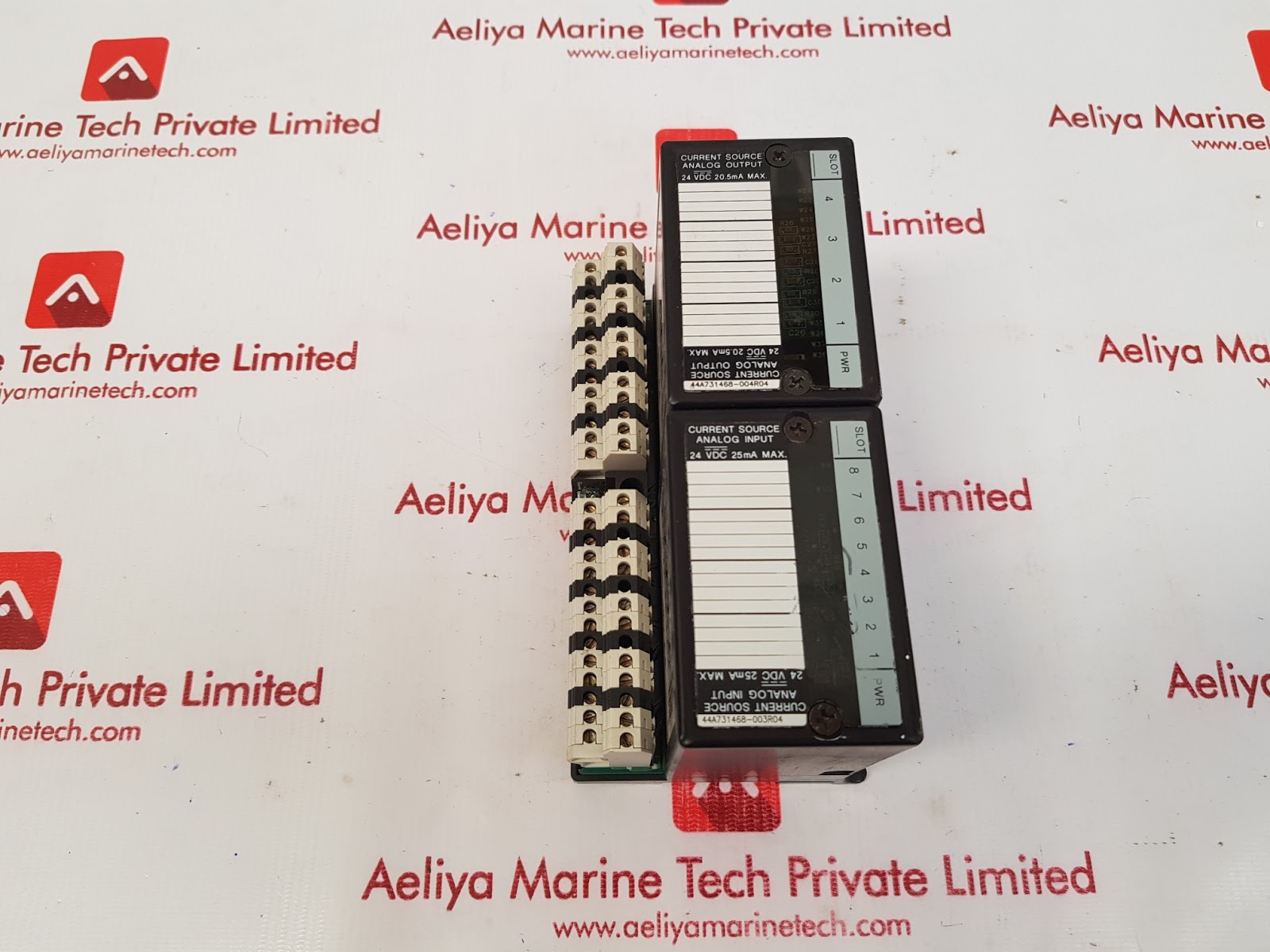

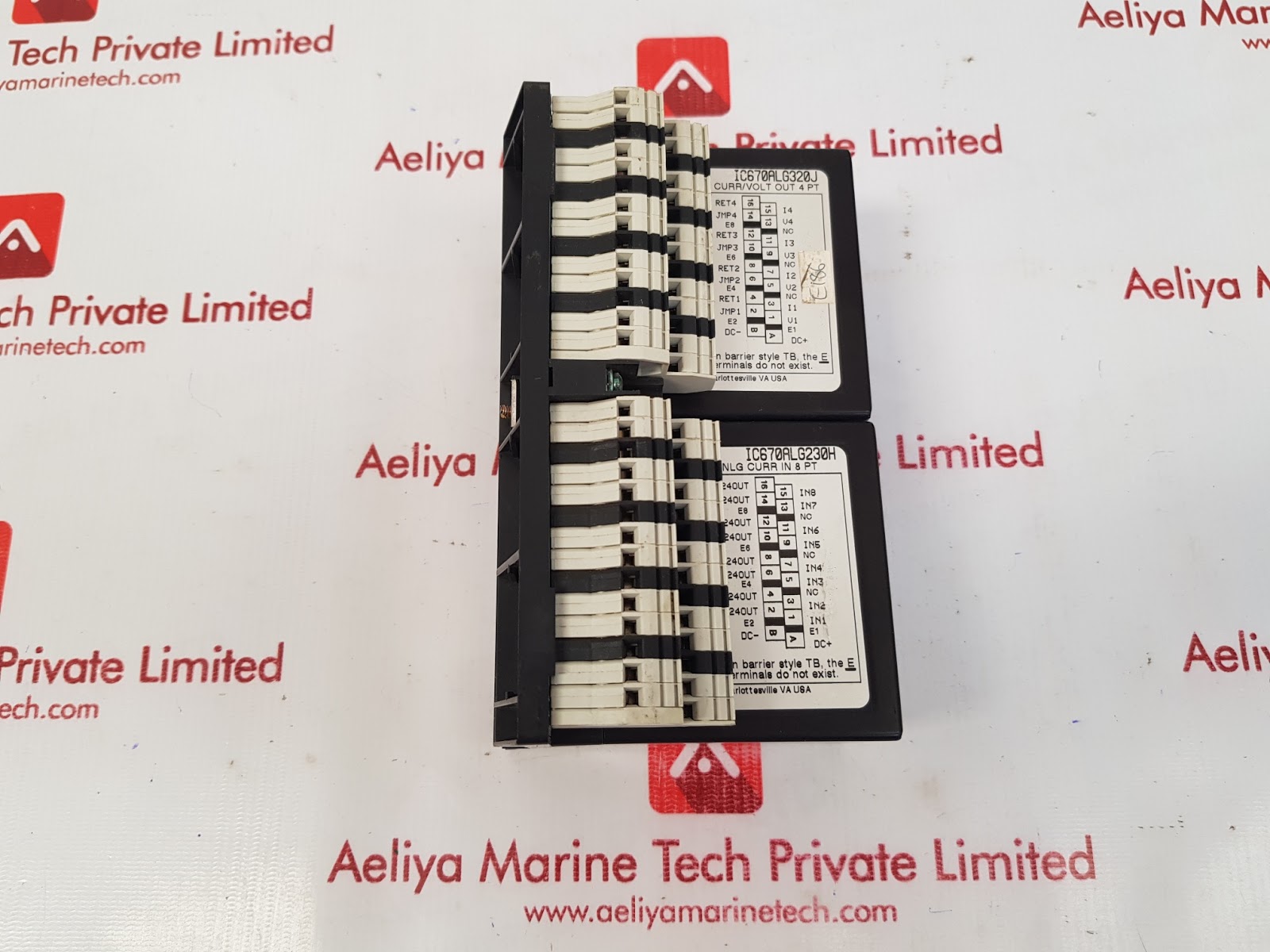

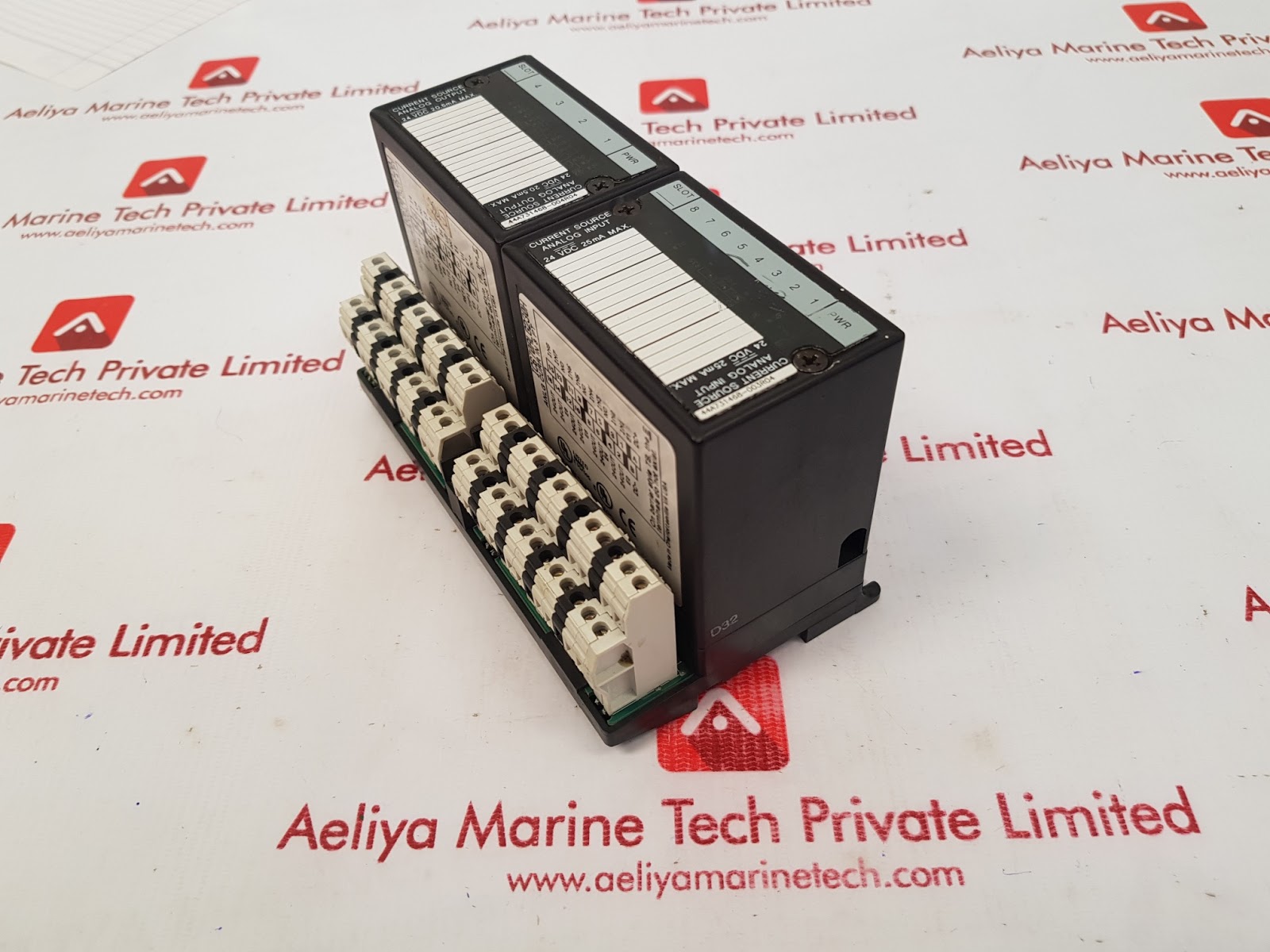

| Attribute | Value |
|---|---|
| Part Number | IC670ALG320J / IC670ALG230H |
| Description | Output Module |
| Specifications | Current Source Analog Output, 24 VDC, 20.5mA Max. |
| Model Number | 44A731468-004R04 |
| Current/Volt Out | 4 PT |
| Part Number | IC670ALG230H |
| Description | Current Source Analog Input |
| Specifications | 24 VDC, 25mA Max. |
| Model Number | 44A731468-003R04 |
| Analog Current In | 8 PT |
| Base Model | IC670CHS002E |
| I/O Base | 2-Tier Box Terminal |
| Classification | Class I Div 2 Groups ABCD |
| Ambient Temperature | 55°C |
| Manufactured Location | Charlottesville, VA, USA |
| Weight | 795 gm |
Overview
The GE Fanuc IC670ALG320J and IC670ALG230H are analog output modules used in GE’s Genius I/O system. The modules are well known for their reliability, accurate control, and compatibility with multiple automation systems. Their purpose is to transform digital signals into analog outputs that allow convenient operations in numerous industrial applications.
Key Features and Benefits
High-Precision Output: The modules provide accurate analog signals to devices for control, ensuring precise system operation.
Broad Compatibility: Integrates flawlessly with the GE Genius I/O system and other automation controllers.
Tough Construction: Designed to resist demanding industrial environments, reducing downtime and maintenance.
Modular Setup: Integrates easily into established configurations, minimizing installation difficulty.
Effective Signal Processing: Offers real-time data conversion for fast and effective process control.
Major Features of the IC670CHS002E Base:
Rugged Construction: Built to withstand industrial environment and deliver long-term performance.
Smooth Integration: Supports several GE Fanuc output modules, thus a flexible option.
Simple Installation: Facilitates wiring and module mounting, saving setup time.
Efficient Power Distribution: Provides stable supply of voltage to connected modules.
Uses of the GE Fanuc IC670ALG320J/IC670ALG230H Output Module
The modules find their applications in industries where accurate control of analog signals is necessary. Some common applications are:
Manufacturing Facilities: Employed in automated equipment to control motor speeds and actuator positions.
Process Industries: Well-suited for pressure, temperature, and fluid flow control in chemical, oil & gas, and pharmaceutical industries.
Energy Industry: Facilitates power generation and distribution networks through precise analog output control.
Water Treatment Plants: Assists in flow rate monitoring and controlling, pressure regulation, and chemical dosing.
HVAC Systems: Facilitates effective heating, ventilation, and air conditioning functions by varying airflow and temperature.
Technical Specifications of IC670ALG320J/IC670ALG230H
Analog Output Type: Voltage/Current Output
Number of Channels: Diversified output channels
Operating Voltage: Compatible with typical industrial power supplies
Resolution: High-resolution output for accurate adjustments
Communication Protocol: Genius I/O network compatibility
