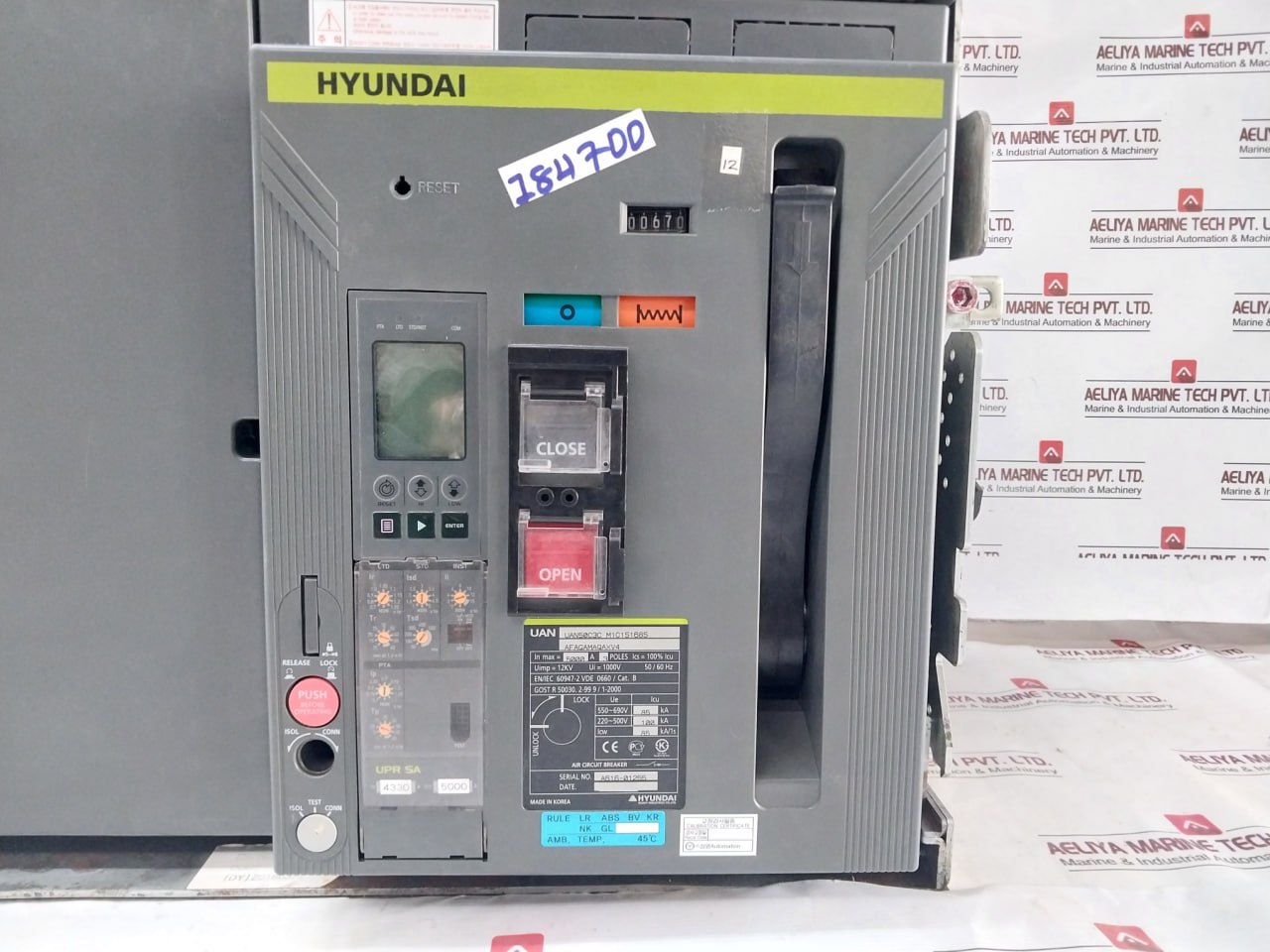

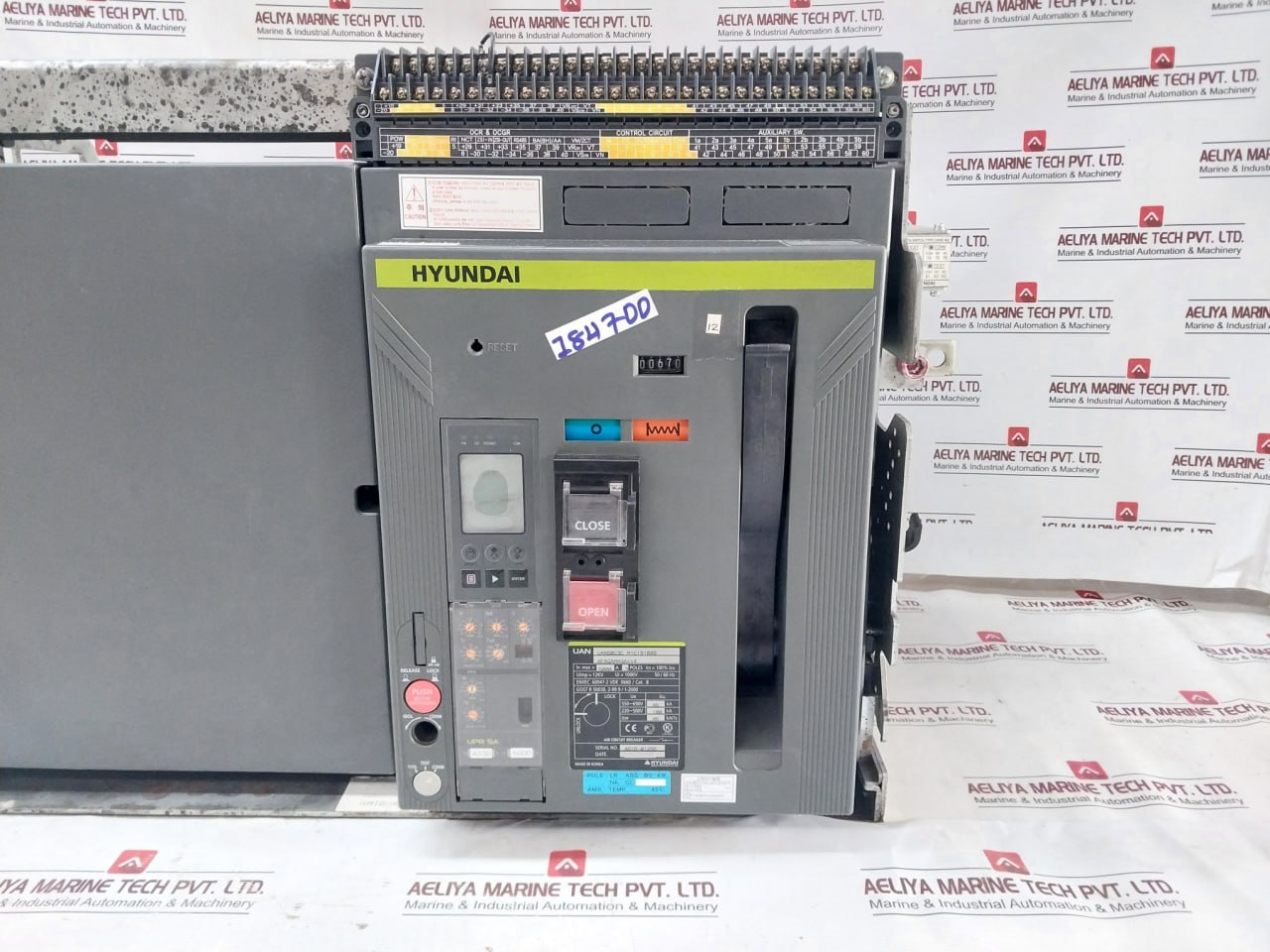

Hyundai Uan50c3c M1c1s168s Air Circuit Breaker 1000v

Hyundai Uan50c3c M1c1s168s Air Circuit Breaker 1000v
Hyundai Heavy Industries Co., Ltd.
Electro Electric Systems
Acb-Air Circuit Breaker
Uan50/C Frame
Uan

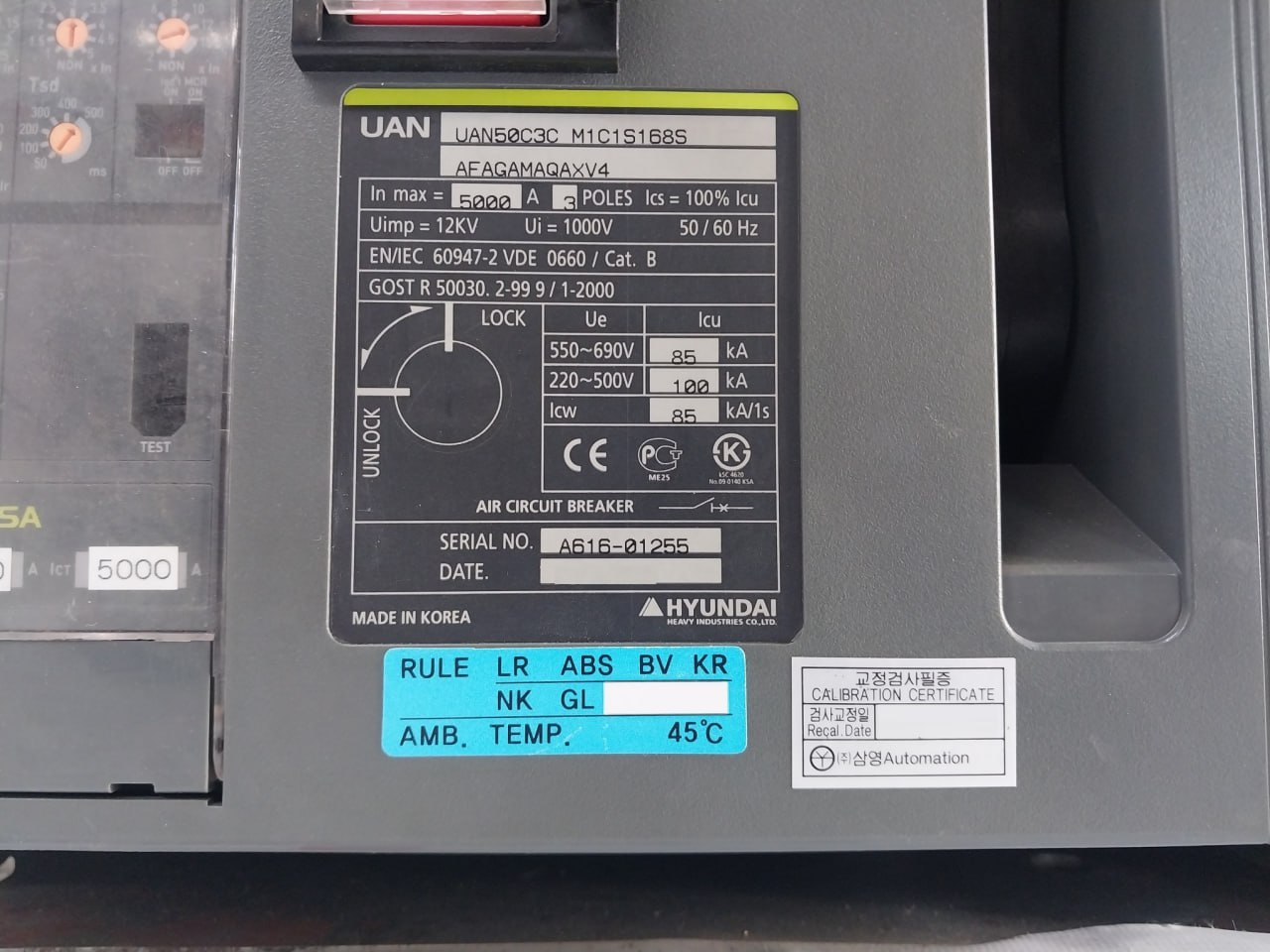

Uan50c3c M1c1s168s
Afagamaqaxv4
In Max= 5000a
3 Poles (5000af)
Ics= 100% Icu
Uimp= 12kv
Ui= 1000v 50/60 Hz
En/Iec 60947-2 Vde 0660/ Cat. B
Gost R 50030. 2-99 9/1-2000
Ue Icu
550~690v 85 Ka
220~500v 100 Ka
Icw: 85 Ka/1s
Posit’ Switch. Type: Uans Aq
Amb. Temp. 45˚C
Upr Sa
In: 4330a
Ict: 5000a
Ct: 5000/ 0.2
Terminal Tightening Torque: 161~184 (Kgf.Cm)
Motor Charge (A/Dc110v)
Closing Voltage (A/Dc110v)
Trip Voltage (A/Dc110v)
U-Posit’N-Sw (1t1c)
Cradle V-Type
A616-01255
Uan323~503c
Code: 3223001213
[Dy]: 20160321-016
Name: Uas-Cj-5a5b
Code: 3223-0015-81
Name: U-Mht Unit
Code: 3223-0015-82
Name: U Dr Device-2
Dun32~50c(Y)
Code: 3223001292
[Dy]: 20160324-01
Name: Uans-C1.9/S01
Code: 5832000245
Cc Adc 100~130
Name: Uans-U4/S04
Code: 5832000272
Uvt Ac 440
Name: Uans-51.9/S01
Code: 5832000247
Tc Adc 100~130
Uans-M1/M9
(Ians-M1/M9)
Adc 110v
Dc 125v
Djm (Rev: 4)
160314-005
Nmcu V01.03-16020454
Part Name: U-Mecha’M/C503
Name: New Mht Unit
Ohm: (6.1)Ω
Made In Korea
Weight : 134.500 Kg
Ref No : 184700
