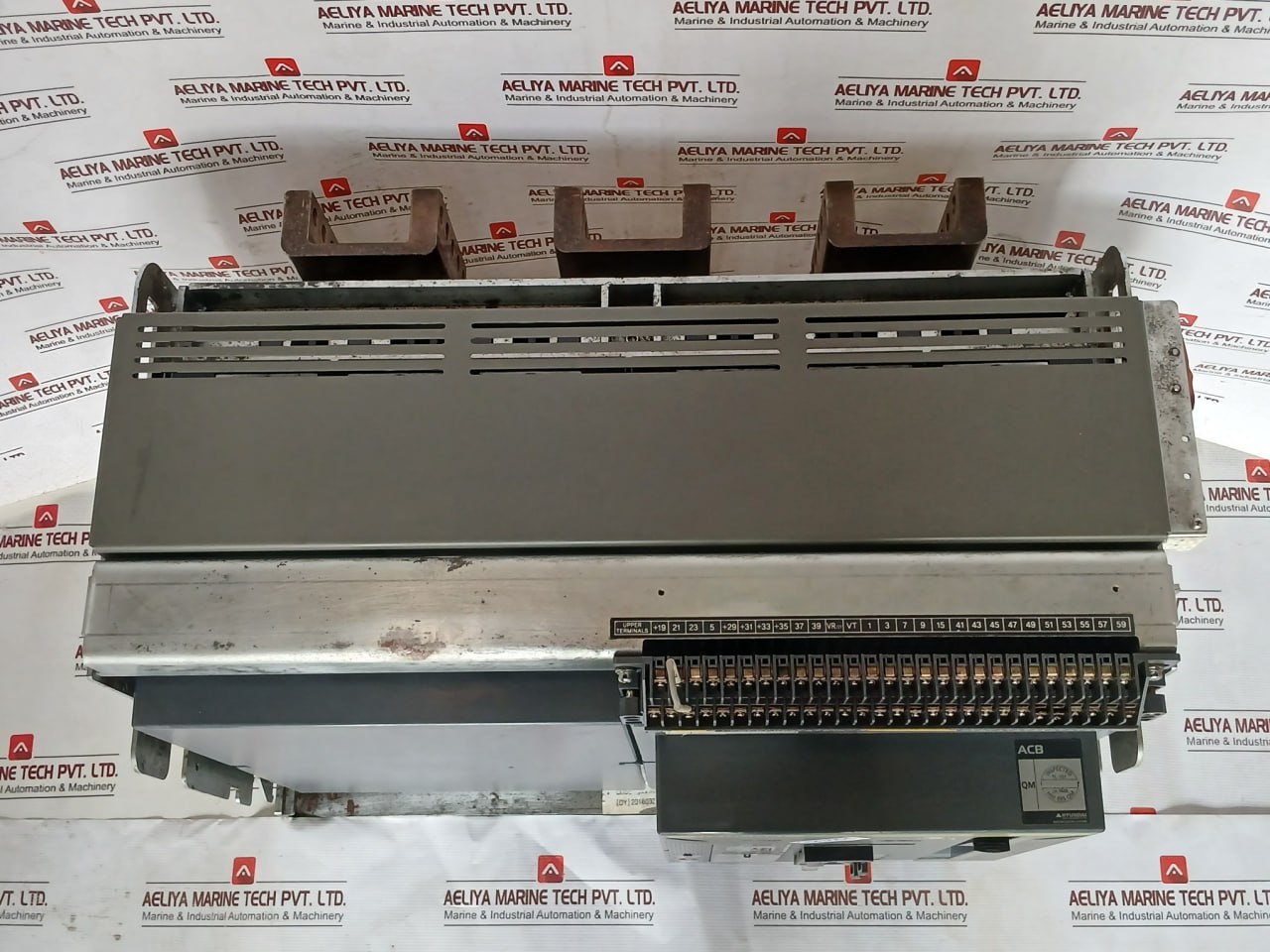

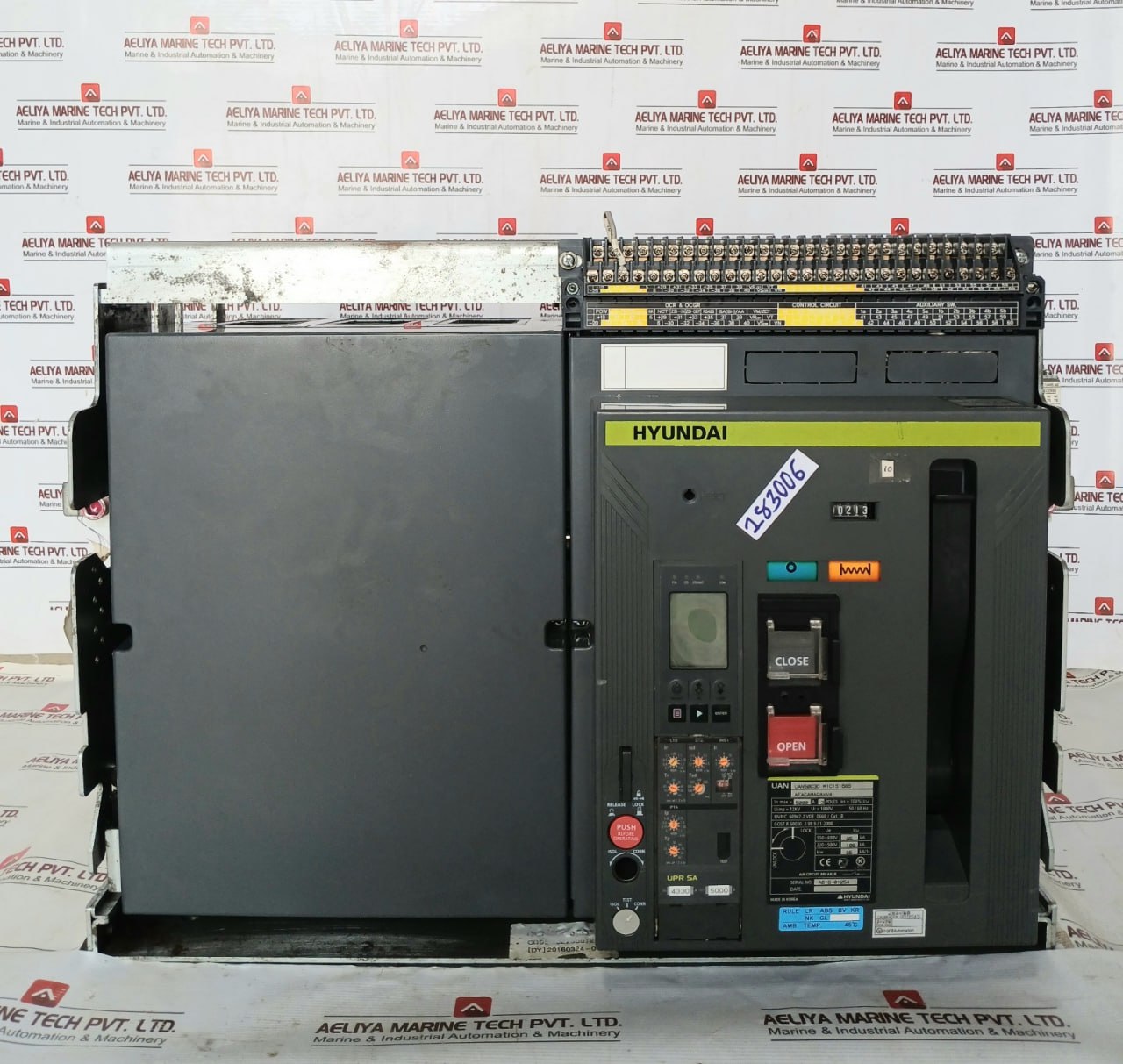

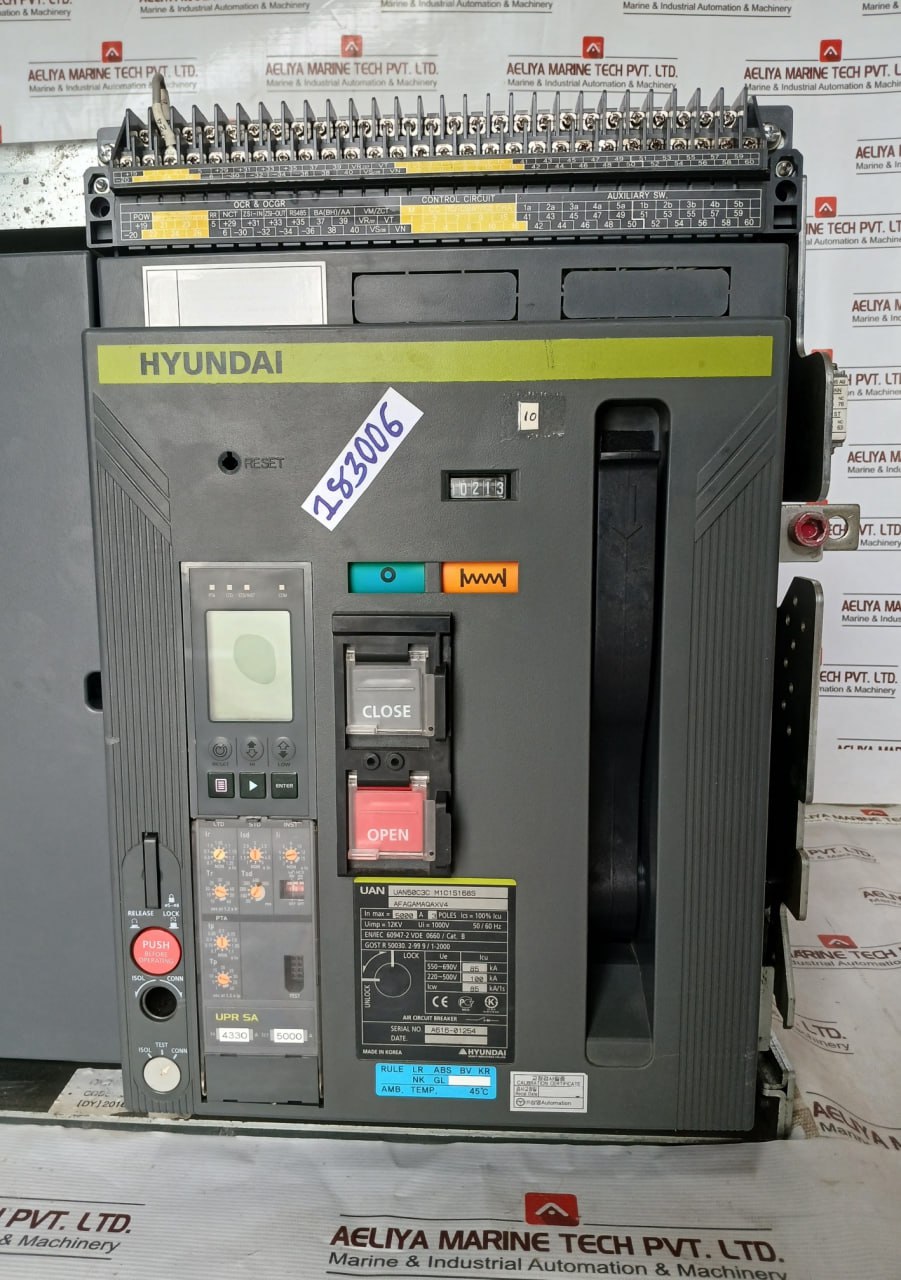

Hyundai Uan50c3c M1c1s168s Acb-Air Circuit Breaker 690v

Hyundai Uan50c3c M1c1s168s Acb-Air Circuit Breaker 690v

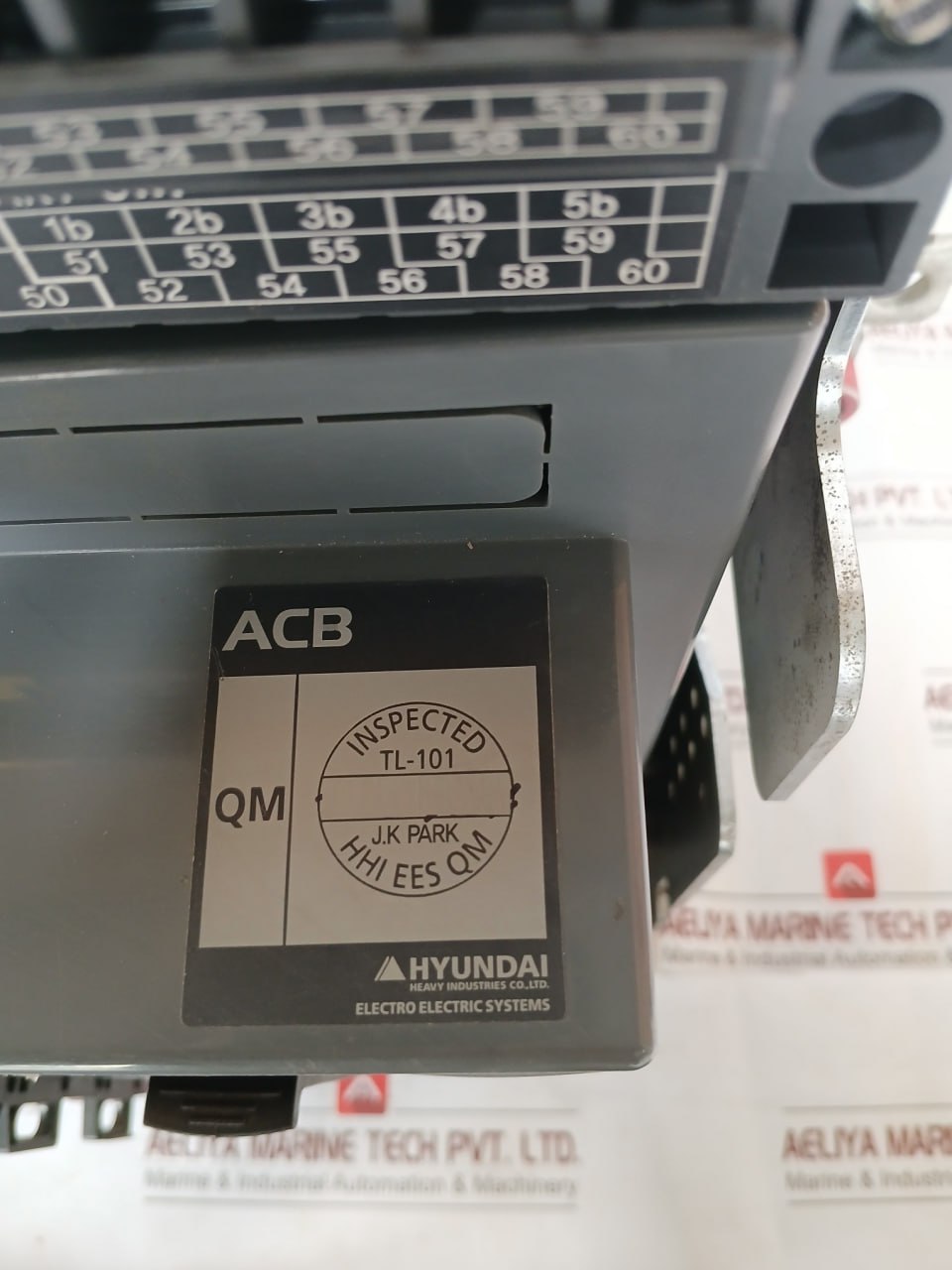

Hyundai Heavy Industries Co., Ltd.
Electro Electric Systems
Acb-Air Circuit Breaker
Uan50/C Frame
Uan

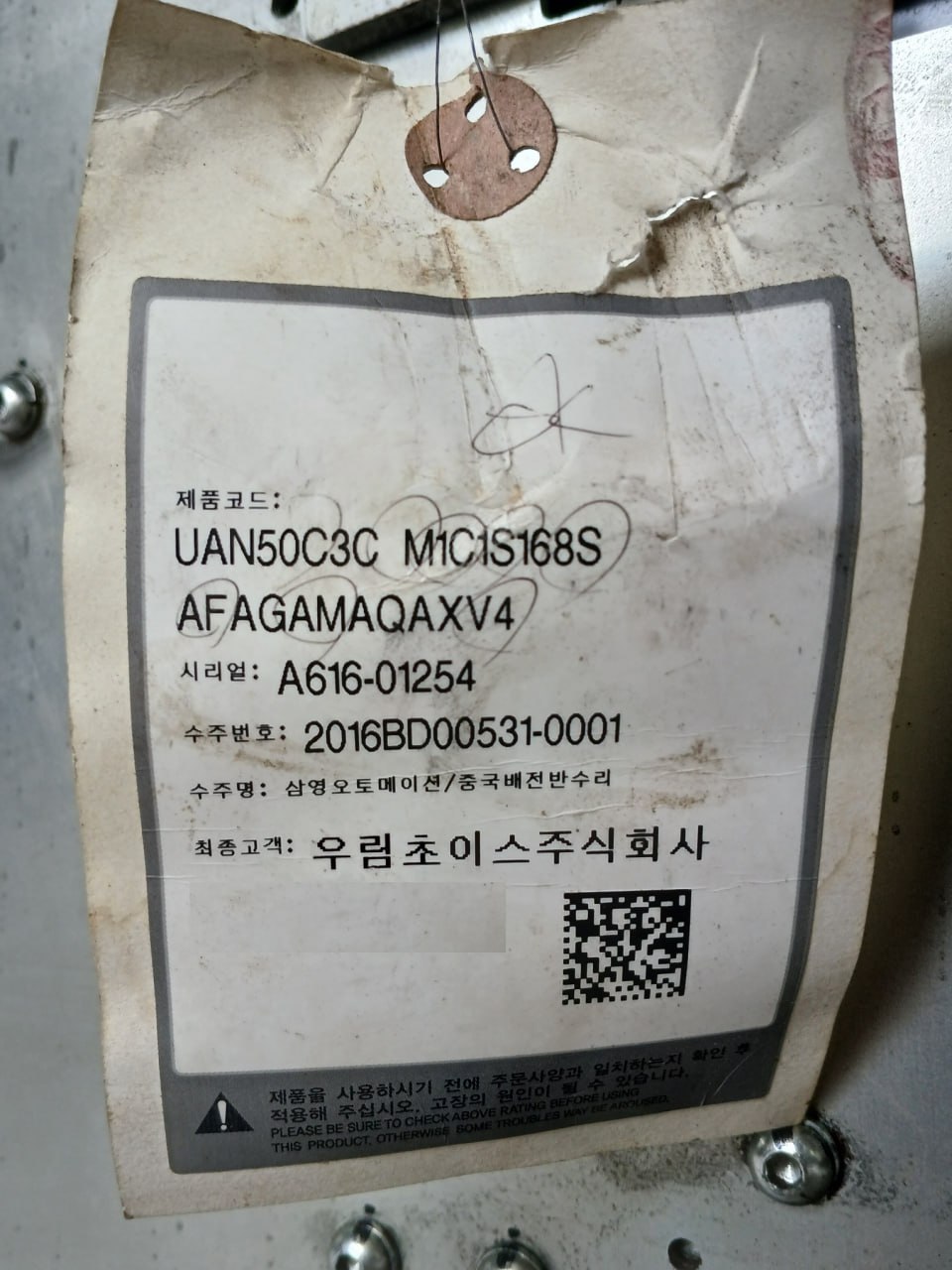

Product Code: Uan50c3c M1c1s168s
Afagamaqaxv4
Order Number: 2016bd00531-0001

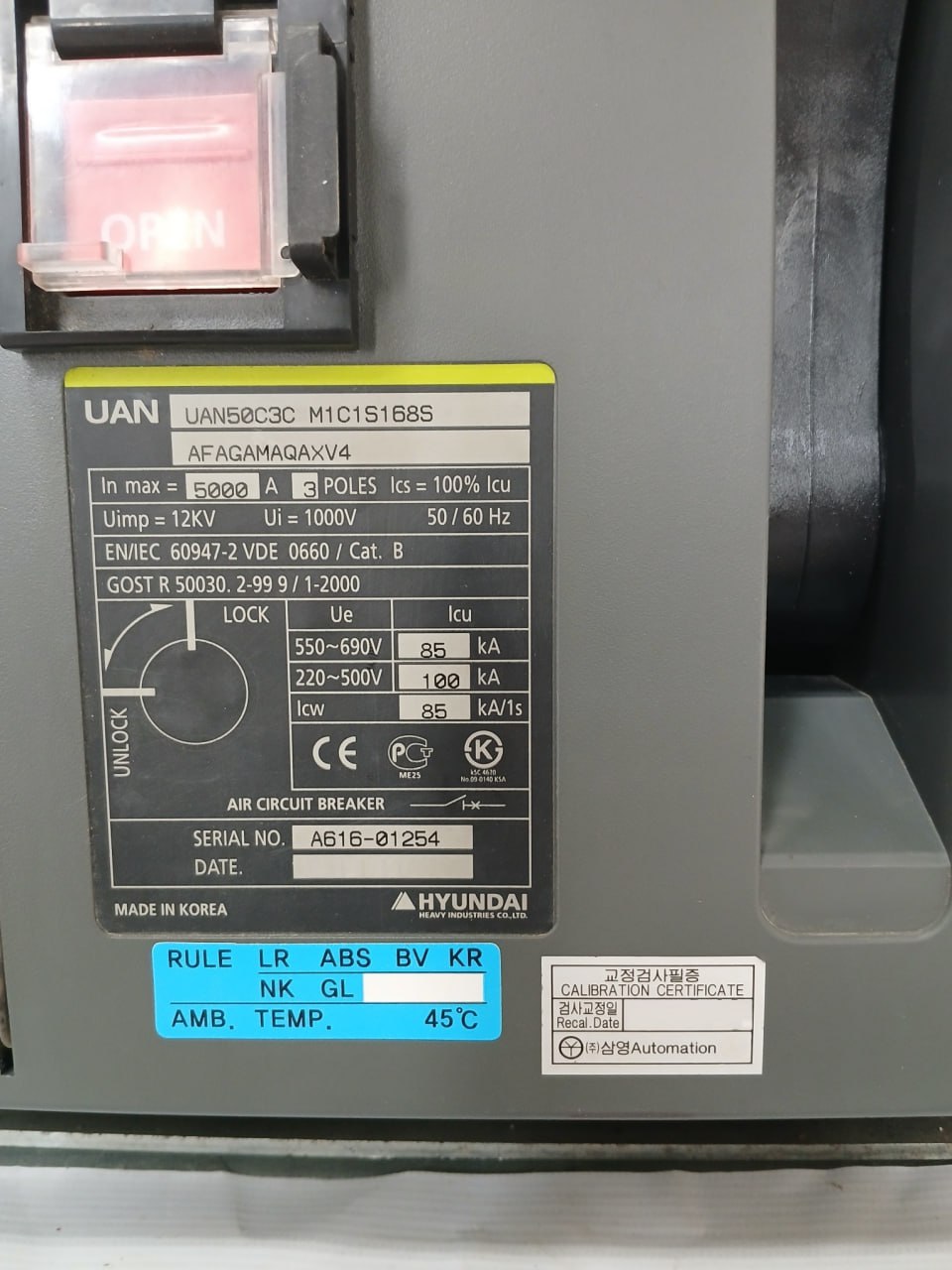

In Max= 5000a
3 Poles (5000af)
Ics= 100% Icu
Uimp= 12kv
Ui= 1000v 50/60 Hz
En/Iec 60947-2 Vde 0660/ Cat. B
Gost R 50030. 2-99 9/1-2000
Ue Icu
550~690v 85 Ka
220~500v 100 Ka
Icw: 85 Ka/1s
Amb. Temp. 45˚C

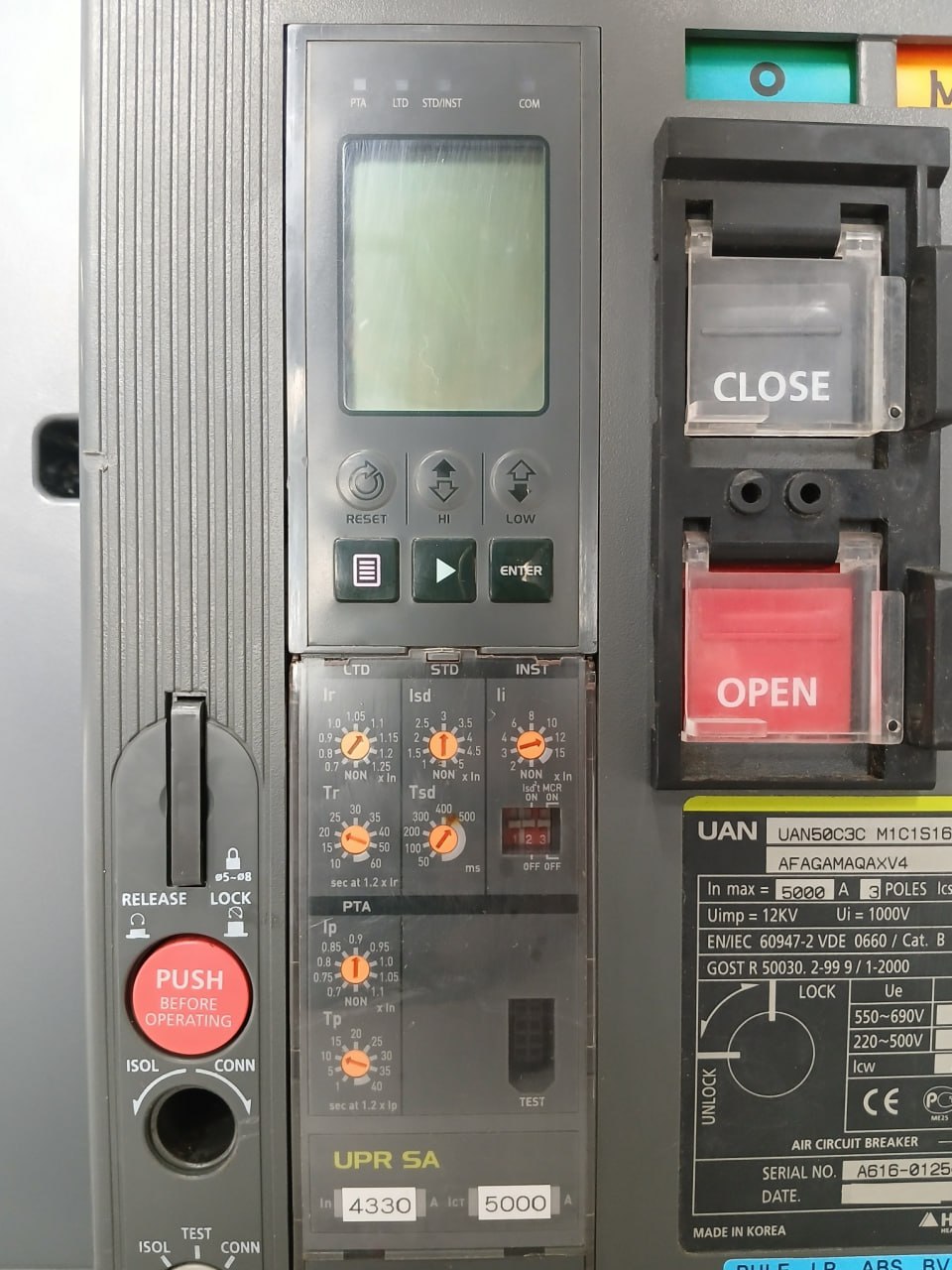

Upr Sa
Ict: 5000a
Ct: 5000/ 0.2
Uans-M1/M9
(Ians-M1/M9)
Adc 110v
Dc 125v
Djm (Rev: 4)
160302-011
Uan323~503c
Code: 3223001213
[Dy] 20160321-019
Dun32~50c(Y)
Code: 3223001292
[Dy]: 20160324-011
Name: U Dr Device-2
Name: Uas-Cj-5a5b
Code: 3223-0015-81
Name: New Mht Unit
Ohm: (6.1) Ω
Name: Uans-C1.9/S01
Code: 5832000245
Cc Adc 100~130
Name: Uans-U4/S04
Code: 5832000272
Uvt Ac 440
Name: Uans-S1.9/S01
Code: 5832000247
Tc Adc 100~130
Posit’N Switch. Type: Uans Aq
Motor Charge (A/Dc110v)
Closing Voltage (A/Dc110v)
Trip Voltage (A/Dc110v)
U-Positi’N-Sw (1t1c)
Uvt Controller Ac 440v
Cradle V-Type
Terminal Tightening Torque: 161~184 (Kgf.Cm)
Made In Korea
Weight : 134 Kg
Ref No : 183006
