Hyundai Uan16a3b M1c1s168t 3-Pole Air Circuit Breaker 1000v

Hyundai Uan16a3b M1c1s168t 3-Pole Air Circuit Breaker 1000v
Hyundai Heavy Industries Co.,Ltd.
Electro Electric Systems

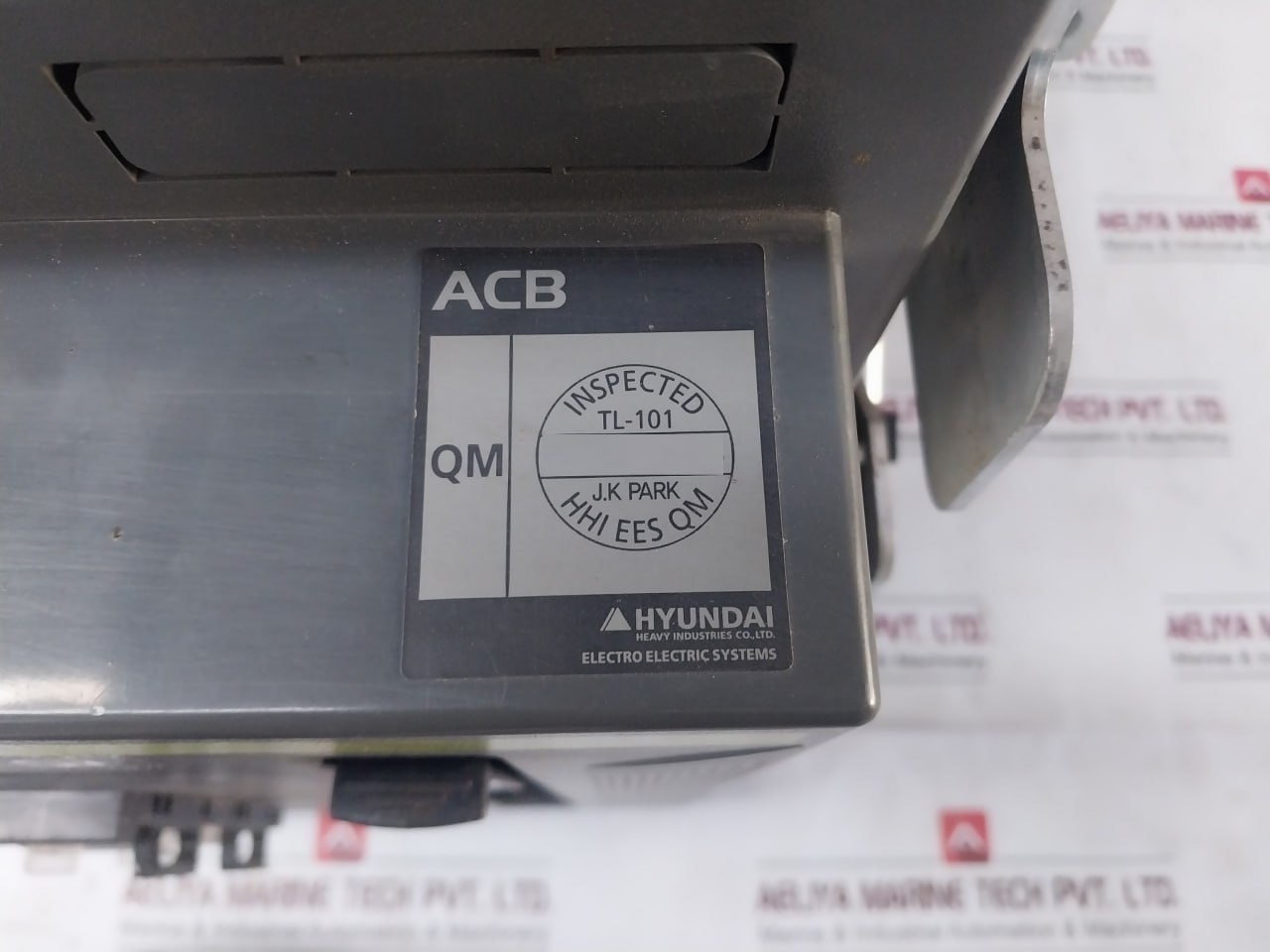

Acb
Uan

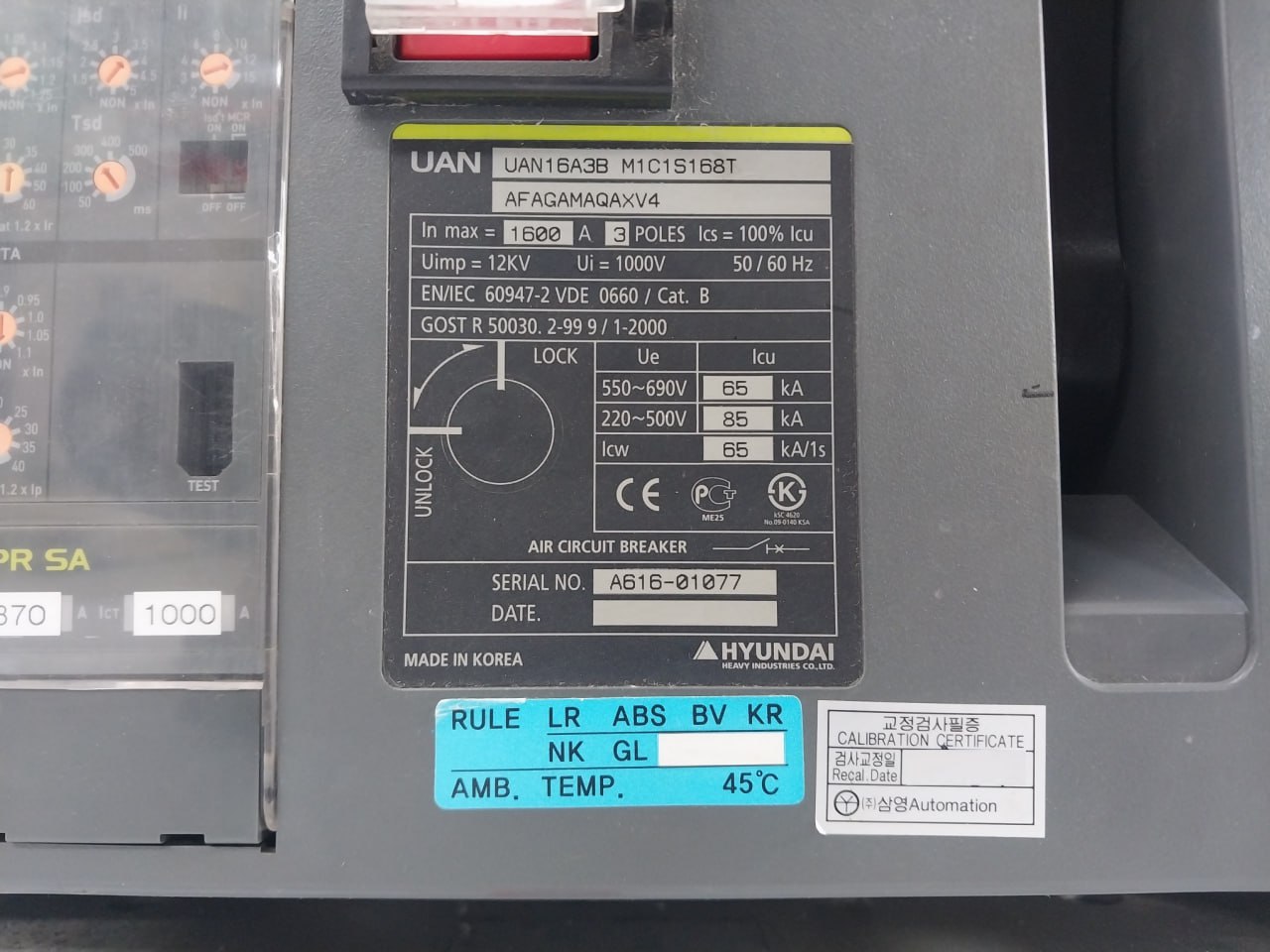

Uan16a3b M1c1s168t
Afagamaqaxv4
In Max= 1600 A
3 Poles
Ics= 100% Icu
Uimp= 12kv
Ui= 1000v
50/60hz
En/Iec 60947-2
Vde 0660/Cat.B
Gost R 50030.2-99 9/1-2000
Ue Icu
550~690v 65 Ka
220~500v 85 Ka
Icw 65 Ka/1s
Air Circuit Breaker
Amb.Temp: 45°C

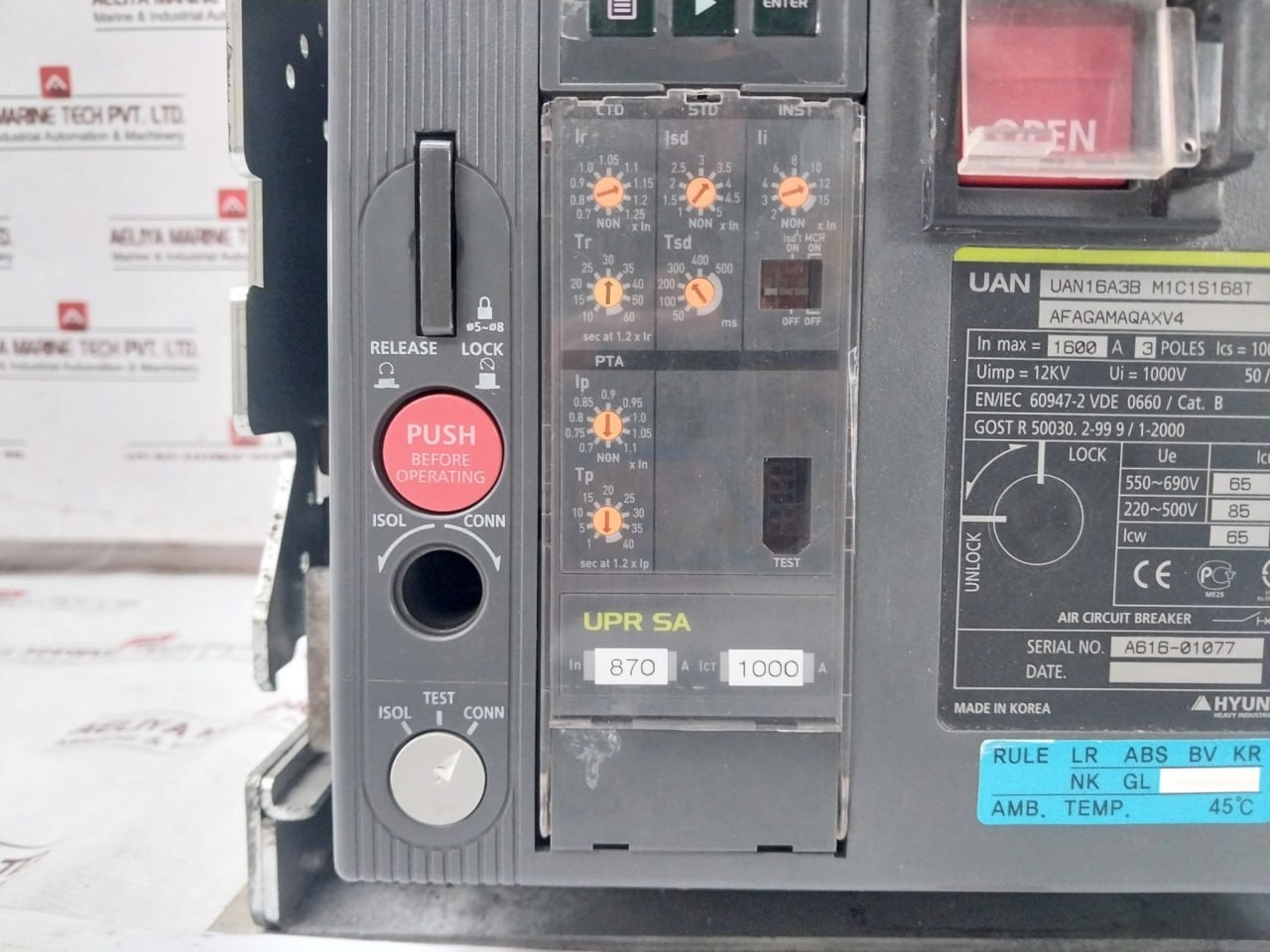

Upr Sa
In: 870 A
Ict: 1000 A
Posit’N Switch
Type: Uans Aq
Terminal Tightening Torque:
161~184 (Kgf.Cm)
Uan16/ A Frame
3 Pole (1600af)
Ct=630/0.2
In=465a
Motor Charge (A/Dc110v)
Closing Voltage (A/Dc110v)
Trip Voltage (A/Dc110v)
Uvt Controller Ac 440v
Cradle H-Type
A616-01077
Uvt Ac 440
Tc Adc 100~130
Name: Uans-C1, 9/S01
Code: 5832000245
Cc Adc 100~130
Name: Uans-U4/S04
Code: 5832000272
Uvt Ac 440
Name: Uans-S1,9/S01
Code: 5832000247
Tc Adc 100~130
Uans-M1/M9
(Ians-M1/M9)
Adc 110v
Dc 125v
Djm
160219
Part Name: U-Mecha’M/A204
Name: New Mht Unit
Ohm: (6) ω
Name: Uas-Cj-5a5b
Code: 3223-0015 81
Name: U-Mht Unit
Code: 3223-0015-82
Name: U-Drdevice-1
Uan063~163a
Code: 3223001196
[Sh] 20160205-016
Made In Korea
Weight : 64.500 Kg
Ref No : 184701
