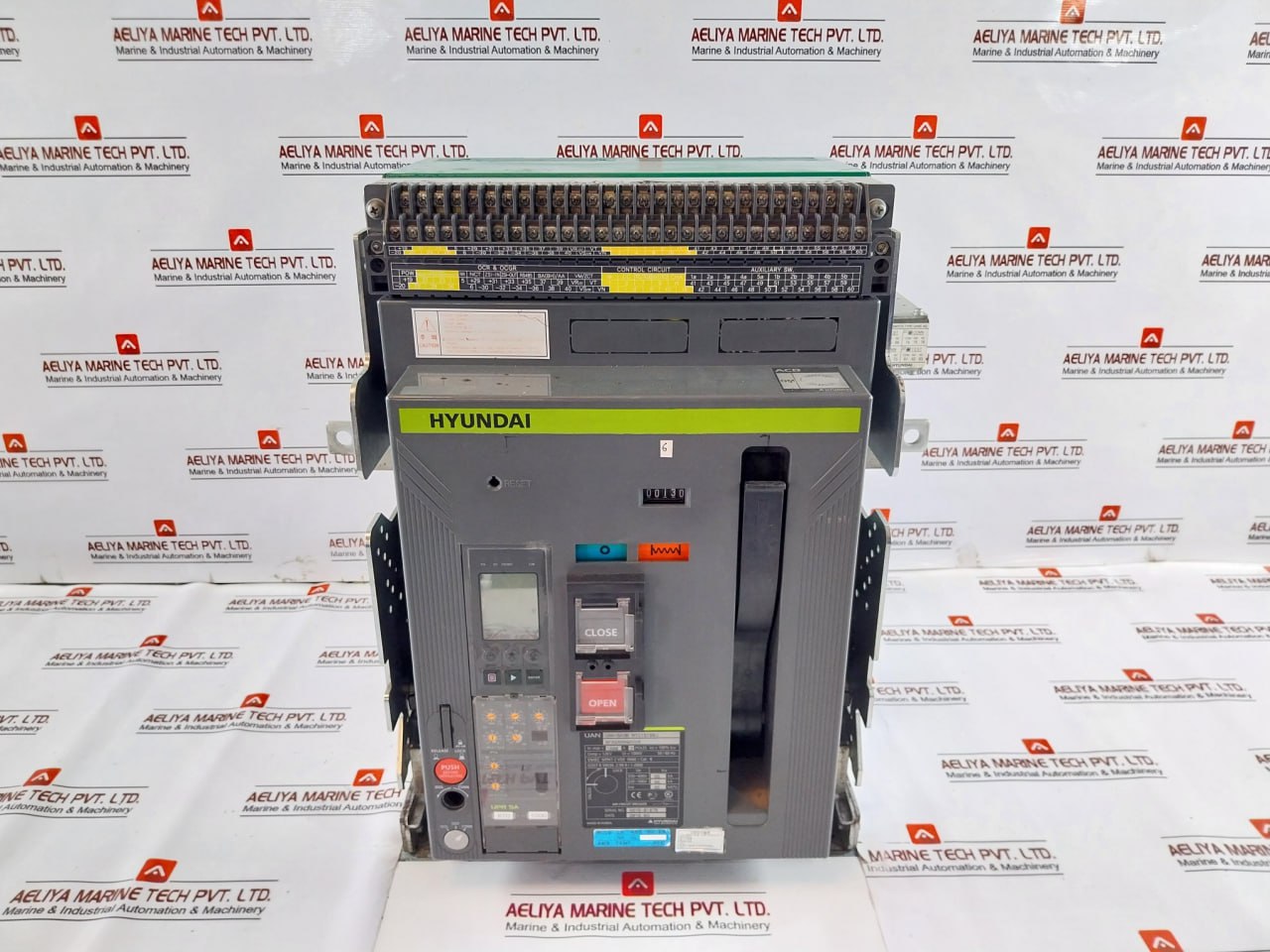

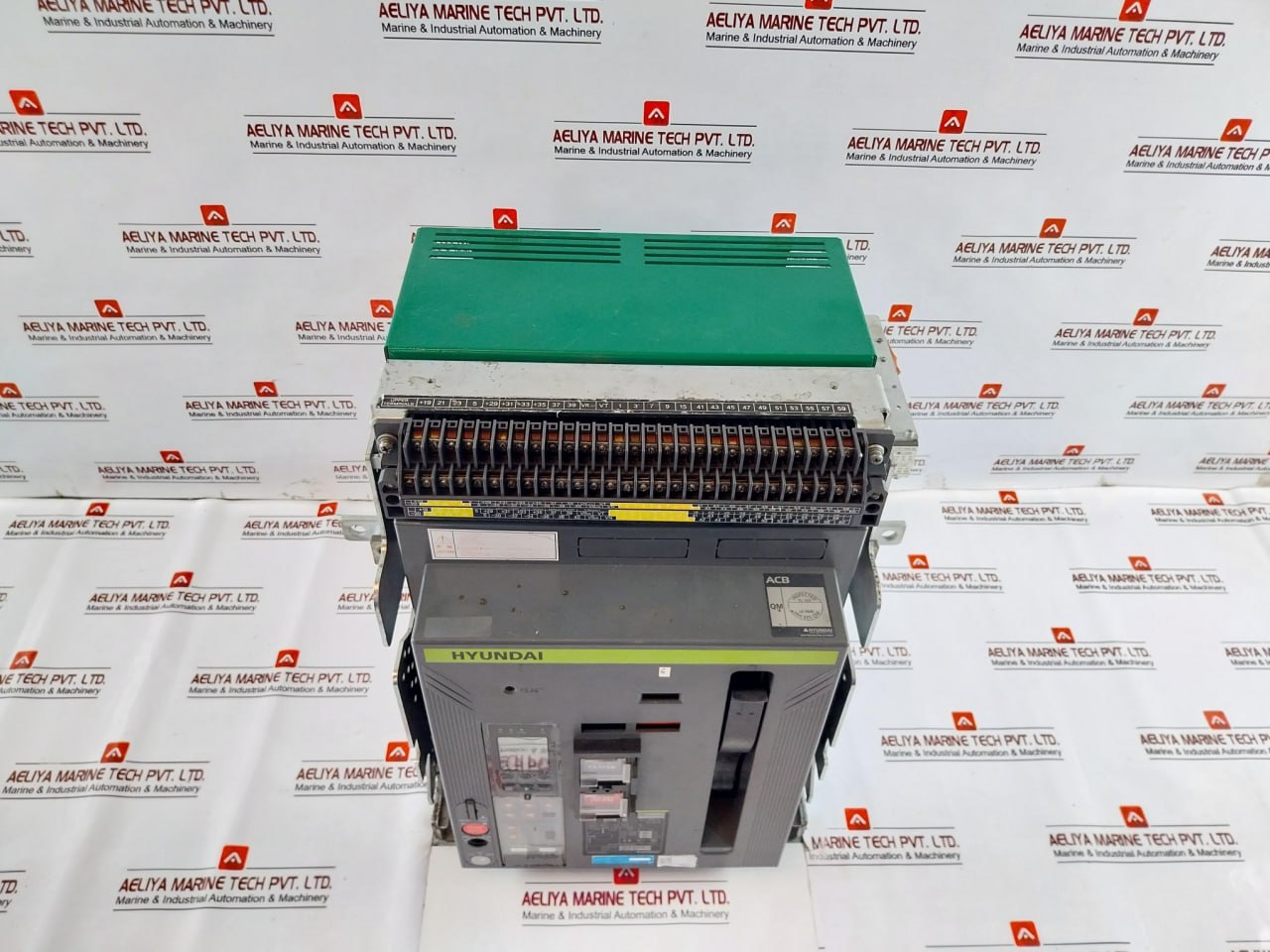

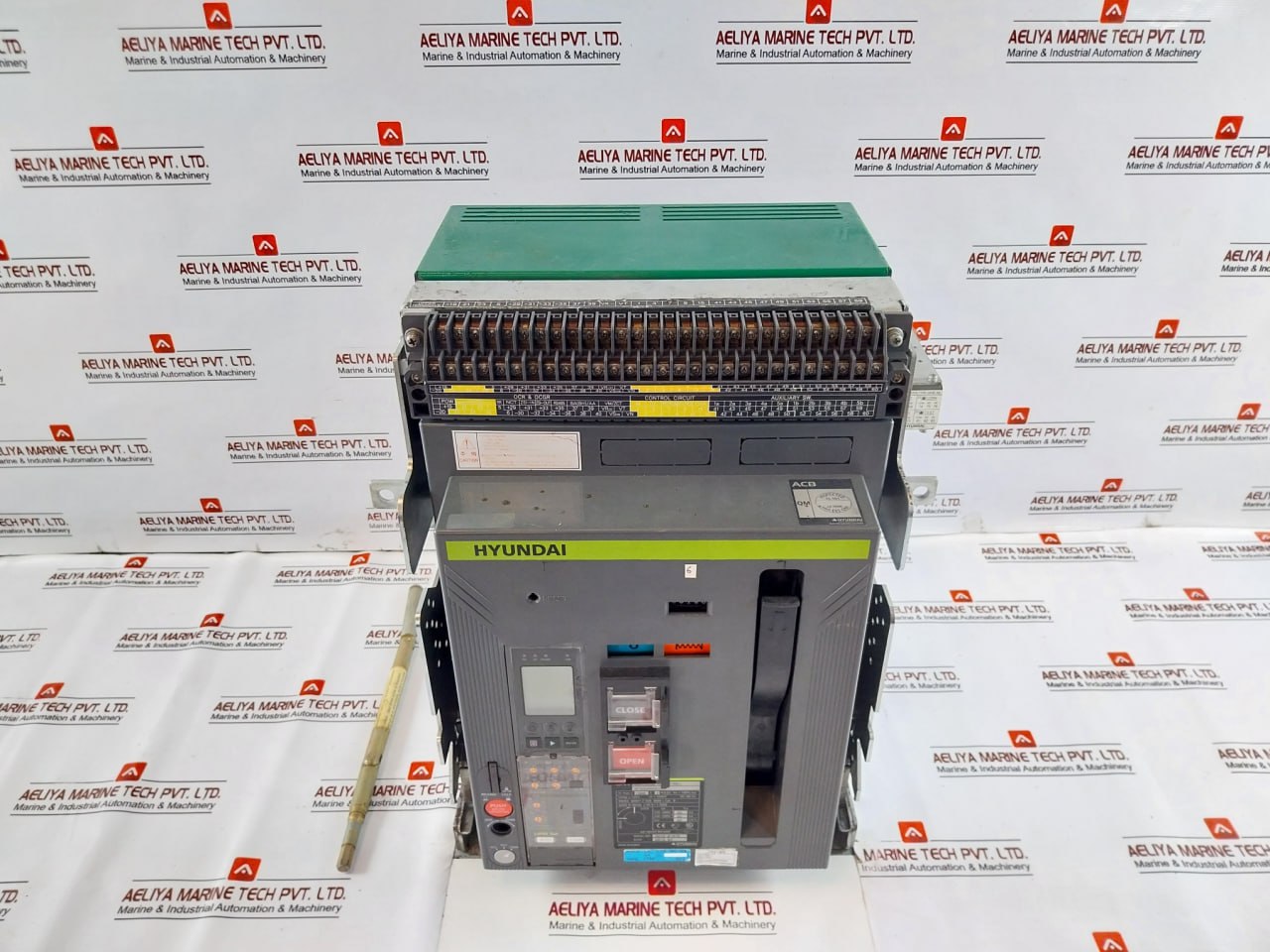

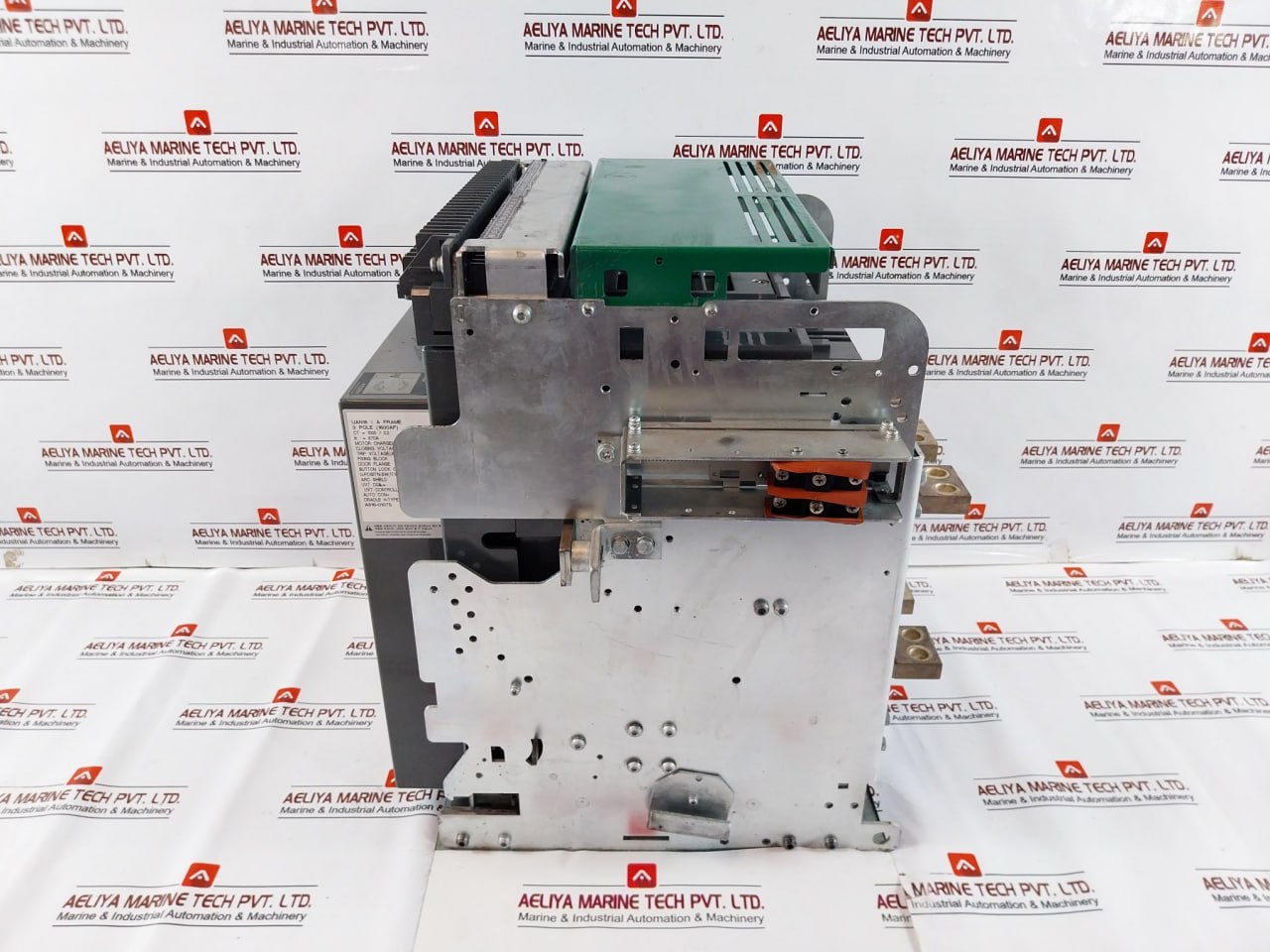

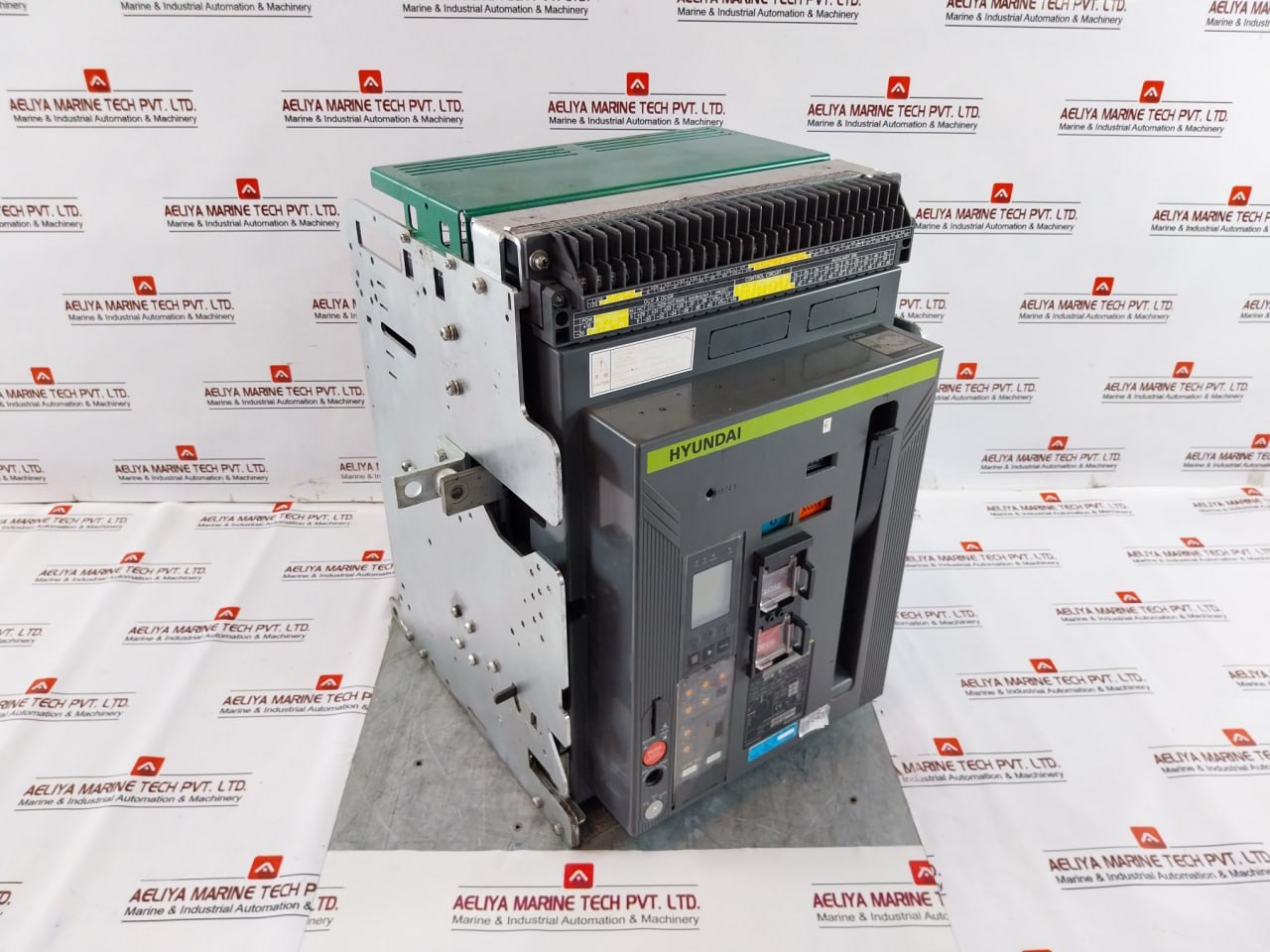

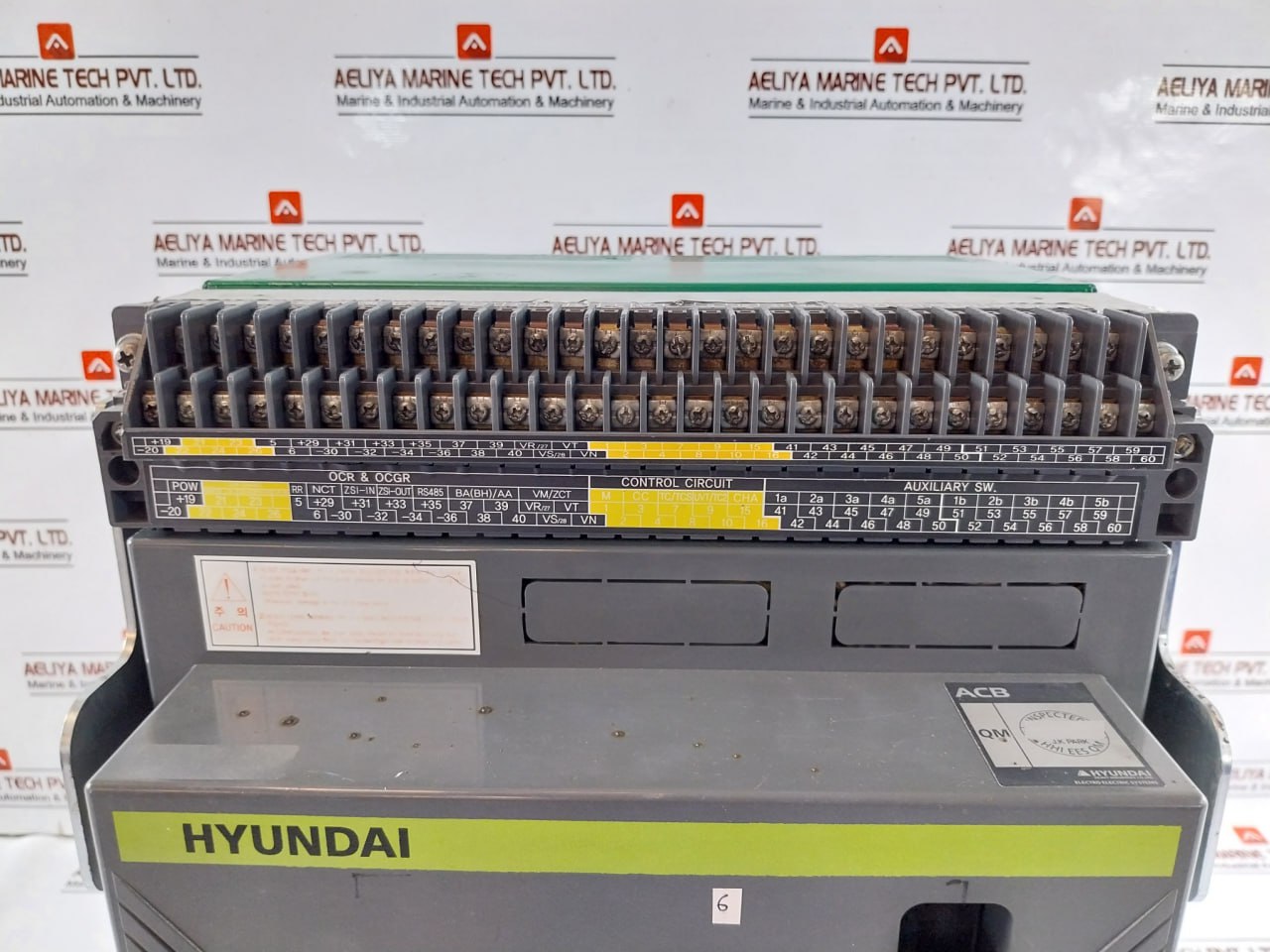

Hyundai Uan16a3b M1c1s168j Air Circuit Breaker 1000v

Hyundai Uan16a3b M1c1s168j Air Circuit Breaker 1000v
Hyundai Heavy Industries Co.,Ltd.
Electro Electric Systems

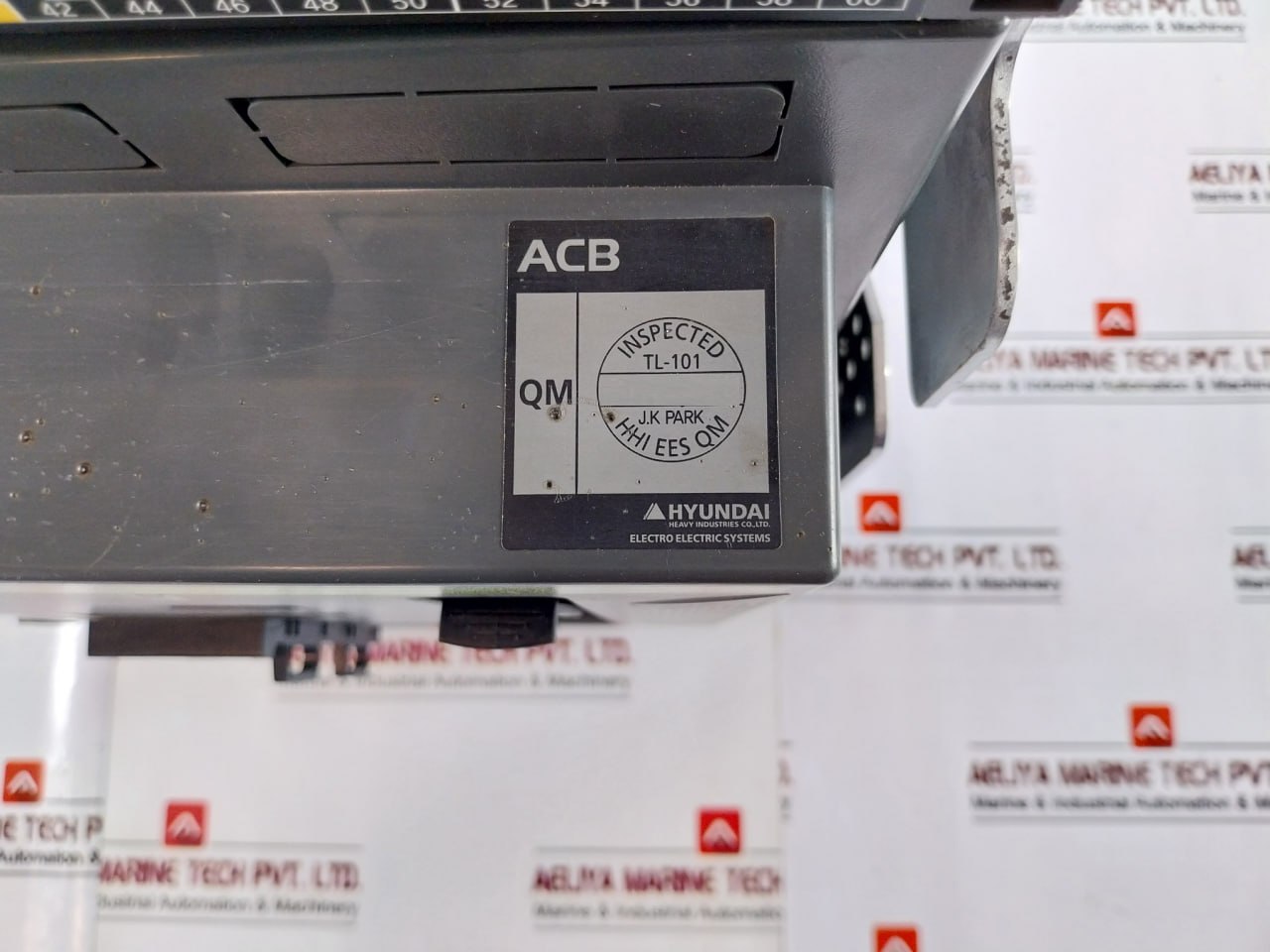

Acb
Uan
Uan16a3b M1c1s168j
Afagamaqaxv4
In Max= 1600 A
3 Poles
Ics= 100% Icu
Uimp= 12kv
Ui= 1000v
50/60hz
En/Iec 60947-2
Vde 0660/Cat.B
Gost R 50030.2-99 9/1-2000
Ue Icu
550~690v 65 Ka
220~500v 85 Ka
Icw 65 Ka/1s
Air Circuit Breaker
Amb.Temp: 45°C
Upr Sa
In: 870 A
Ict: 1000 A
Posit’N Switch
Type: Uans Aq
Terminal Tightening Torque:
161~184 (Kgf.Cm)
Uan16/ A Frame
3 Pole (1600af)
Ct=1000/0.2
In=870a
Motor Charge (A/Dc110v)
Closing Voltage (A/Dc110v)
Trip Voltage (A/Dc110v)
Uvt Controller Ac 440v
Cradle H-Type
A616-01075
Dun06-16a (W)
Code: 3223001222
[Sh] 20160201-004
Uvt Ac 440
Tc Adc 100~130
Cc Adc 100~130
Name: Uas-Cj-5a5b
Code: 3223-0015-81
Name: New Mht Unit
Ohm: (6.1) ω
Uan063~163a
Code: 3223001196
[Sh] 20160205-012
Nmc V01.03-16010024
Uans-M1/M9
(Ians-M1/M9)
Adc 110v
Dc 125v
Djm
16021
Name: U-Drdevice-1
Name: U-Mht Unit
Code: 3223-0015-82
Part Name: U-Mecha ‘M/A 203
Name: Uans-S1, 9/S01
Code: 5832000247
Tc Adc 100~130
Code: 5832600245
Cc Adc 100~130
Name: Uans-U4/S04
Code: 5832000272
Uvt Ac 440
Made In Korea
Weight : 64 Kg
Ref No : 184456
