| Attribute | Value |
|---|---|
| Manufacturer | Hyundai Heavy Industries Co., Ltd. |
| Model | Umx 31 |
| Type | Contactor Relay |
| Standard | IEC/EN 60947-5-1 |
| Thermal Current (Ith) | 20A |
| Rated Insulation Voltage (Ui) | 750V~ |
| Impulse Withstand Voltage (Uimp) | 6kV |
| Auxiliary Contact | A300-P150 |
| General Purpose Rating | 10A/600V AC |
| Wire Specification | 12 AWG, 75°C Cu Wire Only |
| Heavy Pilot Duty | Yes |
| Torque | 12Kgf-cm (1.2 N-m) |
| Voltage Rating | 100V 50Hz / 100V~110V 60Hz |

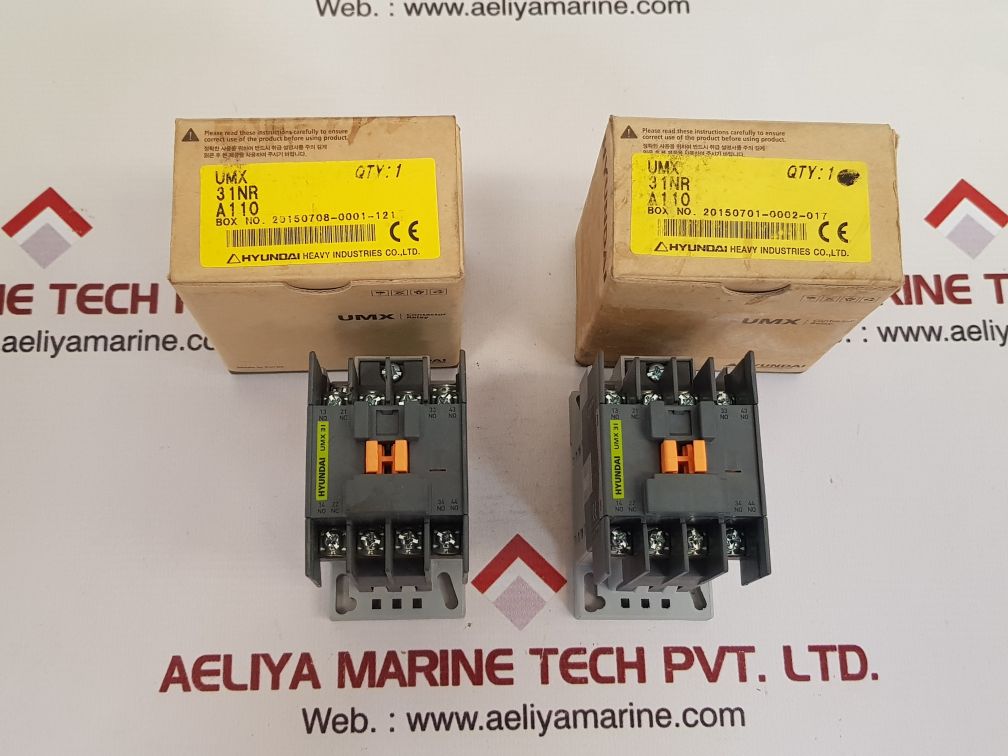

| Model Number | Umx 31Nr A110 |
| Country of Origin | Made in Korea |
| Weight | 340 gm |
Key Features
High Voltage & Current Rating: up to 750V and 20A for high power applications.
Durable & Long life: high quality materials ensure a longer operating life.
Switching Mechanism: high performance, energy loss-free, and efficiency-oriented switching
Compact & Rugged Design: engineered to fit within industrial applications with a resilient setup against hostile environments.
Safety & Compliance: It satisfies the industrial standard for electrical safety, thus cutting down the chance of malfunctioning and electrical danger.
Applications of UMX 31 Contactor Relay
The Hyundai Heavy Industries UMX 31 Contactor Relay is found in various industries. Some of the applications of this contactor relay include:
Heavy Machinery: Controls the flow of power supply in industrial machinery and manufacturing stations.
Automation Systems: It significantly contributes to an automated process since it controls power supply.
Renewable Energy Systems – Applied in solar and wind power systems for efficient load management.
Electrical Distribution Panels – Helps in regulating electrical loads in switchgear and control panels.
Transportation & Railways – Suitable for railway electrical systems where high voltage and current are required.
Advantages of Utilizing the UMX 31 Contactor Relay
1. Increased Operational Efficiency
Providing high switching capacity with the very minimal loss of energy, the UMX 31 especially improves performance in application with no nuisance effect caused by some unwanted consumption of energy.
2. Improved Safety
Safety is an important concern in industrial applications. The UMX 31 provides robust insulation and arc suppression to minimize electrical faults and enhance overall security of the system.
3. Long-Term Performance
Industrial settings require the product to withstand harsh conditions. The Hyundai Heavy Industries UMX 31 is made to last, guaranteeing the performance to be persistent for a long time in order to significantly reduce maintenance and replacement costs.
4. Easy Installation & Maintenance
The compact and modular design of the UMX 31 makes integration easy and seamless into existing systems without much hassle and, additionally, reduces maintenance requirements to lower downtime.
