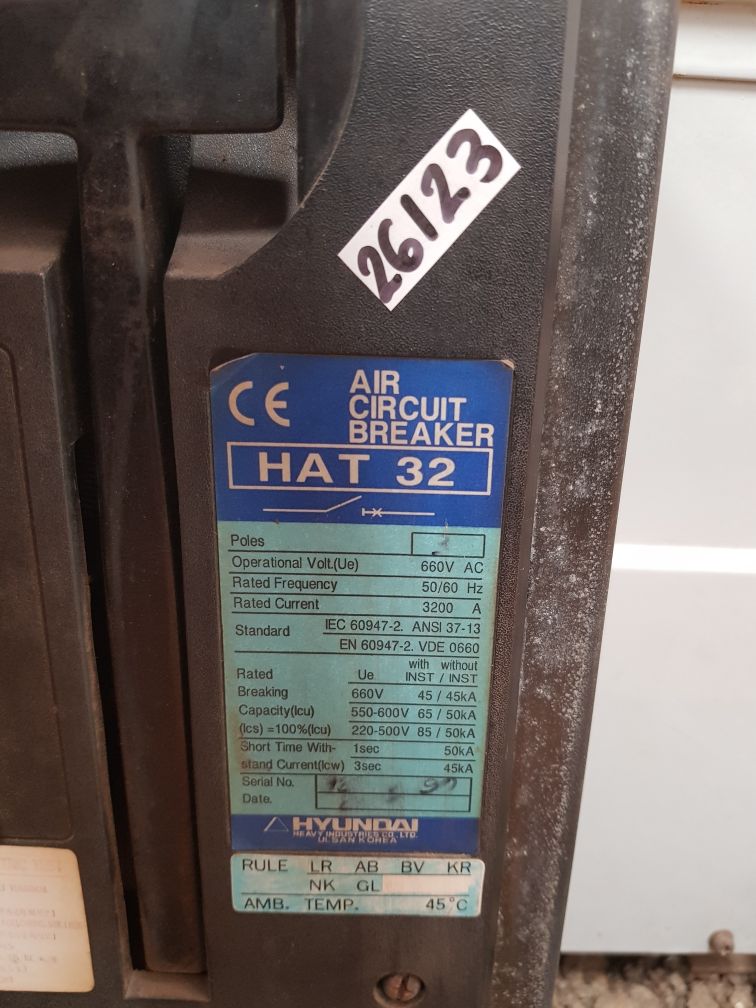

| Specification | Details |
|---|---|
| Product Name | Hyundai Hat 32 Air Circuit Breaker 660Vac 50/60Hz 3200A |
| Manufacturer | Hyundai Heavy Industries Co., Ltd. |
| Type | Air Circuit Breaker |
| Model | HAT 32 |
| Operational Voltage (Ue) | 660V AC |
| Rated Frequency | 50/60 Hz |
| Rated Current | 3200A |
| Standards | IEC 60947-2, ANSI 37-13, EN 60947-2, VDE 0660 |
| Rated Breaking Capacity | Ue: 660V |
| With Instantaneous Protection | 45 kA |
| Without Instantaneous Protection | 45 kA |
| Capacity (ICU) | Ue: 550-600V |
| With Instantaneous Protection | 65 kA |
| Without Instantaneous Protection | 50 kA |
| ICS = 100% ICU | Ue: 220-500V |
| With Instantaneous Protection | 85 kA |
| Without Instantaneous Protection | 50 kA |
| ICW | 1 sec 50 kA |
| Stand Current (ICW) | 3 sec 45 kA |
| Ambient Temperature | 45°C |

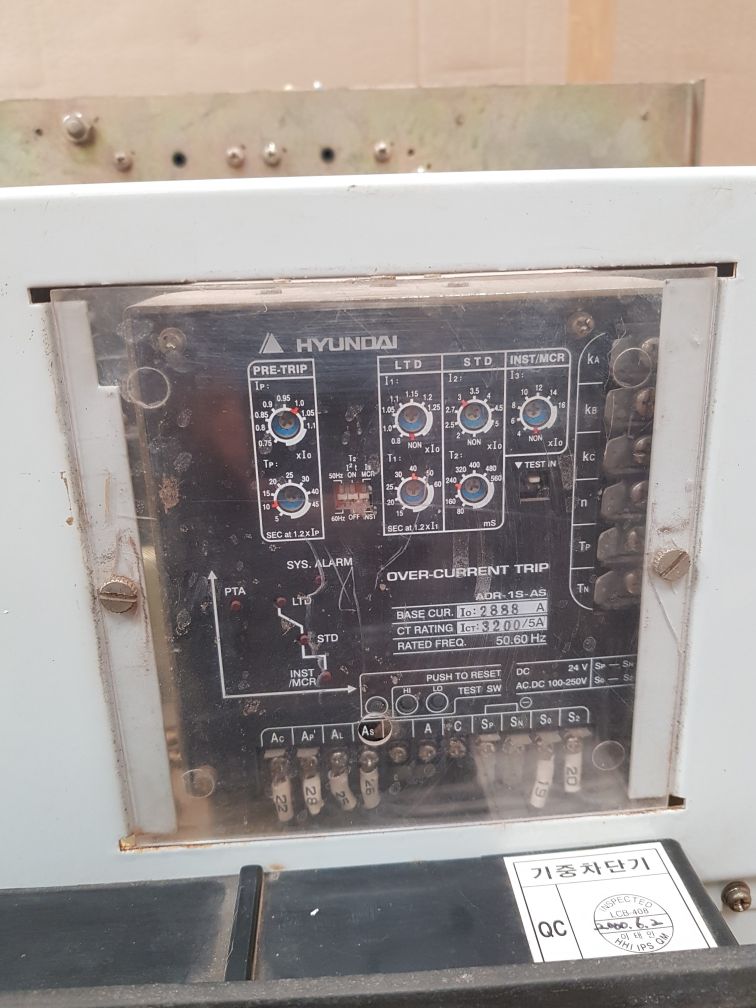

| Overcurrent Trip | AOR-1S-AS |
| Base Current (IO) | 2888 A |
| CT Rating (ICT) | 3200/5A |
| Rated Frequency | 50/60 Hz |
| DC Control Voltage | 24V |
| AC/DC Control Voltage | 100-250V |
| Country of Origin | Korea |
| Weight | 138 Kg |

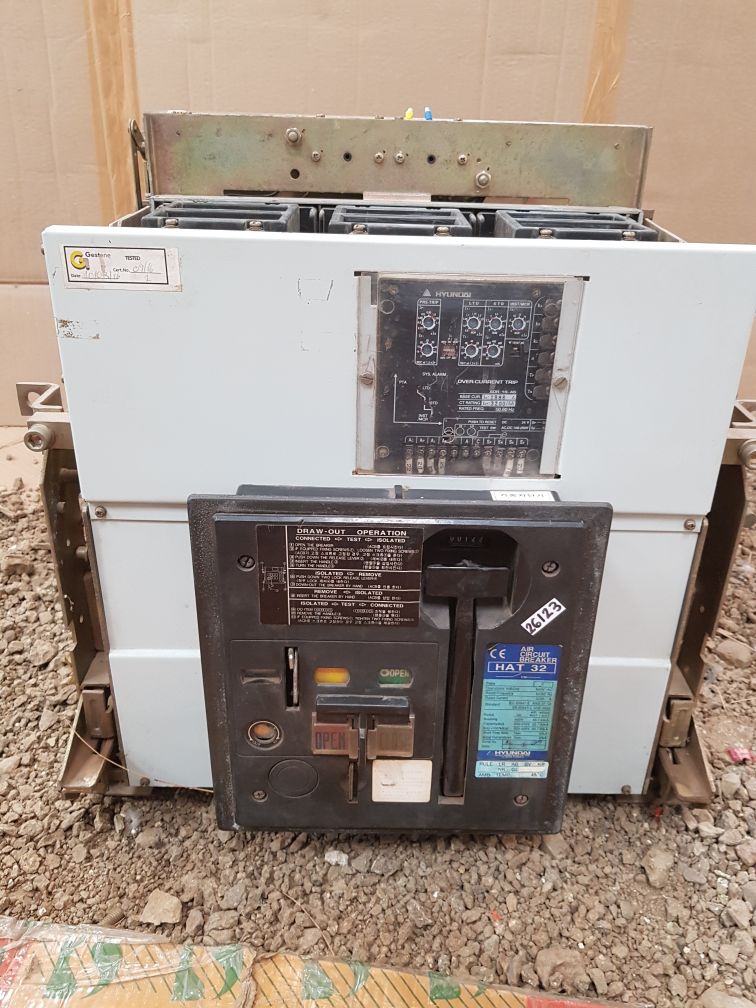

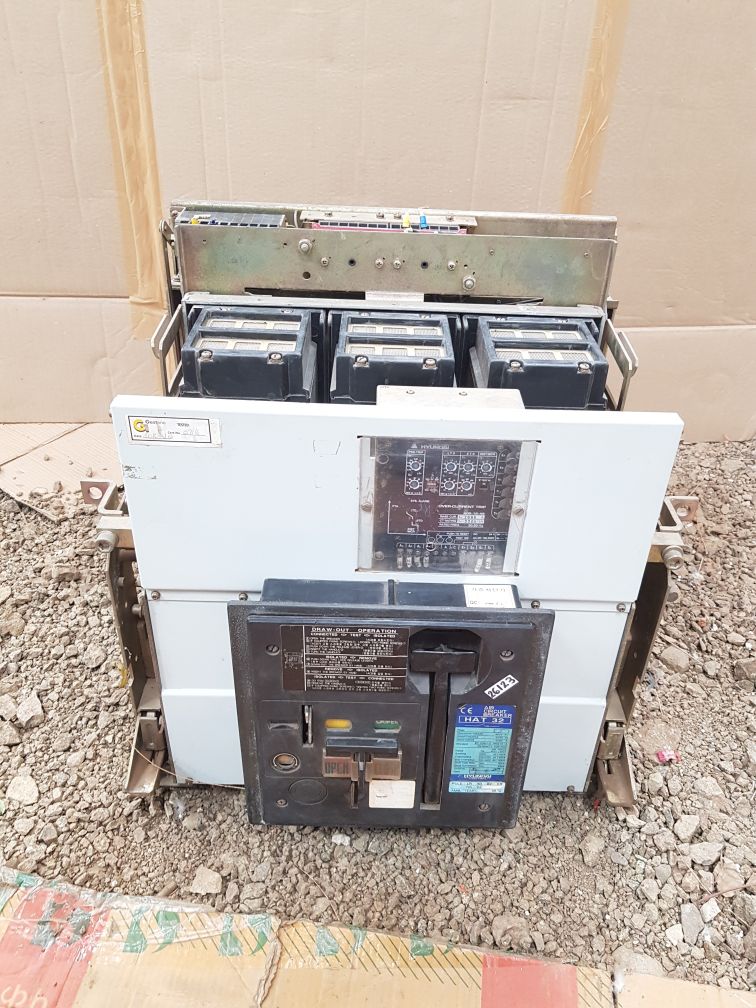

HAT 32 Air Circuit Breaker
The HAT 32 Air Circuit Breaker is a highly reliable and efficient solution designed for industrial electrical systems. This advanced circuit breaker, manufactured by Hyundai Heavy Industries Co., Ltd., is manufactured to deliver outstanding performance in managing electrical circuits in various industrial contexts. Operating at a voltage of 660V Ac and supporting both 50Hz and 60Hz frequencies, the HAT 32 is versatile and suitable for global applications. With a rated current capacity of 3200A, this air circuit breaker ensures optimal protection and control for high-power electrical systems, making it an essential component in maintaining the safety and functionality of industrial equipment.
The Hyundai HAT 32 Air Circuit Breaker complies with Iec 60947-2 and Ansi 37-13, ensuring it meets top quality and safety requirements. Additionally, it aligns with EN 60947-2 and Vde 0660 standards, further establishing its credibility and reliability in the market. The rated breaking capacity of the HAT 32 at 660V is an impressive 45kA, both with and without instantaneous tripping (inst), providing robust protection against electrical faults and ensuring the continuity of operations in demanding conditions. This high breaking capacity makes the HAT 32 ideal for industries requiring rigorous electrical system management, such as manufacturing, energy, and infrastructure sectors.
The Hyundai HAT 32 Air Circuit Breakers rated operational voltage (Ue) of 660V Ac and capacity (Icu) ranging from 550V to 600V demonstrate its versatility and adaptability to various power systems. Designed to protect electrical circuits from damage caused by overloads, short circuits, and equipment failures, this circuit breaker ensures the safe and efficient operation of electrical networks. The combination of its high-rated current and breaking capacity, along with adherence to international standards, positions the Hyundai HAT 32 as a top choice for industries seeking reliable and durable circuit protection solutions. Whether for new installations or upgrades, the HAT 32 provides reliability with its proven performance and robust design.
For seamless integration and enhanced protection within your electrical systems, consider exploring this product the the Hyundai HAT 25 Air Circuit Breaker 2500A 660V 50-60Hz . It complements the Hyundai HAT 32 Air Circuit Breaker 660V AC 50/60Hz 3200A, offering reliable circuit protection and better performance. This robust breaker is designed to handle high current loads and ensure the safety and efficiency of your electrical infrastructure.
