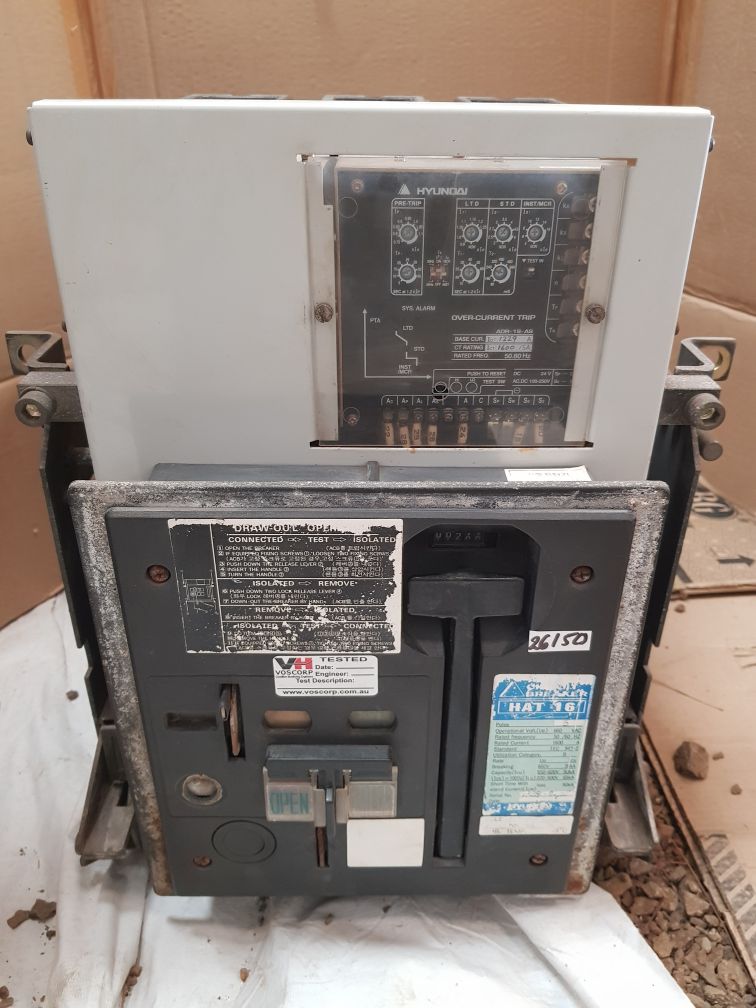

Hyundai Hat 16 Air Circuit Breaker 1600A 660Vac 50/60Hz 3-pole

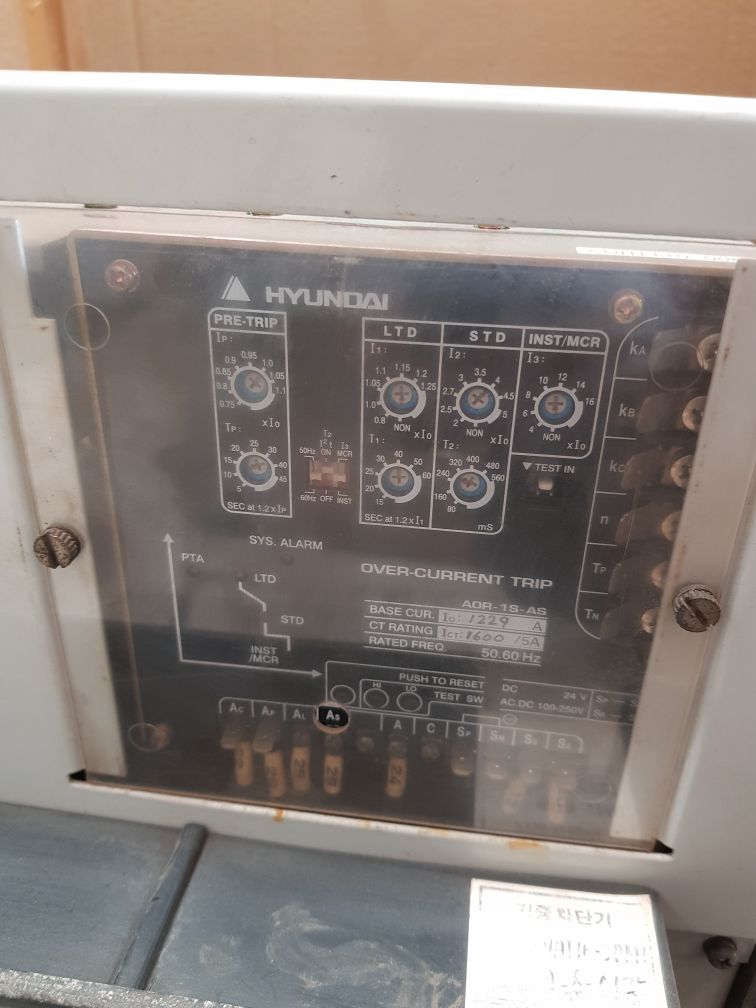

The Hyundai Hat 16 stands out with its short time withstand current (Icw) of 50ka for 1 second, ensuring it can handle extreme fault conditions without compromising its integrity. The over-current trip mechanism (Aor-1S-as) is highly precise, with a base current (Io) of 1229A and a CT rating (Ict) of 1600/5A, providing accurate protection and minimizing the risk of electrical fires or damage. This breaker is designed to operate efficiently in ambient temperatures up to 45°C, further representing its resilience and reliability in demanding conditions.

Key Features and Specifications

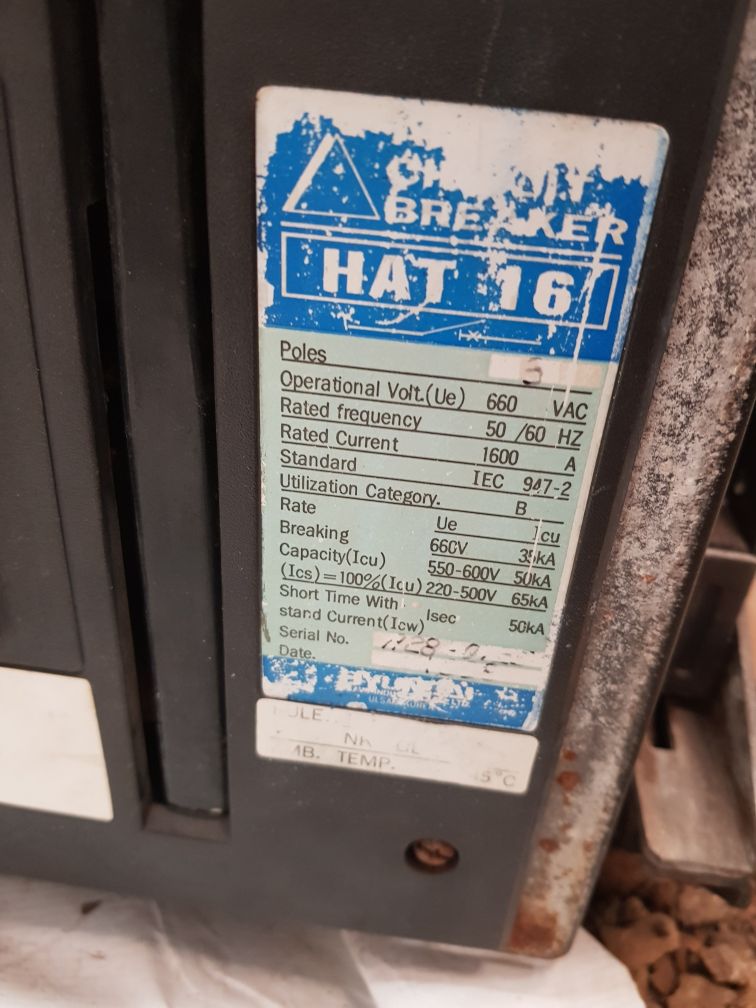

The Hyundai Hat 16 Air Circuit Breaker boasts several key features that make it a preferred choice for industrial applications. Its 3-Pole configuration ensures inclusive protection across all phases, maintaining the stability and safety of electrical systems. The breakers rated current of 1600A and operational voltage of 660Vac, combined with its capability to operate at both 50Hz and 60Hz, provide flexibility and compatibility with various electrical systems. The component’s breaking capacity is important, with a capacity of 35ka at 660V, 50kA at 550-600V, and 65kA at 220-500V, ensuring robust performance under fault conditions.

The short time withstand current of 50kA for 1 second guarantees that the breaker can handle high fault currents without failing, providing an additional layer of safety and reliability. The over-current trip mechanism is finely tuned, with a base current of 1229A and a CT rating of 1600/5A, ensuring precise and reliable protection. This level of precision helps to prevent unnecessary trips and downtime, contributing to the efficiency and productivity of industrial operations. Additionally, the breaker is designed to function in ambient temperatures up to 45°C, ensuring reliable performance even in challenging conditions.

Integrating the Hyundai Hat 16 Air Circuit Breaker into existing electrical systems is straightforward, due to its versatile design and wide-ranging specifications. The breaker is designed to be compatible with a wide range of systems, operating efficiently at both 50Hz and 60Hz frequencies. Its three-pole configuration ensures that all phases are adequately protected, maintaining the stability and safety of electrical installations. The robust construction and high breaking capacities make it suitable for a variety of applications, from industrial equipment to critical infrastructure.

The Hyundai Hat 16 precise over-current trip mechanism and high short time withstand current capacity ensure that it can handle even the most demanding conditions without compromising safety. The breakers’ ability to operate in ambient temperatures up to 45°C further enhances its suitability for industrial situations. With a weight of 83 kg, the breaker is sturdy yet manageable, facilitating ease of installation and maintenance.

The Hyundai Hat 16 Air Circuit Breaker is a high-quality, reliable solution for industrial electrical protection, designed to meet the demanding needs of modern electrical systems. Its robust design, high breaking capacities, and precise over-current trip mechanism make it an ideal choice for a variety of applications. Whether used in industrial machinery, critical infrastructure, or other demanding environments, the Hyundai Hat 16 delivers superior performance, safety, and reliability.
