Honeywell
St3q00
Smart Transmitter
Model: Stg644-e1g-00000-p0d2-514c
Factory Cal.: 0 To 125 Psi
Csa Enclosure 4, Nema 4, Ip65
Term. Voltage: 11-42 Vdc 4-20 Ma Dc Output
6556-002
Temperature Limits:
Body: -40 To 125 Deg C
Ambient: -40 To 93 Deg C
Bs 4683 Part 3 1972
Ex N Ii T6
Baseefa Nr. Ex 84079
Eex Ia Iic T6 Ptb Nr. Ex 90.c2161x
Eex Ia Iic T4
Li = 0
Ci = 19nf
Max Values:
T6 30v, 100ma, 1.2w
T4 22v, 150ma, 1.2w
Replacement Body Model: Stg644j-a10-504c
Prom.: 1440601712
Press. Rating: 750 Psi
Range Limits: -14.2 To 500 Psig
Span Limits: 15 To 500 Psi
Fill: Sil
Head: Ss
Diaph.: Ss

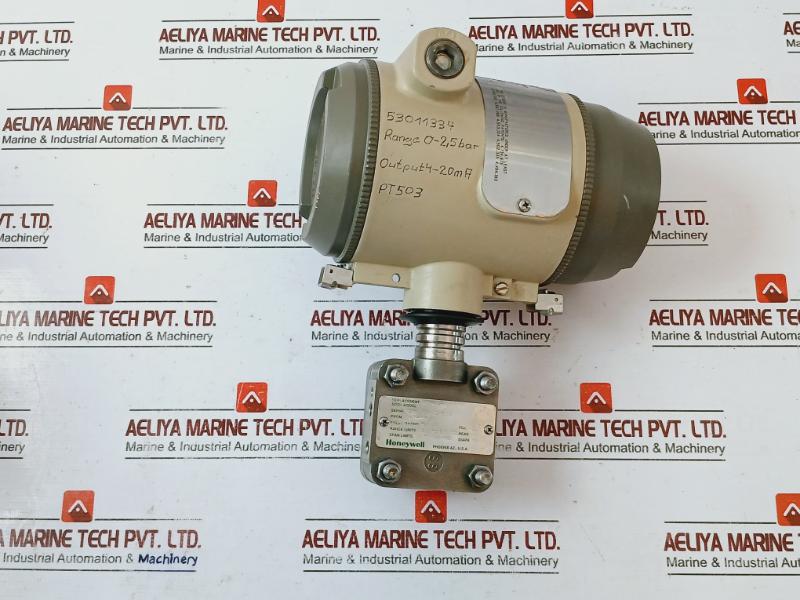

53011337
Range: 0-2.5 Bar
Output: 4-20 Ma
Pt 503
30756396-002
S440601sg2
500 Psi Gp Ss Sil
30755208g004
U.s.a.
Weight : 4.010 Kg
Ref No : 153231
