| Attribute | Value |
|---|---|

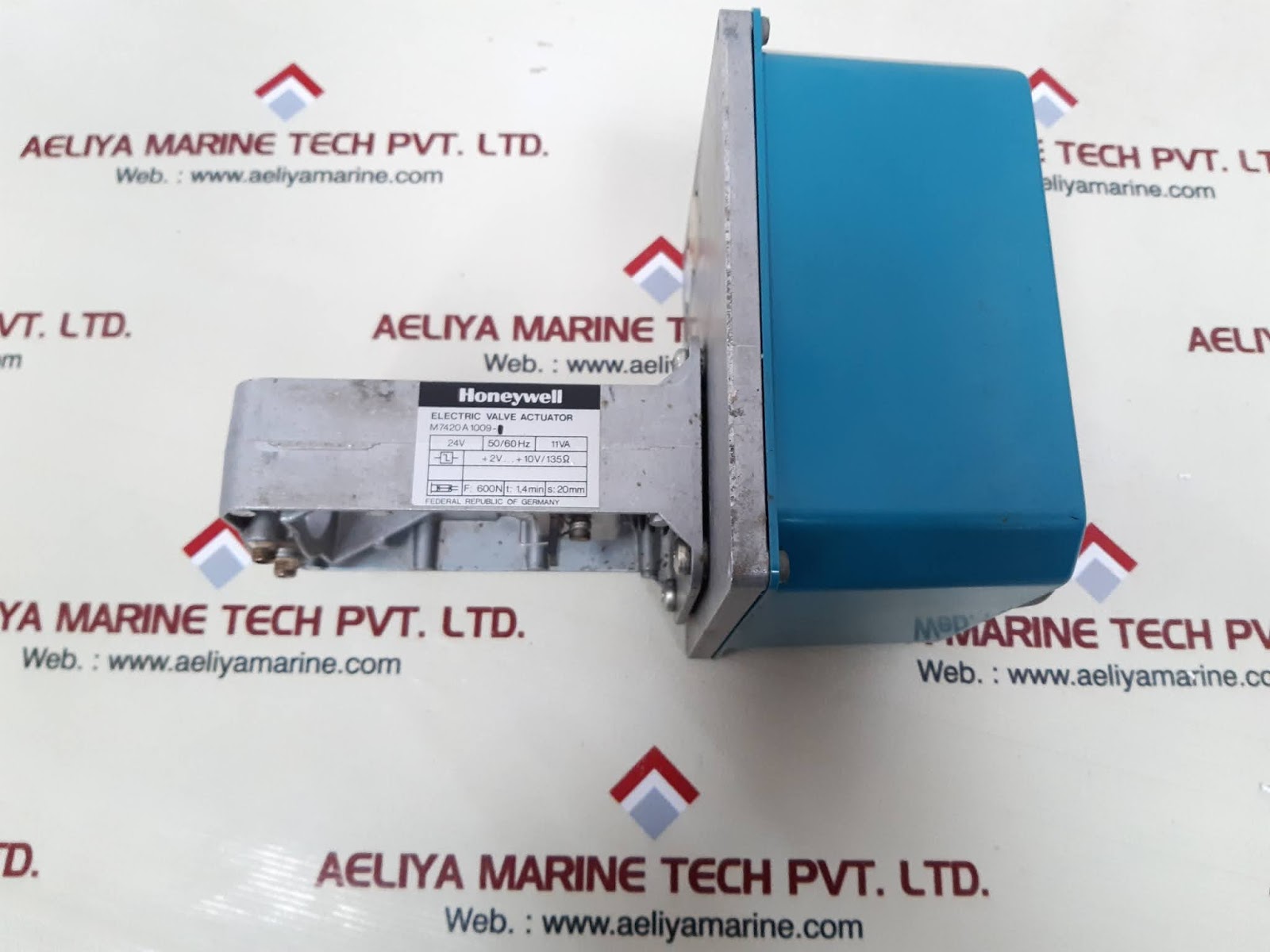

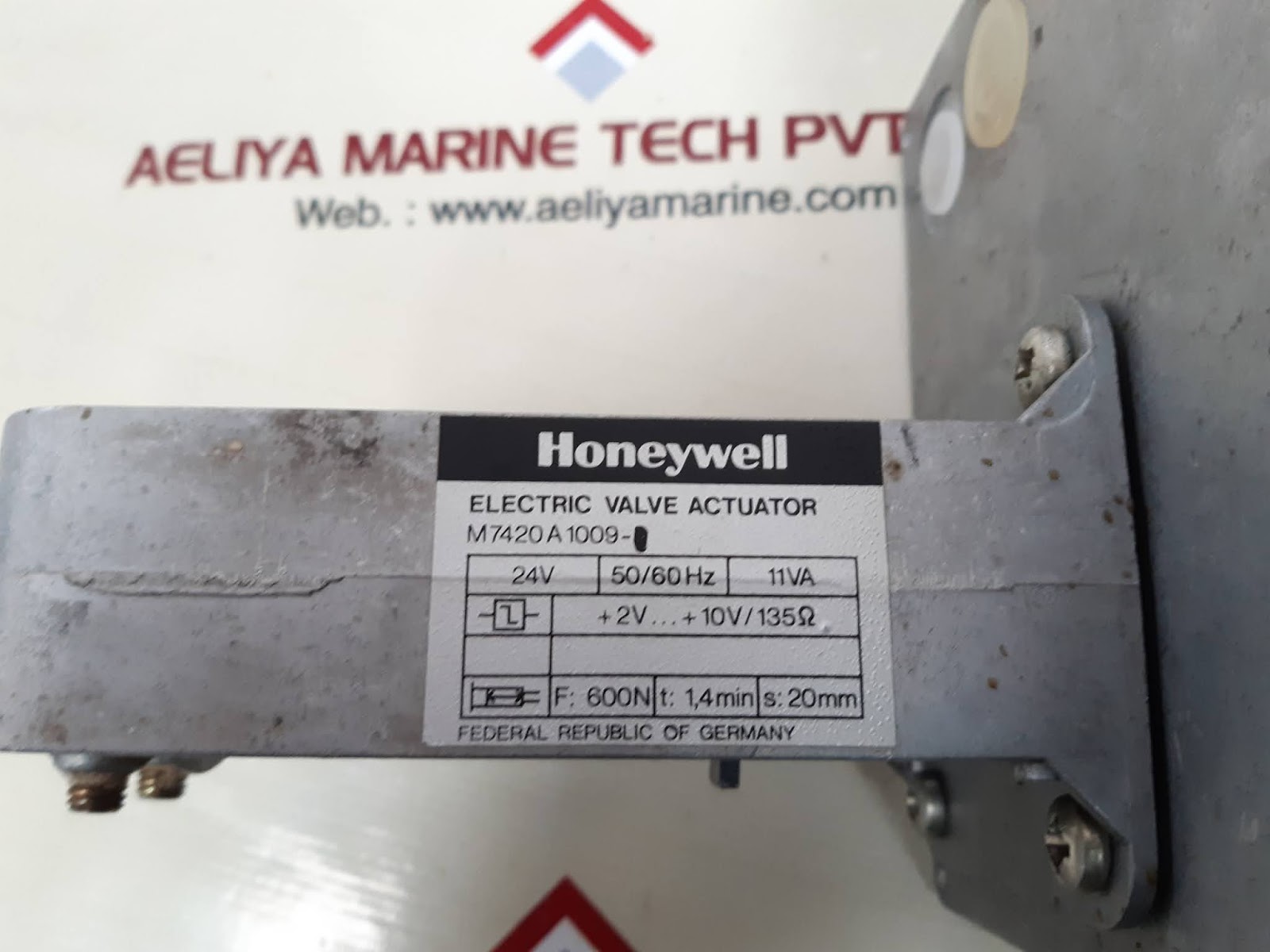

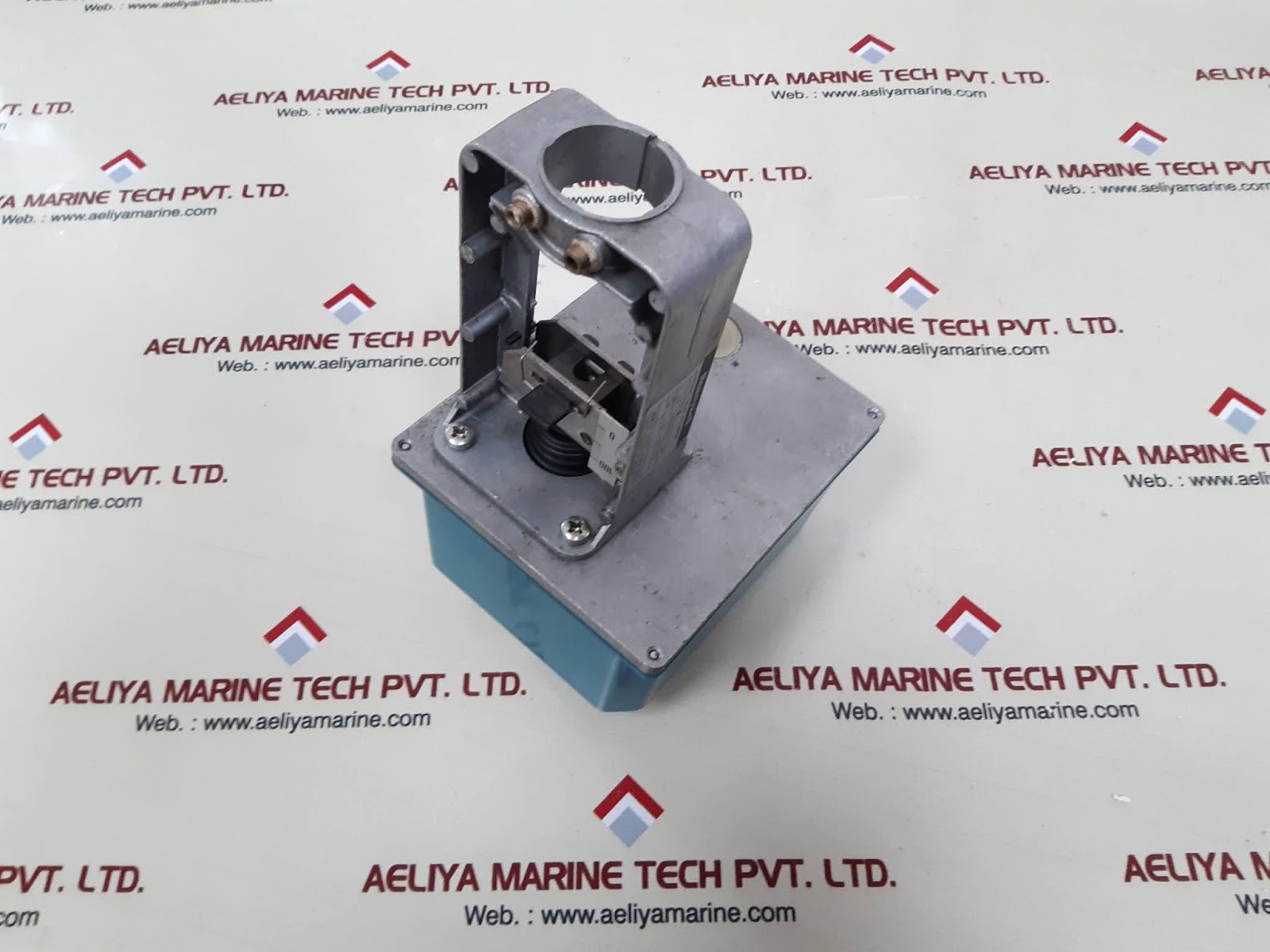

| Model | Honeywell M7420A1009-2 |
| Description | Electric Valve Actuator |
| Voltage | 24V 50/60Hz |
| Power Consumption | 11VA |
| Input Signal | +2V…+10V / 135 ohms |
| Force | 600N |
| Travel Time | 1.4 min |
| Stroke | 20mm |
| Stem Force | 600N |
| Storage Temperature | -40°C to +70°C |
| Country of Origin | Federal Republic of Germany |
| Weight | 2.280 kg |
Understanding the Basics
An electric valve actuator is a mechanism that operates the opening and closing of a valve by an electric motor. The M7420A1009-2 is a particular model made by Honeywell, intended for use with their line of valves. It’s a modulating actuator, which means it can position the valve anywhere between completely open and completely closed, enabling very precise control of flow.
Key Features and Benefits
Accurate Positioning: The M7420A1009-2 has accurate valve positioning for precise fluid flow and temperature control.
Reliability: Engineered to Honeywell’s superior standards, this actuator features tough construction and reliable operation.
Convenient Installation: The actuator is developed to be quite easily installed, taking less effort and time.
Versatility: Compatible with most Honeywell valves, it’s highly versatile in different system configurations.
Energy Efficiency: The actuator is efficient in operation, leading to overall system energy savings.
Durability: The M7420A1009-2 is built to withstand harsh operating conditions and deliver long-term service.
Applications
The Honeywell M7420A1009-2 is used in a broad variety of HVAC systems, including:
Heating and Cooling Systems: Regulating the flow of water or other fluids in heating and cooling loops.
Ventilation Systems: Controlling airflow in ventilation ducts.
Process Control: Utilized in various industrial processes that demand accurate fluid control.
Building Automation: Incorporated into building management systems for computerized control of HVAC equipment.
