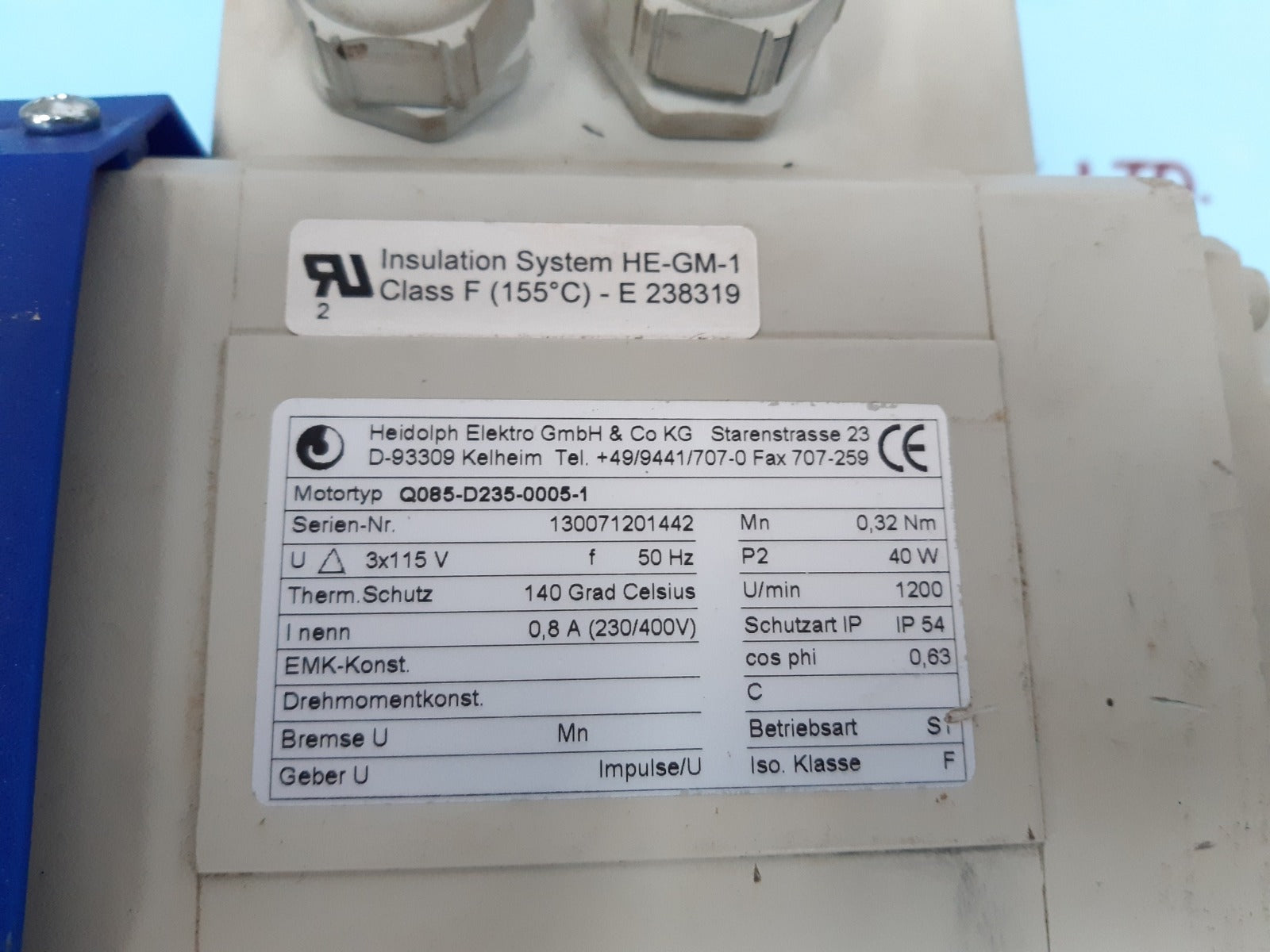

| Attribute | Value |
|---|---|
| Manufacturer | Heidolph Elektro GmbH & Co KG |
| Product Line | Heidrive |
| Motor Type | Q085-D235-0005-1 |
| Serial Number | 130071201442 |
| Voltage | 3×115 V, 50 Hz |
| Thermal Protection | 140 degrees Celsius |
| Nominal Current | 0.8 A (230/400V) |
| Insulation System | HE-GM-1 |
| Class | F (155ºC) – E 238319 |
| Torque | 0.32 Nm |
| Power Output | 40W |
| Speed | 1200 RPM |
| Protection Class | IP 54 |
| Power Factor (Cos φ) | 0.63 |
| Operation Mode | S |
| Isolation Class | F |

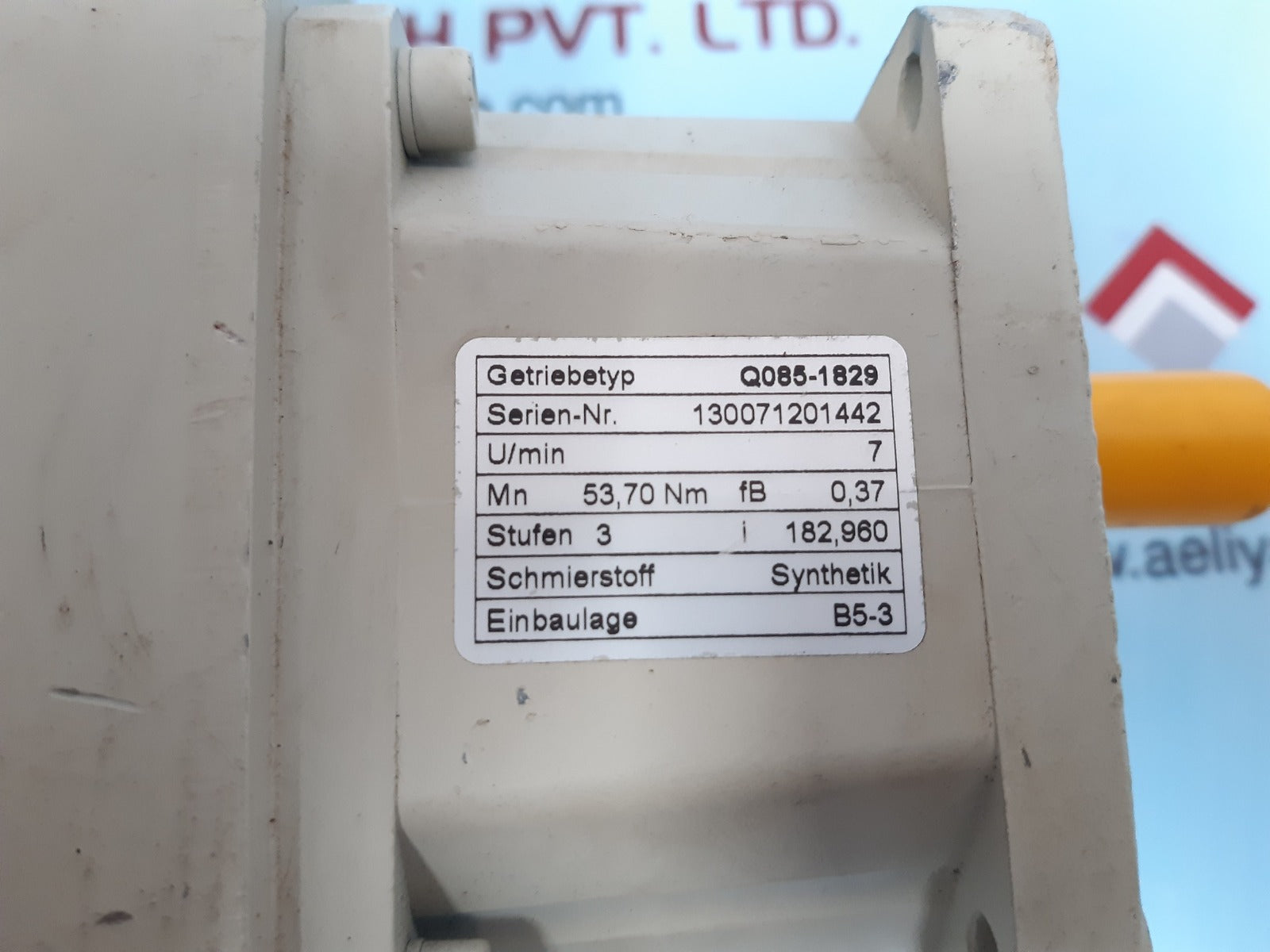

| Gear Type | Q085-1829 |
| Speed (Gear) | 7 RPM |
| Gear Torque | 53.70 Nm FB 0.37 |
| Gear Stages | 3 |
| Gear Ratio | 182.960 |
| Lubricant | Synthetik |
| Mounting Position | B5-3 |
| Weight | 4.500 kg |
Key Features of the Heidolph HeiDrive Motor
The Heidolph HeiDrive Q085-D235-0005-1 motor features a selection of features with the aim of operational efficiency and dependability:
High Torque at Low Speeds: It delivers high torque at low speed. This characteristic is very significant in applications where strict control is to be maintained while not losing much power. End.
Compact and Rugged Design: Given the space-optimized design, this motor can be used for various laboratory instruments while being compact, without compromising its durability.
Cooling System: The motor uses an advanced cooling system that ensures it does not overheat. This extends the life of the motor as well as the equipment to which it is attached.
Noise reduction technology: it runs very silently, which is an attribute it needs because its operating place, laboratory environments are very sensitive environments in which the slightest disturbance in terms of noise could become a distraction or interference to delicate experiments.
Flexible design: this design ensures the easy integration of the motor with laboratory equipment like stirrers, shakers, and mixers in many types.
Applications
The Heidolph HeiDrive Q085-D235-0005-1 motor is able to be flexible and used on a variety of different laboratory applications:
Chemical Synthesis: Its consistent torque and strict control make this motor ideal to stir reactions due to the dependency of the actual synthesis on specified speed and power.
Pharmaceutical Testing: This motor contributes to the sufficient mixing and homogenization of compounds in pharmaceutical testing and drug development, ensuring samples are uniform to be tested with.
Biotechnology Research: Utilized in the equipment for cell culture and genetic engineering, reliability is needed by motors to support long-duration operations common in biotech experiments.
