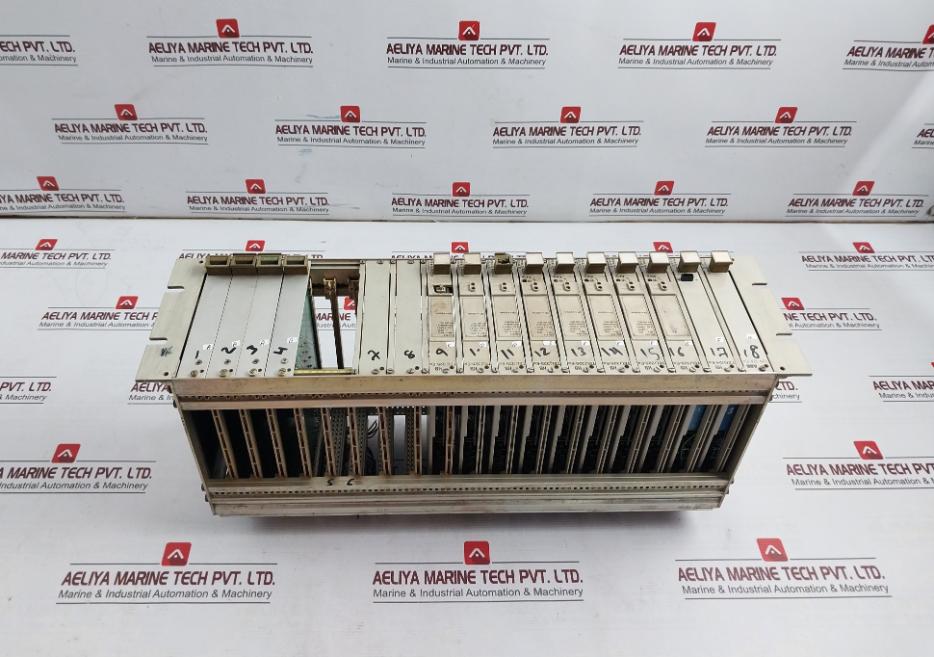

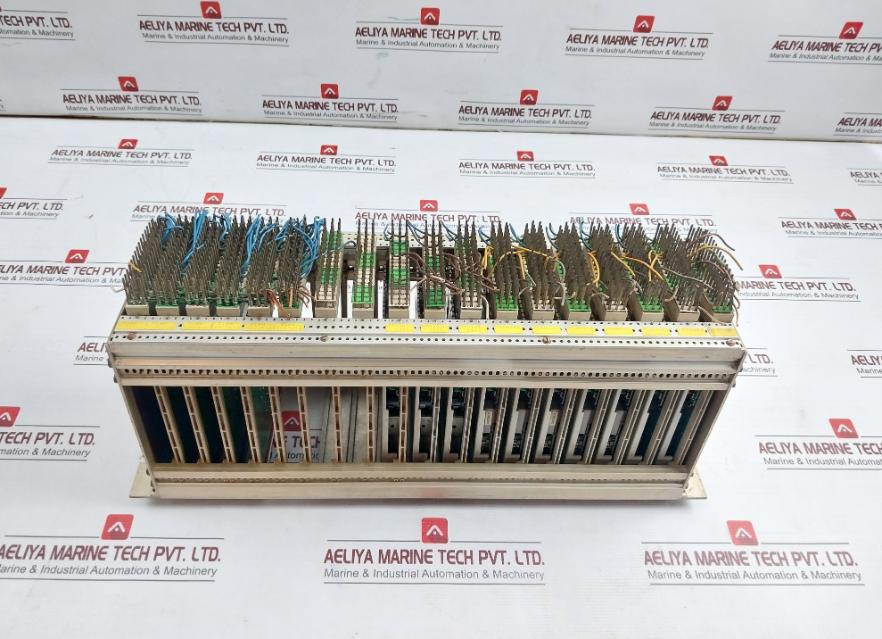

Hartmann & Braun Teu325-Ex Temperature Transmitter Rack 24v

Hartmann & Braun Teu325-Ex Temperature Transmitter Rack 24v
Hartmann & Braun Ag
Temp.-Messumformer / Temp. Transmitter
Teu325-Ex
Teu 325-Ex.A
Mk 374
-110°C…+60°C
3 Ltr. / Wire / Conducteur
Pt 100 Iec
4-20ma
Ptb Nr. Ex-84/2123 X
[Eex Ia] Ii C
[Eex Ia] Ii C Tu Bis +70°C
P.11346-0-3425380
F.6.663020.1
F.6.663022.1
Hilfsenergie / Auxiliary Power: 24v, Bis 3,1 W
Ausgang / Output: Bis 20 Ma,
BüRde / Load Less Than 750 Ohm
Transducteur De Mesure / Measuring Transducer:
Teu 315 / 315-Ex
Teu 325 / 325-Ex
Measuring Range: 56,19…123,24 Ohm
Max. 3×10 Ohm
Serie / Series 2
0367473 J
0370921 J3
0367893.E
M 0,315 C
24v
Teu 325-Ex.B
P.11346-0-3225380
F.6.663016.1
Measuring Range: 100…138,50 Ohm
Supply Unit
Tzn 124-Ex
Ptb Nr. Ex-85/2054 X
[Eex Ib] Ii C
Ta 70°C
P.18733-0-1214250
P.18733-0-1210250
F.6.740004.1
F.6.802562.4
24v- 3,4w
4…20 Ma
Max. Values:
U Less Than 19v
I Less Than 24ma
P Less Than 0,46w
La 2 Mh
Ca 120nf
0…750 Ohm
0367846 F
0388090.2 R1 C
18733.104-01
0367850.B
0388090 D R01a
18733.104-01
0367850.G
19″-Bgt 3he 84t
Auftrags. –Nr / Order Number: 64103005 0030
P 92250
F 1 0000 8229 0
Fi. 777
Tiah
5301k2a
5301k1a
5201k2a
5201k1a
5101k2a
5101k1a
Tt5301-5308
Tt5201-5208
Tt5101-5108
Tsah906
Tsah905
Tsah904
Tsah903
Tsah902
Py5202
Py5102
Weight : 5.680 Kg
Ref No : 182830
