Gilmore 2732077-01-99 Repair Kit

Gilmore 2732077-01-99 Repair Kit
Gilmore Valve
Proserv
Manufacturer: Cameron
Repair Kit
Size: B

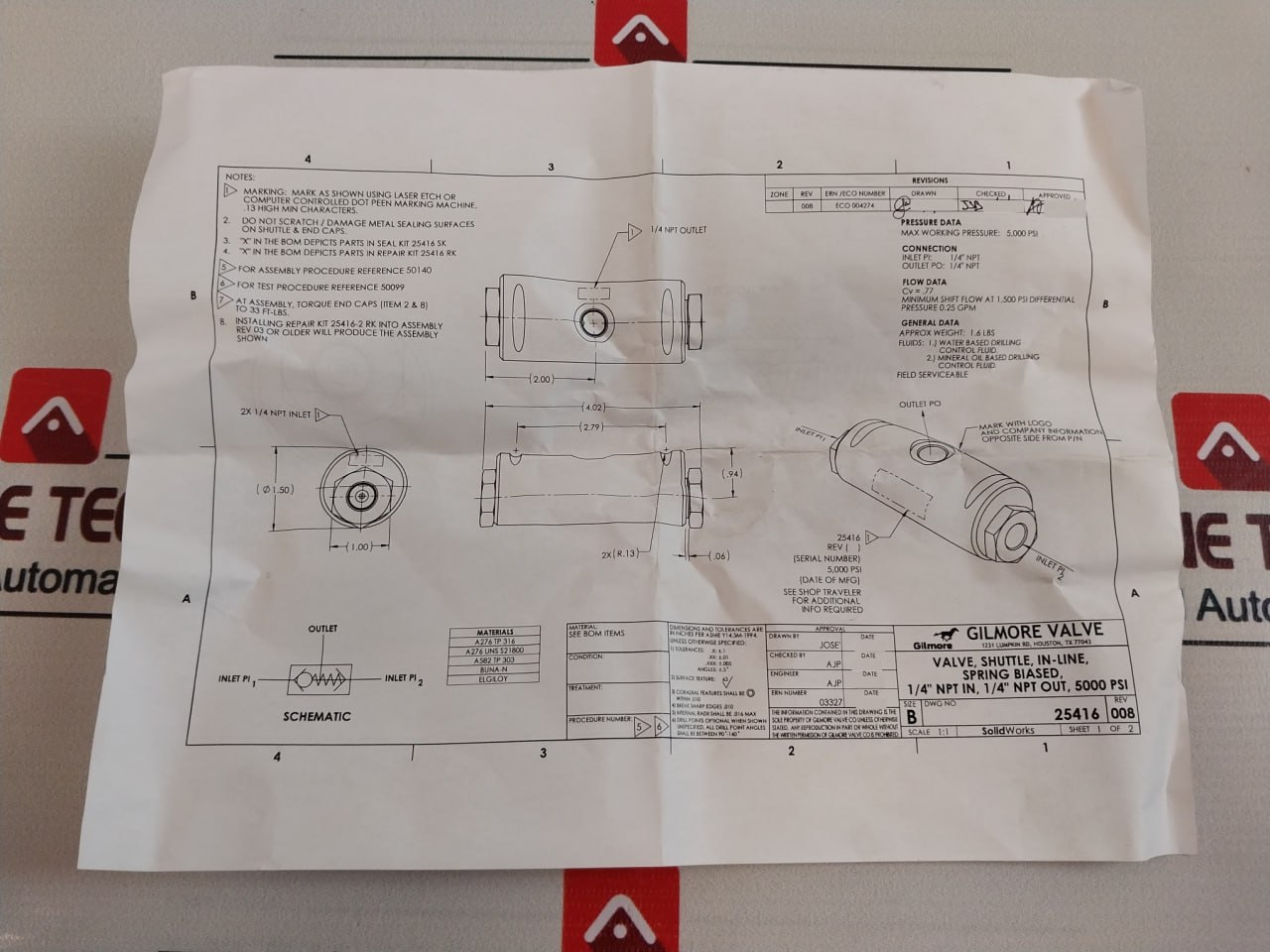

Dwg No: 25416
Rev: 008
Scale: 1:1
Pressure Data:
Max Working Pressure: 5,000 Psi
Connection:
Inlet Pi: 1/4″ Npt
Outlet Po: 1/4″ Npt
Flow Data:
Cv= .77
Minimum Shift Flow At 1,500 Psi Differential Pressure 0.25 Gpm

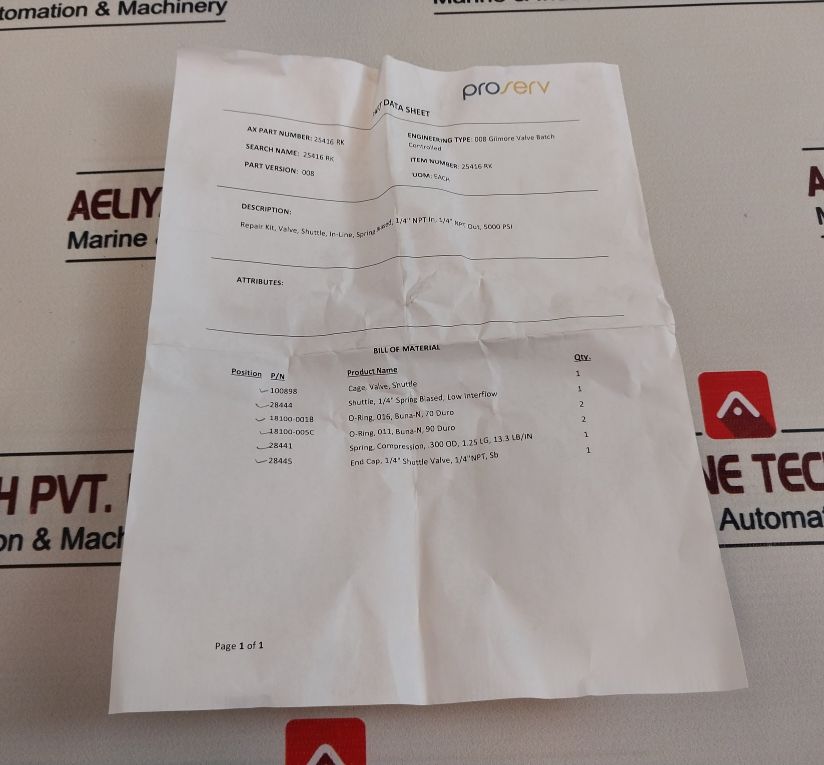

Ax Part Number/Item Number: 25416 Rk
Part Version: 008
Engineering Type: 008 Valve Batch Controlled

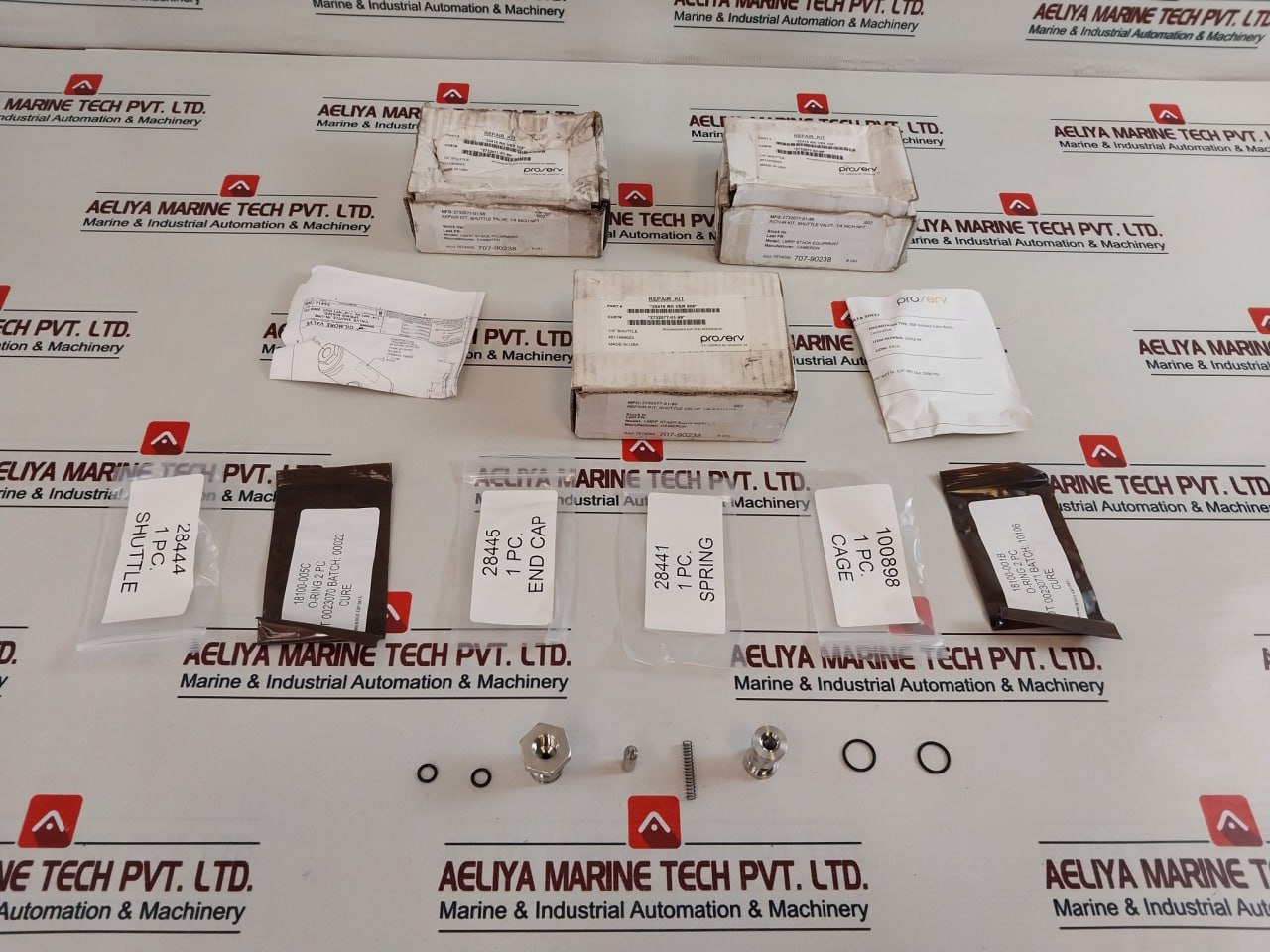

Description: Repair Kit, Valve, Shuttle, In-Line,
Spring Biased, 1/4″ Npt In, 1/4″ Npt Out, 5000 Psi

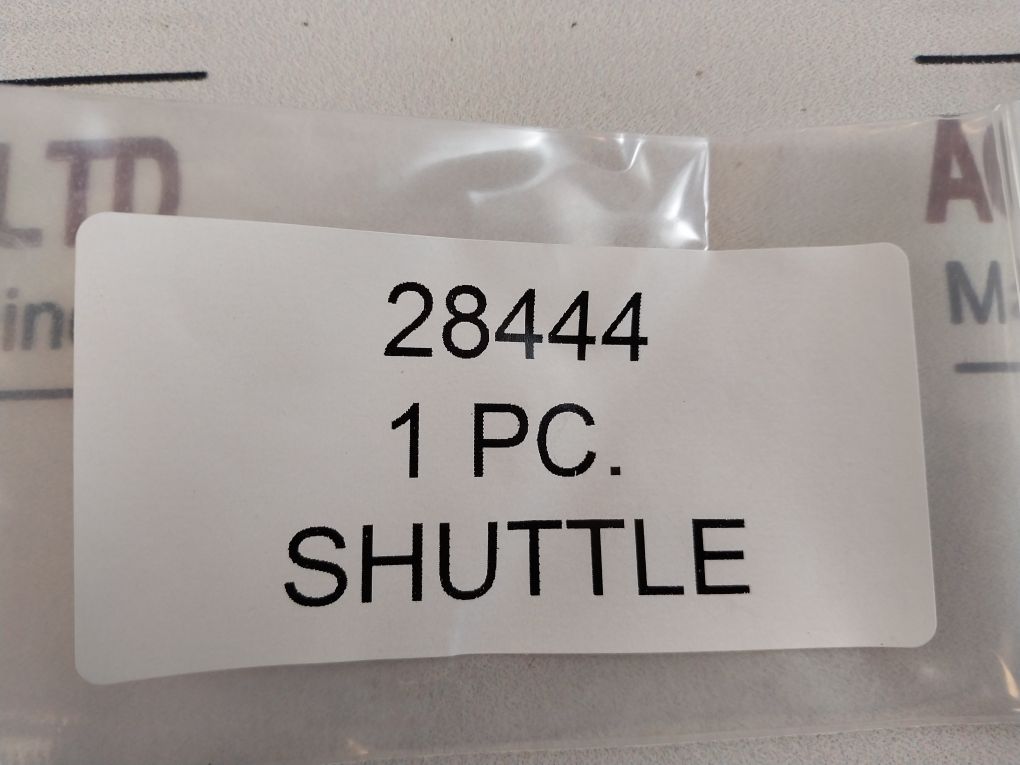

P/N: 28444

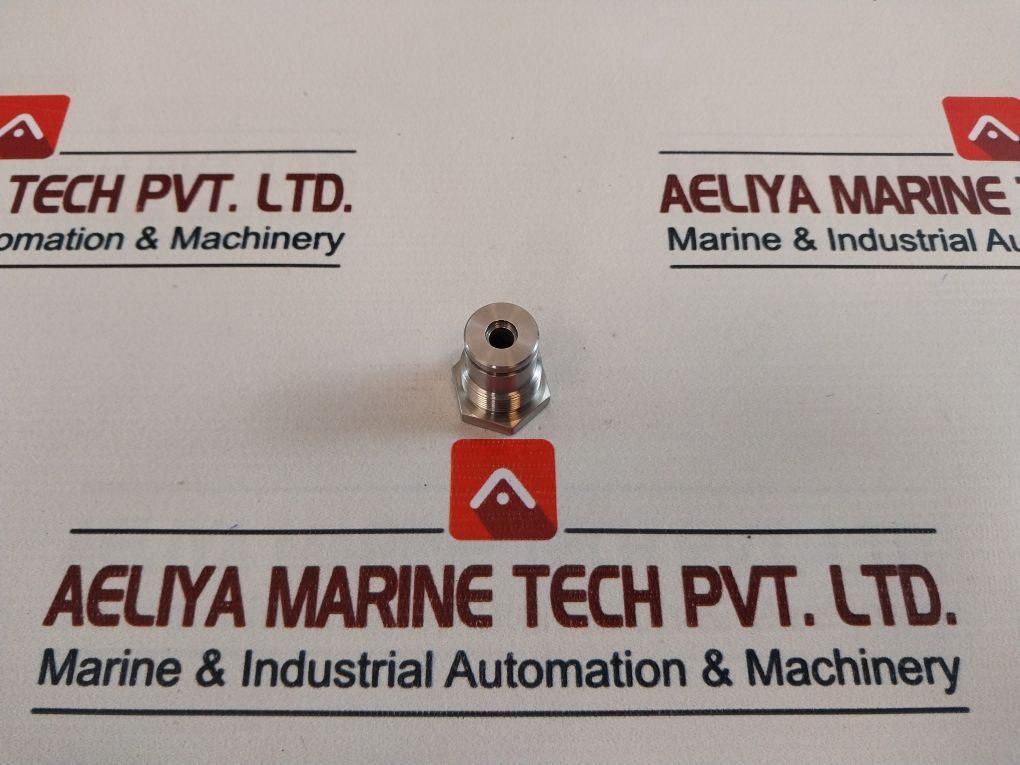

Product Name: Shuttle, 1/4″ Spring Biased, Low Interflow

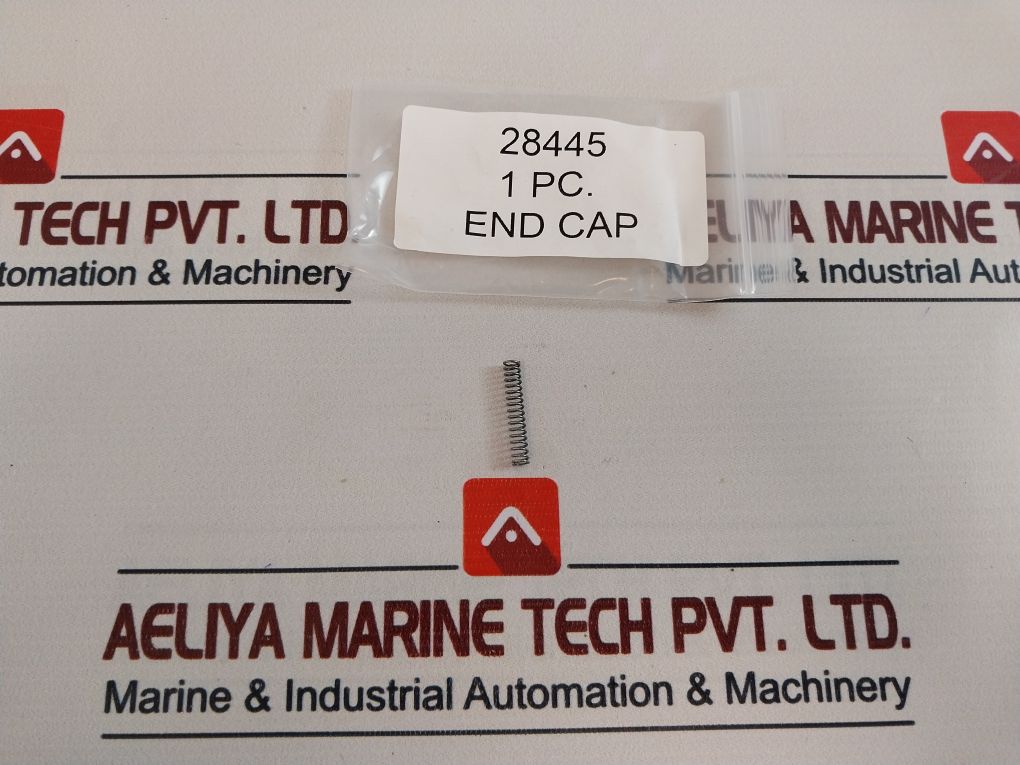

P/N: 28445

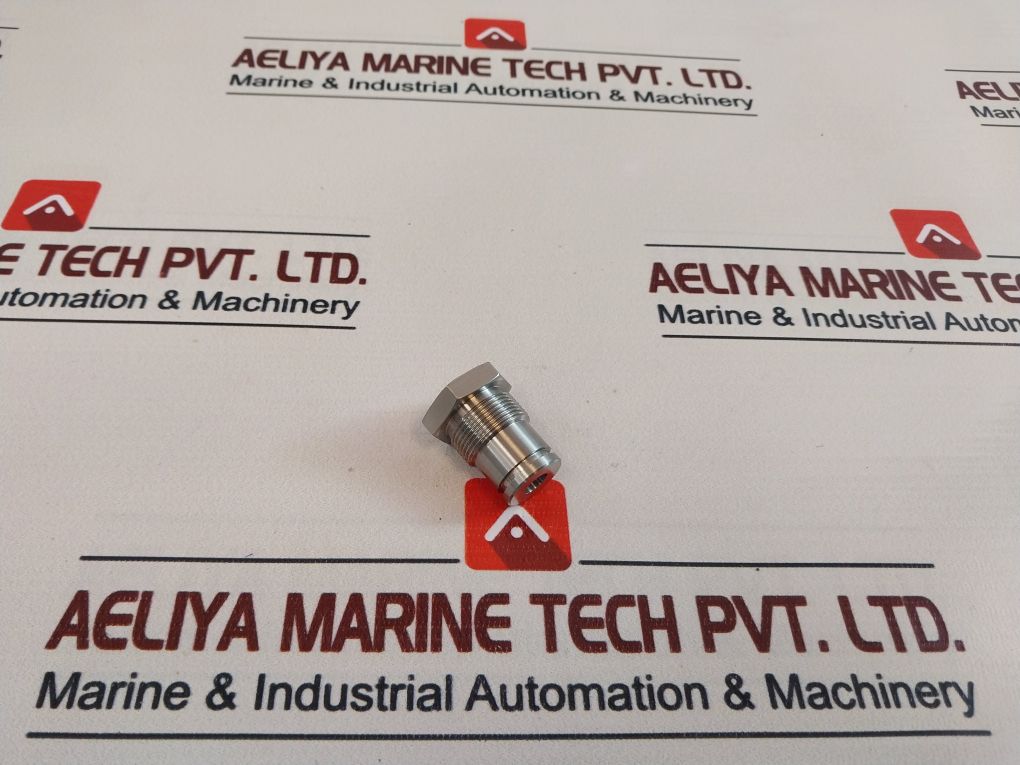

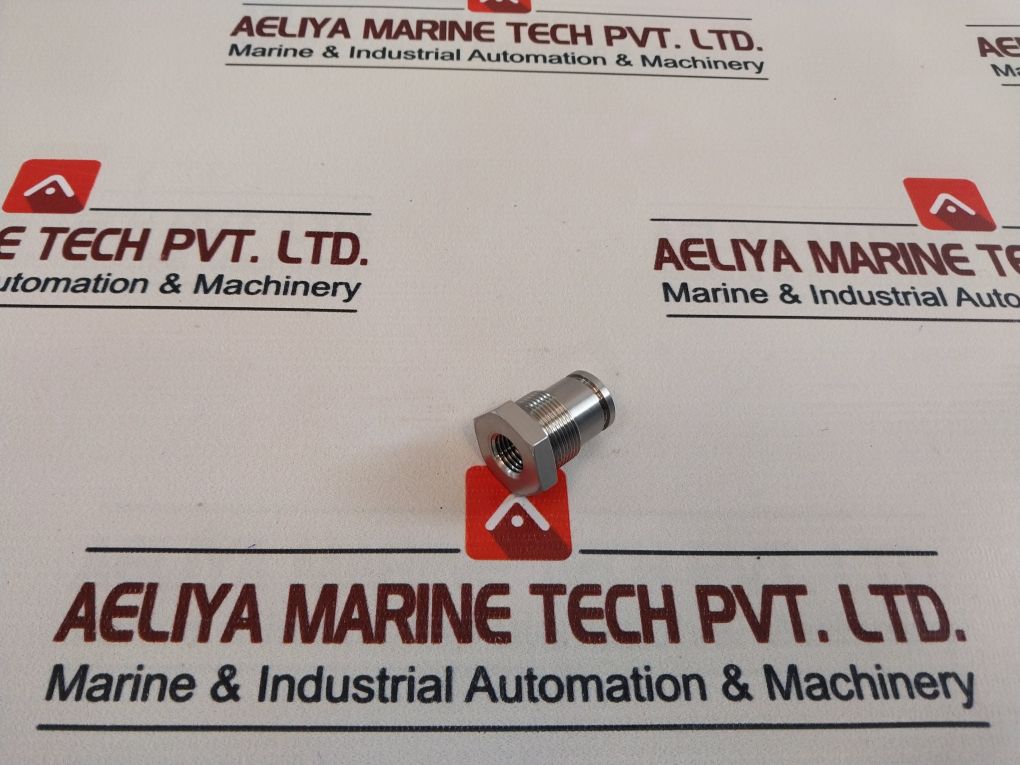

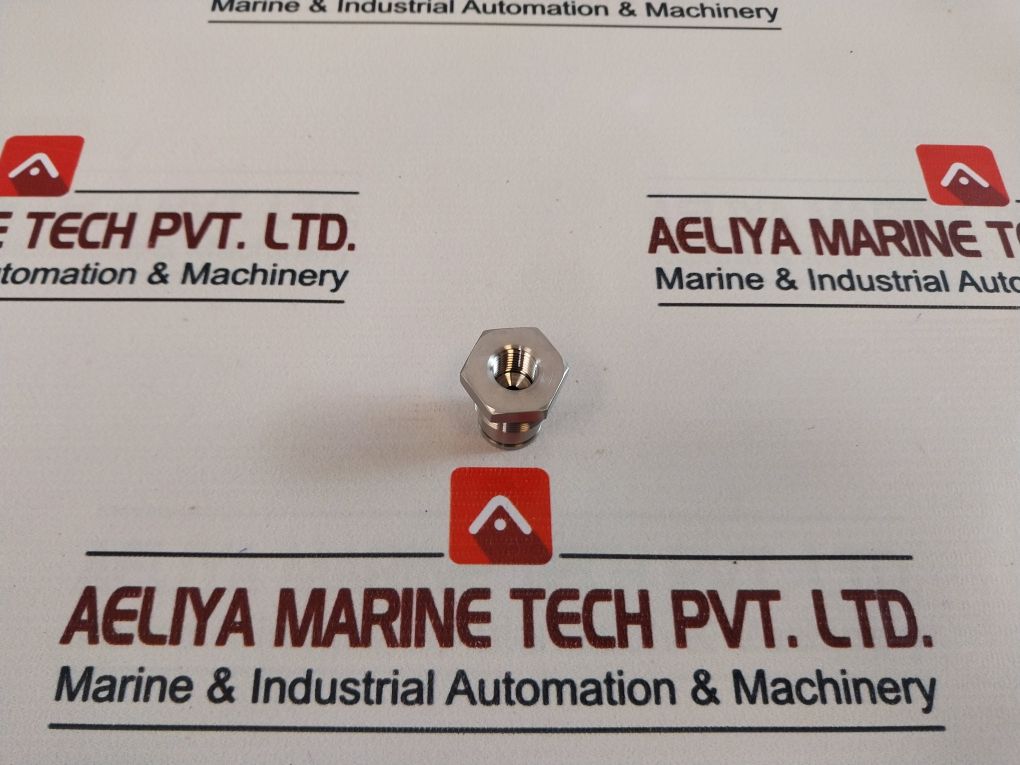

Product Name: End Cap, 1/4″ Shuttle Valve, 1/4″ Npt, Sb

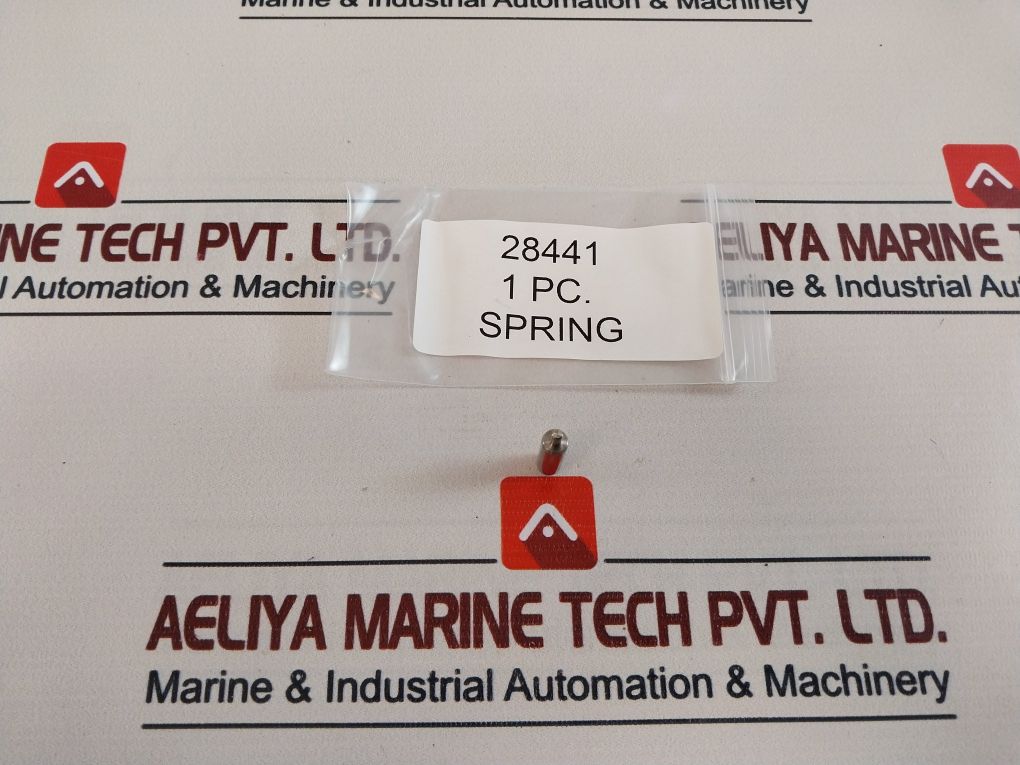

P/N: 28441
Product Name: Spring, Compression, .300 Od, 1.25 Lg, 13.3 Lb/In

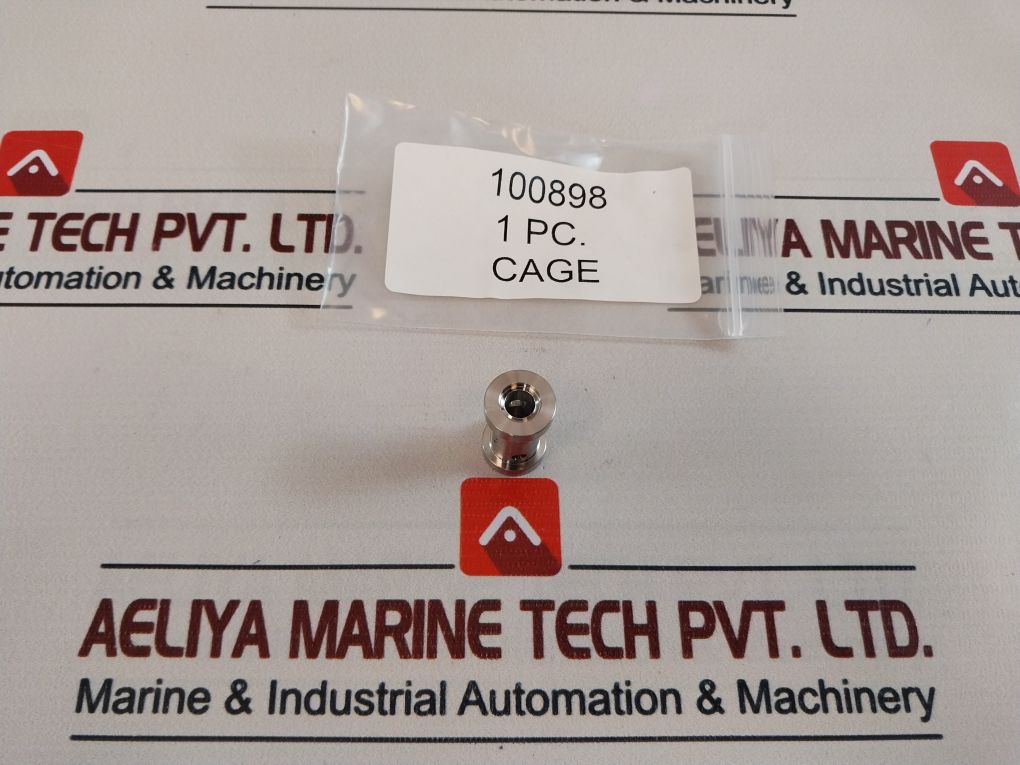

P/N: 100898
Product Name: Cage, Valve, Shuttle

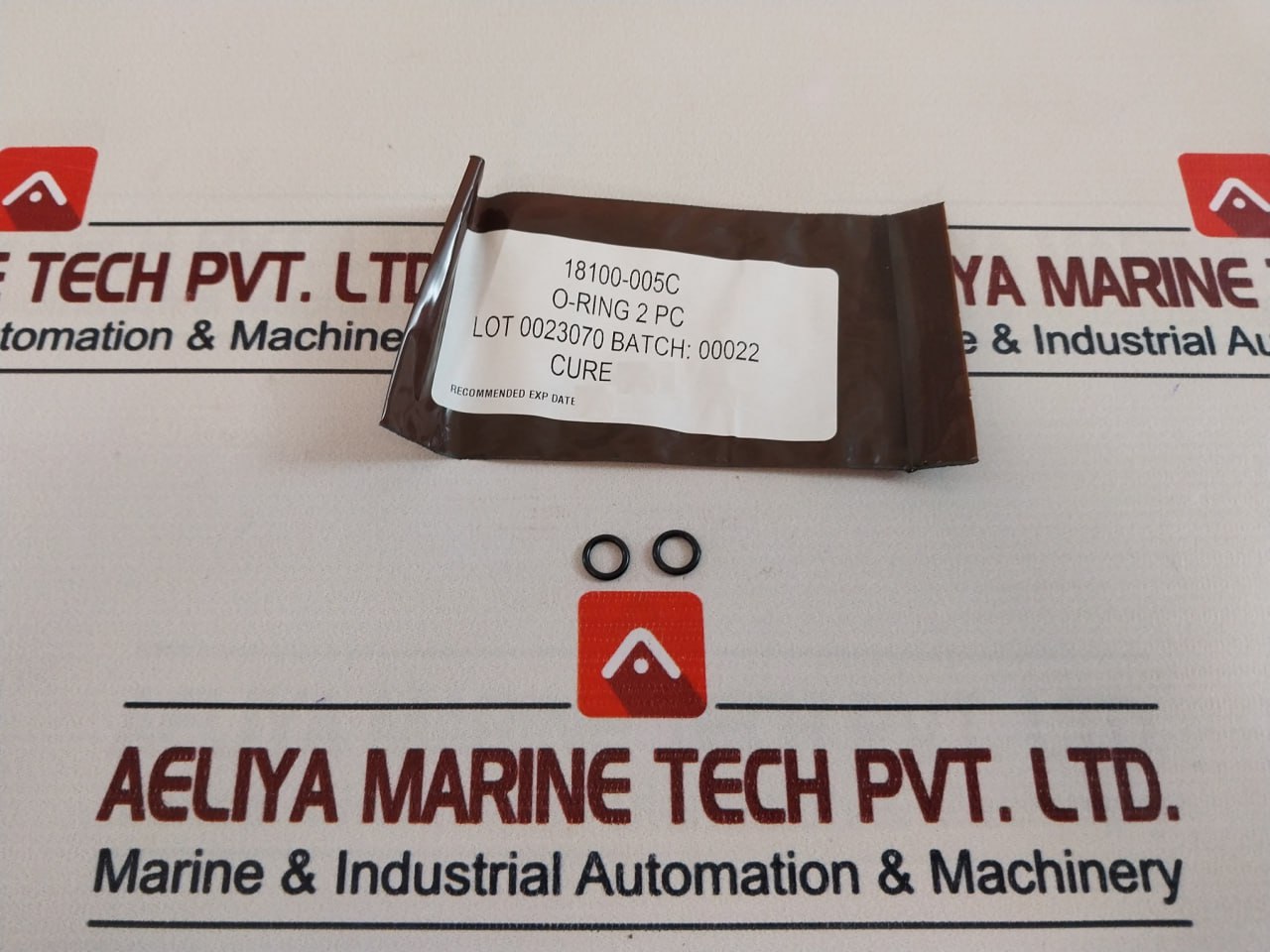

P/N: 18100-005c
Product Name: O-Ring, 011, Buna-N, 90 Duro

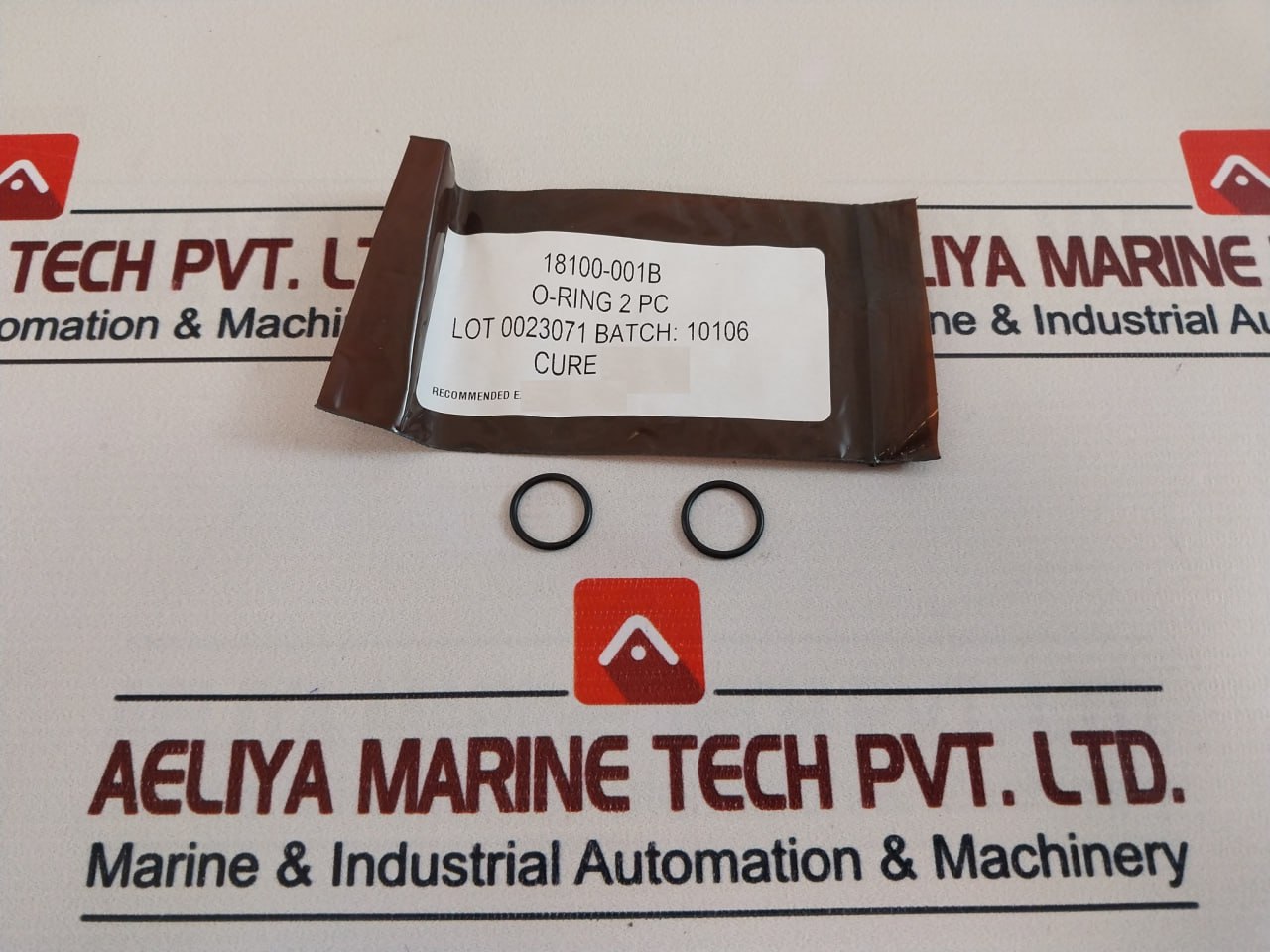

P/N: 18100-001b
Product Name: O-Ring, 016, Buna-N, 70 Duro

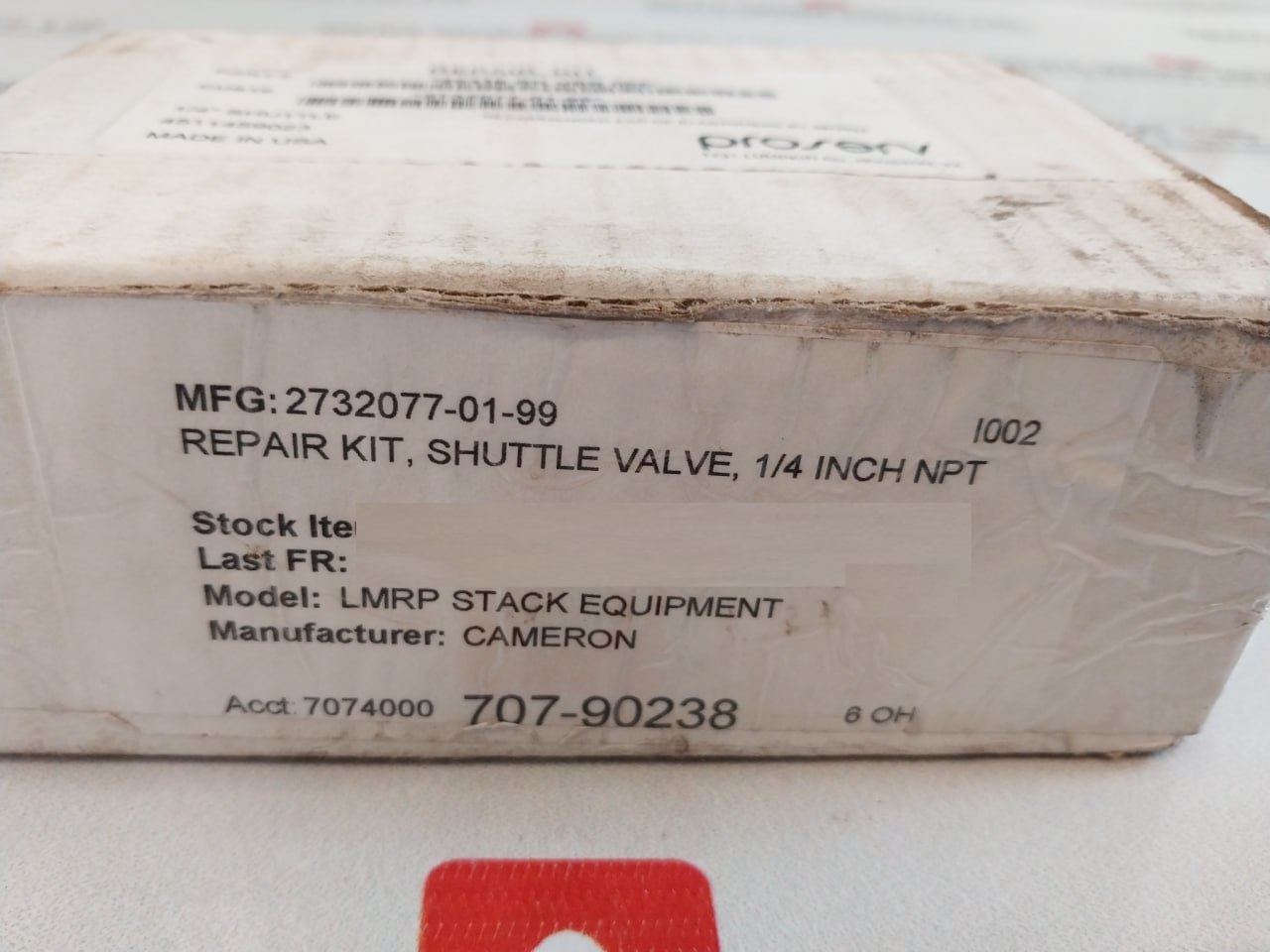

Mfg: 2732077-01-99
Repair Kit, Shuttle Valve, 1/4 Inch Npt
Model: Lmrp Stack Equipment
I002
Acct: 7074000 707-90238 6 Oh

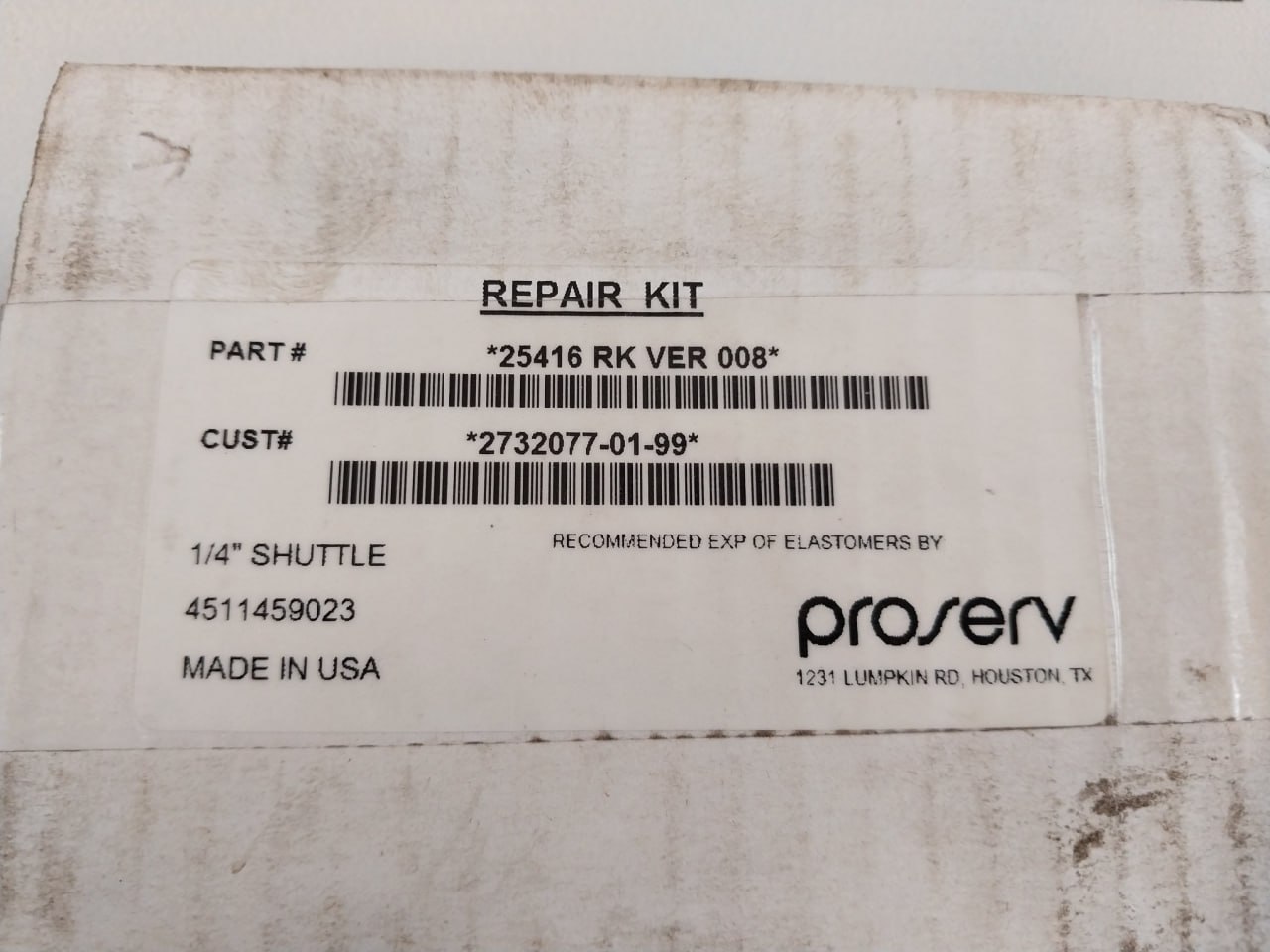

Part#: 25416 Rk Ver 008
4511459023
Made In Usa
Weight : 220 Gm
Ref No : 90803
