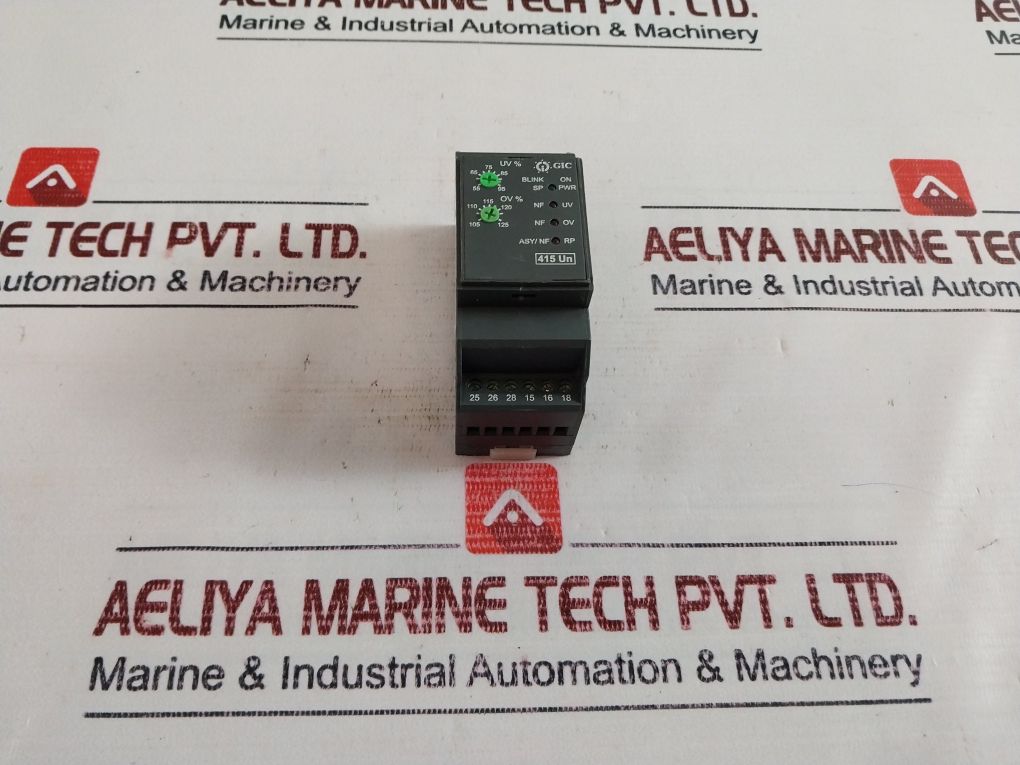

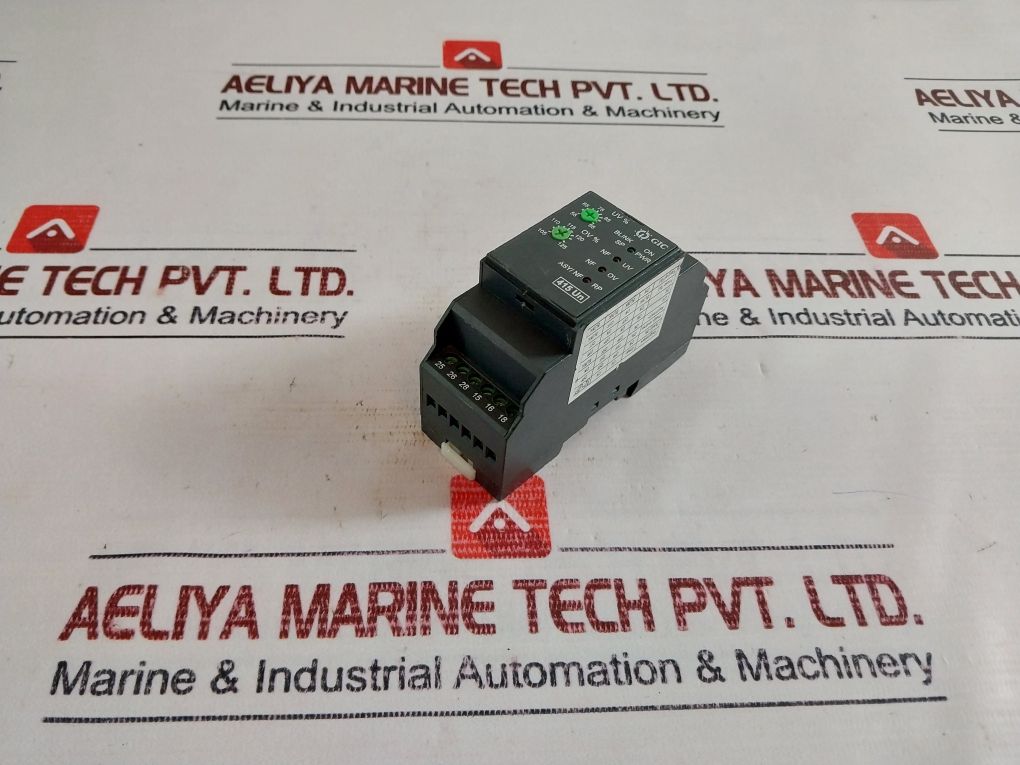

Gic Mac04d0100e 3 Phase Voltage Monitoring Relay

Gic Mac04d0100e 3 Phase Voltage Monitoring Relay
Gic
Manufactured By: General Industrial Controls Private Limited
415 Un
Supply Monitoring Device: Series-Sm500
Cat.Id.: Mac04d0100e
Type: Ph, Neutral & Voltage Control
Supply: 3ph-4w, 415vac, 47 To 53 Hz
Rev: R06|V025|D019
O/P: 5a (Res.) @ 250vac/ 28 Vdc, 2 C/O
Iec 60947
Ac-15: 3/1.5a @ 120/240vac
Dc-13: 2/0.22/0.1a @ 24/125/250vdc
Wiring: Awg 24 To 12, Cu 60/75°C
Drive: Ph1/ø 3.5mm, Torque 0.54 Nm (5 Lb.In)
Made In India
Weight : 110 Gm
Ref No : 95789
