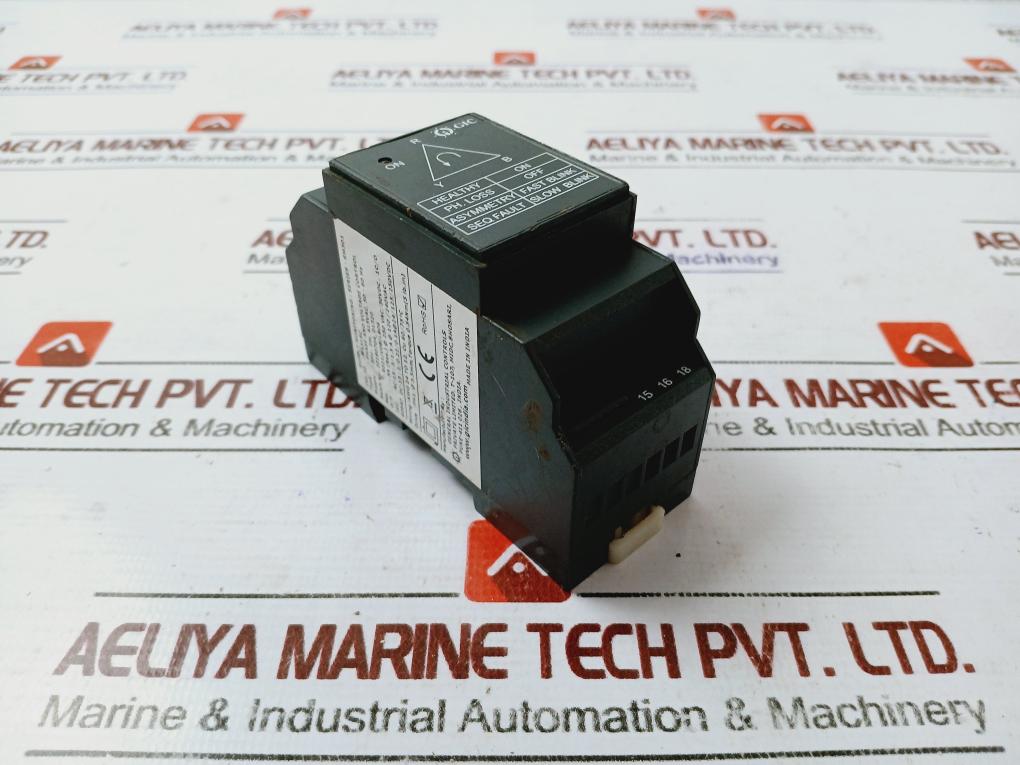

Gic Ma51Bc Voltage Monitoring Relay 415V

Gic Ma51Bc Voltage Monitoring Relay 415V
Gic
Manufactured By: General Industrial Controls
Private Limited
Single Phasing Preventor
Supply Monitoring
Type: Phase And Voltage Control
Series: Sm301
Cat.Id/No: Ma51Bc
Supply: 3Ph-3W, 415Vac, 50-60Hz
47 Hz To 63 Hz
Rev: R021 I V08 I Lb06
O/P: 5A (Res.) @ 250 Vac/30Vdc, 1 C/O
Iec 60947
Ac-15: 3/1.5A @ 120/240Vac
Dc-13: 2/0.22/0.1A@24/125/250Vdc
Wiring: Awg 24 To 12, Cu 60/75°C
Drive: Ph1/Ø 3.5Mm, Torque: 0.54Nm (5 Lb.In)
Phase Asymmetry: 65 ± 10 Vac
Operate Time: 2 Sec
Release Time: 7 Sec
Made In India
Weight : 100 Gm
Ref No : 151384
