| Attribute | Value |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Model | IC693CHS392K |
| Type | Base 10 Slot Expansion |
| EMI Enhanced | Yes |
| Classification | Class I Div.2 Groups ABCD |
| Temperature Code | T4A Surrounding Air 60°C |
| Explosion Protection | Ex NA IIC T5 X |
| Certification | II 3 G |
| Temperature Range | TA: 0-60°C |
| Serial Number | K370406 1234 |
| Country of Assembly | USA |
| Weight | 1.085 kg |

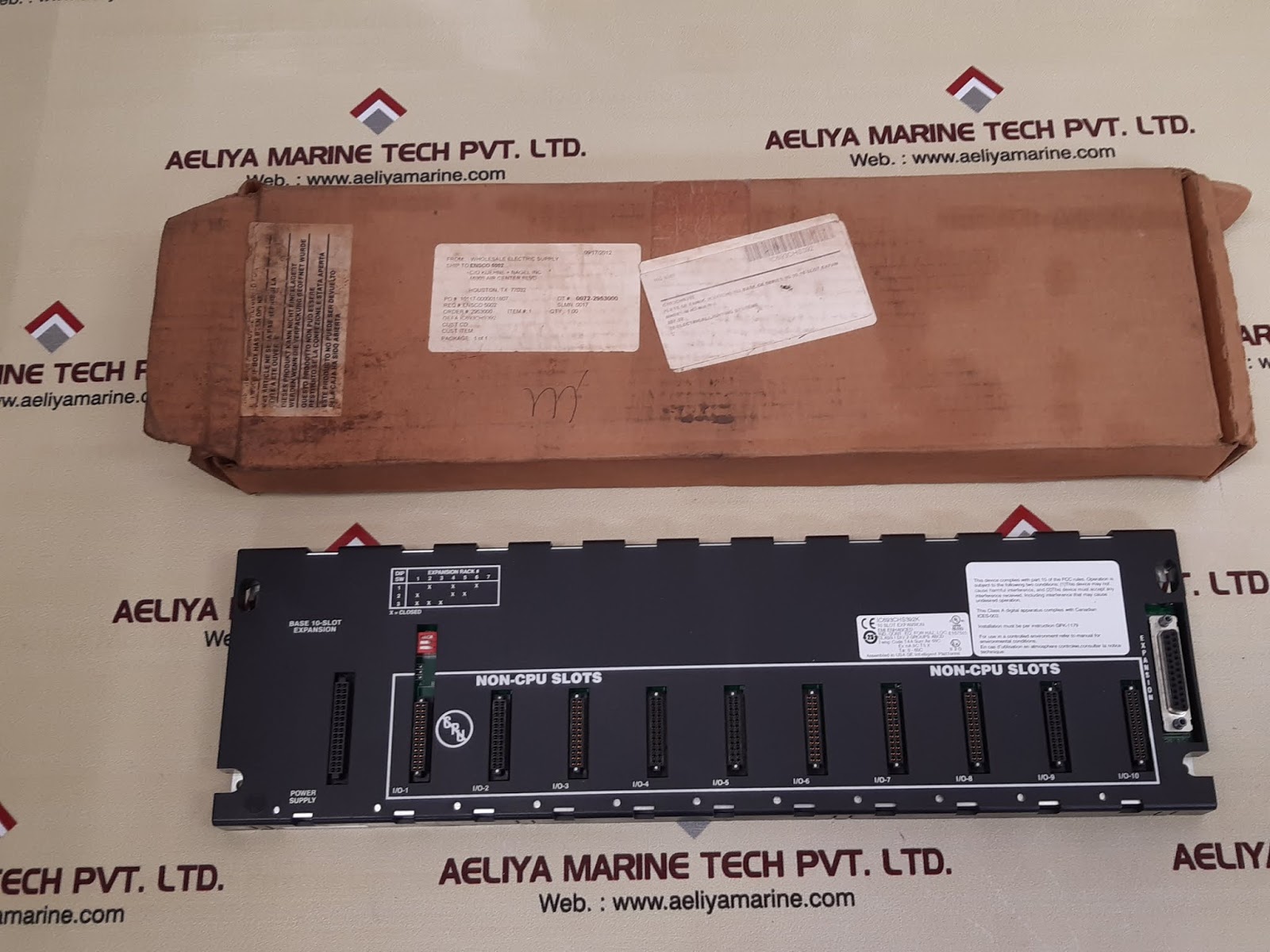

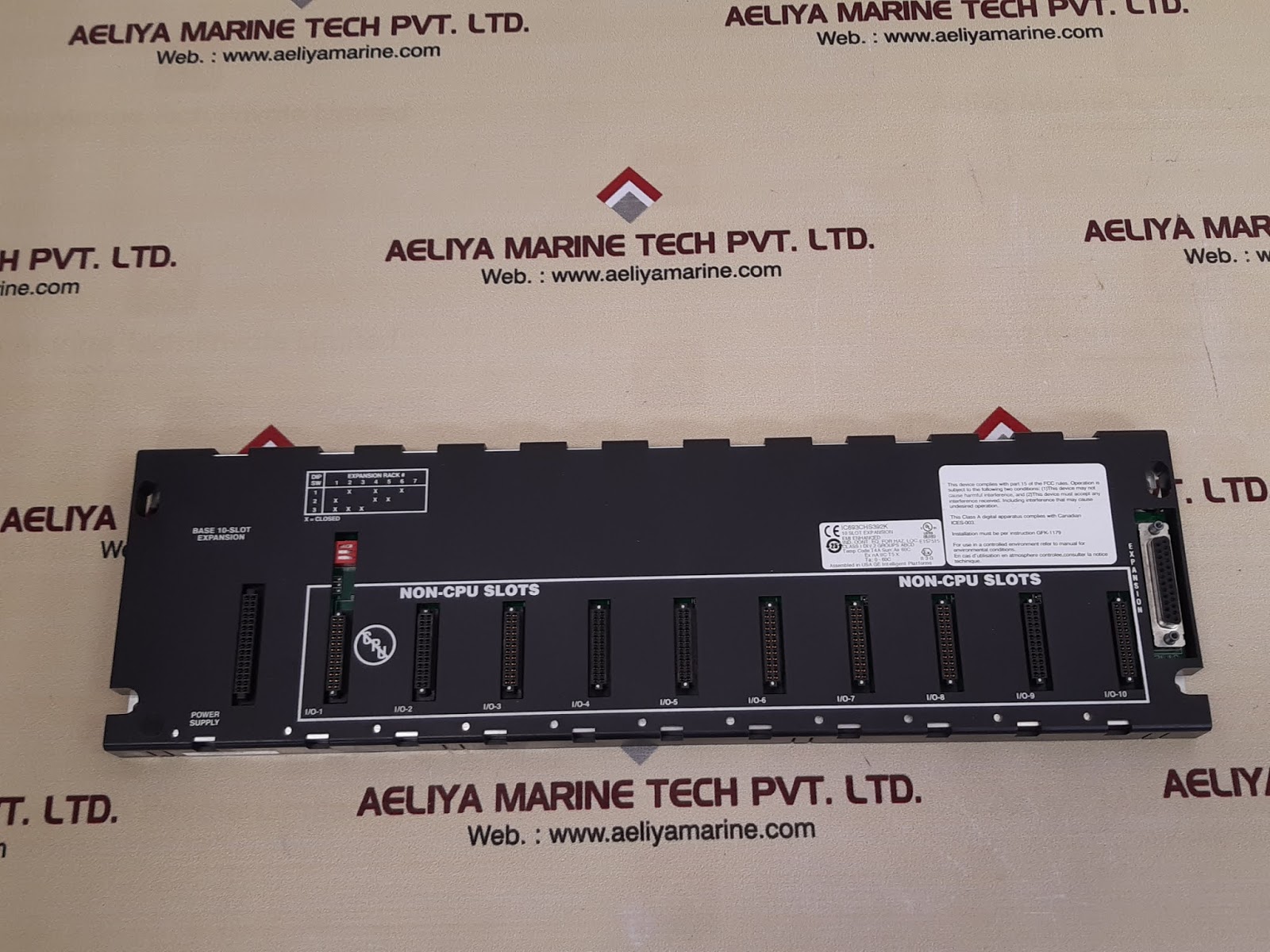

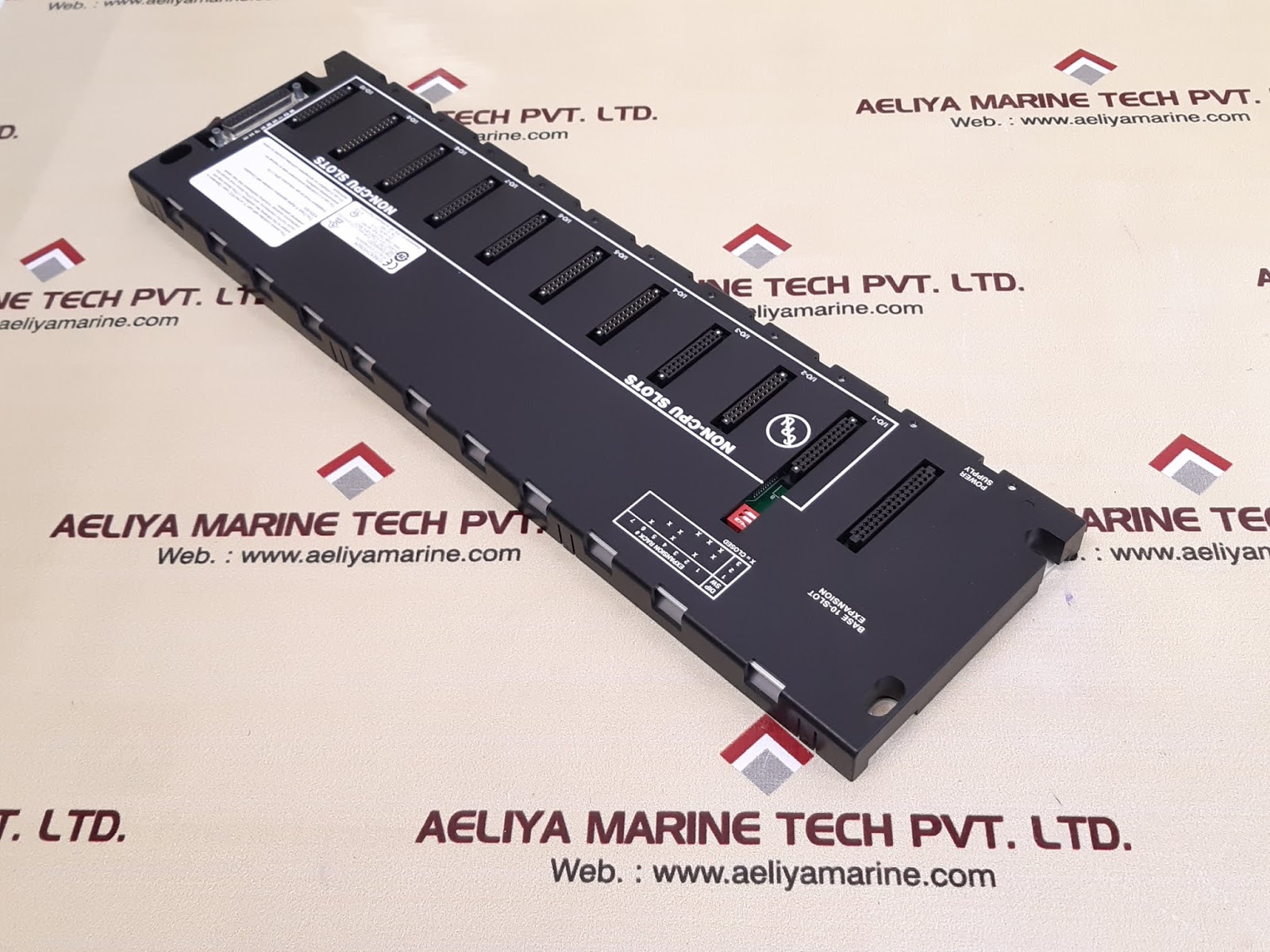

Understanding the GE Fanuc IC693CHS392K Expansion Base
The IC693CHS392K expansion base is used with GE Fanuc’s Series 90-30 PLCs. It provides space to add more modules, such that expanding a control system can be achieved without requiring a full overhaul.
Major features
✔ 10 Slots for Module Expansion – Supports various I/O and specialty modules.
✔ Compatibility with Series 90-30 PLCs – Works seamlessly with existing setups.
✔ Durable Construction – Built to withstand industrial environments.
✔ Efficient Power Distribution – Ensures consistent power supply to all modules.
This expansion base module plays a crucial role in increasing the capacity of a PLC system, ensuring flexibility and scalability for various industrial applications.
Technical Specifications
Before integrating the IC693CHS392K into your automation system, it’s important to understand its technical details:
Model Number: IC693CHS392K
System Compatibility: GE Fanuc Series 90-30
Number of Slots: 10
Power Requirements: Requires a power supply module (available separately)
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Weight: About 2.5 lbs
Mounting Type: Rack-based mounting
With 10 slots available, users can readily expand their system by adding input, output, and specialty modules.
Applications of the IC693CHS392K Module
This expansion base module is used extensively in various industries because of its reliability, expandability, and efficiency. The following are some of the most important applications:
Manufacturing Automation – Extends control systems to include more sensors and actuators.
Process Control – Increases the capacity to monitor and control temperature, pressure, and flow rates.
Material Handling Systems – Assists in managing conveyor belts, sorting machines, and robotic arms.
Water and Wastewater Treatment – Supports additional I/O for monitoring pumps, valves, and sensors.
Energy and Utilities – Provides extended control capabilities for power generation and distribution.
Whether you’re in factory automation, logistics, or utilities, the IC693CHS392K provides a cost-effective way to scale your PLC system without replacing the core infrastructure.
Advantages of Using the IC693CHS392K Expansion Base
The GE Fanuc IC693CHS392K has a number of advantages that make it an excellent solution for industrial automation:
✅ Scalability – Enables expansion of the PLC system with ease, without significant changes.
✅ Cost-Effective – Provides extra I/O slots without the need for a complete system upgrade.
✅ Seamless Integration – Has been designed to function with GE Fanuc Series 90-30 parts.
✅ Reliability – Constructed to handle the demands of harsh industrial conditions and provide long-term performance.
✅ Simple Maintenance – Modular construction simplifies repairs and replacements.
With these benefits, companies can streamline their automation systems to ensure they are efficient, flexible, and future-proof.
