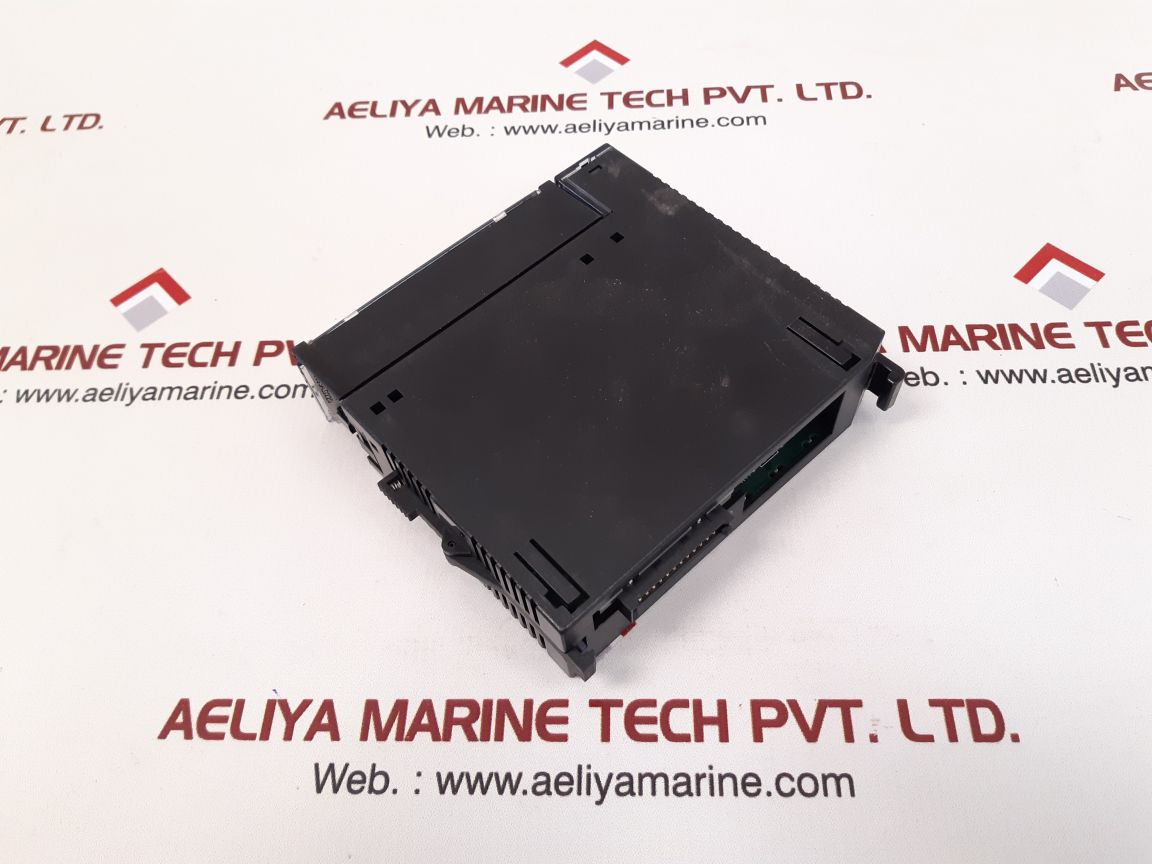

Ge fanuc ic693alg220g input analog module

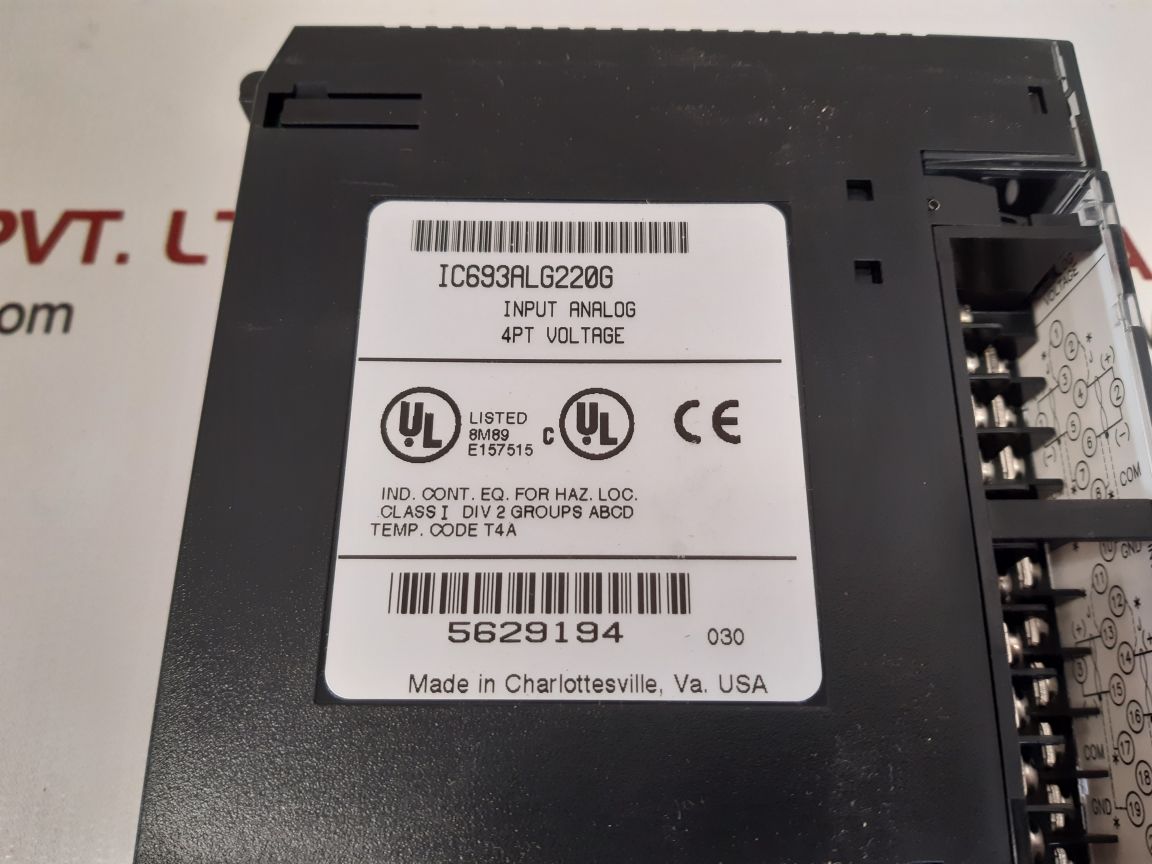

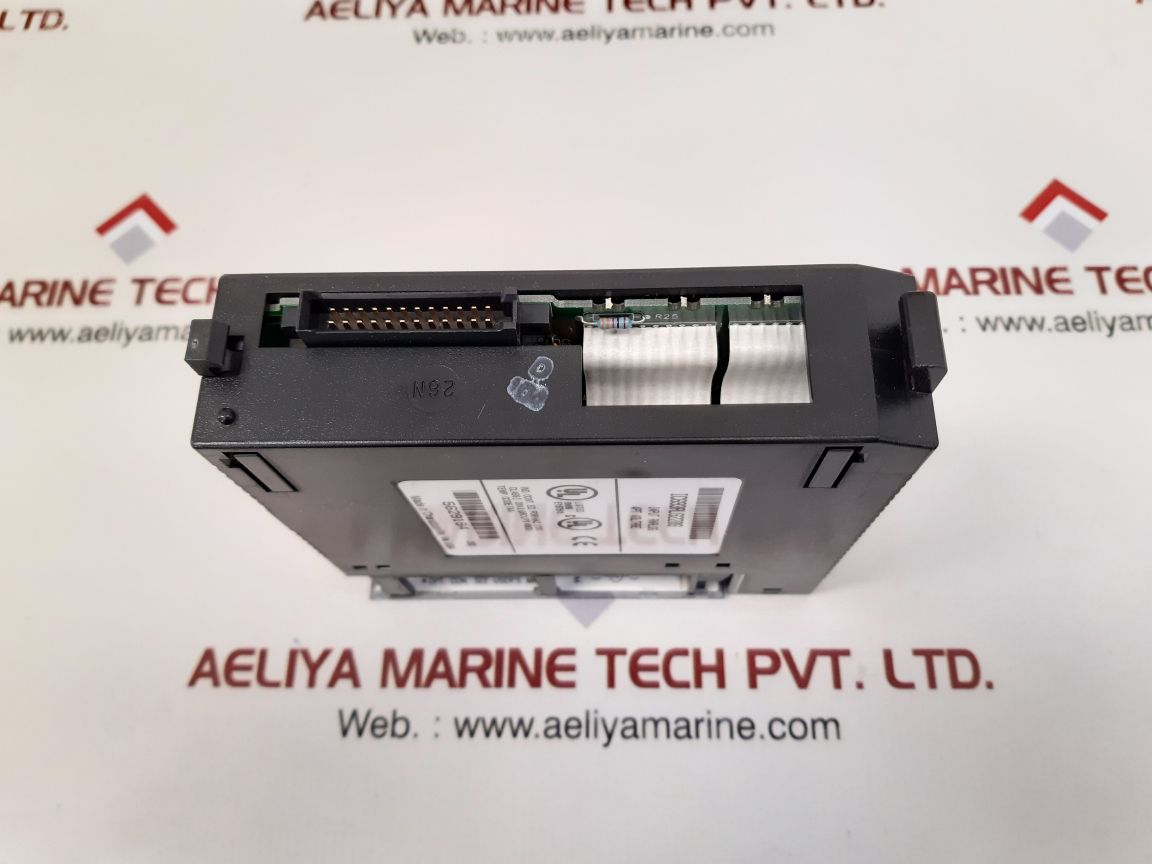

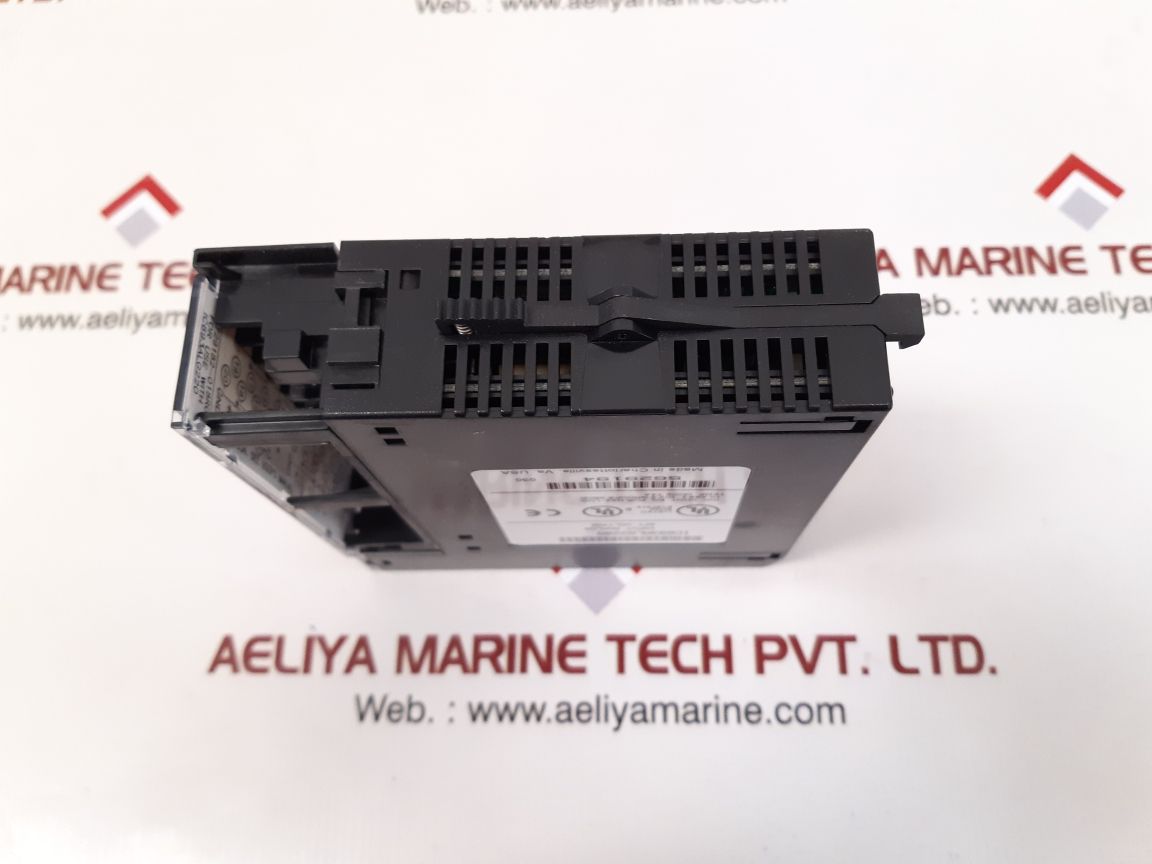

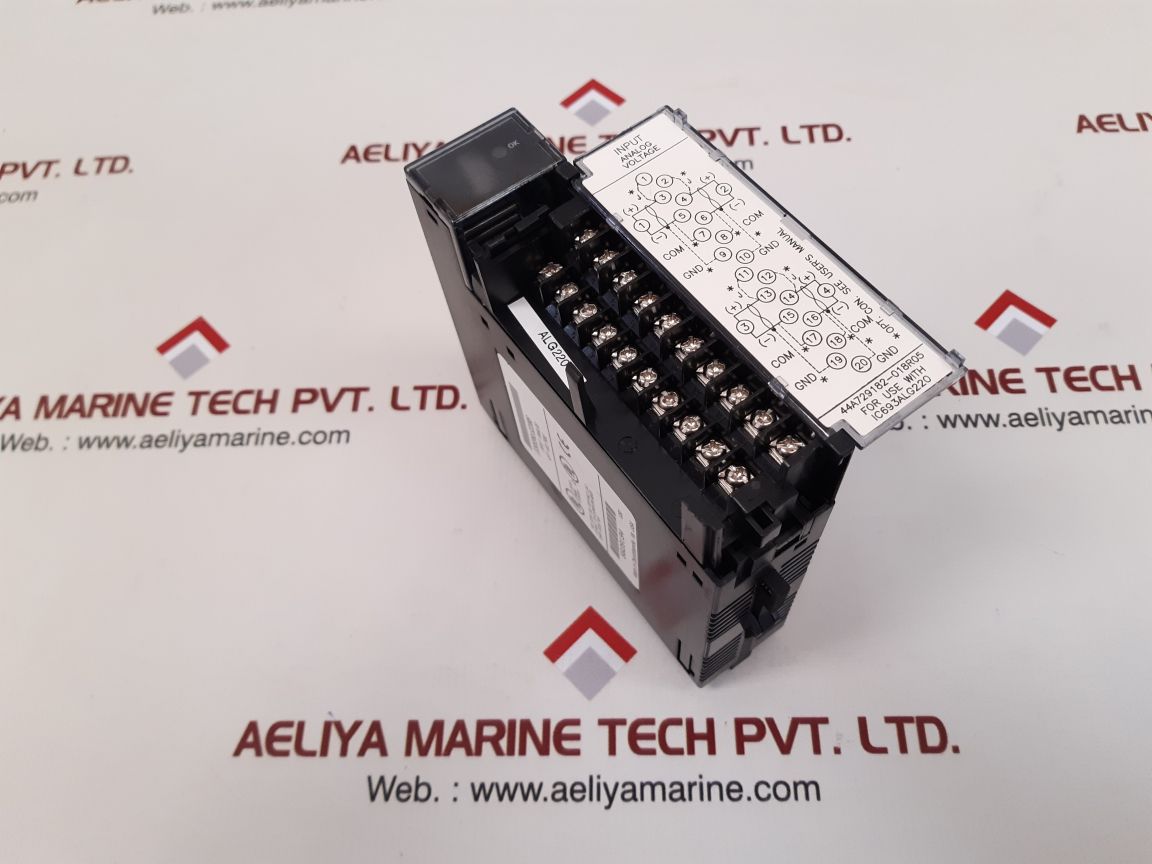

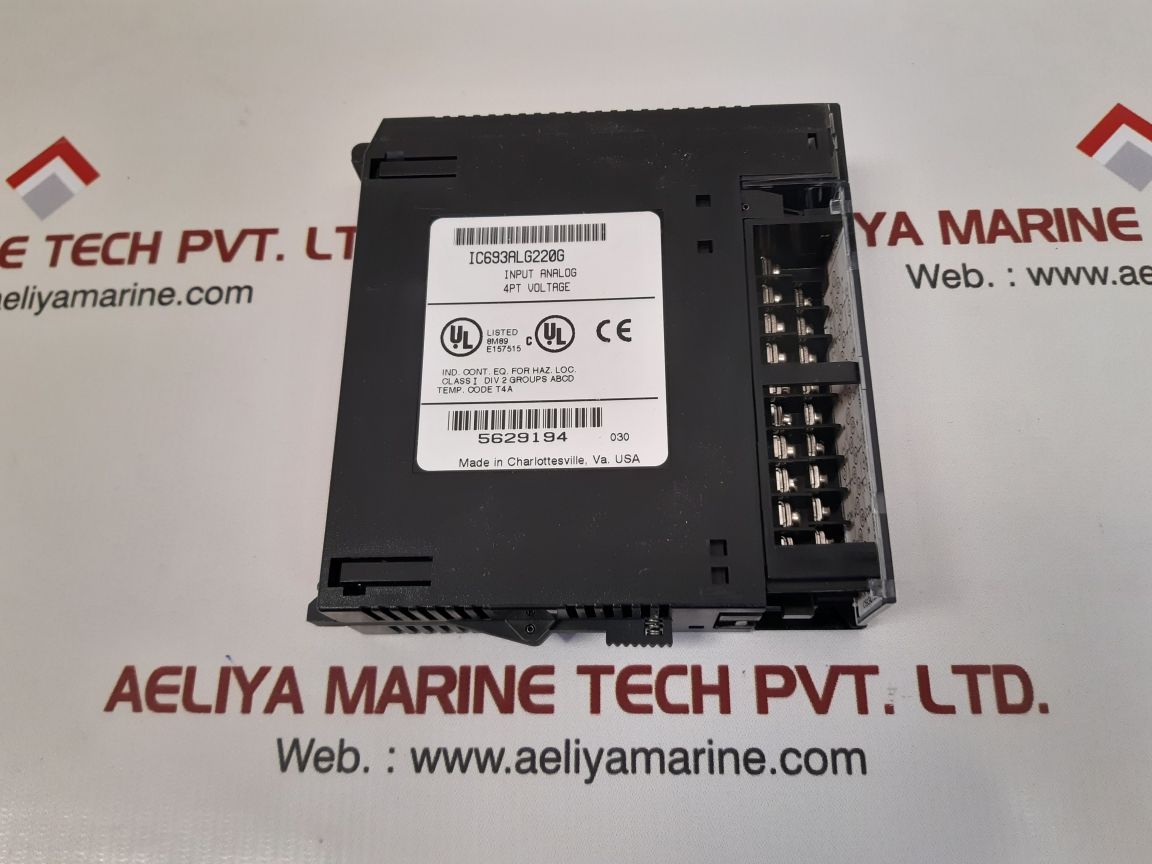

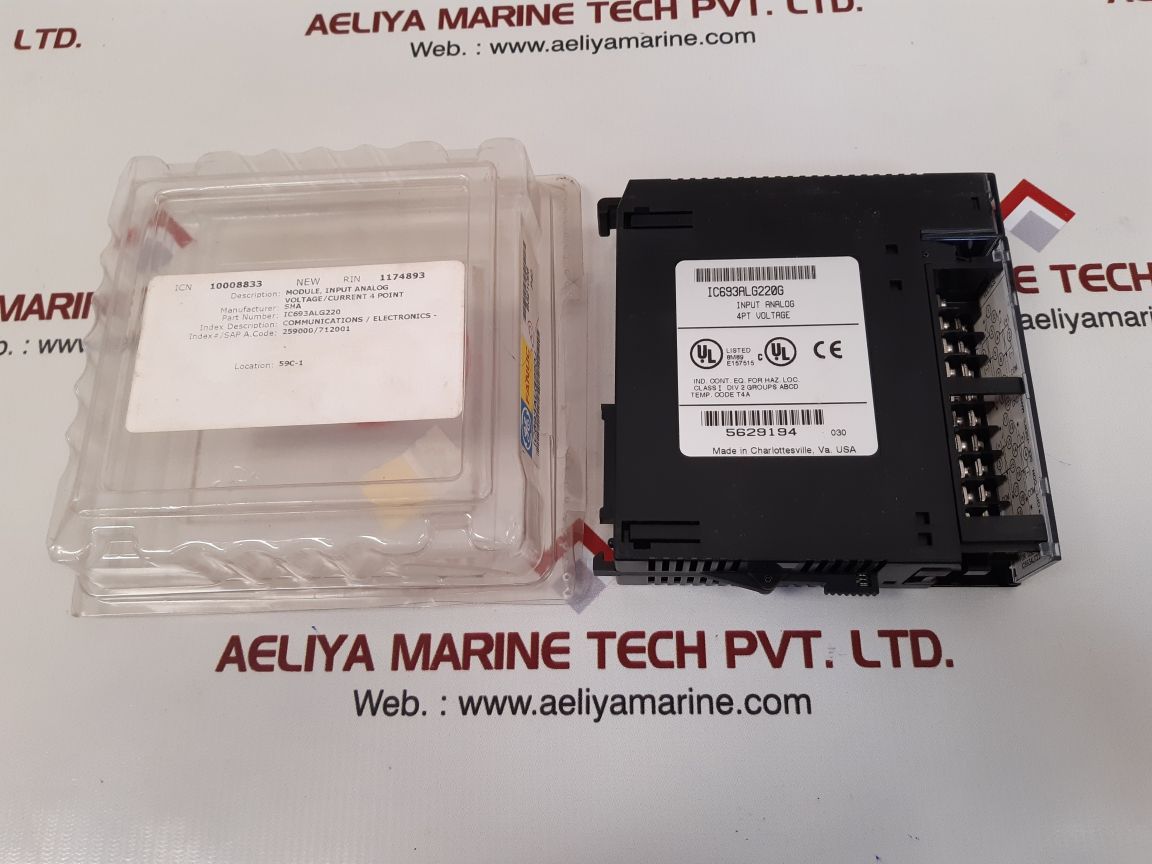

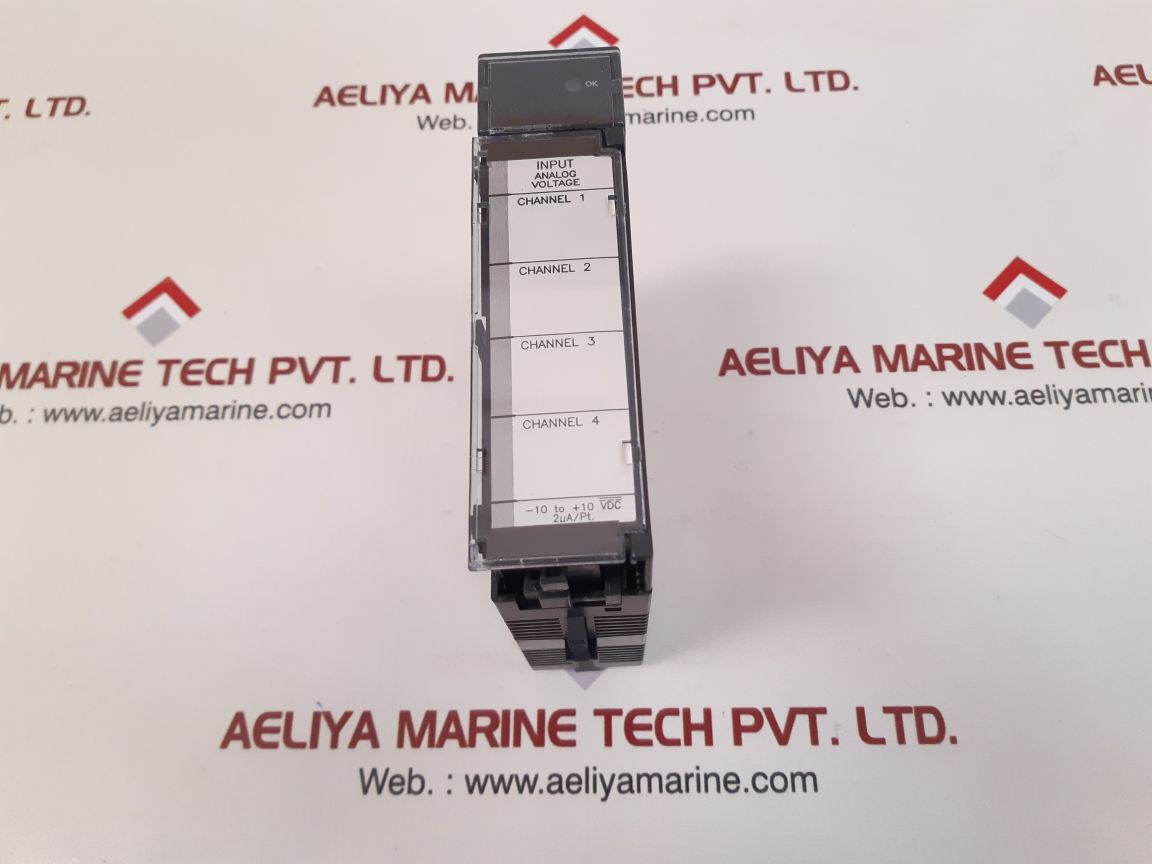

Overview of the GE Fanuc IC693ALG220G Analog Input Module

The IC693ALG220G is an 8-channel analog input module designed to be used in the GE Fanuc Series 90-30 PLCs. It accepts analog signals from sensors and other input devices and translates them into digital information that can be read by the PLC.

The module is compatible with current inputs and provides high accuracy, thus being suitable for use where accurate measurement of temperature, pressure, flow rate, and other physical parameters is called for.

Key Specifications

Input Channels: 8 (single-ended)
Input Type: 4-20mA current
Resolution: 12-bit
Power Requirements: 5V DC from the PLC backplane
Update Rate: 2ms per channel
Accuracy: ±0.1% of full scale
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Compatibility: GE Fanuc Series 90-30 PLCs

These specifications render the IC693ALG220G a fast and efficient solution for analog signal processing in industrial settings.

Features of the IC693ALG220G Module

High-Resolution Analog Inputs – With 12-bit resolution, the module provides precise signal conversion, which makes it ideal for applications requiring precision.

Wide Input Range – It is specifically designed to support 4-20mA signals, which means it can handle industrial sensors very well.

Fast Data Processing – The module has an update rate of 2ms per channel, which makes it ideal for real-time monitoring and control.

Easy Integration – It integrates well with GE Fanuc 90-30 PLCs, minimizing setup complexity.

Stable and Reliable Performance – It is designed to work under industrial conditions, thus ensuring durability and longevity.

Advantages of Using the GE Fanuc IC693ALG220G

✅ Increased Accuracy
12-bit resolution offers accurate data conversion, which is perfect for use in applications where accuracy is a must.

✅ Better Process Control
Through the conversion of analog signals to digital, the module enables PLCs to track and control processes in real time.

✅ Flexibility in Industrial Applications
Its tolerance to various sensors and capability to condition current signals (4-20mA) make the module a perfect option for industrial automation.

✅ Economical Option
Rather than using a range of input devices, industries can make use of this single module to condition multiple signals at reasonable costs.

✅ Long-Term Performance
Designed for rugged industrial environments, the IC693ALG220G can be used with long-term reliability with less upkeep.

Applications of the IC693ALG220G Module

The IC693ALG220G is utilized extensively in analog signal processing industries. Some of the major applications are:

1. Manufacturing Automation
It is utilized in assembly lines and industrial automation systems for monitoring and controlling temperature, pressure, and speed.

2. Water Treatment Plants
The module plays a pivotal role in the monitoring of water quality parameters like pH levels, turbidity, and flow rate.

3. Energy Management Systems
The module allows for real-time monitoring of power usage, voltage, and current levels, enhancing efficiency.

4. HVAC Systems
It provides accurate temperature and humidity control and is hence critical in climate-controlled spaces.

5. Food & Beverage Industry
The IC693ALG220G is involved in monitoring key parameters such as temperature and pressure within food factories.
