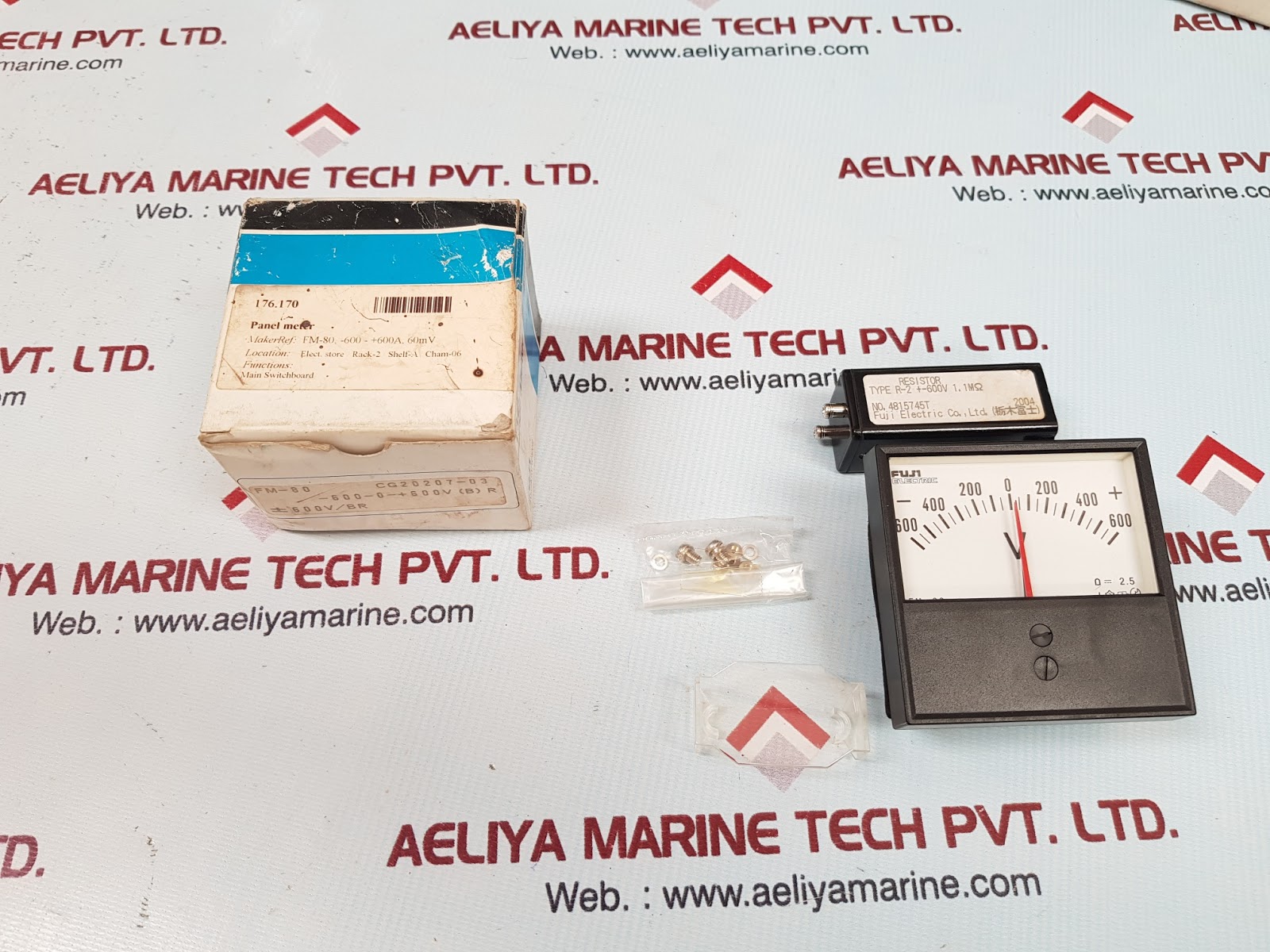

| Attribute | Value |
|---|---|
| Manufacturer | Fuji Electric Co., Ltd |
| Type | R-2 ±600V 1.1MΩ |
| Model Number | FM-80 |
| Serial Number | 4815745T |
| Measurement Type | DC Voltmeter |
| Full Scbale | ±0.5mA ±50V |
| Extebrnal Resistor Type | R-2 |
| External Resistor Serial Number | 4815745T |
| Panel Meter | Maker Ref: FM-80, -600 – +600A.60mV |
| Model Reference | FM-80 CG20207-03 |
| Voltage Range | -600 – 0 – +600V (B) R |
| Voltage Specification | ±600V/BR |
| Weight | 170 gm |

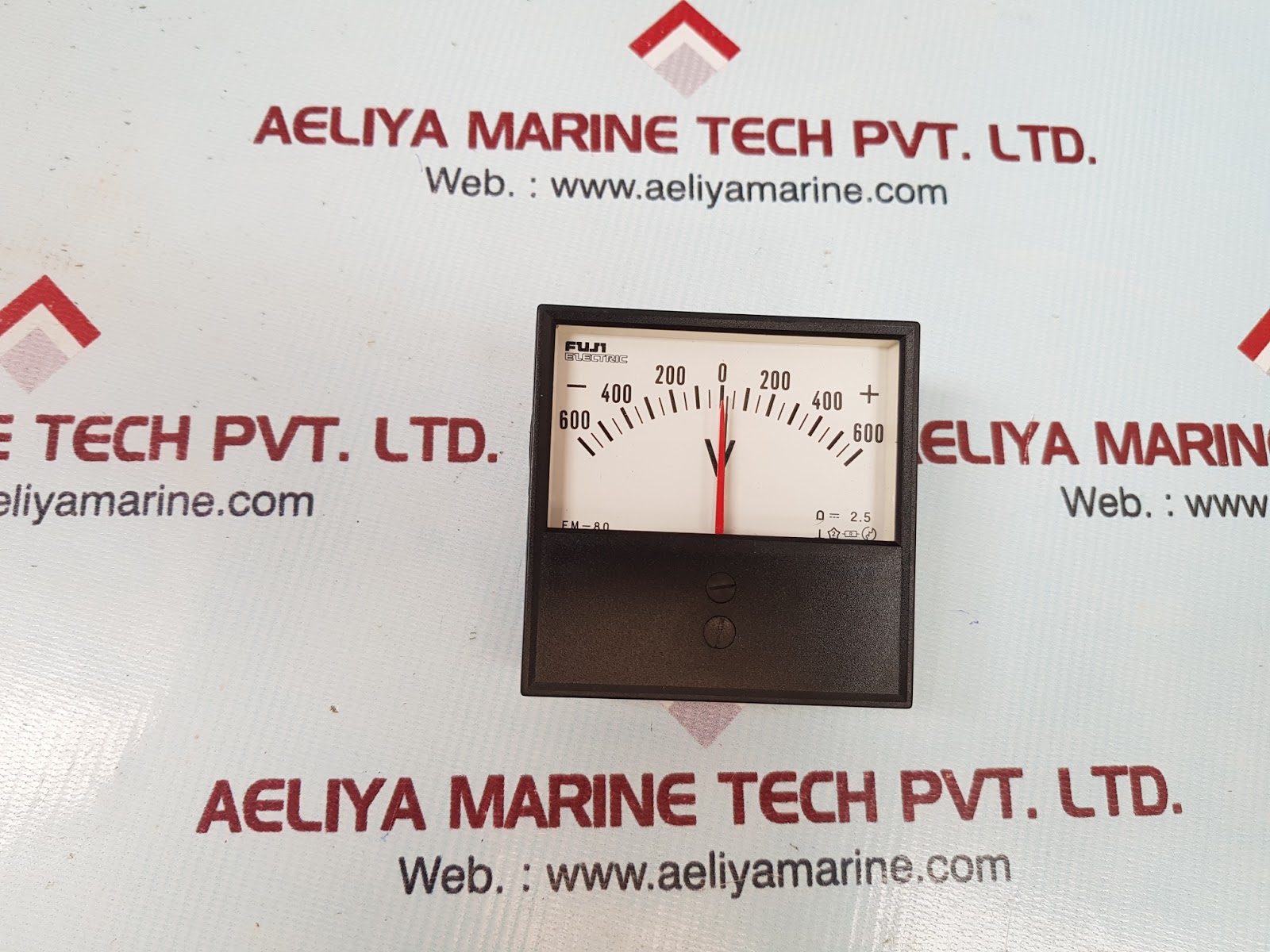

What is the Fuji FM-80 DC Volt Meter?
The Fuji FM-80 is a high-precision DC volt meter that is specifically used to measure direct current (DC) voltage with a high degree of accuracy. Produced by Fuji Electric, a renowned electrical measurement device company, the meter is intended to provide stable, accurate, and consistent voltage measurements.
Among its most important elements is the R-2 resistor, whose importance lies in enhancing measurement accuracy and stability. Its inclusion means that the reading is always trustworthy even in a place where voltage variation is rampant.
Main Characteristics of the Fuji FM-80 DC Volt Meter
The Fuji FM-80 DC Volt Meter is unique for its high level of performance as well as durable construction. Among its most defining features are:
✅ High Accuracy – Offers accurate voltage measurements, which is perfect for delicate electrical work.
✅ Stable Readings – The addition of the R-2 resistor helps improve stability, minimizing measurement fluctuations.
✅ Durable Construction – Constructed with high-quality materials to ensure durability and be able to handle harsh environments.
✅ Wide Measurement Range – Can measure different voltage levels, which makes it versatile for various applications.
✅ Easy to Read Display – Specifically designed with clear markings and indicators for easy and quick voltage readings.
✅ Compact Design – Light and portable, making it easy to use in the field.
Technical Specifications
Below are the common technical specifications of the Fuji FM-80 DC Volt Meter:
Model: Fuji FM-80
Measurement Type: DC Voltage
Voltage Range: 0-80V DC (model dependent)
Accuracy: ±0.5% (dependent on conditions of usage)
Display Type: Analog/Digital (version dependent)
Resistance: Equipped with R-2 Resistor
Power Source: Self-powered (through measured circuit)
Operating Temperature: -10°C to 50°C
Dimensions: Small for convenient installation
Weight: Light for convenient handling
How Does the Fuji FM-80 Work?
The Fuji FM-80 DC Volt Meter works by measuring the potential difference (voltage) between two points within an electrical circuit. The R-2 resistor within the meter serves to regulate and stabilize the voltage reading, avoiding excessive fluctuation.
When it is plugged into a circuit, the meter permits a predetermined level of current to flow through its internal circuits. The voltage is indicated on the analog or digital dial, depending on the model. The precision of the Fuji FM-80 guarantees low error, and it is thus very reliable for use in industrial, laboratory, and field settings.
Applications of Fuji FM-80 DC Volt Meter
The Fuji FM-80 DC Volt Meter with R-2 Resistor is applied across many industries because of its accuracy and dependability. Some of its general uses are:
Electrical Testing & Maintenance – Employed by electricians and technicians to test and service electrical circuits.
Industrial Automation – Used to monitor voltage levels in industrial machinery and control panels.
Automotive Diagnostics – Critical for testing battery voltage, alternators, and electrical components in cars.
Power Supply Monitoring – Utilized in power plants and laboratories for stable voltage output.
Educational Labs – Suitable for learning and research applications in physics and engineering laboratories.
Why Opt for the Fuji FM-80 DC Volt Meter?
There are numerous volt meters in the market, but Fuji Electric has earned a reputation for producing reliable and long-lasting equipment. Here’s why the Fuji FM-80 is the best:
✔ Accuracy Engineering – High-quality electrical measuring instruments are made by Fuji Electric.
✔ Durability – Highly durable, even in extreme environments.
✔ Ergonomic Design – Simple to use, with crisp markings and correct readings.
✔ Professional Trust – Used extensively in industrial, business, and academic environments.
✔ Value for Money – Provides reliability over the long term, so it is cost-effective.
