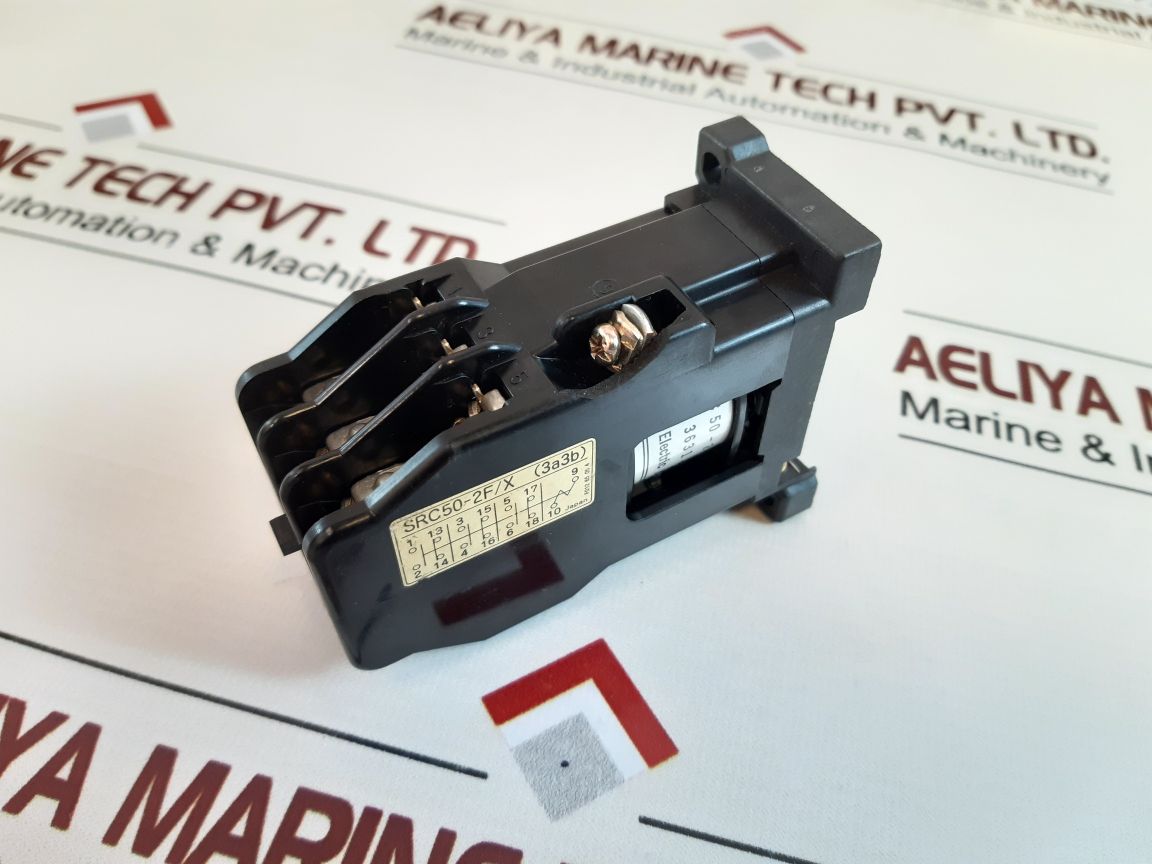

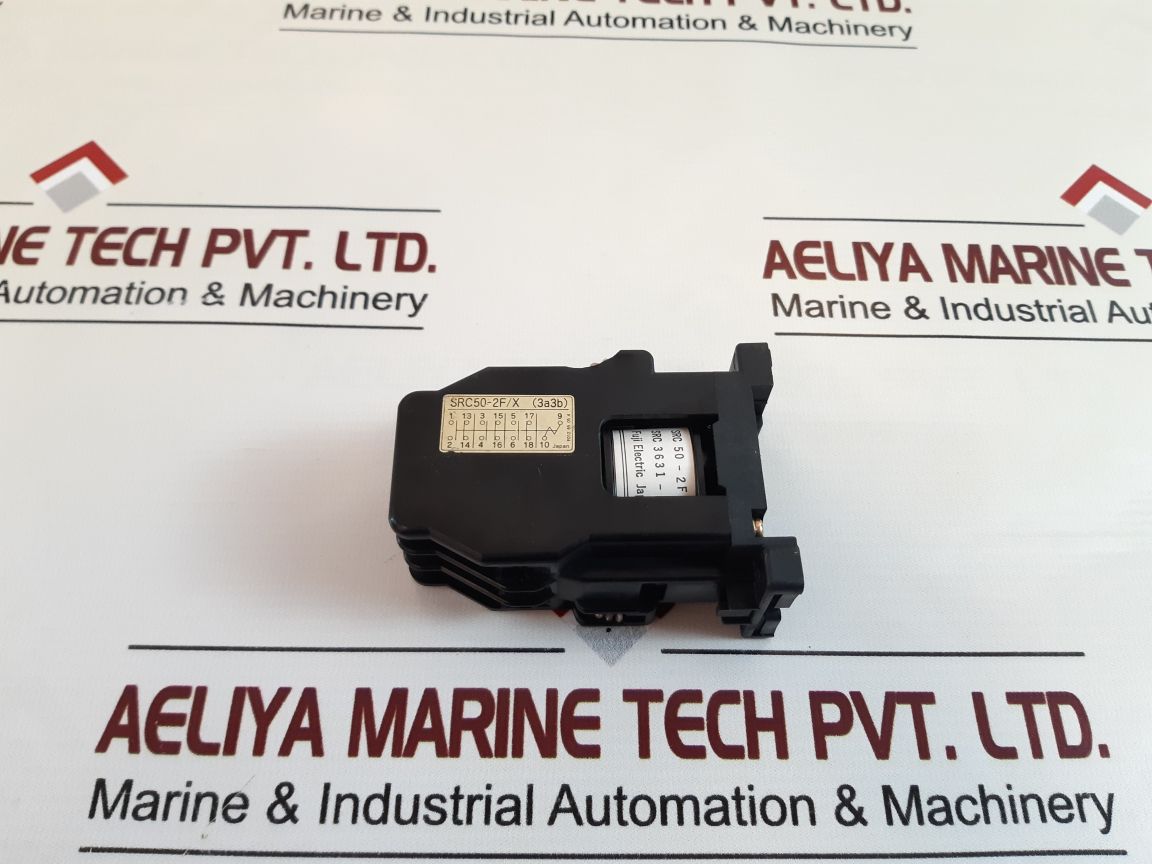

FUJI ELECTRIC SRC50-2F/X AUXILIARY RELAY
FUJI ELECTRIC
SRC50-2F/X (3A3B)
F012 65 05 4
SRC 3631-02

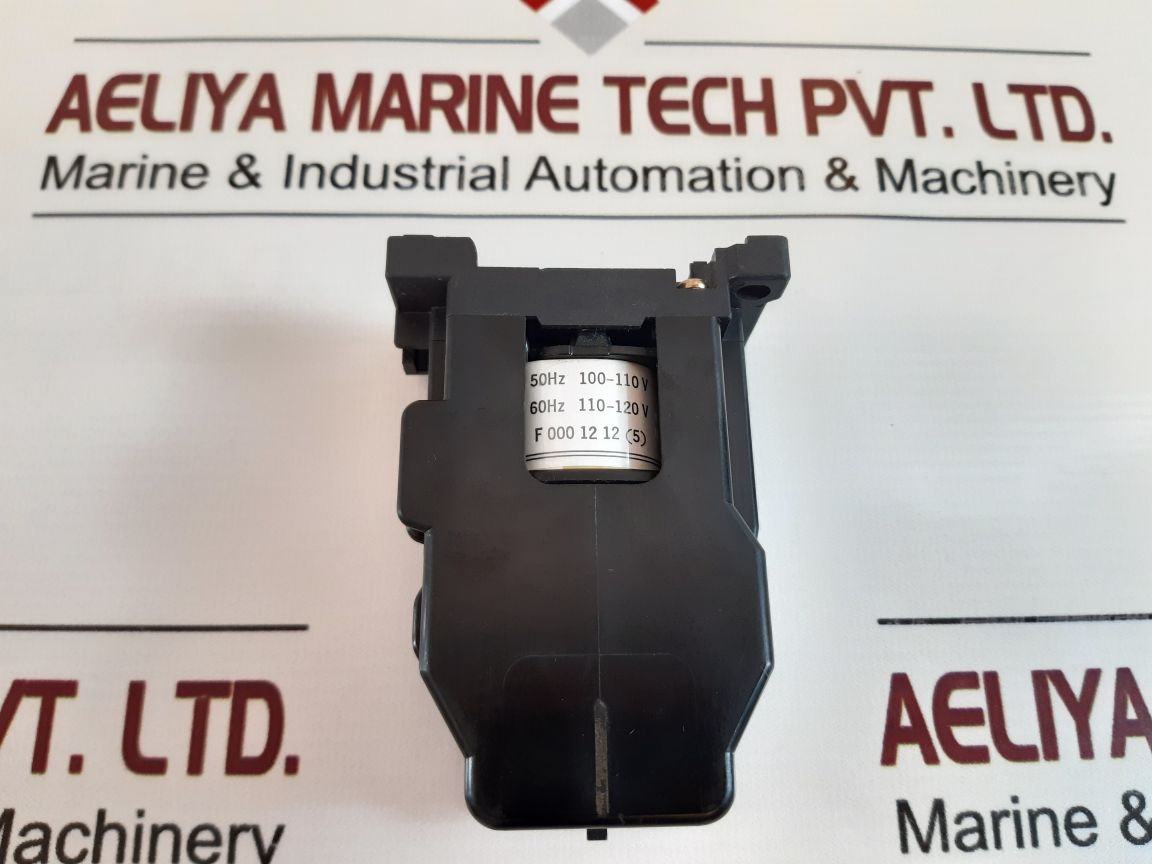

100-110V 50HZ
110-120V 60HZ
JAPAN
WEIGHT : 250 GM
REF NO : 52026
How it Works: The FUJI ELECTRIC SRC50-2F/X (3A3B) AUXILIARY RELAY operates by providing auxiliary switching capabilities in electrical circuits. It functions as an intermediate relay, allowing control signals to activate or deactivate larger electrical loads. When an external control signal is applied, this relay effectively bridges the gap between the control circuit and the load, ensuring precise and reliable switching.
When to Use: This auxiliary relay is ideal for use in various electrical and industrial applications where reliable switching and control of electrical loads are required. It can be employed in scenarios where you need to isolate or control different electrical circuits, making it a versatile choice for automation, control systems, and equipment protection.
Where to Use: You can use the FUJI ELECTRIC SRC50-2F/X (3A3B) AUXILIARY RELAY in a wide range of settings, including:
- Industrial automation systems
- Manufacturing processes
- Motor control applications
- Power distribution panels
- HVAC systems
- Control cabinets
How to Use: Using the SRC50-2F/X auxiliary relay is straightforward:
- Connect the control signal to the appropriate input terminals.
- Connect the load you want to control to the output terminals.
- Apply power within the specified voltage ratings.
- When the control signal is activated, the relay will switch the load accordingly.
Key Features and Benefits:
- 3A3B Configuration: This relay offers three normally open and three normally closed contact positions, providing flexibility in controlling multiple loads.
- Wide Voltage Compatibility: It can operate on both 50Hz and 60Hz power sources, making it adaptable to various regions.
- Reliable Performance: FUJI ELECTRIC’s reputation for quality ensures dependable and consistent relay operation.
- Compact Design: Its lightweight and compact size make it easy to integrate into control panels and cabinets.
- Japanese Engineering: Manufactured in Japan, it adheres to strict quality standards, ensuring longevity and performance.
In conclusion, the FUJI ELECTRIC SRC50-2F/X (3A3B) AUXILIARY RELAY is a dependable and versatile electrical component suitable for a wide range of applications. With its robust construction, wide voltage compatibility, and multiple contact configurations, it provides reliable auxiliary switching and control, making it an essential choice for engineers and professionals in the electrical and industrial sectors.
