Fuji Electric Fkct36v5akcyyaa Pressure Transmitter 28 V

Fuji Electric Fkct36v5akcyyaa Pressure Transmitter 28 V
Fuji Electric France S.A.S.

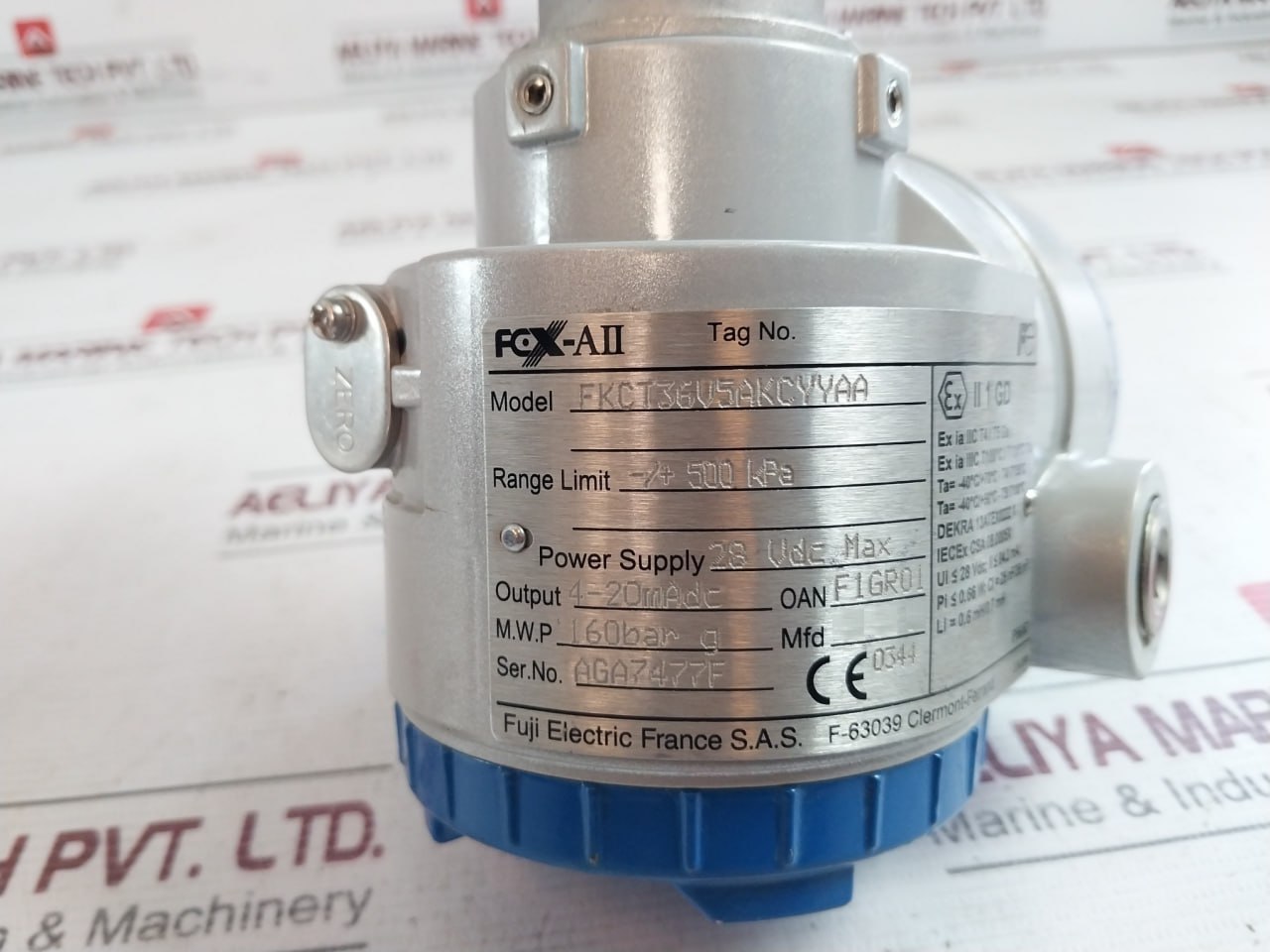

Fcx-Aii
Model: Fkct36v5akcyyaa
Range Limit: -/+ 500 Kpa
Power Supply: 28 Vdc Max
Output: 4-20madc
M.W.P.: 160bar G
Oan: F1gr01

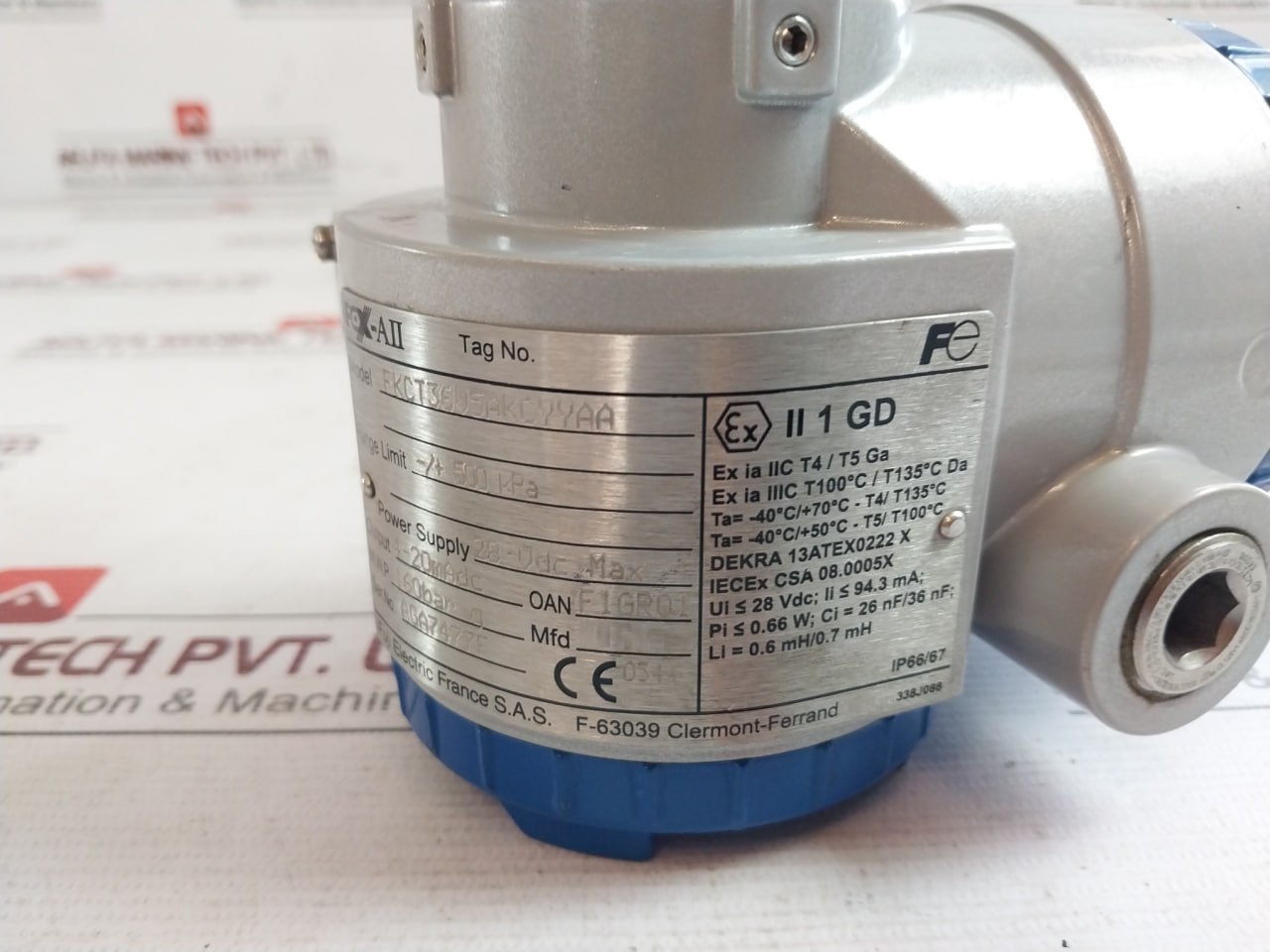

Ii 1 Gd
Ex Ia Iic T4/T5 Ga
Ex Ia Iiic T100˚C/T135˚C Da
Ta= -40˚C/+70˚C – T4/T135˚C
Ta= -40˚C/+50˚C – T5/T100˚C
Dekra 13atex0222 X
Iecex Csa 08.0005x
Ui: 28vdc; Li: 94.3ma;
Pi: 0.66w; Ci= 26nf/36nf;
Li= 0.6mh/0.7mh
Ip66/67
338j088
Range: 5
M.W.P.: 3
Fill: Sil.5
Matl: Sus
No.: 5557659
Calibration Data:
Type: Fkct36v5
Range: -1…4 Bar
Output: 4-20ma
Weight : 3.720 Kg
Ref No : 168982
