Foxboro 5906-1 Sensor Segment

Foxboro 5906-1 Sensor Segment
Foxboro Canada Inc.
A Siebe Company
Niagara Plastics Co.

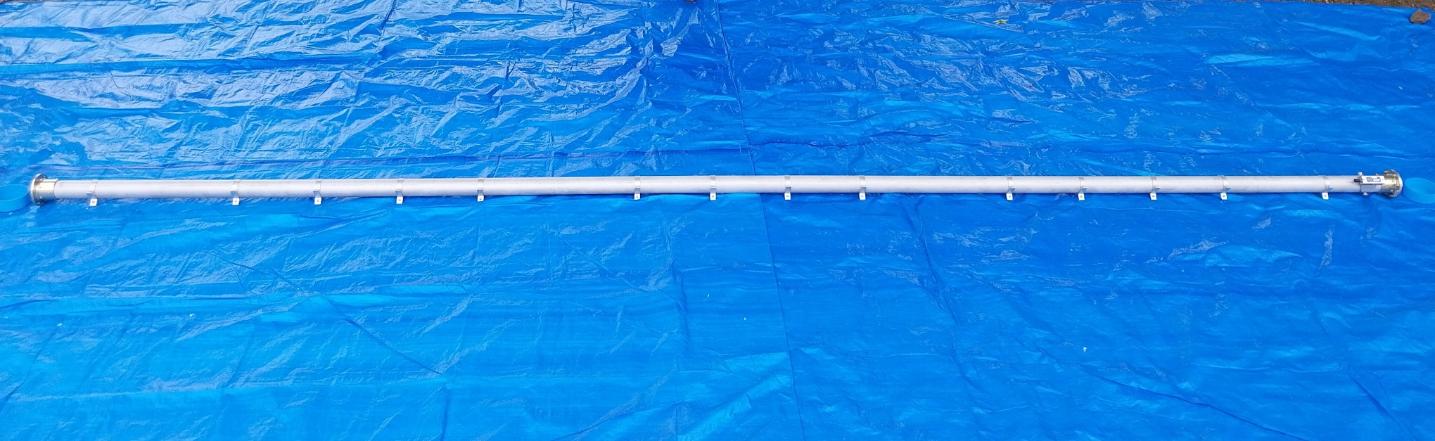

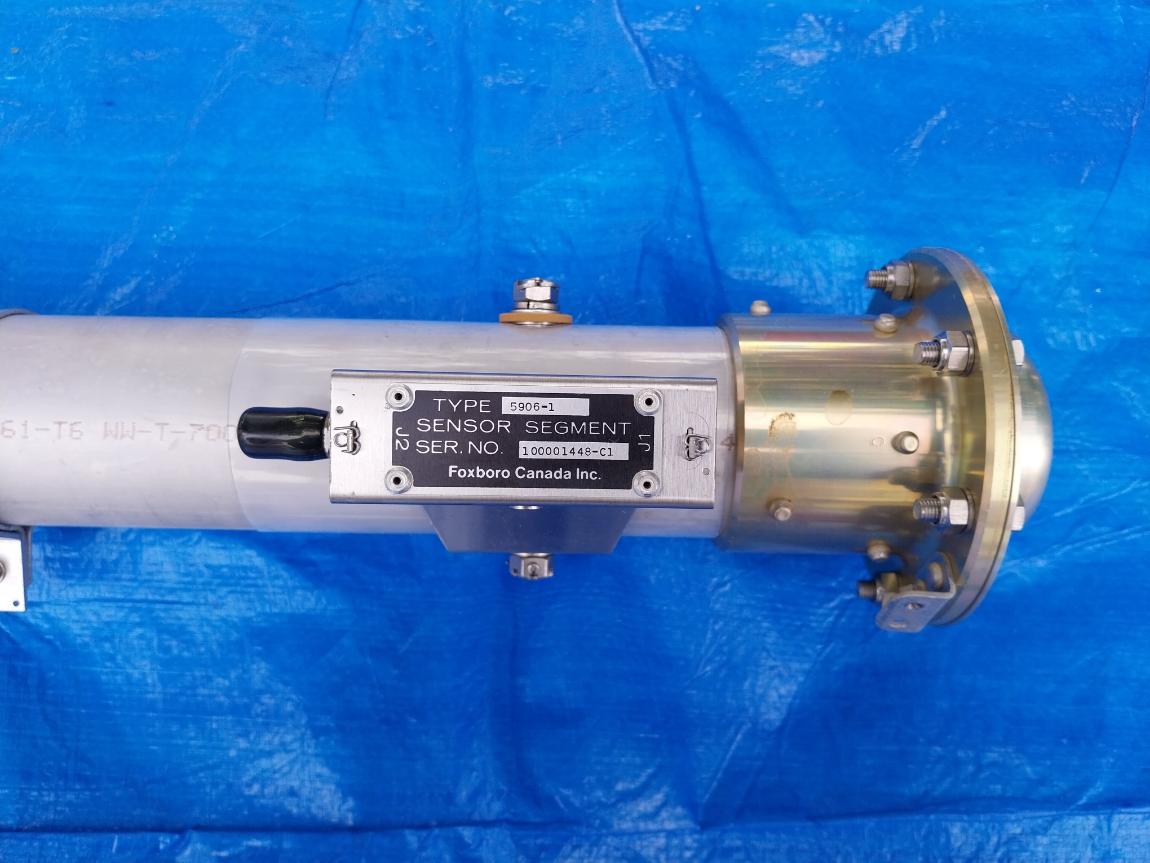

Sensor Segment
Type/Model: 5906-1
Alcda-L Seamless 6061-T6 Ww-T-700/6
2.500 Od X .065 Wall
Part No: L8005yp
Order No.: M01-82795/1770
C/R/Hull No: H-1207
Dimensional: Specified Length: 197.554 Tol. +/- .015
Actual Length: 197.552
Deviation: -.002
Dwg .No: 18004rf
Rev: H

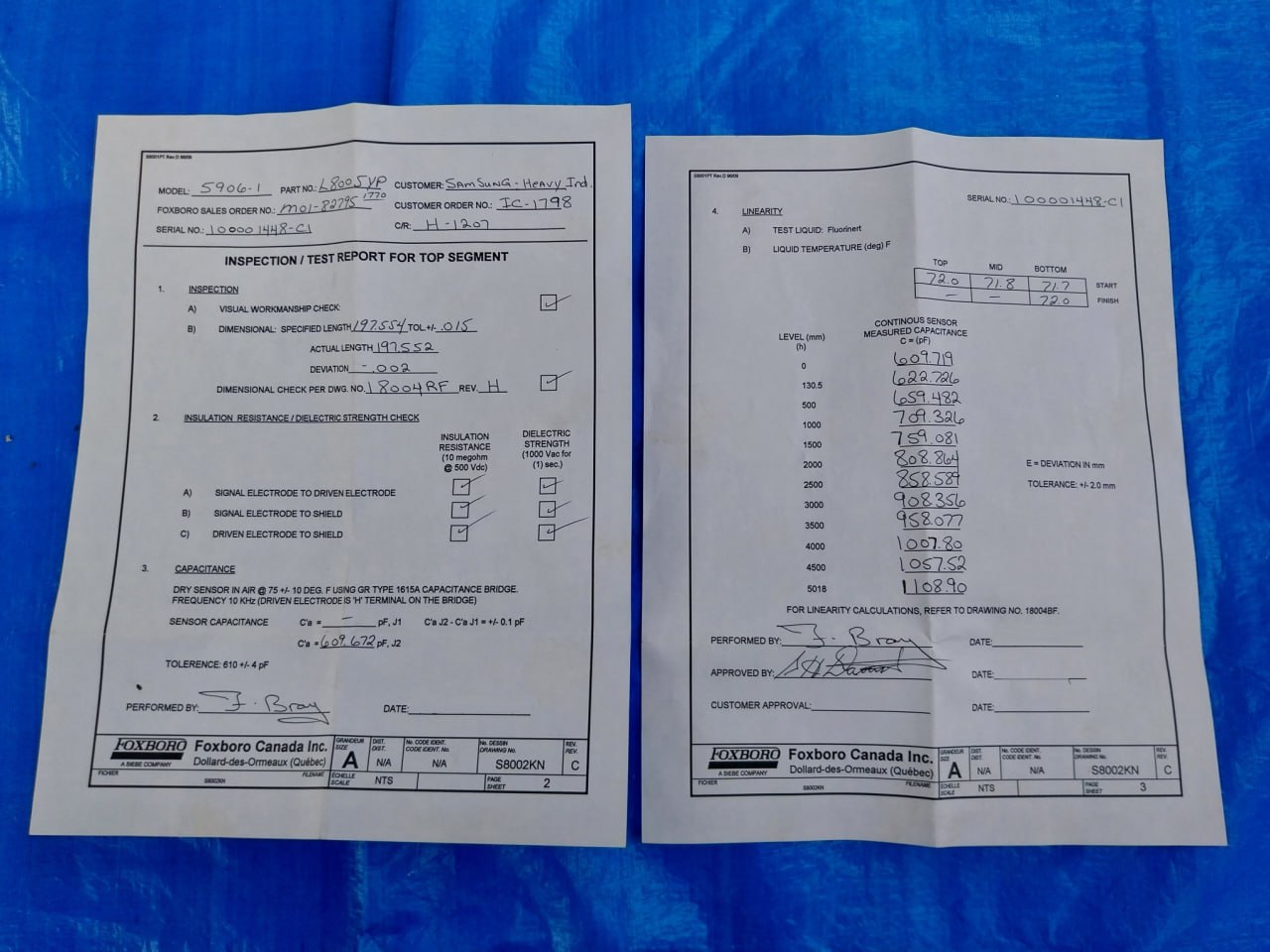

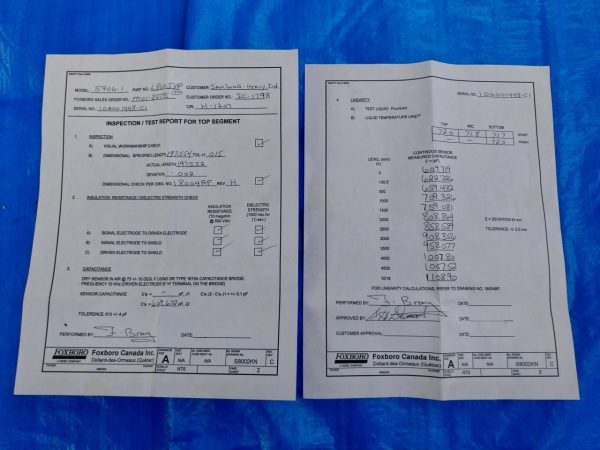

Insulation Resistance/Dielectric Strength Check:
Signal Electrode To Driven Electrode/ Signal Electrode To Shield/ Driven Electrode To Shield:
Insulation Resistance (10 Megohm @ 500 Vdc
Dielectric Strength (1000 Vac For (1) Sec.)
Capacitance:
Dry Sensor In Air @ 75+/-10 Deg. F Using Gr Type 1615a Capacitance Bridge.Frequency 10 Khz (Driven Electrode Is ‘H’ Terminal On The Bridge)
Sensor Capacitance: C’A=609.672 Pf, J2
Tolerence/Tolerance: 610 +/-4 Pf
Drawing No: S8002kn
Rev: C
Size: A
Scale: Nts
E=Deviation In Mm
Tolerance: +/-2.0 Mm
Drawing No: 18004bf

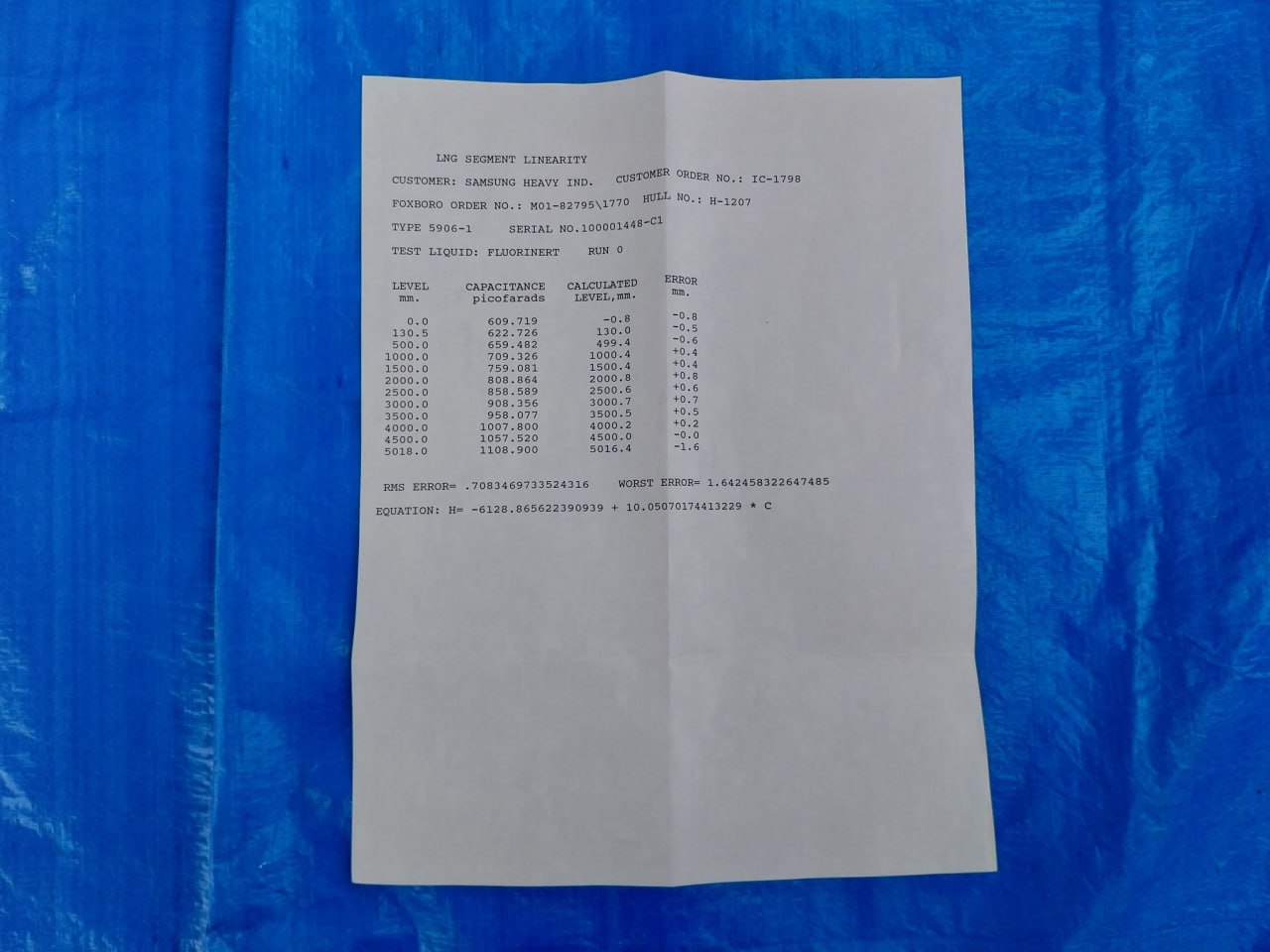

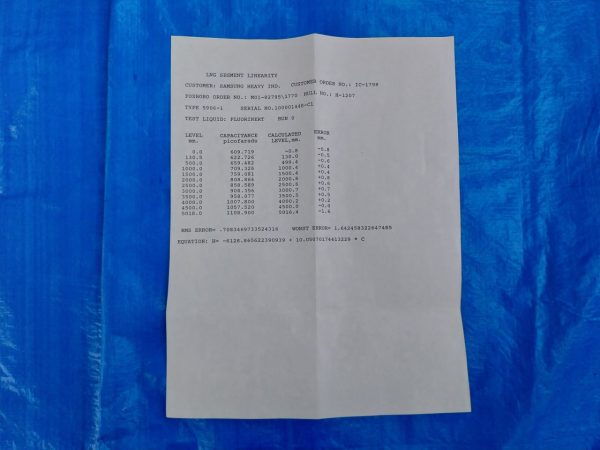

Lng Segment Linearity
Desc: Wire
Part No: B0134kp
Quan: 1.5m
F.O.No: F52973
Nut, Fujilock
L8007fx
Washer, Lock
L8001ca
Screw, 1/4-28
L8007qc

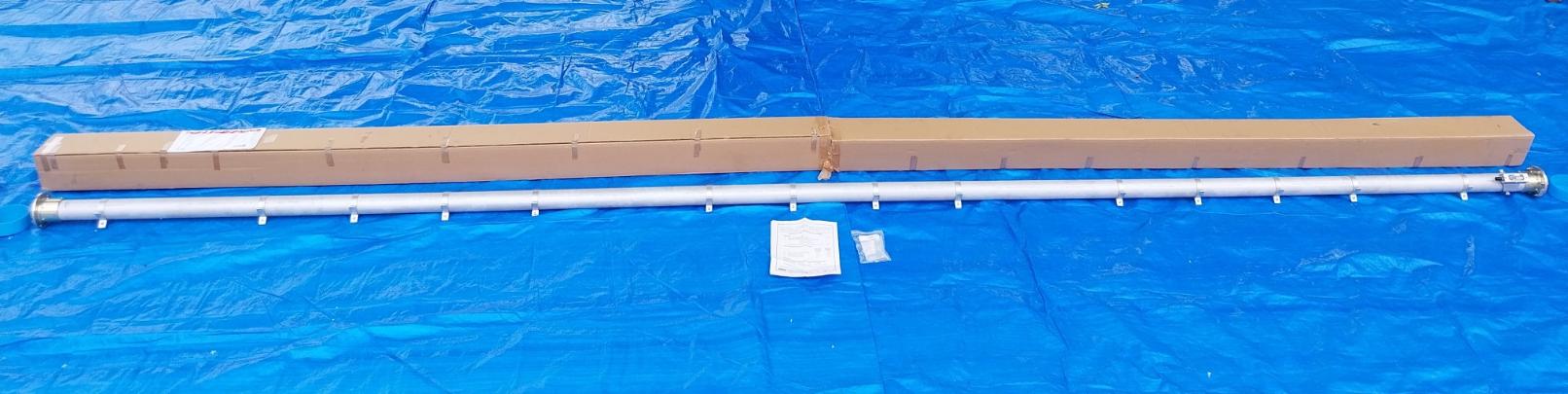

Kit, Segment
L8006nw

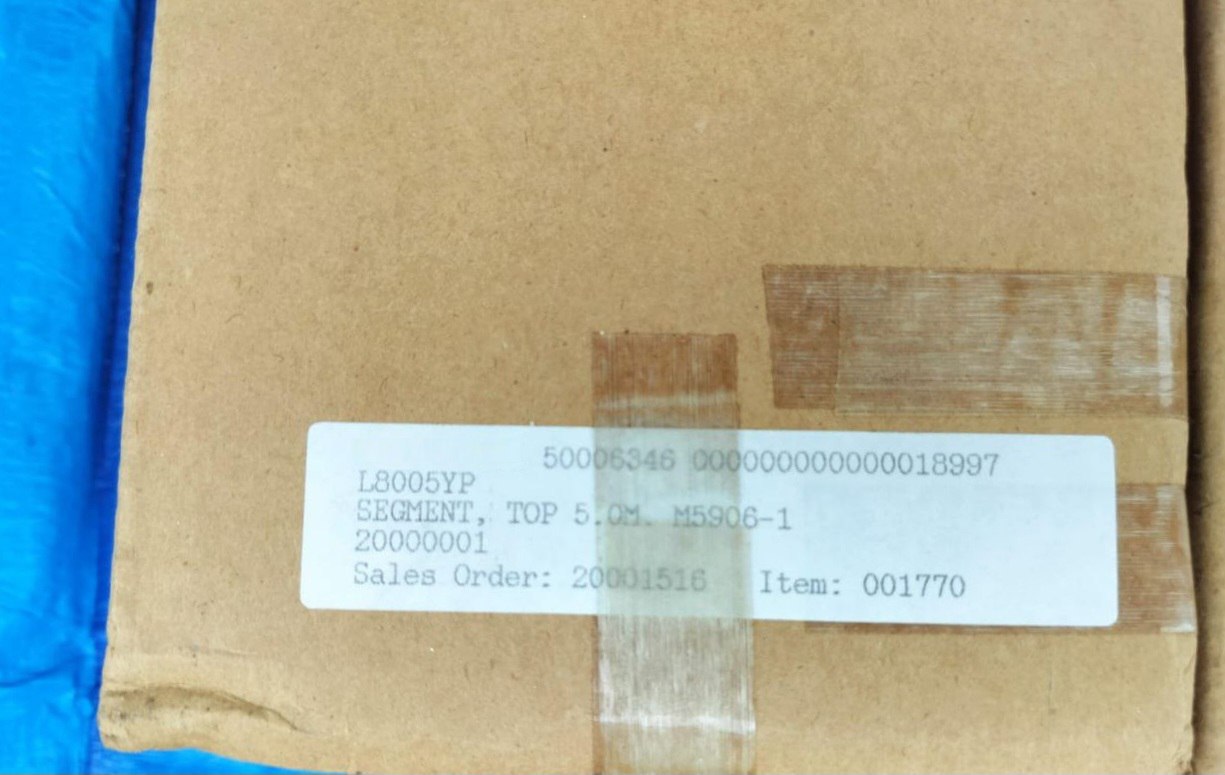

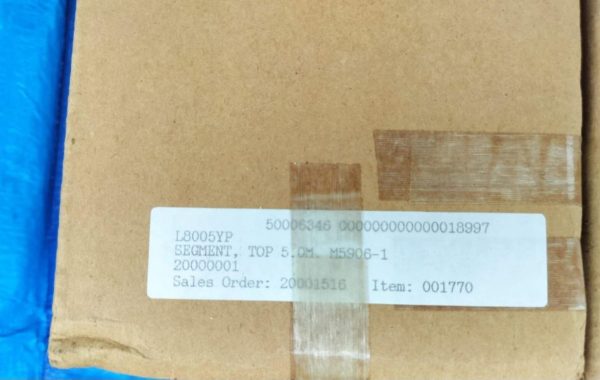

50006346 000000000000018997
Top 5.0m. M5906-1
20000001
Item: 001770
Ce-320
4”-Npt
Weight : 11.700 Kg
Ref No : 179483
