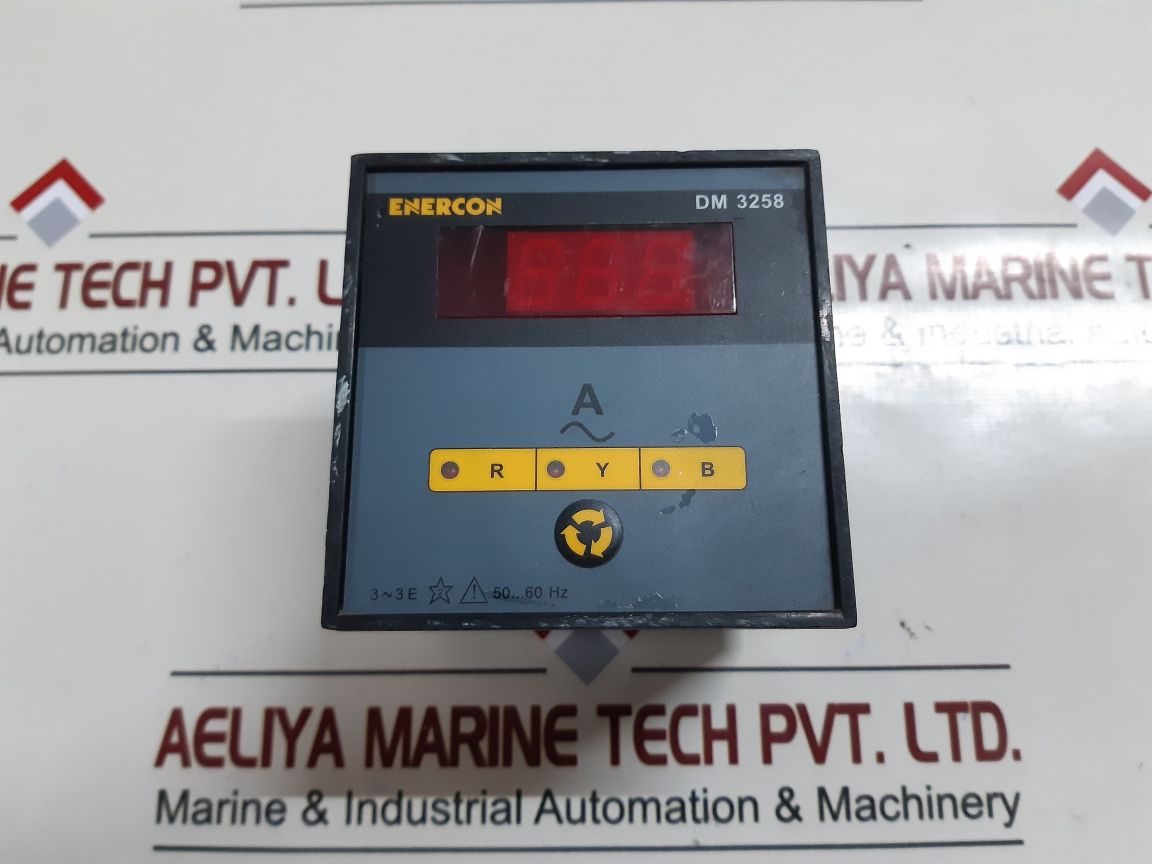

ENERCON DM 3258 DIGITAL PANEL METER 50…60HZ
ENERCON
DM 3258
3~3E
50…60HZ

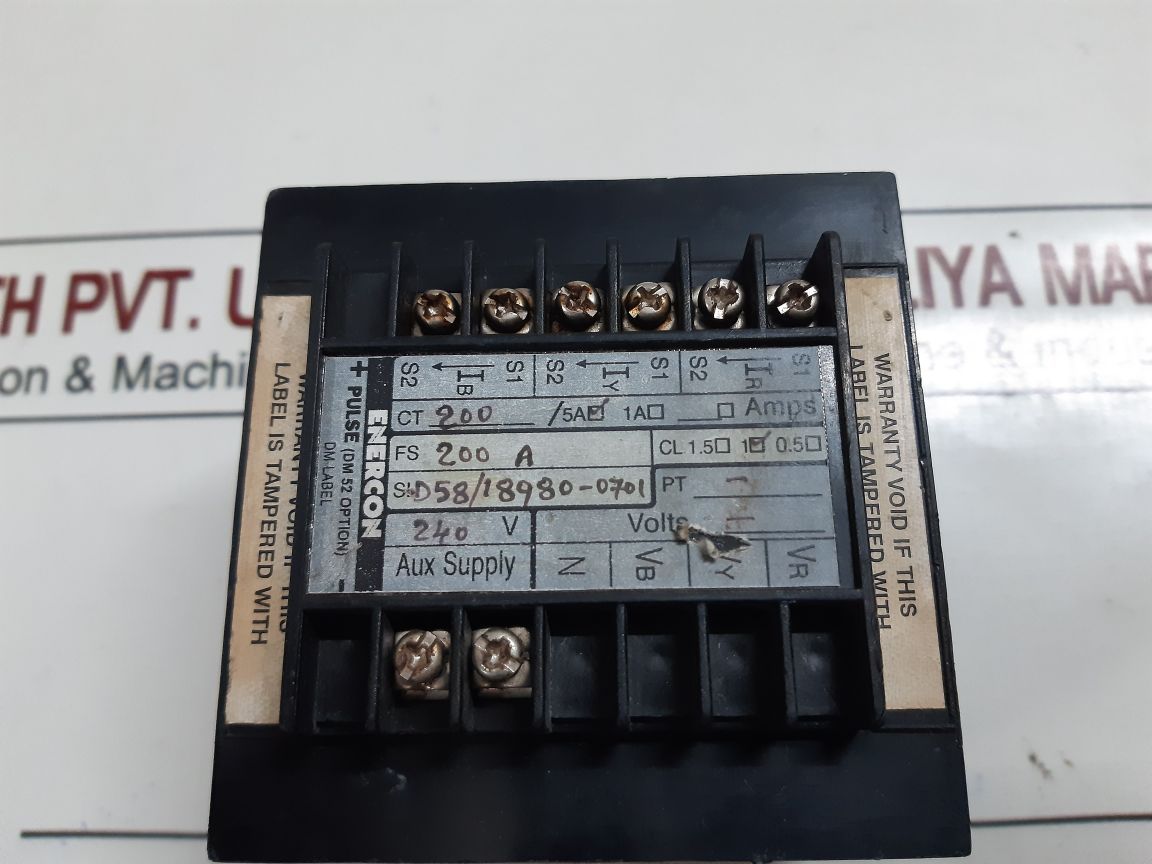

CT 200/5A
CL 1
FS 200 A
SL D58/18980-0701
AUX. SUPPLY 240V
WEIGHT: 330 GM
REF NO : 40430
How it Works: The DM 3258 Digital Panel Meter operates by connecting to a current transformer (CT) with a ratio of 200/5A, allowing it to accurately measure current levels. It is specifically designed for 3-phase electrical systems with a voltage range of 50 to 60Hz. The meter processes the electrical signals and displays the readings on its digital panel, providing real-time data on current levels.
When to Use: This product is ideal for applications where precise measurement and monitoring of electrical current in 3-phase systems are essential. It is commonly used in industrial and commercial settings to ensure optimal power management, equipment protection, and compliance with electrical standards.
Where to Use: The DM 3258 Digital Panel Meter finds its utility in various industrial environments, including manufacturing facilities, power distribution centers, and control rooms, where accurate current measurements are crucial for operational efficiency and safety.
How to Use:

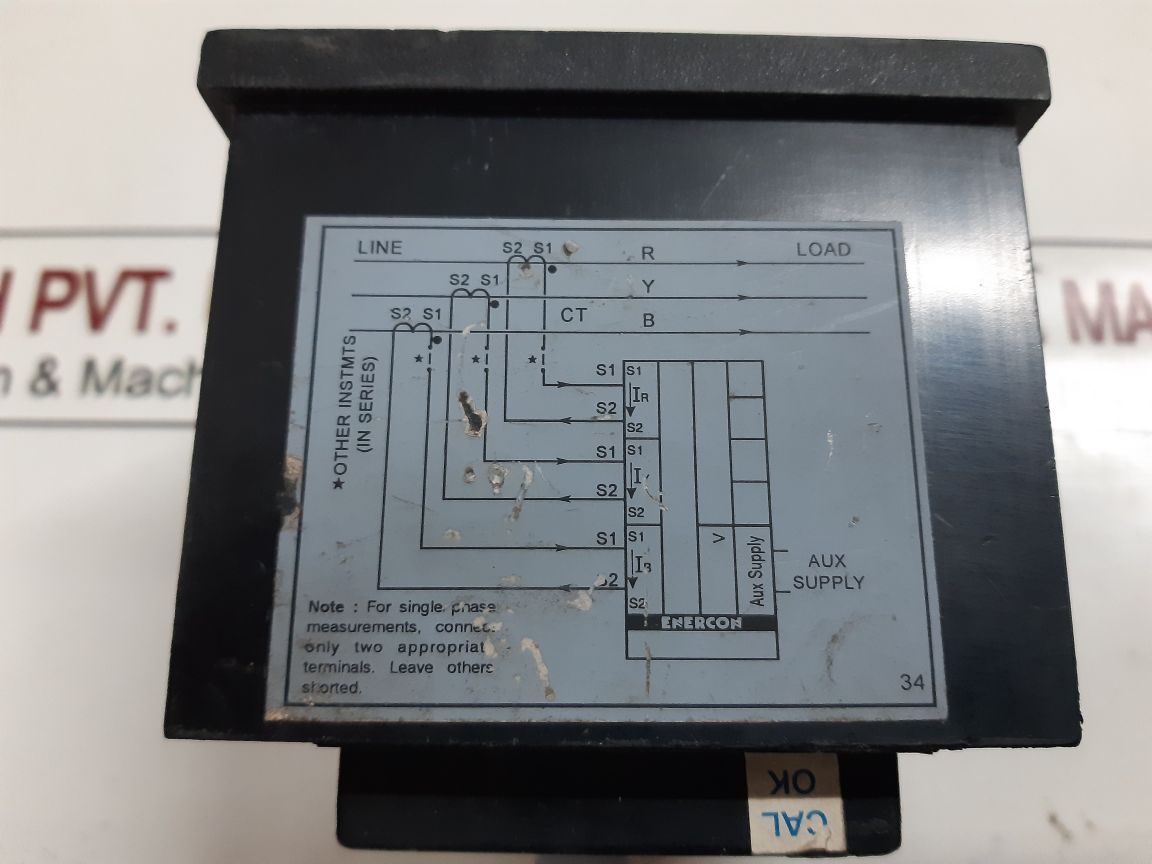

- Connect the meter to the appropriate current transformer (CT) with a 200/5A ratio.
- Supply the auxiliary power of 240V to the meter.
- Ensure the meter is correctly configured for the 50-60Hz frequency range.
- The digital display will provide real-time readings of the current flowing through the system.
- Monitor the readings to manage power usage and ensure safe operation.
Specifications/Features:
- Accurate measurement of current in 3-phase systems
- Wide frequency range (50-60Hz)
- Class 1 accuracy for precise readings
- Compact and lightweight design
- Easy-to-read digital panel display
- Suitable for industrial and commercial applications
Benefits:
- Ensures precise current measurement for efficient power management
- Versatile frequency range accommodates various electrical systems
- High accuracy provides confidence in measurement data
- Lightweight and compact design for easy installation
- Real-time digital display for quick and clear readings
- Suitable for a wide range of industrial and commercial applications, ensuring versatility and reliability.
