Emerson Delta Kj1501x1-bc2 Power Supply 24vdc

Emerson Delta Kj1501x1-bc2 Power Supply 24vdc
Emerson Process Management
Delta V
System Power Supply (Dc/dc)
Kj1501x1-bc2
Mt62035616
12p2186x042
Rev E

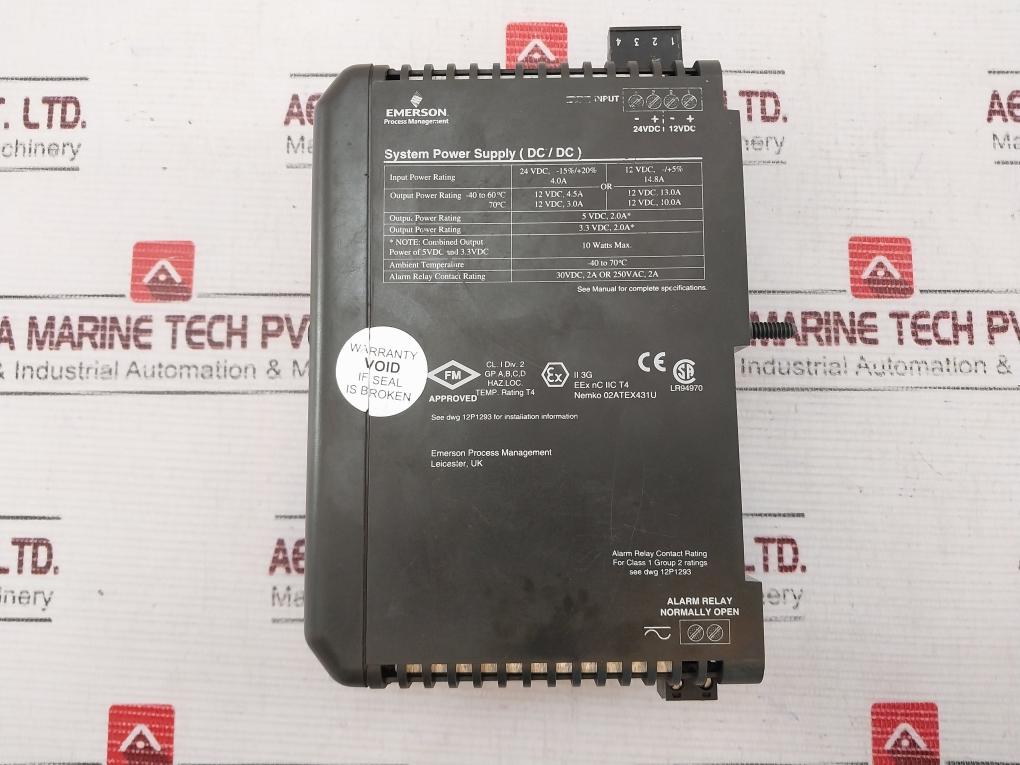

Input Power Rating: 24vdc, -15%/+20% 4.0a
12 Vdc, -/+5% 14.8a
Output Power Rating: -40 To 60°c 12vdc, 4.5a Or 12 Vdc, 13.0a
70°c 12 Vdc, 3.0a Or 12 Vdc, 10.0a
Output Power Rating: 5 Vdc, 2.0a*
Output Power Rating: 3.3 Vdc, 2.0a*
Combined Output Power Of 5vdc And 3.3vdc: 10 Watts Max.
Ambient Temperature: -40 To 70°c
Alarm Relay Contact Rating: 30vdc, 2a Or 250vac, 2a
Cl. I Div. 2 Gp. A, B, C, D
Temp. Rating T4
Ii 3 G
Eex Na Iic T4
Nemko 02atex31u
Made In U.s.a.
Weight : 660 Gm
Ref No : 117543
