Elcon µ Range D 412 2 Channel Isolating Contact Repeater 20-30 Vdc

Elcon µ Range D 412 2 Channel Isolating Contact Repeater 20-30 Vdc
Elcon Instruments Intrinsic Safety Specialist

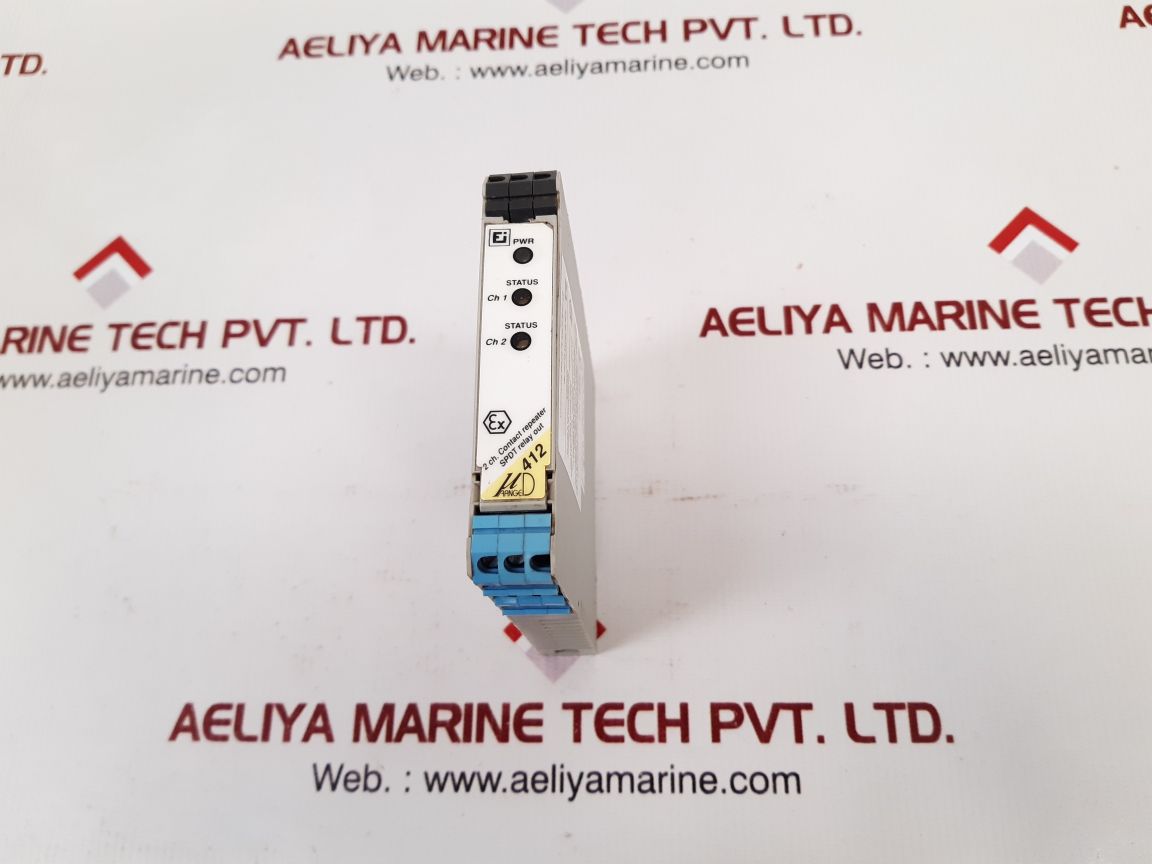

µ Range D 412
2 Channel Isolating Contact/Prox.Sensor Repeater-spdt Outputs
[Eex Ia] Iic Cesi Ex-95.D.025
Max Amb.Temp.:60°C 250 Um
Intrinsic Safety Output Data
Uo= 11V Io= 22Ma Po= 61Mw
20-30 Vdc
Input (Contact Or Proximity Sensor)
Output (2 Spdt Relay Contact)
Ac Max: 250 Vac/2A/100Va
Dc Max: 125 V/2A/50W
2 Ch. Contact Repeater Spdt Relay Out

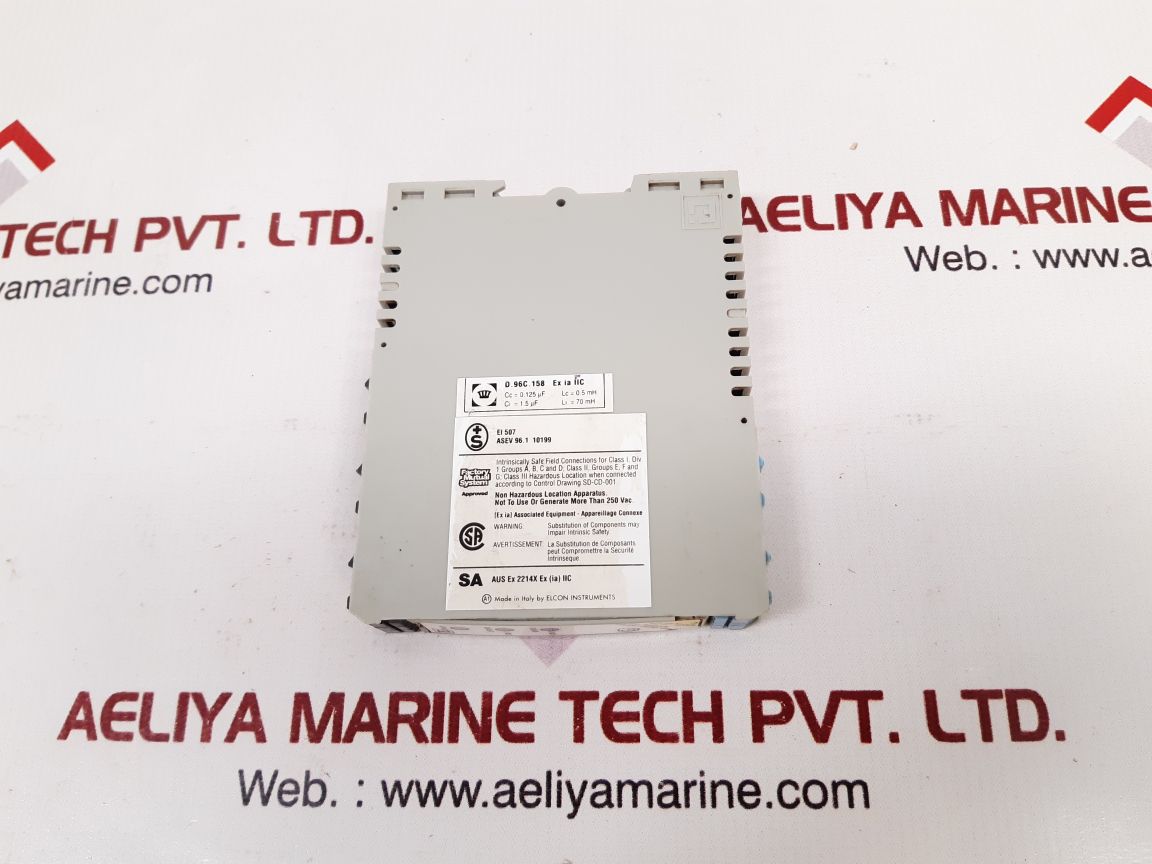

D.96C.158 Ex Ia Iic
Cc=0.125µF Lc= 0.5Mh
Ci=1.5µF Li=70Mh
Ei507 Asev 96.1 10199
Aus Ex 2214X Ex (Ia) Iic
Made In Italy
Weight: 130 Gm
