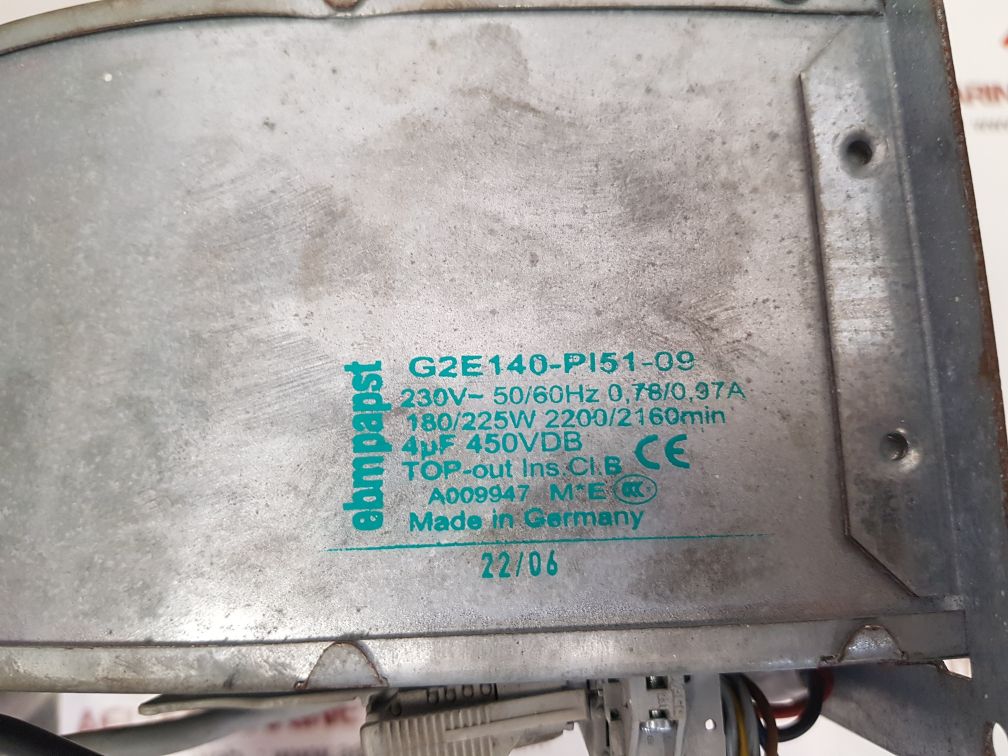

| Attribute | Value |
|---|---|
| Brand | Ebmpapst |
| Model | G2E140-pi51-09 |
| Voltage | 230V |
| Frequency | 50Hz / 60Hz |
| Current | 0.78A / 0.97A |
| Power | 180W / 225W |
| Speed | 2200 / 2160 min⁻¹ |
| Capacitor | 4µF 450VDB |
| Type | Top-out INS.CI.B |
| Code | A009947 M*E |

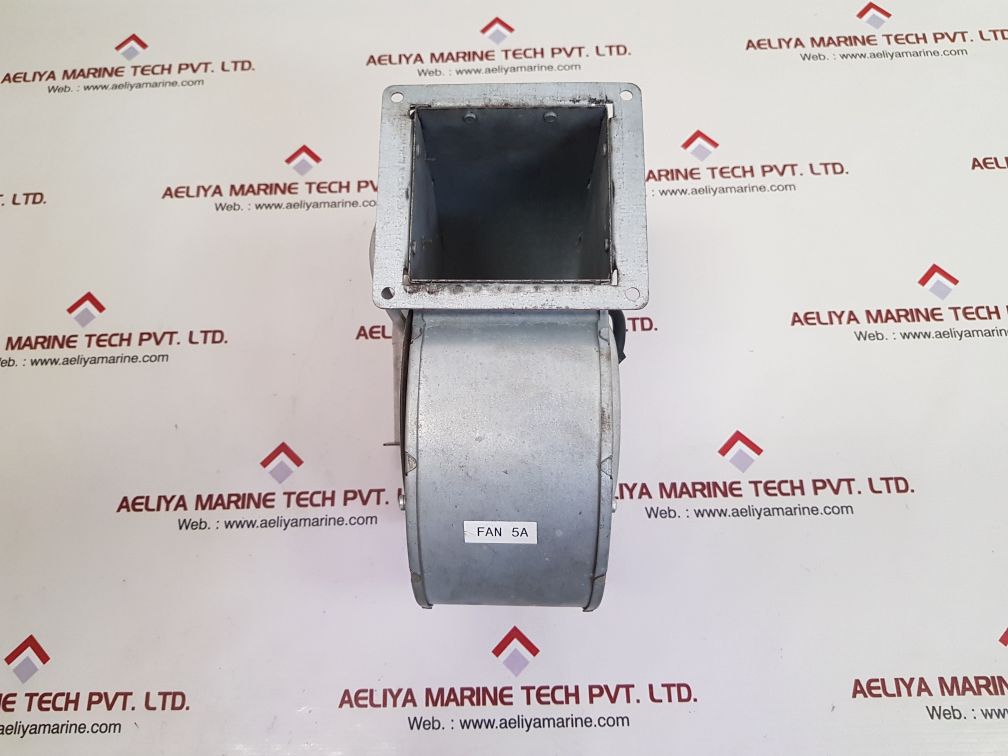

| Fan Rating | 5A |
| Country of Origin | Made in Germany |
| Weight | 3.485 kg |

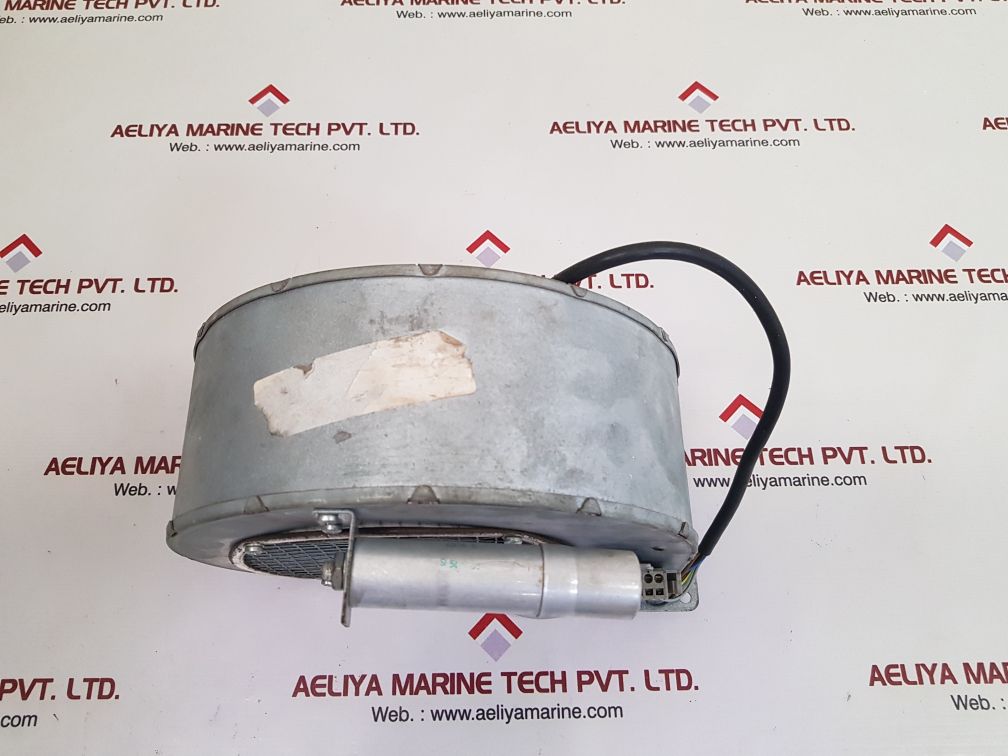

What Sets the G2E140-pi51-09 Apart?
The G2E140-pi51-09 is a forward-curved centrifugal fan with a big impact in a small package. Designed with German engineering, it balances robustness with sophisticated airflow technology. Here’s why it’s an industry favorite:
1. Designed for Performance
Running at 230V AC, the G2E140-pi51-09 has applications in 50Hz or 60Hz systems, ensuring flexibility regardless of where your project is located. This dual frequency capability makes it perfect for cross-border projects or variable frequency sites.
2. Forward-Curved Impeller Design
The forward-curved blade design is particularly efficient for displacing air with medium pressure and high volume and is therefore well-suited to ducted installation or applications where backpressure exists.
3. Compact, Yet Powerful
Oversized airflow despite having a very small footprint is one of its major strengths. Easy integration with congested locations is possible while never sacrificing its cooling efficiency.
4. Long Service Life
Ebmpapst technology has a long life, and so does this particular model. Its construction material is high class and includes durable, corrosion-free housing and dynamically balanced impellers to provide very smooth, quiet operation and also minimum maintenance.
Technical Specifications at a Glance
Model: G2E140-pi51-09
Voltage: 230V AC
Frequency: 50Hz / 60Hz
Motor Type: External rotor motor
Impeller Type: Forward-curved
Mounting: Panel mount or flange mount options
Typical Applications: HVAC systems, control cabinets, heat exchangers, ventilation units
Applications
This centrifugal fan is not meant for a single application. Its adaptability stands out in an extensive list of industries:
HVAC Systems: Ensure stable airflow and temperature management.
Industrial Control Panels: Avoid overheating of electrical components.
Clean Rooms & Laboratories: Maintain dust-free conditions with constant air circulation.
Refrigeration Units: Facilitate effective condenser or evaporator operation.
Data Centers: Cool servers and prolong their working life.
Why Choose Ebmpapst?
Ebmpapst has been a leading global fan and motor technology provider for decades. Their dedication to innovation, sustainability, and high-quality manufacturing ensures that every product—such as the G2E140-pi51-09—is designed to last for years. With energy-saving motors, low noise emissions, and space-saving dimensions, they provide solutions that fulfill the needs of today’s industry.
