| Attribute | Value |
|---|---|
| Manufacturer | Detcon Inc. |
| Location | Houston, Texas |
| Model | FP-624D |
| Product Type | Microsafe™ LEL Gas Sensor |
| Part Number 1 | 440-005094-012 |
| Part Number 2 | R004 |
| DR | 1 |
| 94V-0 | Certified |
| Expiration Date | 08/12 |
| Part Number 3 | 500-005094-012 |
| Revision | Rev003 |
| 10WCH MO | Yes |
| 10.26L MO | Yes |
| 10WU3 BR | Yes |
| PE1150-114 | Yes |
| Part Number 4 | 5094-01FP-0908L |
| Serial Number | E189010 |
| Weight | 120 gm |

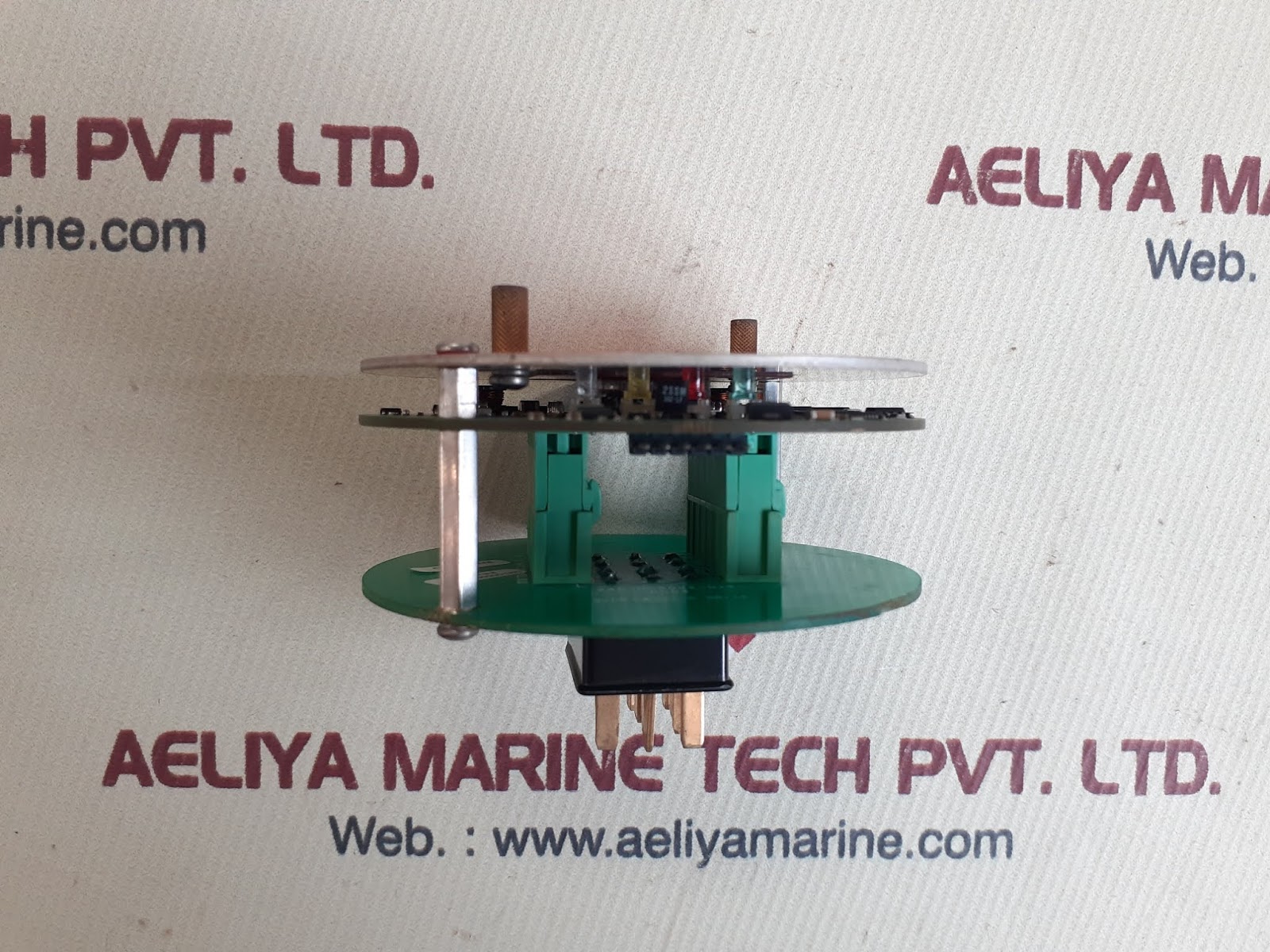

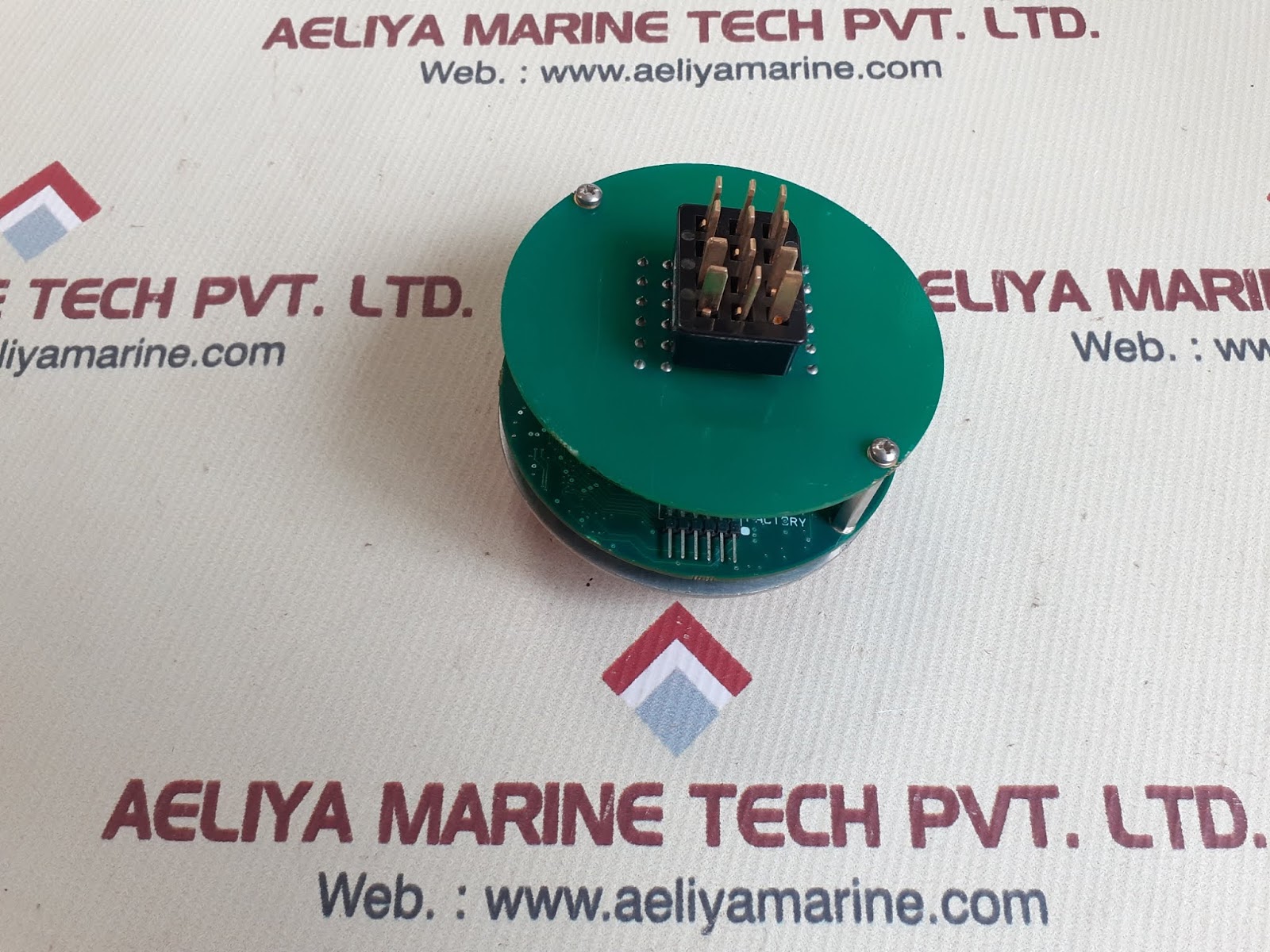

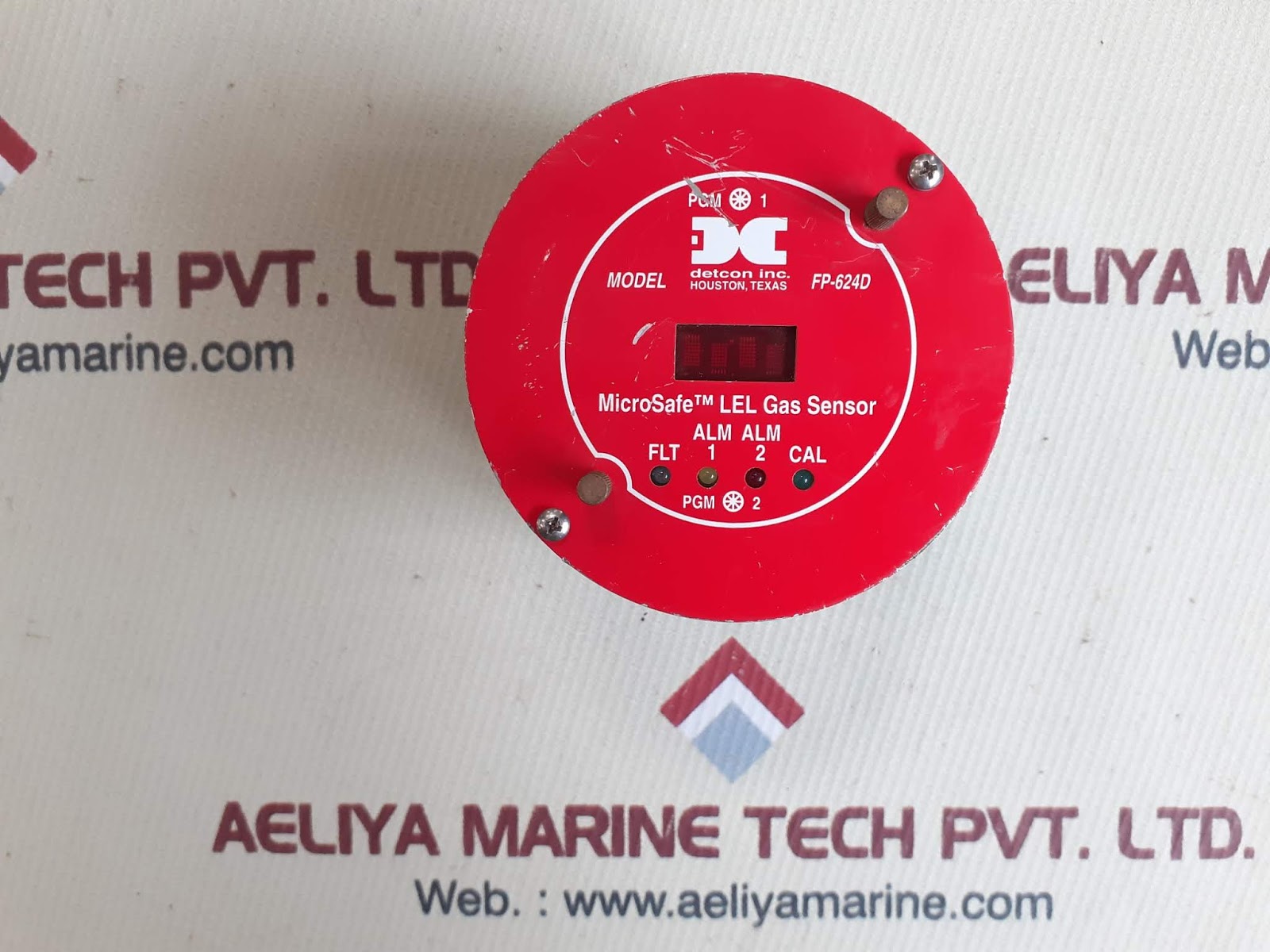

What is the Detcon FP-624D Microsafe LEL Gas Sensor?
The Detcon FP-624D provides an accurate Low Explosive Limit (LEL) gas sensor that is used to identify and monitor combustible gas levels within the environment. It is a member of the Detcon Microsafe series, recognized by high reliability, low maintenance, and long sensor life. The sensor employs an innovative catalytic bead technology, which allows for real-time detection of flammable gases like methane, propane, hydrogen, and others.
The Microsafe platform supports easy calibration, diagnostics, and data recovery, saving time and effort that would otherwise be needed for configuration and maintenance.
Features
Catalytic Bead Sensor Technology
Leverages proven catalytic bead technology for precise LEL gas measurement.
Smart Plug-In Sensor
Modular plug-in configuration enables easy sensor replacement without any tools.
Built-In Signal Processing
Microprocessor built into the unit manages sensor diagnostics, calibration information, and temperature compensation.
Non-Intrusive Calibration
Facilitates field calibration with a magnet without having to open the housing.
Corrosion Resistant Enclosure
For extreme environments; best suited for marine and offshore applications.
Extended Sensor Life
Large operating life over conventional sensors because of rugged sensor materials.
Fail-Safe Operation
Fault diagnosis and failure mode detection to provide sensor accuracy and reliability.
CSA/ATEX/IECEx Certified
Ideal for hazardous locations and according to international safety codes.
Applications
The FP-624D is designed for both industrial and marine applications, where detection of flammable gases is essential for safe operation. Typical uses are:
Oil & Gas Platforms
Inhibits possible gas leaks before they pose a significant risk.
Chemical Processing Plants
Tracks combustible gas levels during storage and production.
Marine Engine Rooms & Cargo Holds
Avails explosion prevention of flammable gases in confined spaces.
Power Generation Facilities
Guarantees safe working conditions through continuous monitoring for gas leaks.
Wastewater Treatment Plants
Discerns flammable gases such as methane that results from decomposition.
Fuel Terminal Storage
Serves as a preventive device in tank farms and fueling systems.
Why Use Detcon FP-624D Microsafe LEL Gas Sensor?
Selecting the Detcon FP-624D is investing in better safety, reliability, and performance. This Microsafe sensor is different from conventional LEL sensors with its sophisticated self-diagnostics, simplicity in maintenance, and extended lifespan.
It’s especially well-suited for remote or hard-to-reach areas where maintenance access is problematic. Its explosion-proof case, intelligent configuration flexibility, and modular sensor cartridge have it well-suited to large-scale safety applications.
When your operation can’t tolerate downtime or safety compromise, Detcon FP-624D provides peace of mind. Its accuracy, durability, and compliance make it a choice among the energy, marine, and manufacturing sectors.
