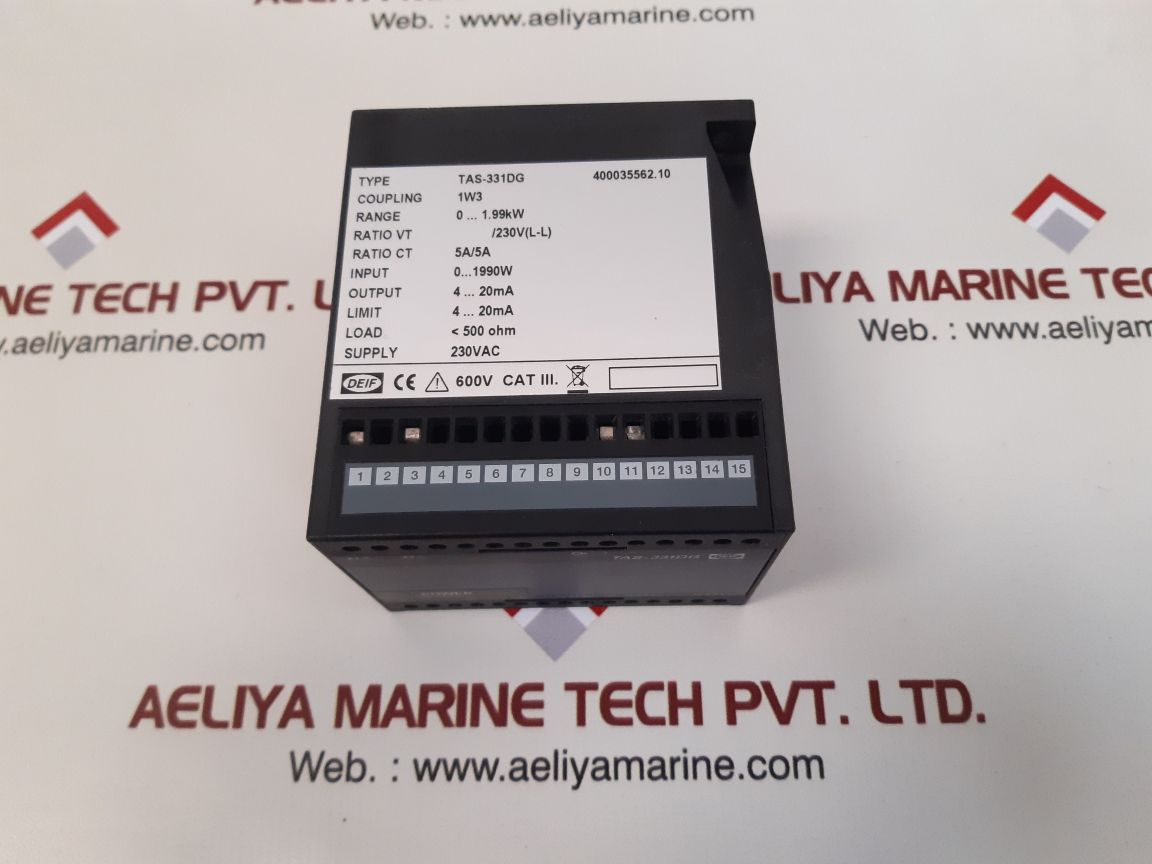

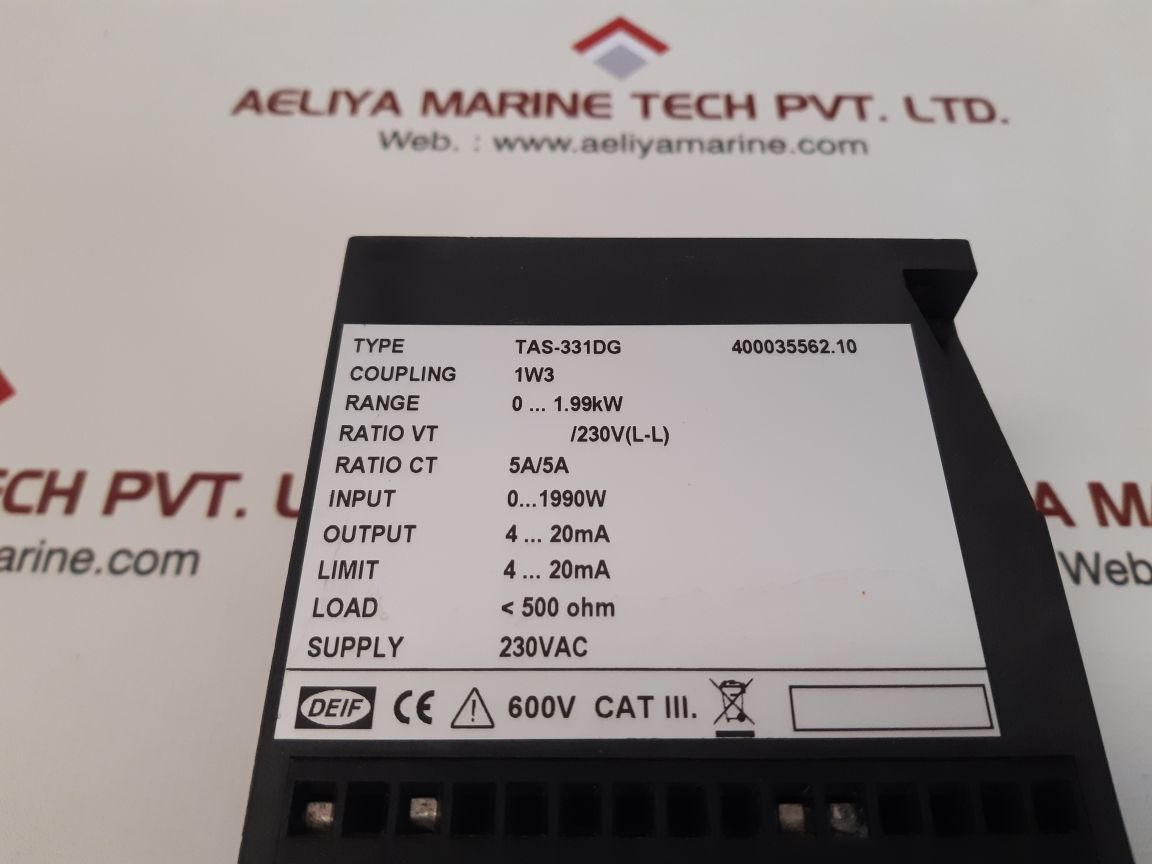

| Attribute | Value |
|---|---|
| Brand | DEIF |
| Type | TAS-331DG |
| Part Number | 400035562.10 |
| Coupling | 1W3 |
| Range | 0…1.99kW |
| Voltage Ratio (VT) | /230V (L-L) |
| Current Ratio (CT) | 5A/5A |
| Input | 0…1990W |
| Output (Limit) | 4…20mA |
| Load | Less than 500 Ohm |
| Supply | 230VAC |
| Insulation Category | 600V CAT III |
| Code 1 | 654717.0001 |
| Code 2 | 2032410002.G |
| Code 3 | 100023596.00098 |
| Weight | 660 gm |

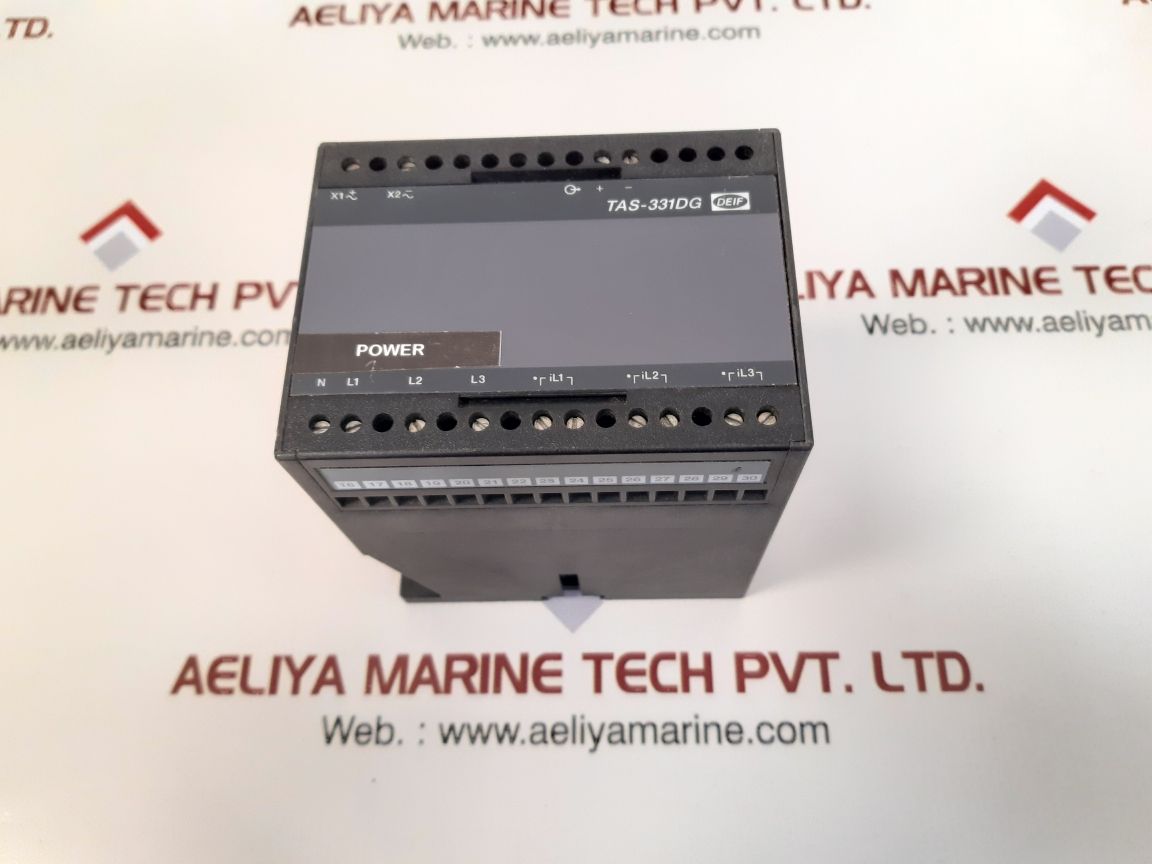

What is the Deif TAS-331DG Selectable Transducer?
The Deif TAS-331DG Selectable Transducer (400035562.10) is a rugged and highly versatile electrical measuring device capable of converting electrical parameters like AC voltage, current, or power into a proportional DC output signal. Recognized for accuracy and versatility, this transducer is suitable for use in marine, industrial, and automation applications.
Made by Deif, a worldwide leader in power management and measurement, the TAS-331DG stands out particularly for its switch-selectable configuration that fits different system configurations without recalibration.
Features of Deif TAS-331DG
These are the features that set the TAS-331DG apart as a better choice:
Selectable Ranges: Convenient front-face selection by switches for various input/output ranges (voltage, current, etc.).
High Precision: Provides precise, accurate measurements in extreme marine or industrial environments.
Compact DIN Rail Mount: Reduced space installation ideal for panel mounting.
Galvanic Isolation: Isolation of the input, output, and power supply electrically improves safety.
LED Indicators: Easy indication of the operational condition and fault detection.
Robust Build Quality: Withstands vibration, humidity, and temperature changes.
Dual Outputs: Convenient support for 0–20 mA, 4–20 mA, or 0–10 VDC signal outputs.
CE Approved: Conforms to global electrical and safety standards.
Applications
The TAS-331DG finds extensive applications in industries that require real-time electrical measurement and signal conversion. Typical applications are:
Marine Electrical Systems
- Power management on ships
- Generator voltage/current monitoring
- Alarm and control signal conversion
Industrial Automation
- Energy usage monitoring in control panels
- PLC signal conditioning and scaling
- Load management in factory equipment
Power Plants & Substations
- Grid synchronization
- Distributed energy measurement and control
- Fault detection and predictive maintenance
OEM and System Integrators
- Integrated into control systems for trustworthy feedback
- Adaptable I/O settings for individualized operations
