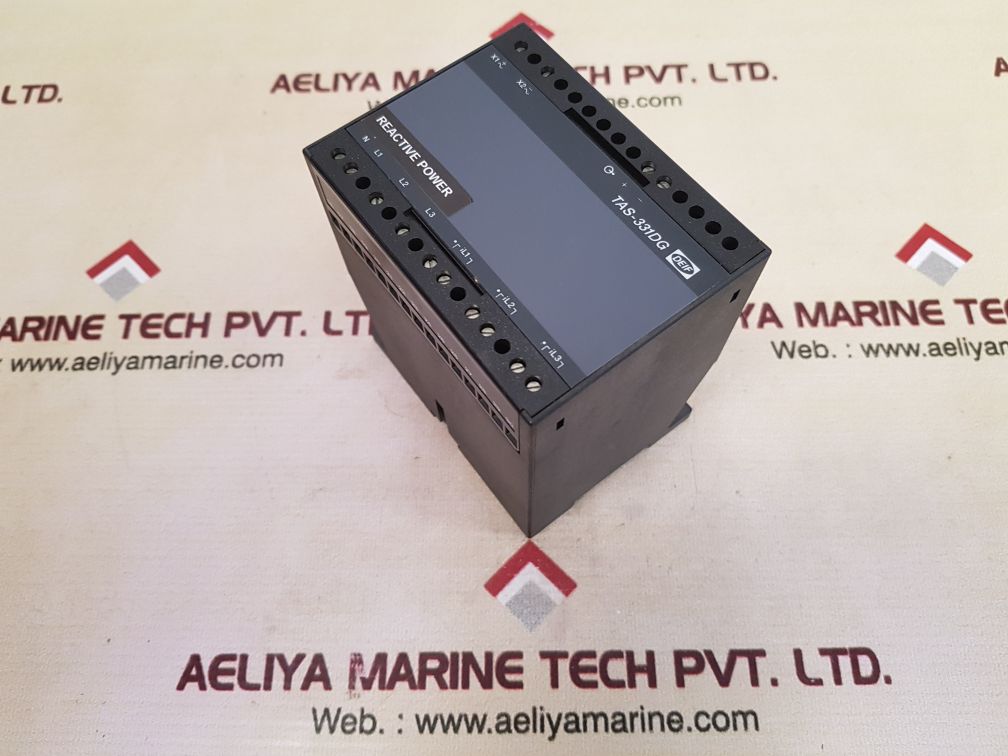

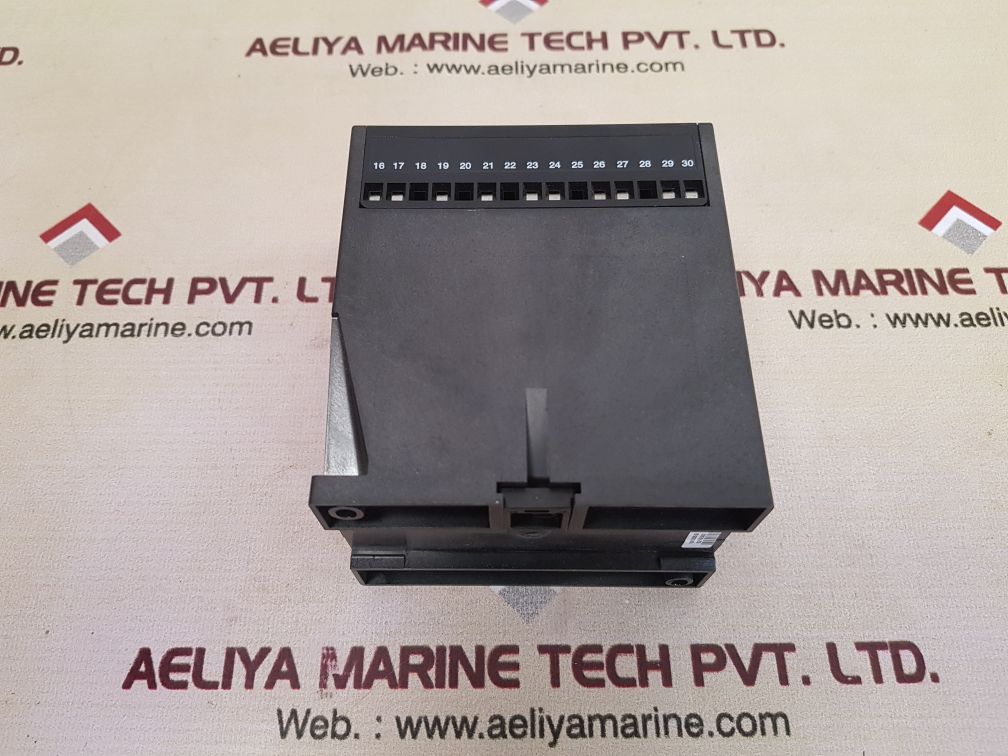

Deif Tas-331Dg Selectable Transducer 100136589.20

Deif Tas-331Dg Selectable Transducer 100136589.20
deif

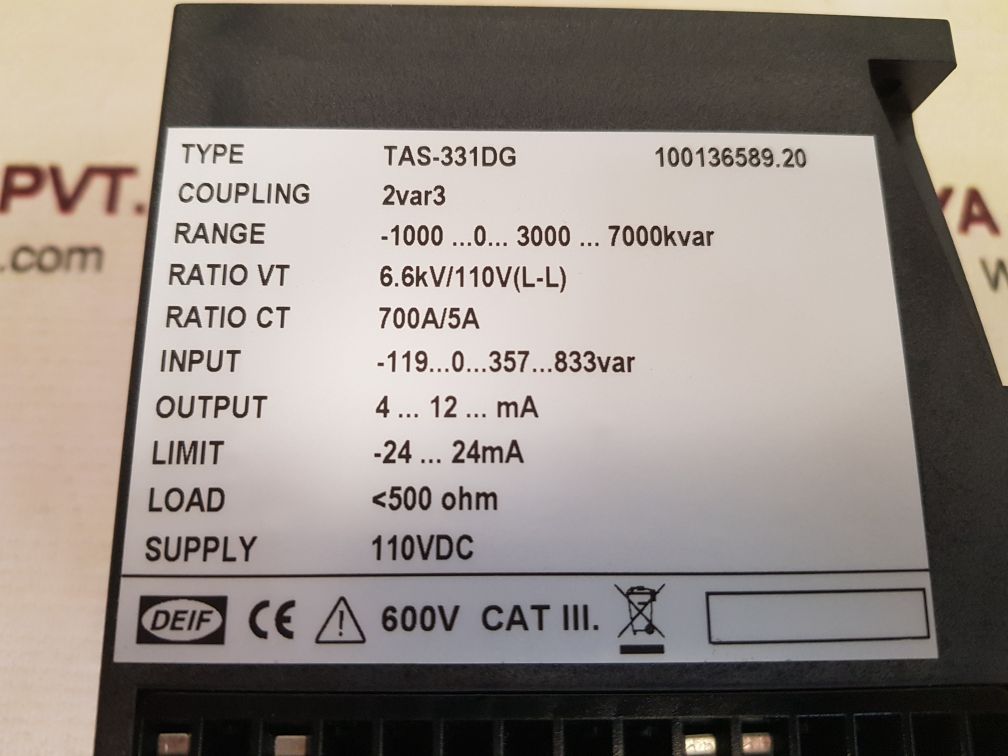

type: tas-331dg
reactive power
100136589.20
coupling: 2var3
measuring range: -1000…0…3000…7000kvar
ratio vt: 6.6kv / 110v (l-l)
ratio ct: 700a/5a
input:
-119…0…357…833 var
output: 4…12…ma
limit -24…24ma
load: less than 500 ohm
supply/auxiliary voltage: 110vdc
600v cat iii.

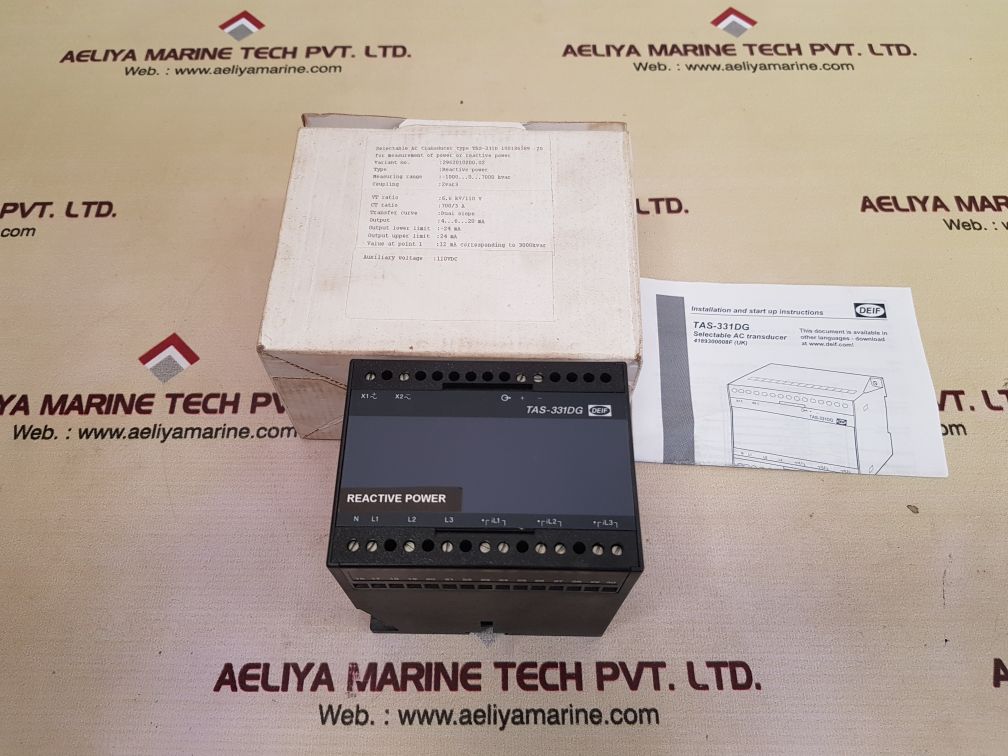

selectable ac transducer type tas-331d 100136589 20
for measurement of power or reactive power
variant no: 2962010200.02
type: reactive power
transfer curve: dual slope
output: 4…6…20 ma
output lower limit: -24 ma
output upper limit: 24 ma
value at point 1: 12 ma corresponding to 3000kvar
832142.0003

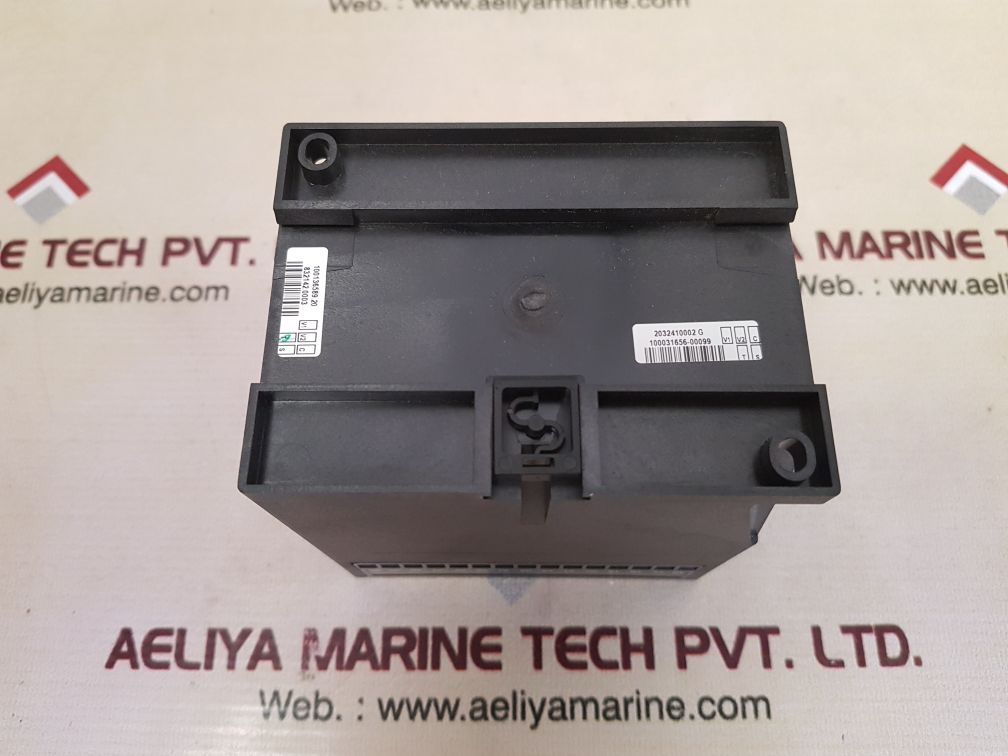

2032410002 g
100031656-00099
4189300008f
uk
weight: 600 gm
