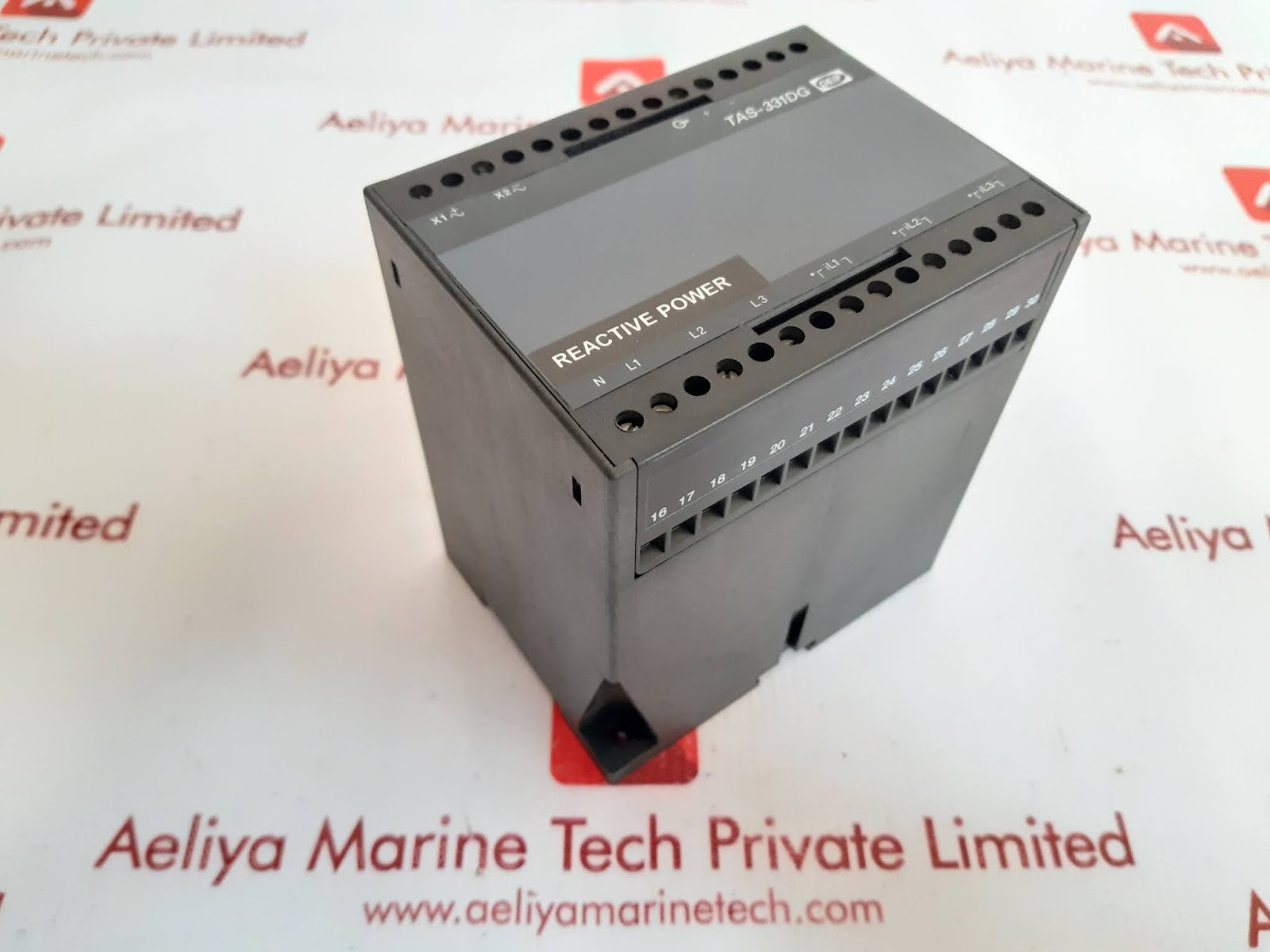

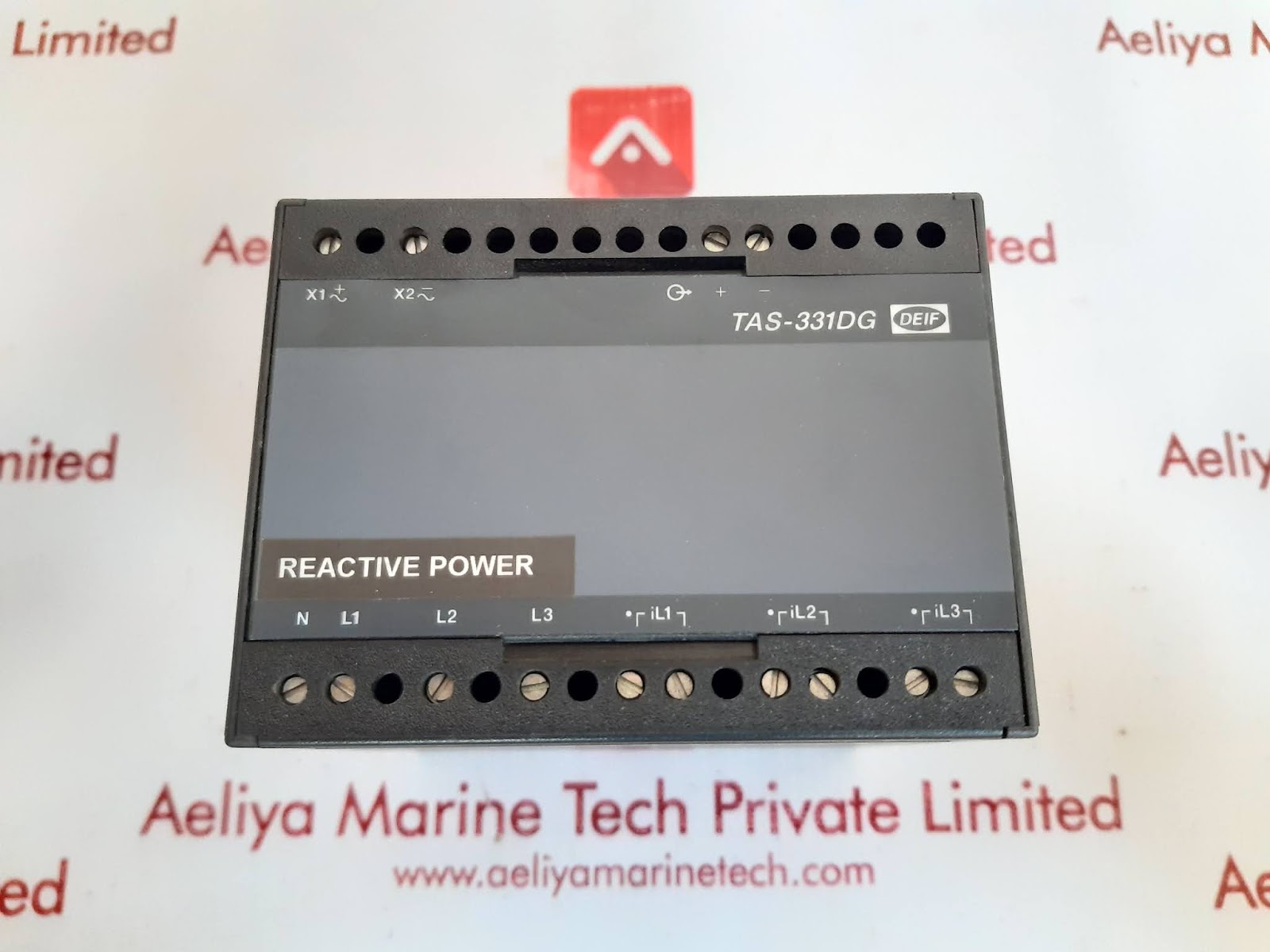

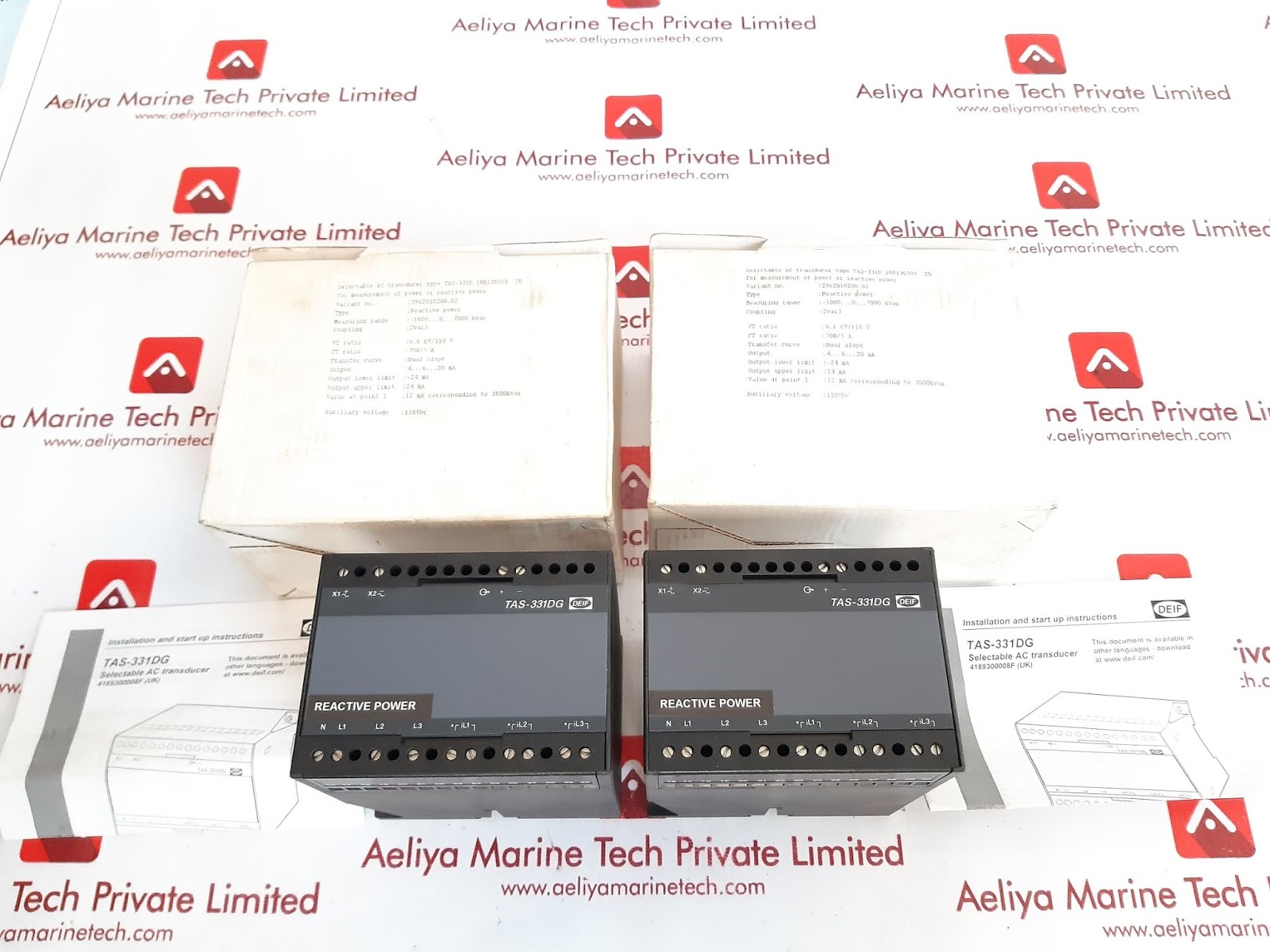

DEIF TAS-331DG SELECTABLE AC TRANSDUCER

Deif tas-331dg 100136589.20 selectable ac transducer
deif
type tas-331dg
100136589.20
coupling: 2var3
range: -1000….0…3000…7000kvar
ratio vt : 6.6kv/110v(l-l)
ratio ct: 700a/5a
input: -119…0…357…833 var
output: 4…12..ma
limit: -24…24ma
load: less than 500 ohm
supply 110vdc
600v cat iii.
8321420001
2032410002g
100031656-00100
selectable ac transducer
type: tas-331d 100136589 20
for measurement of power or reactive power
type: reactive power
transfer curve: dual slope
output: 4…6…20ma
output lower limit: -24 ma
output upper limit: 24 ma
value at point 1: 12 ma corresponding to 3000kvar
auxiliary voltage: 110vdc
4189300008f
uk
weight: 590 gm
