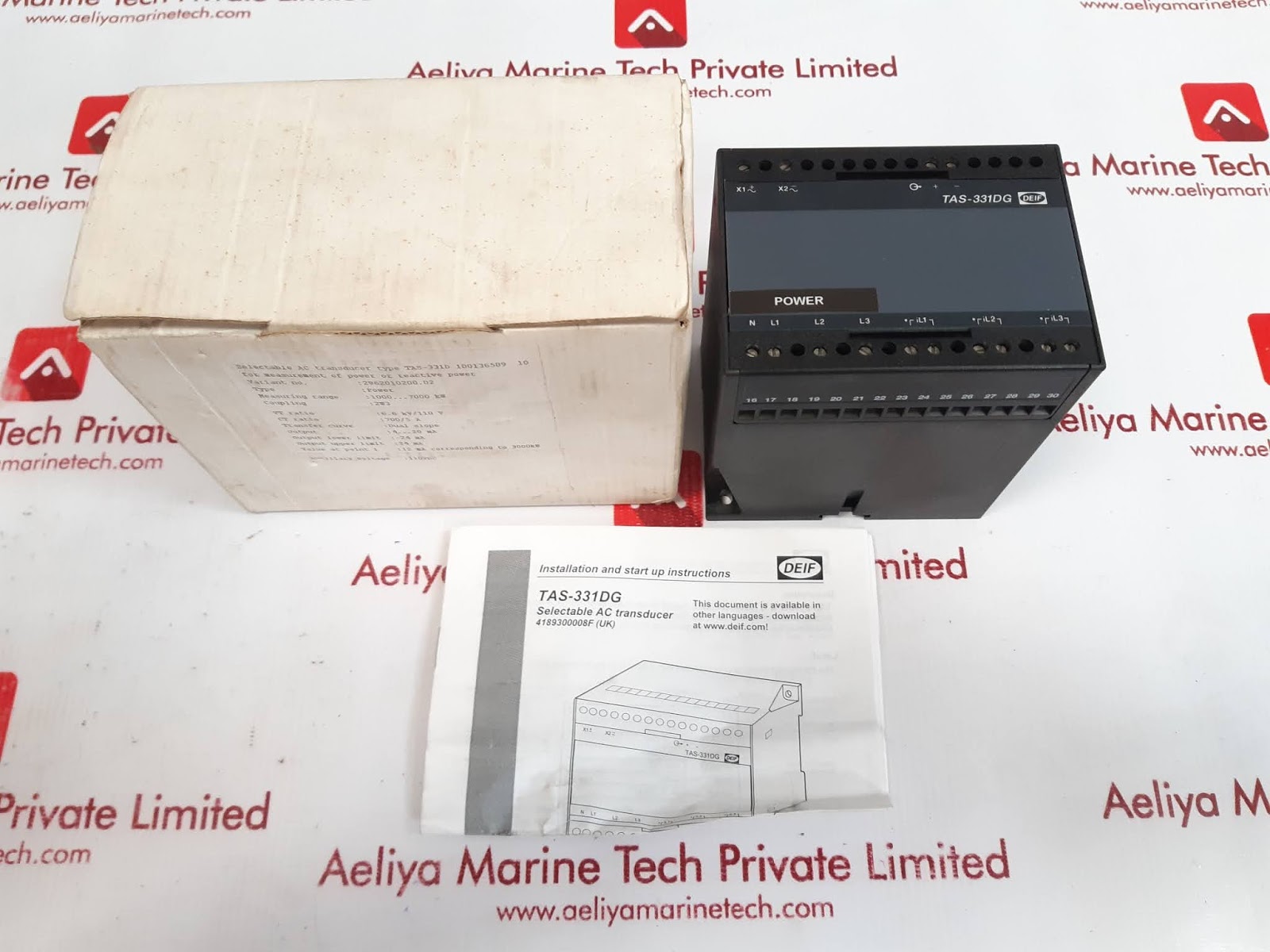

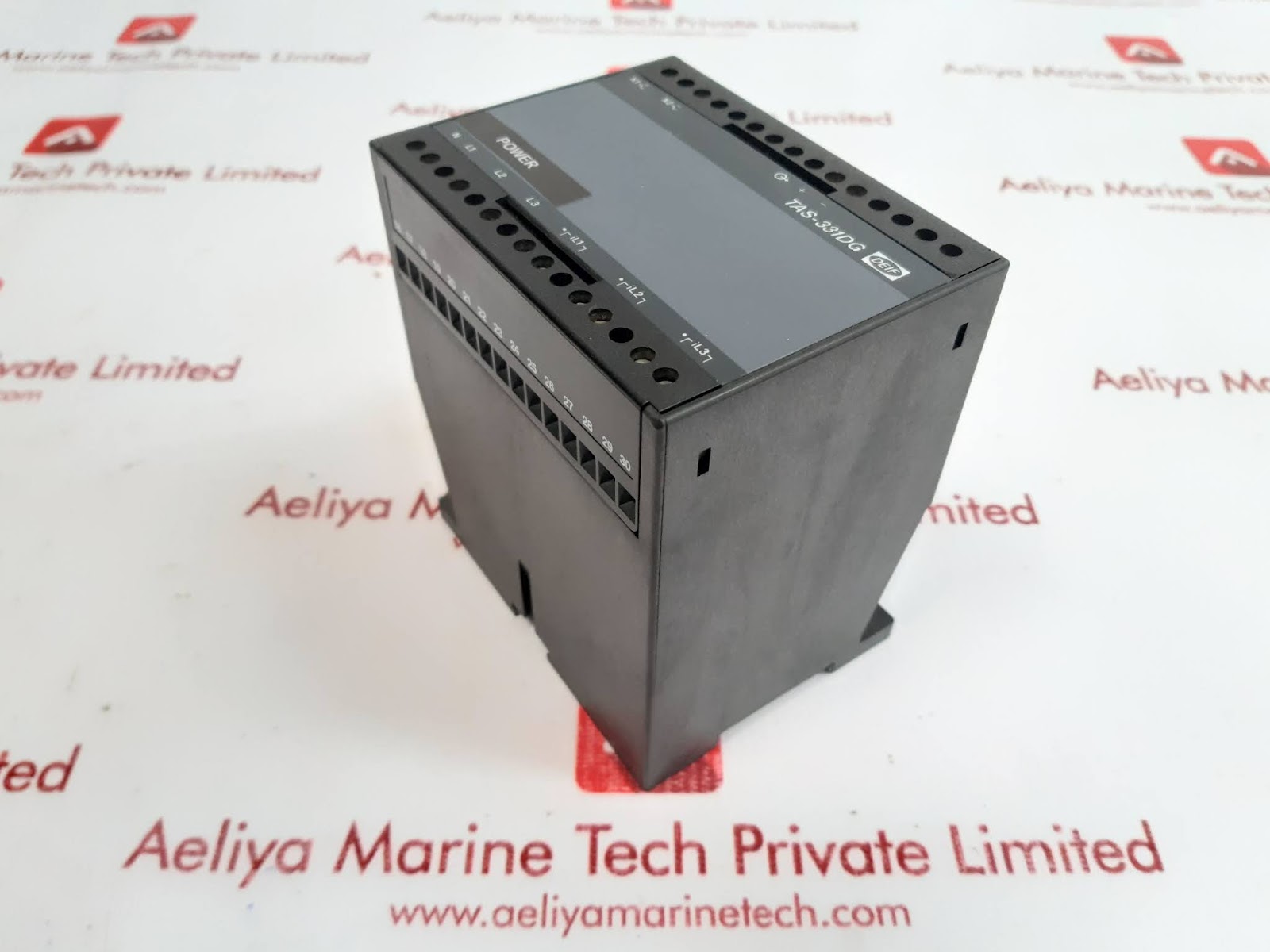

DEIF TAS-331DG SELECTABLE AC TRANSDUCER

Deif tas-331dg  100136589.10 selectable transducer
deif
type: tas-331dg 100136589.10
coupling: 2w3
range: 1000…3000…7000kw
ratio vt: 6.6kv/110v(l-l)
ratio ct: 700a/5a
input: 119…357…833w
output: 4…12…ma
limit: -24…24ma
load: less than 500 ohm
supply: 110vdc
600v cat iii.
2032410002 g
100031656-00117
832141.0004
selectable ac transducer
type: tas-331d 100136589 10
for measurement of power or reactive power
type: power
transfer curve: dual slope
output: 4……20ma
output lower limit: -24 ma
output upper limit: 24 ma
value at point 1: 12 ma corresponding to 3000kw
auxiliary voltage: 110vdc
4189300008f
uk
weight: 590 gm
